K1 3-Way Outdoor Line Array Sound Speaker
| Price: |
US $ 1500-1550/Piece |
| Min Order: |
8/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
K1 Double 15 Inch 3 Way Line Array :| Rated Power | LF:900W AES,1800W Peak
MF : 400W AES, 800 Peak
HF:120W AES,240W Peak |
| Components | LF : 2x15"
MF : 4x6.5"
HF : 3x3" |
| Nominal impedance | 8Ω |
Frequency Response
(-5dB) | 37Hz-19kHz |
| Sensitivity(1W/1M) | 128dB |
| MAX SPL | 136dB |
| Dimension | 1342mm X 520mm X 438mm |
| Weight(KG) | 105 KG |

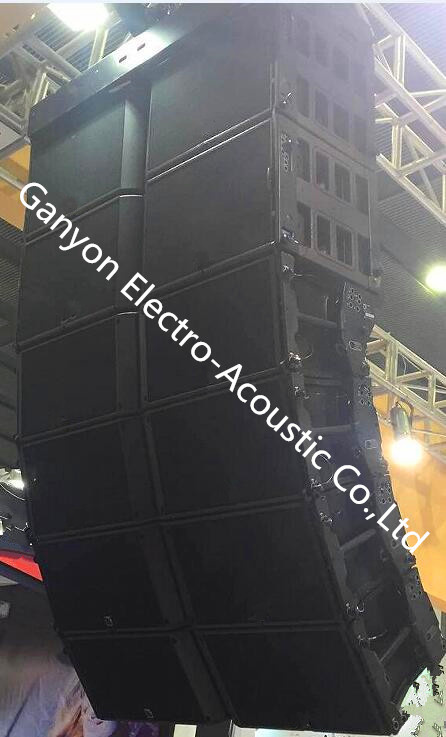

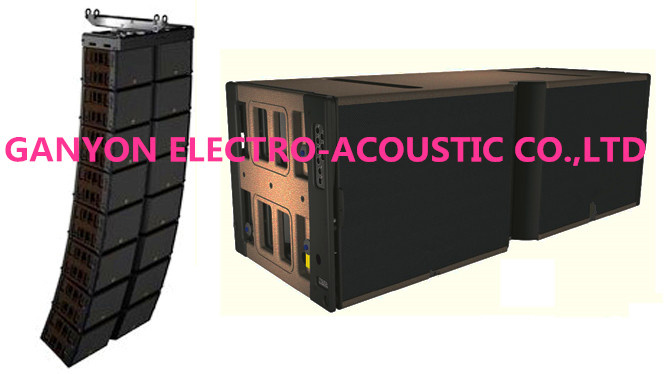

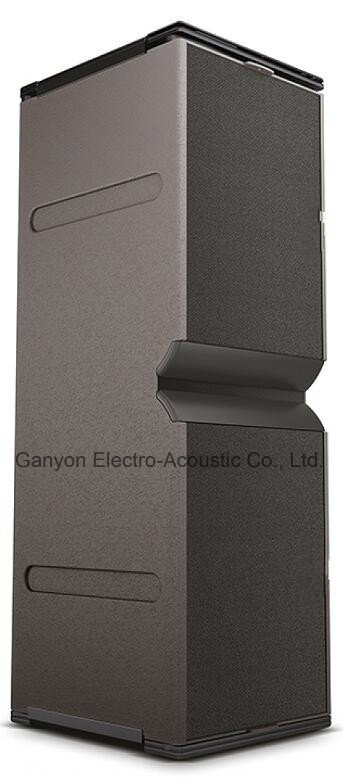

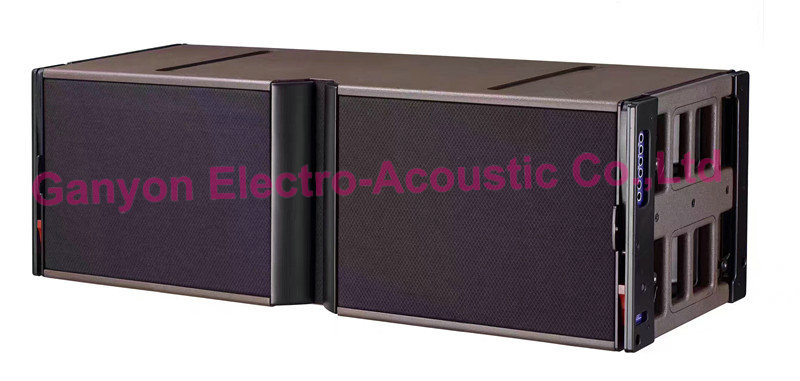

K1 line array DESCRIPTION
The system shall consist of a 3-way active enclosure using the Wavefront Sculpture
Technology, driven and protected by a dedicated amplified controller.
The enclosure shall feature two direct radiating 15inch LF transducers each mounted
in a bass-reflex enclosure, four direct radiating 6.5inch MF transducers and three
3 inch diaphragm compression HF drivers coupled to individual DOSC waveguides.
K1 is the benchmark for sound at global stadium tours and the world's most
renowned outdoor festivals. K1 has no equal in SPL per meter and, coupled with
the K1-SB, offers an unprecedented level of directivity control, making it the
leader for solving noise pollution and throw issues in outdoor settings. With
proprietary, state-of-the-art rigging, the K1 is the go-to choice for precise
deployment and lightning fast load-in and load-out.
Large format WST Line Source-FEATURE
1. Exceptional SPL, LF and throw capability for stadium and outdoor festivals
2. Transducer configuration for smooth horizontal radiation pattern
3. State of the art rigging system for laser-like accuracy and quick set-up
K1 line array APPLICATIONS
1. Indoor large stadium
2. Multi-function hall
3. Music concert indoor and outdoor
4. Large-scale outdoor activityK1 line array INSTALLING METHODS
1. Flying in air
2. Stacking on ground
Payment methods1.T/T;2.Western Union;3.Money Gram;4.Cash.Transportation methods1. By air to airport;2. By sea to seaport;3. By courier door to door, DHL, TNT, FEDEX, UPS, EMS etc. Our service:Pre-sale ServiceA. Quality is our company's culture.B. Reasonable price and reliable service.C. Rich experience of design, manufacture and sell Pro-audio, Speakers, amplifiers Middle-sale ServiceA. Checking the most suitable shipping ways for customers.B. Testing quality again before sending goods.C. Sending the tracking number/bill of loading, and update the situations of the goods till customers receive the goodsAfter-sale serviceA. We are very glad that customer give us some suggestion for price and products.B. If you have any question, please contact with us freely by E-mail or Telephone.
| Prod Model: |
K1 |
| Usage: |
Indoor Large Stadium |
| Lf: |
2X15" |
| Mf: |
4X6.5" |
| Hf: |
3X3" |
| Noise: |
<102dB |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Speaker Material: |
Wood |
| Application: |
Outdoor |
| Certification: |
RoHS |
| THD: |
0.005%-0.01% |
| Monitor: |
No LED |
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
Founded in 2002, we specialized in the manufacturer of high performance professional loudspeakers. In addition to designing and distributing components under the Ganyon brand name, we also supply OEM components to most of the top professional audio brands in the market today.
With more than 65 employees (5% of which are engaged in our Research and Development department), Ganyon Speakers designs, produces and trades all of its products directly from its head office, located in Guangzhou city, Panyu district.

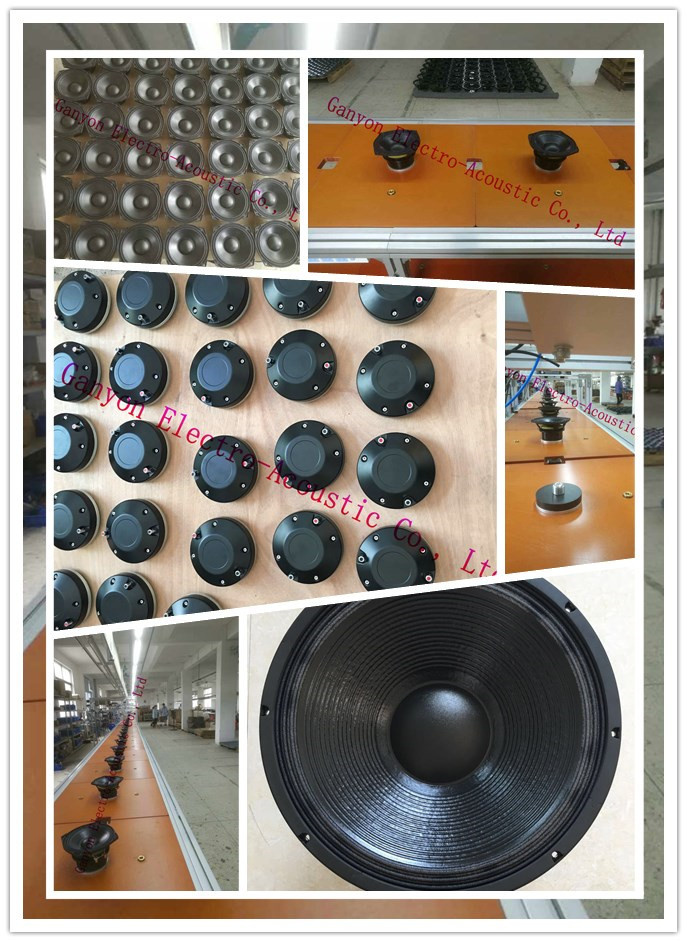

Ganyon Speakers primary line consists of high frequency drivers, coaxial components and cone drivers. We have made a strong commitment to provide a well-balanced line of Low Frequency drivers that range from 6" to 21", as well as a very complete line of High Frequency drivers. We have made refinements in areas such as high frequency diaphragm technology, cone geometry, magnet assemblies, chassis design and much more, to create a dynamic and powerful line-up of components.
Our engineers have optimized each design with fine software to ensure each design operates to its fullest potential time and time again. From nightclubs, to stadiums, to concert halls around the world, our speakers are chosen based on their reliability, consistency and most of all for their outstanding sound quality.
Our Quality Control Department inspects 100% of products.
As for the productions, an automatic check is conducted on Frequency response, Impedance curve, rub & buzz, polarity and T-S parameter of each speaker.
