John Crane 58u/59u PTFE Wedge Mechanical Seal for Water Pump
| Price: |
US $ 1/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |

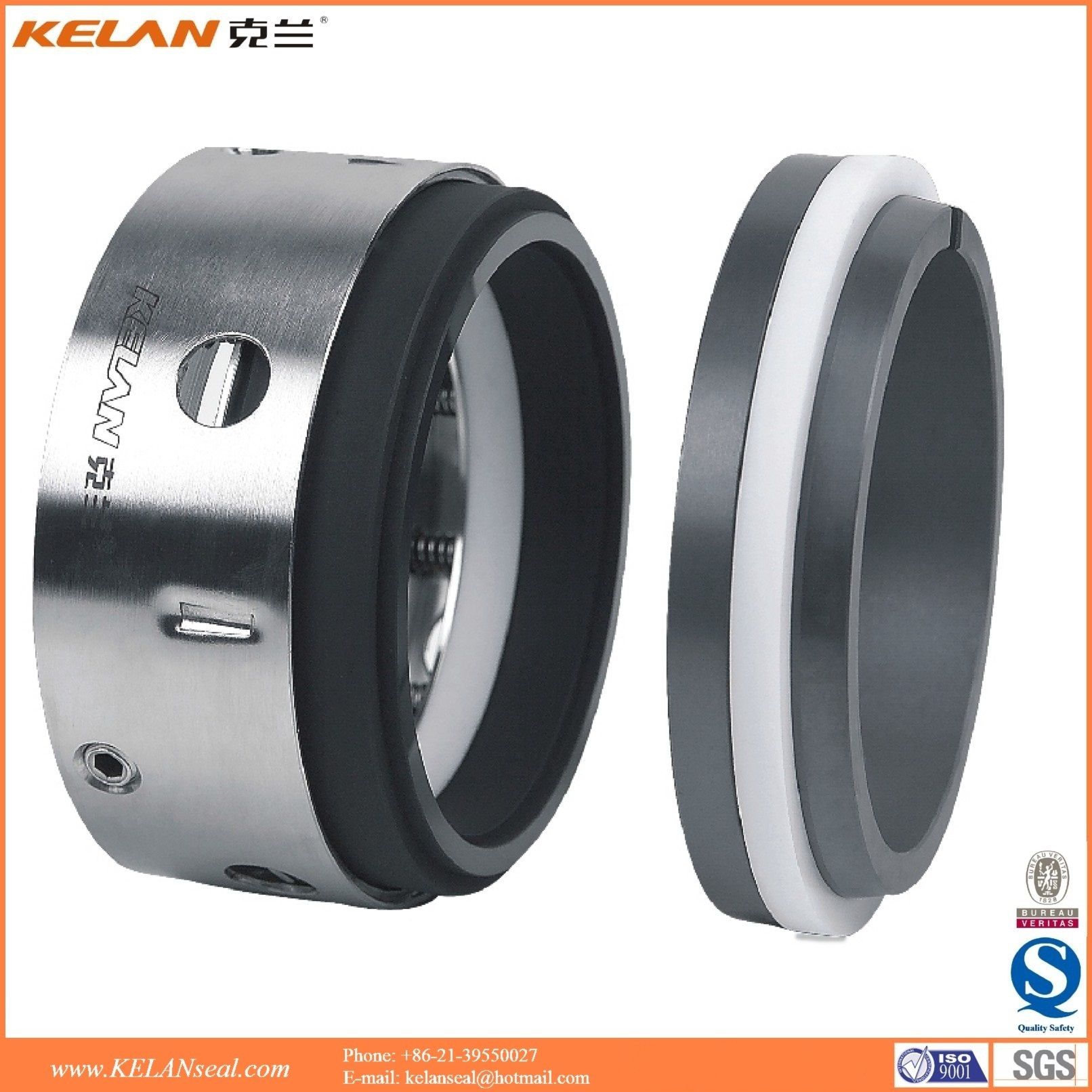

58u/59u Mechanical seal
Operating limitsTemperture in the sealed chamber:-50~+200ºCPressure in the sealed chamber:≤1.7MpaLinear speed:≤25m/sMediums to be sealed:water,oil,acid,alkali etc.moderate corrosive and below mediumMaterials:Stationary ring: Ceramic,Silicon CarbideRotary ring: Silicon CarbideSecondary seal: NBR,EPDM,Viton,PTFESpring and metal parts: SS304,SS316Application:-Corrosive environments-Chemical pumps-Steam joints-Food processing pumps-Process pumps in refineries-Cold and hot water pumps-Seals for agitators and mixers-Temperatures above 400 deg F-Cryogenic applications-Air Conditions-High Speed Turbine Compressors-Water turbines Packages & Shipping1. Package: 10PCS/CTN, carton size: 8X11X24cm2. Packing: Air bubble film for inner packing and carton box for outer packing.3. Shipping: By sea, by air, by Express(UPS/DHL/TNT/EMS/FedEx) | MODEL |
D |
D1 | D3 |
D4 |
D7 |
L |
L1 |
58U-14 |
14 |
24 | 21 |
25 |
2 |
23 |
12.0 |
58U-16 |
16 |
26 | 23 |
27 |
2 |
23 |
12.0 |
58U-18 |
18 |
32 | 27 |
33 |
3 |
24 |
13.5 |
58U-20 |
20 |
34 | 29 |
35 |
3 |
24 |
13.5 |
58U-22 |
22 |
36 | 31 |
37 |
3 |
24 |
13.5 |
58U-24 |
24 |
38 | 33 |
39 |
3 |
26.7 |
13.5 |
58U-25 |
25 |
39 | 34 |
40 |
3 |
27 |
13.0 |
58U-28 |
28 |
42 | 37 |
43 |
3 |
30 |
12.5 |
58U-30 |
30 |
44 | 39 |
45 |
3 |
30.5 |
12.0 |
58U-32 |
32 |
46 | 42 |
48 |
3 |
30.5 |
12.0 |
58U-33 |
33 |
47 | 42 |
48 |
3 |
30.5 |
12.0 |
58U-35 |
35 |
49 | 44 |
50 |
3 |
30.5 |
12.0 |
58U-38 |
38 |
54 | 49 |
56 |
4 |
32 |
13.0 |
58U-40 |
40 |
56 | 51 |
58 |
4 |
32 |
13.0 |
58U-43 |
43 |
59 | 54 |
61 |
4 |
32 |
13.0 |
58U-45 |
45 |
61 | 56 |
63 |
4 |
32 |
13.0 |
58U-48 | 48 | 64 | 59 | 66 | 4 | 32 | 13.0 |
| 58U-50 | 50 | 66 | 62 | 70 | 4 | 34 | 13.5 |
| 58U-53 | 53 | 69 | 65 | 73 | 4 | 34 | 13.5 |
| 58U-55 | 55 | 71 | 67 | 75 | 4 | 34 | 13.5 |
| 58U-58 | 58 | 78 | 70 | 78 | 4 | 39 | 13.5 |
| 58U-60 | 60 | 80 | 72 | 80 | 4 | 39 | 13.5 |
| 58U-63 | 63 | 83 | 75 | 83 | 4 | 39 | 13.5 |
| 58U-65 | 65 | 85 | 77 | 85 | 4 | 39 | 13.5 |
| 58U-68 | 68 | 88 | 81 | 90 | 4 | 39 | 13.5 |
| 58U-70 | 70 | 90 | 83 | 92 | 4 | 45.5 | 14.5 |
| 58U-75 | 75 | 95 | 88 | 97 | 4 | 45.5 | 14.5 |
| 58U-80 | 80 | 104 | 95 | 105 | 4 | 45 | 15.0 |
| 58U-85 | 85 | 109 | 100 | 110 | 4 | 45 | 15.0 |
| 58U-90 | 90 | 114 | 105 | 115 | 4 | 50 | 15.0 |
| 58U-95 | 95 | 119 | 110 | 120 | 4 | 50 | 15.0 |
| 58U-100 | 100 | 124 | 115 | 125 | 4 | 50 | 15.0 |
Applicable Range:
Pressure in the seal chamber: 0-1.5MPa
Temperature in the seal chamber: -30ºC------180ºC
Linear Velocity: ≤ 10m/s
Medium: water,polluted water,oil and minor corrosive liquid
Features:
Complies with DIN24960
Equivalent to John Crane type 59U seal
For plain shaft
Shaft diameter from 25mm to 100mm
Certificate: ISO9001
Qood quality and competitive price
Materials:
Rotating face: silicon carbide,graphite,tungsten carbide.
Stationary face: silicon carbide, tungsten carbide
Secondary seal: Viton,NBR,EPDM,PTFE,etc.
Spring and Metal parts:SS304,316,316L,HAST.C
Applications:
Chemical pump
Oil pump
water and waste water technology
Pulp and paper industry
Sugar industry
Industrial pump | Model(mm) | d | d1 | D | D1 | L | L1 | L2 | L3 | L4 |
| KL59U-25 | 25 | 39 | 40 | 34 | 46.5 | 40.0 | 20 | 5 | 27 |
| KL59U-30 | 30 | 44 | 45 | 39 | 49.0 | 42.5 | 19 | 5 | 30.5 |
| KL59U-35 | 35 | 49 | 50 | 44 | 49.0 | 42.5 | 19 | 5 | 30.5 |
| KL59U-40 | 40 | 56 | 58 | 51 | 51.5 | 45.0 | 20 | 5 | 32 |
| KL59U-45 | 45 | 61 | 63 | 56 | 51.5 | 45.0 | 20 | 5 | 32 |
| KL59U-50 | 50 | 66 | 70 | 62 | 54.0 | 47.5 | 20.5 | 6 | 34 |
| KL59U-55 | 55 | 71 | 75 | 67 | 54.0 | 47.5 | 20.5 | 6 | 34 |
| KL59U-60 | 60 | 80 | 80 | 72 | 59.0 | 52.5 | 20.5 | 6 | 39 |
| KL59U-65 | 65 | 85 | 85 | 77 | 59.0 | 52.5 | 20.5 | 6 | 39 |
| KL59U-70 | 70 | 90 | 92 | 83 | 66.5 | 60.0 | 21.5 | 6 | 45 |
| KL59U-75 | 75 | 95 | 97 | 88 | 66.5 | 60.0 | 21.5 | 6 | 45 |
| KL59U-80 | 80 | 104 | 105 | 95 | 66.5 | 60.0 | 22 | 6 | 45 |
| KL59U-85 | 85 | 109 | 110 | 100 | 66.5 | 60.0 | 22 | 6 | 45 |
| KL59U-90 | 90 | 114 | 115 | 105 | 71.5 | 65.0 | 22 | 6 | 50 |
| KL59U-95 | 95 | 119 | 120 | 110 | 71.5 | 65.0 | 22 | 6 | 50 |
| KL59U-100 | 100 | 124 | 125 | 115 | 71.5 | 65.0 | 22 | 6 | 50 |
Excellent Supplier of LIANCHENG GROUPRemark: LIANCHENG GROUP is a large-scale enterprise in pump industry.
