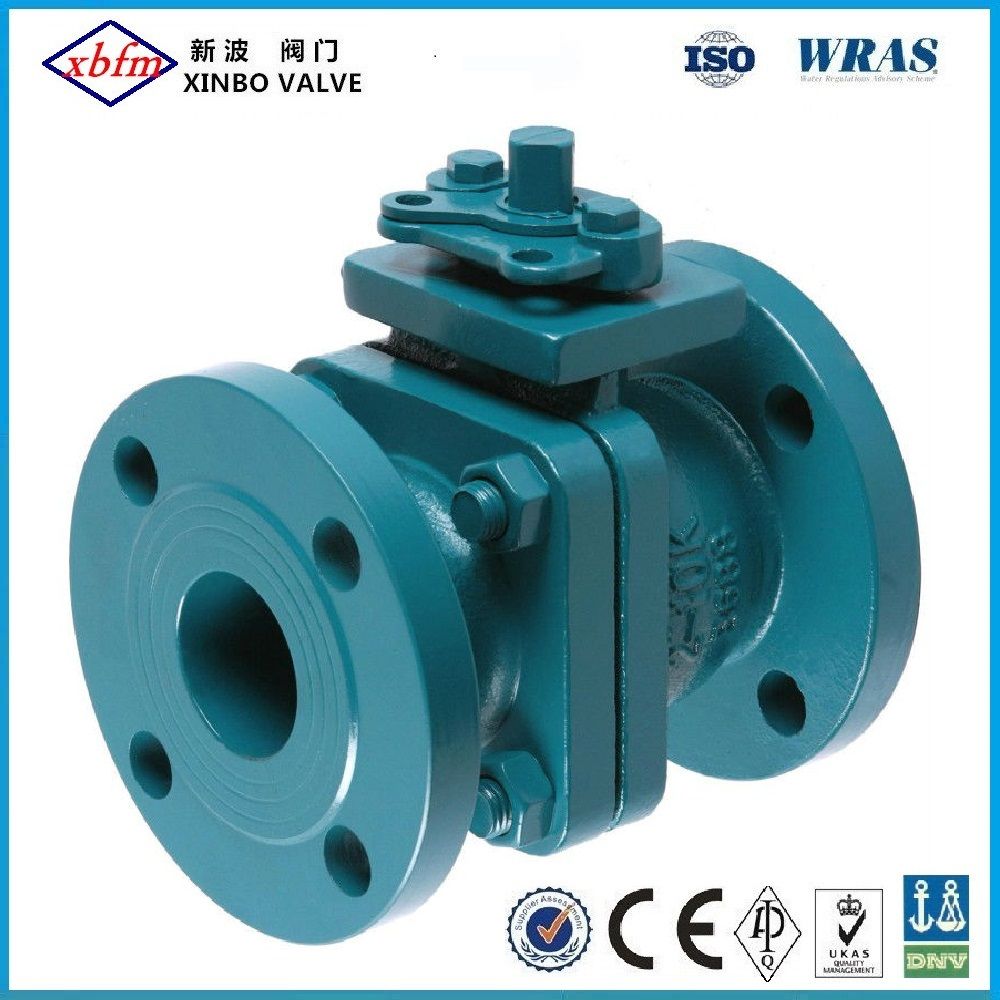

JIS-10K/16K Cast Iron Ball Valve

JIS-10K/16K Cast Iron Ball Valve
Price: Negotiable/Piece
Min Order: 2/Piece
Pay Type: L/C,T/T,D/P,Western Union
JIS-10k/16k Cast Iron Ball Valve , Ductile Iron Ball Valve,Cast Iron Ball Valve





Specifications


Ball valve Products flexible from open to shut, no obstruction, connection strong, good sealing performance.

Application:
1. Face to face is according toJIS B2002
2. Flange drilled is according to JIS B2212/B2213



Test:
Workingpressure 10K/16K
TestpressureShell 21.1kgf/c 35kgf/c
Seat 15.0kgf/c 25kgf/c



Components:
1. Body: Cast iron or Ductile iron
2. Ball: Stainless steel
3. Glandpacking: PTFE
4. Bonnet: Cast iron or Ductile iron
5. Stem: Stainless steel
6. Handle: Ductile iron



DN1520253240506580100125150200250
 1/2" 3/4" 1" 1.25" 1.5" 2" 2.5" 3" 4" 5" 6" 8" 10"
L108 117 127 140 165 178 190 203 229 356 394 457 533
H 596375 86 97 131 142 170 201 252 286 340 407
D(10k)95100125135140155175185210250280330400
D(16k)95100125135140155175200225270350350430

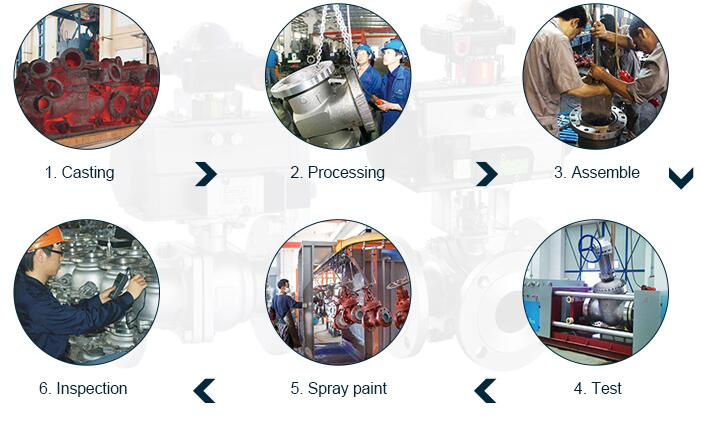

Machining Process

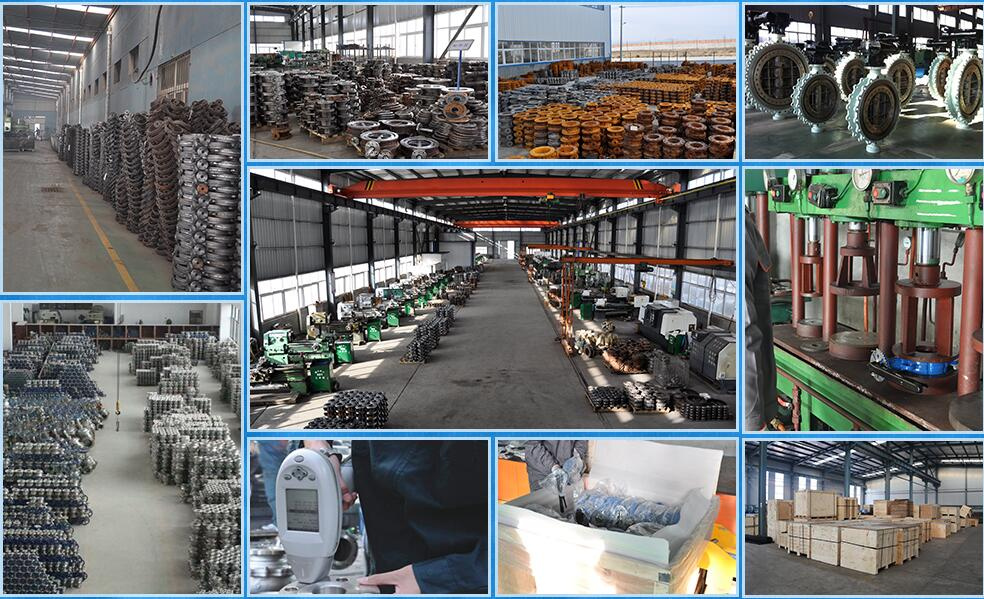

Work Shop

Shipment and packing , transport

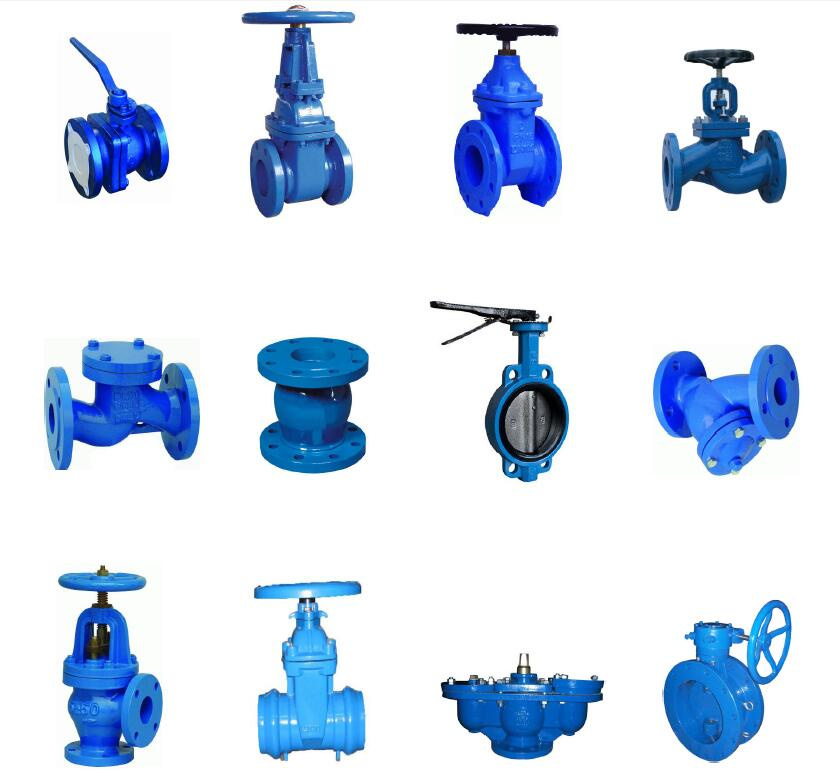

Other Porducts




Why Choose US


We control the material of PTFE(Teflon) and stainless steel wires per customer's request.
Some are from Japan and Taiwan, some are from China local. Only choose high quality material.

We test leakage of each roll before braiding, then we cut 300mm and crimp it to test
burst pressure after brading.

We use CNC Lathes Machine for end fittings production. Machine system, knife and inspection
tools are all imported from Japan.

We use Techmaflex Crimping Machine which is imported from France. This machine has
accurate and stable performance for crimping because it is produced for PTFE hose crimping only.
Contact to this supplier


  http: www.junyuan-group.com    www.xbvalve.net
Prod Model: CBV02
Certificate: ISO, API.Ce, Crn
Brand: OEM /Xb
Standard: DIN BS ANSI JIS
Connection Form: Flange
Channel: Straight Through Type
Structure: Floating Ball Valve
Type: Floating Ball Valve
Application: Household Usage
Material: Ductile Iron
Function: Ball Valve
Wenling Xinbo valve Co., Ltd. is a production, sales and service as one of the factories specializing in the production of valves. Foundry companies in the production of 2600 tons a cupola, the strict implementation of the processing plant standards ISO9001 quality system to organize production and management. The company also actively introduce advanced technology, continuous innovation. Products have been widely used in water conservancy construction users, petrochemical, metallurgy, electric power, military and engineering supporting industries such as pipelines. Products are exported to Southeast Asia, the United States, the Middle East and other places. Reasonable as a result of product design, advanced technology, reliable performance and stable quality, well received by the user's reliance on and praise.

The Company has always been the spirit of "quality-oriented, technology-first" business purpose, and constantly develop new products, expanding services, dedicated to provide customers with quality products and good pre-sales and after-sales service, warmly welcome new and old customers and our company to establish long-term stable cooperative relations, and join hands in creating brilliant tomorrow!
