JBW-500Z Computer Automatic Impact Testing Machine

JBW-500Z Computer Automatic Impact Testing Machine
Price: US $ 3800-10000/Set
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal

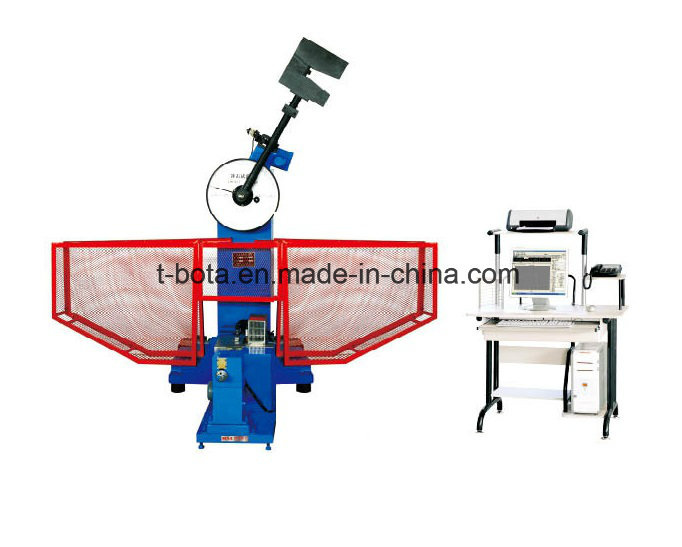

JBW-500Z Computer Automatic Impact Testing Machine
  1.  Application
JBW-Z  series  Computer  Automatic  Pendulum  Impact  Testing  Machine are mainly used to determine the anti-impact capability of metal materials under dynamic load. Carry out the functions of zero clearing and automatic return, capturing the value of lost impact energy and pendulum  cycle  by  means  of  setting  up  with  computer  program,  and  the  results  can  be monitored,  stored  and  printed  out.  Control  box  or  computer  program  control  is  alternative operating method. JB-W series impact testers are adopted by many institutes and high-tech enterprises.
2. Standards:
ASTM  E23, ISO148-2006 and GB/T3038-2002, GB/229-2007.
3. Features:
3.1 Fully automatic, pendulum rising, impact, sample feeding, position, free releasing is realized automatically by easy PC mouse click;sample feeding, auto position the sample; high efficiency;
3.2 The impact of the blade with screw mounting
With two pendulums (big and small), PC software to display the energy loss, impact tenacity, rising angle, test average value etc. test data and result, also the curve display available; with calculation and report printing function. The dial scale can show test results too.
3.3 Safety pin guaranties the impact action, standard protection shell to avoid any accident.
3.4 Pendulum will automatically rising and ready for next impact action after specimen breakout.
4. Main Technical Specifications:
Display          computer automatic control
Min reading value         1 J         2J
Impact energy150/300J250/500J
The distance between the
pendulum shaft and impact point
Impact speed5.2m/s5.4 m/s
Pre-rising angle of the pendulum                      150°
Specimen bearer span40+0.2mm
Round angle of bearing jawR1.0-1.5mm
Round angle of impact bladeR2.0-2.5mm,(R8mm)
Thickness of impact blade16mm
Angle accuracy0.1°
Standard specimen dimension10mm×10mm×55mm
Sample box capacity 10 pcs
Sample centering wayAutomatic face orientation
Power supply380V, 50Hz , 3 wire and 4phrases
Dimensions (mm)2124 x 600 x 13402200 ×650 ×1960
Net Weight (kg)450580
5. Standard Accessories
5.1 Automatic impact Main unit----1 set
5.1.1 Sample auto feeding and position device--1set
5.1.2 Pendulum --2pcs
5.1.3 S=12 Internal hexagonal wrench--1pc
5.1.4Bearing adjustment-- 1pc;
5.1.5 Sample centering--1pc;
5.1.6 Pendulum stripper-- 1pc
5.1.7 Anchor bolts (M16x300mm)---4 pcs
5.1.8 Impact testing security guards----1 pc
5.2 Measuring and control system:
5.2.1 High precision optical encoder-- 1pc5.2. LENOVO computer--1 set;
5.2.3 HPA4 Colorful ink jet printer--1pc
5.2.4 Special measuring and control system--1SET
5.2.5 Under Windows operating environment special control system--1set
6. Software function:
6.1 Record impact strength, impact energy, etc. Also can calculate the max, min , average and standard deviation
6.2 WINDOWS based operating platform, the software is simple, powerful
6.3 Software supports multiple pendulum;
6.4 After finished test, the system automatically analyzes, statistical test results
6.5 Flexible report editing features, the software offers a variety of print statements Interface, such as Excel ,word
Prod Model: JBW-500Z
Max. Cpacity (Kn): 300
Relative Error: ±1%
Rated Pressure (MPa): 25
Diameter Of The Platen (mm): 155
Max. Distance Between The Platens (mm): 180
Max. Travel Of The RAM (mm): 80
Diameter Of The RAM (mm): 125
Power (Kw): Three Phase 0.75kw 3-Phase
Dimensions (L*W*H): 850mm×600mm×1160mm
Net Weight (Kg): Abt 400kg
Type: Compression Testing Machine
Weight: 100-500Kg
Power Source: AC220V
