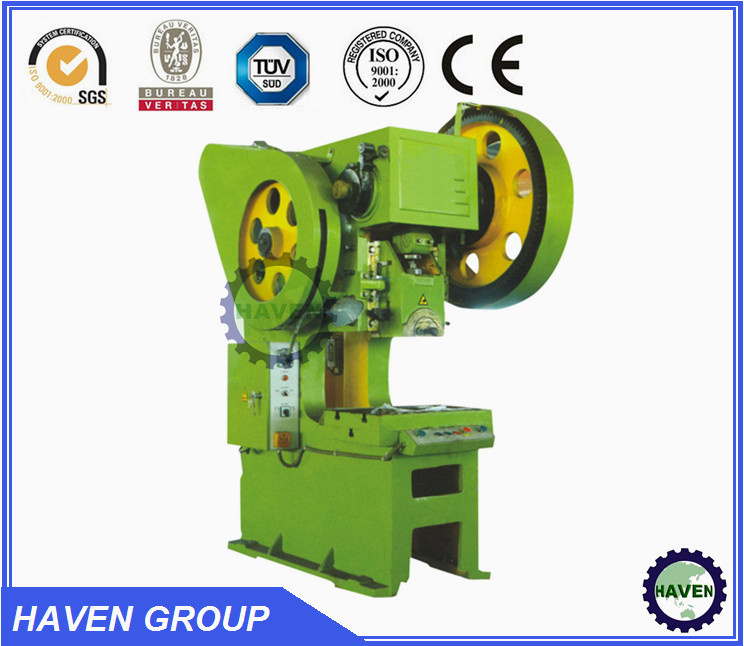

J23 Series Mechanical Inclinable Power Press with CE standrad

J23 Series Mechanical Inclinable Power Press with CE standrad
Price: US $ 100/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
J23 Series Mechanical Inclinable Power Press with  CE standrad

Main Feature:
placed crankshaft.
Stroke adjustment device mounted on crankshaft.
Combined dry type pneumatic friction clutch and brake.
Manual shut height adjustment with scale display.
Safety duplex valves.
Control by PLC with international brand

Main Specification:



JE23-25D

JE23-40D

JE23-63D

JE23-80D

Nominal force

KN

250

400

630

800

Stroke under nominal force

Mm

2.5

4

4

5

Slide block stroke

Mm

0-80

20-120

20-120

10-130

Number of stroke

Min

100

70

60

53

Max die set height

Mm

180

220

260

280

Die set height asjustment

Mm

45

70

80

100

Distance from slide block centre to the frame

Mm

210

250

260

270

Worktable dimensions (F*B×L*R)

Mm

400
600

480
710

480
710

520
860

Dimensions of worktable hole

Mm

φ120

φ220
25
φ180

φ200
45
φ180

φ200
45
φ180

Thickness of bolster

Mm

70

80

90

100

Hole dimensions in bed (Diameter×F*B×L*R)

Mm

φ180
130
260

φ200
150
300

φ250
200
340

φ250
200
340

Dimensions of slide block botton surface(F*B×L*R)

Mm

210
250

270
320

280
320

280
380

Size of the handle hole(Diameter×Depth)

Mm

φ40
70

φ50
70

φ50
80

φ60
75

Distance between columcs od body

Mm

260

300

350

410

Motor

Type



Y2-100L2-4

Y2-132M1-6

Y2-132M2-6

Y2-160M-6

Power

Kw

3

4

5.5

7.5

Outline dimension (F*B×L*R×H)

Mm

1560
1300
2210

1620
1450
2350

1810
1550
2640

1810
1630
2790

Net /Gross weight

Kg

2100/2400

3500/3800

4550/5050

5250/5850

Max.tilting angle body

°

20

20

20

20

 WHY CHOOSE HAVEN BRAND MACHINE:
1)  Hihg quality with competitive price
2) 15 years export experience
3) CE,SGS, ISO Certificated
4) OEM SERVICE AVAILABLE
5) 24 HOURS' ONLINE SERVICE (MSN,SKYPE)
6) 14 months quality warranty (after B/L date)
7) Over sea engineers available for problem shooting

Our Target:  BRAND HAVEN
High quality;
Assured Delivery;
Vigorous innovation;
Efficient Cooperation;
Noblesse Oblige

Prod Model: JG23-35A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Open Back: Inclinable Press
Adjustable Stroke: Casting Iron Body
Nominal Force: 350
Slide Block Stroke: 100
Number Of Stroke: 53
Main Motor: 3
Net/Gross Weight: 2440/2840
Type: General Punching Machine
Controlling Mode: Artificial
Automatic Grade: Semiautomatic
Power Source: Mechanical Drive
Precision: High Precision
We, Shaanxi Haven Equipment Co., Ltd, is consisted with 2 factories and 1 international trading company, so we can export our products directly at competitive price. To run our business conveniently, we set up our 2 factories in Nantong Industry Zone which is located in the most developed economic area in China and is nearby the Shanghai Sea Port, that will be much helpful to low our export cost.

With experienced engineers and worker, we produce high quality machines and supply good after sale service. In the past years, we are specialized in import and export of machinery and equipment such as machine tools, vehicles maintenance equipments, motors, bearings, hand tools, power tools and industrial materials. Our business scope also includes import and export of technology, contracting overseas projects and engineer training services.

Our products have been exported to more than 30 countries or regions in the world with high quality, We commit ourselves to cooperating with importers and exporters all over the world. We are looking forward to your enquiries and collaboration. Our technicians will assure you of appropriate equipment with reasonable prices and best pre-sale and after-sale services.

Our Business Scope Include: Turning Machines (Lathe), Drilling Machines, Drilling And Milling Machines, Boring Machines, Milling Machines, Machining Centers, Grinding Machines, Tool Grinding Machines, Gear Cutting And Finishing Machines, Planning Machines, Shaping Machines, Slotting Machines, Broaching Machines, Sawing Machines, Cut-Off Machines, Screwing And Threading Machines, Honing Machine, Polishing Machines, Shearring Machines, Press Brakes, Bending Machine, Punching Machine, Iron Worker, Presses, Rolling Machine, Notching Machine, Engraving Machines, Electric Discharging Machine (EDM), etc.

Our target is: High quality, efficient service, reliable honesty.
