ISO9001/CE/SGS Prive Competitive Slew Drive for Home PV System
| Price: |
US $ 120-1500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
SKE model is popularly used in solar industry, wind energy, construction equipments and robots industry, it can be installed horizontally and vertically, its high stiffness, high strength, high output torque and compact structure is the best solution for the application of low speed rotating with high output torque.

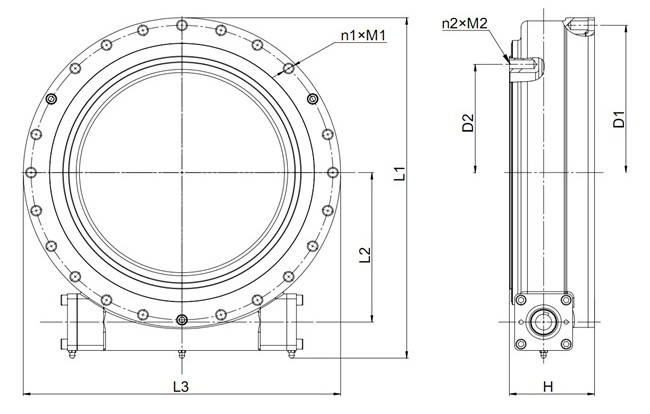

| SKE Model Slewing Drive Dimensions |
| Model | Ratio | External Dimensions | Mounting Holes Dimensions |
| L1 | L2 | L3 | H | D1 | D2 | n1 | M1 | n2 | M2 |
| 3" | 31:1 | 204 | 80.1 | 174.9 | 87.5 | 148 | 80 | 6 | M10 | 6 | M10 |
| 5" | 37:1 | 230 | 93.7 | 184.9 | 97 | 172 | 100 | 6 | M10 | 6 | M10 |
| 7" | 57:1 | 323.8 | 133.2 | 285 | 117 | 265 | 170 | 8 | M12 | 10 | M12 |
| 9" | 61:1 | 418 | 174.4 | 372 | 128 | 348 | 224 | 8 | M16 | 8 | M16 |
| 12" | 78:1 | 507.5 | 220.0 | 455 | 163.4 | 430 | 300 | 16 | M16 | 16 | M16 |
| 14" | 85:1 | 540.8 | 237.6 | 492 | 132 | 468 | 344 | 21 | M16 | 24 | M16 |
| 17" | 102:1 | 631.4 | 280.4 | 582 | 172 | 555 | 415 | 18 | M16 | 20 | M16 |
| 21" | 125:1 | 752.7 | 342.7 | 700 | 186.8 | 670 | 505 | 24 | M20 | 24 | M20 |
| 25" | 150:1 | 865.7 | 401.0 | 817 | 198 | 793 | 669 | 24 | M20 | 24 | M20 |
| SKE Model Performance Parameters |
| Model | Rated Output Torque | Max Output Torque | TiltingTorque | Axial Load | Radial Load | Holding Torque | Efficiency | Precision | Self-locking | Weight |
| N.m | N.M | N.m | kN | kN | N.m | degree | Yes | kg |
| 3" | 600 | 1200 | 1500 | 30 | 15 | 7000 | 40% | ≤0.050 | Yes | 9kg |
| 5" | 800 | 1600 | 6000 | 68 | 27 | 9200 | 40% | ≤0.050 | Yes | 14kg |
| 7" | 1750 | 3500 | 10500 | 132 | 58 | 13200 | 40% | ≤0.050 | Yes | 23kg |
| 9" | 4300 | 8600 | 49900 | 340 | 130 | 30800 | 40% | ≤0.050 | Yes | 44 kg |
| 12" | 7600 | 11400 | 54400 | 480 | 190 | 40560 | 40% | ≤0.050 | Yes | 51 kg |
| 14" | 12000 | 18000 | 135000 | 680 | 230 | 44200 | 40% | ≤0.050 | Yes | 62kg |
| 17" | 18000 | 27000 | 203000 | 980 | 390 | 53040 | 40% | ≤0.050 | Yes | 85kg |
| 21" | 32000 | 48000 | 271000 | 1600 | 640 | 65000 | 40% | ≤0.050 | Yes | 141kg |
| 25" | 43000 | 64500 | 346000 | 2400 | 950 | 89000 | 40% | ≤0.050 | Yes | 182kg |
1. We can install different types of electrical or hydraulic motor based on customer's requirements2. We can provide all the standard products or specially design based on customer's requirements3. We can paint all kinds of color based on RAL code4. We can use reasonable IP grade based on your application5. Please contact us if you need detailed sales drawing6. Above dimensions and parameters may be updated or adjusted, please refer to our sales drawings for detailed dimensions and parameters
Wuxi Keanergy Photovoltaic Equipment Co., Ltd is located in Wuxi, Jiangsu Province. It's a high-tech company with integration of R&D, manufacturing, sales & services, which is created by a team with foreign professional technical background.
Keanergy's products are widely used in solar industry, robots, construction equipments, harbour machinery, satellite tracking systems etc.
Our products have 12 series and more than 100 kinds of models. They can meet different customers' needs and preferences with specifications vary from 1 inch to 32 inches which have features of high operation torque, high back holding torque, high stiffness and high precision. Our specially designed zero backlash slewing drives are popularly used in CSP & CPV applications.
Our company always sticks to the service philosophy of bringing value to customers with high standard technology and innovative products. And we'll dedicate to providing customers with quality products and services constantly.
Our company had passed ISO9001 and CE certification and our team had got more than 40 patents related to slewing drive technology.
