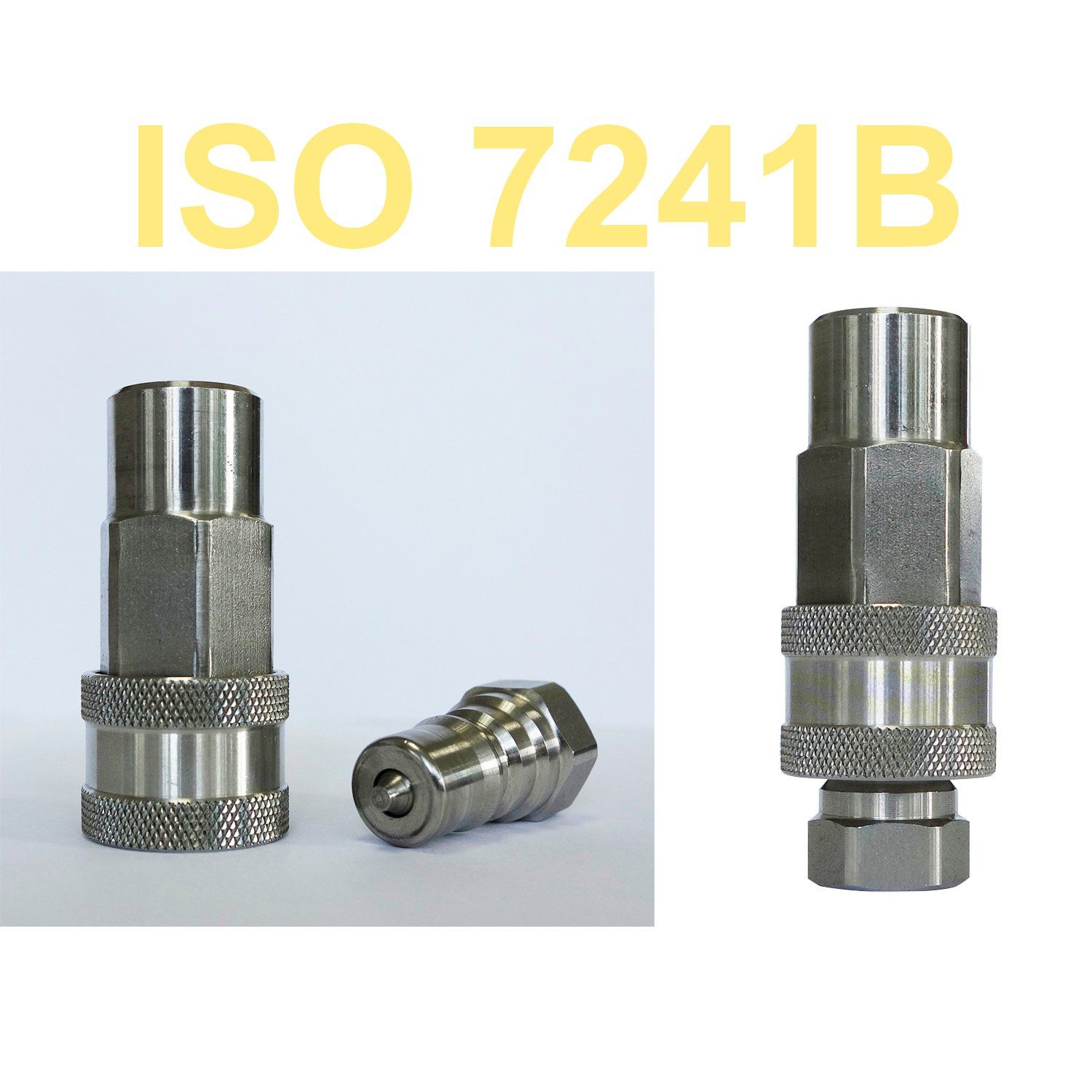

NWB series quick coupling (stianless steel)
Product Feature
- Meet the standard ISO 7241-B
- Corrosion resistance for bad environment
- Standard material:corrosion resistance stainless steel 304/316
- Standard seal:nitrile rubber,fluoride rubber
| Seal elastomer data |
| Seal | Maximum working temperature range |
| Nitrile rubber | -20ºC to +100ºC |
| Fluoride rubber | -25ºC to +150ºC |
Product Parameter
Size
(in) | ISO
(mm) | Max Working Pressure
(bar) | Rated Flow
(l/m) | Fluid Loss
(ml-cc) |
| connection |
| 1/4 | 6.3 | 255 | 12 | 0.9 |
| 3/8 | 10 | 255 | 23 | 2.1 |
| 1/2 | 12.5 | 293 | 45 | 3.5 |
| 3/4 | 20 | 242 | 100 | 9.3 |
| 1 | 25 | 207 | 189 | 16.9 |
Application Range
Agriculture machine
Hydraulic tool
General industrial equipment
Building equipment
Fluid delivery
Transportation
Military
Law enforcement/ rescue
Chemistry
Oil and natural gas
Consumer goods
Heating,ventilating and air conditioning
Food and drink
Truck
Aero & aviation
Medicament
Interchangeability
PARKER 60 series
AEROQUIP FD45 series
HANSEN HK series
NITTO SP-V series
FASTER HNV series

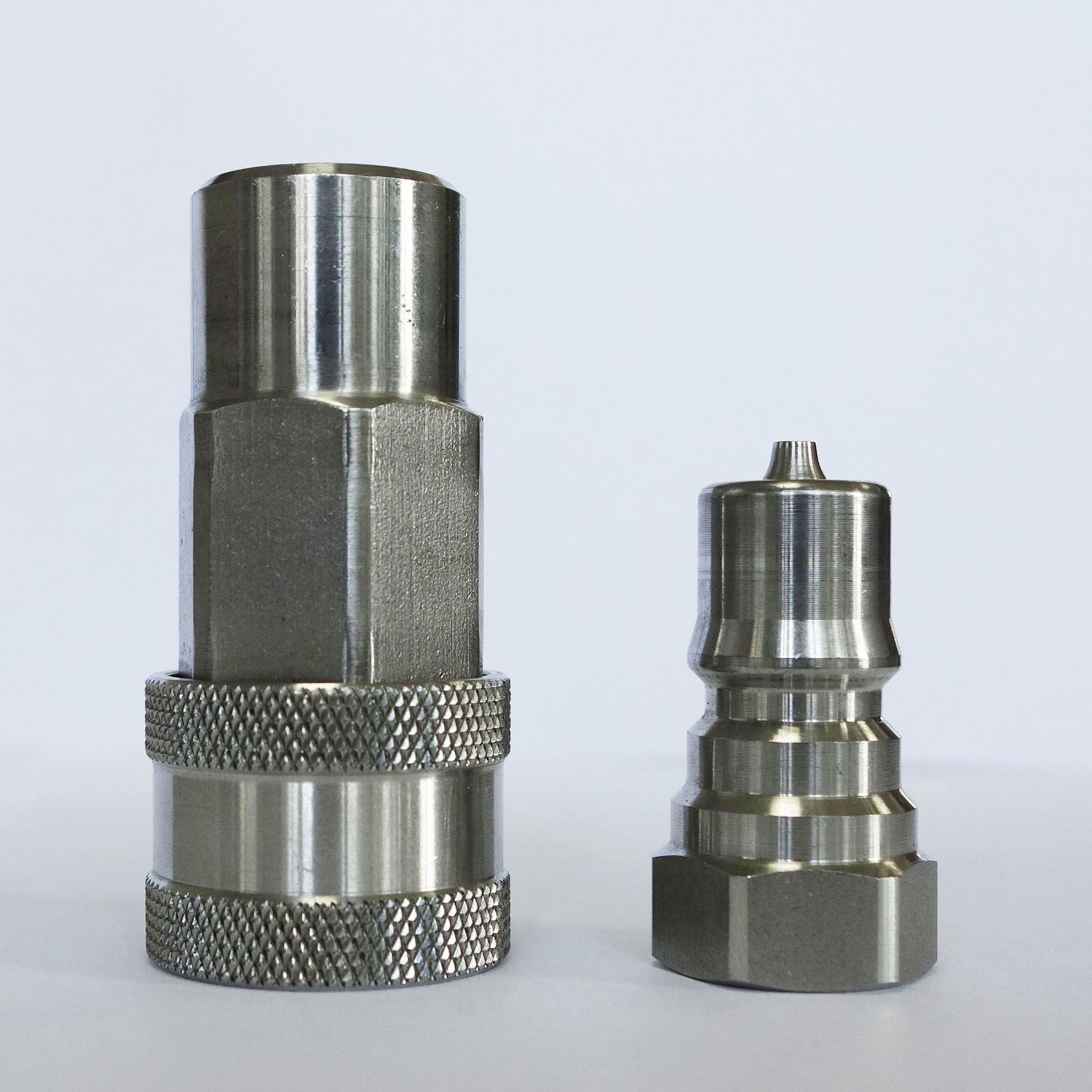

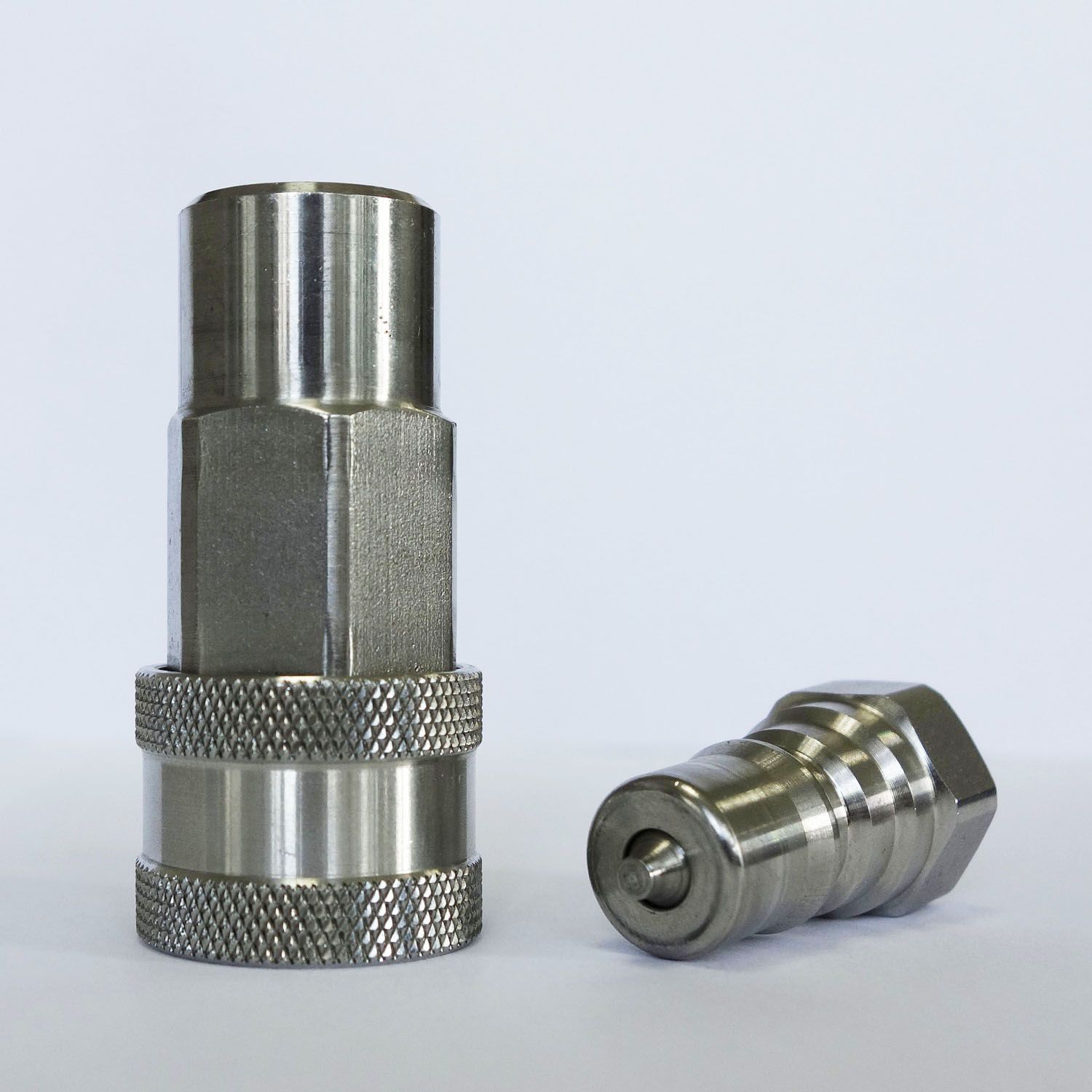

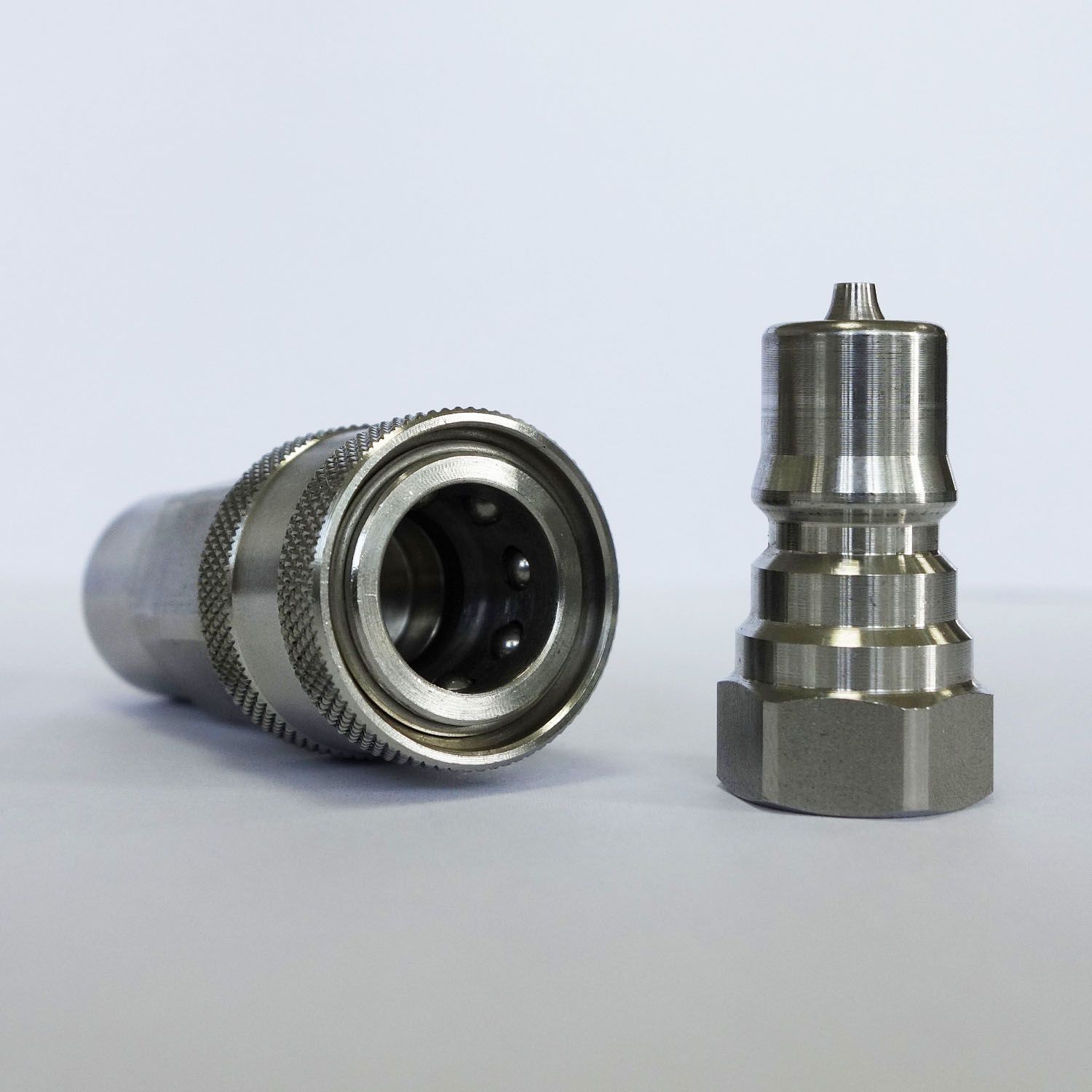

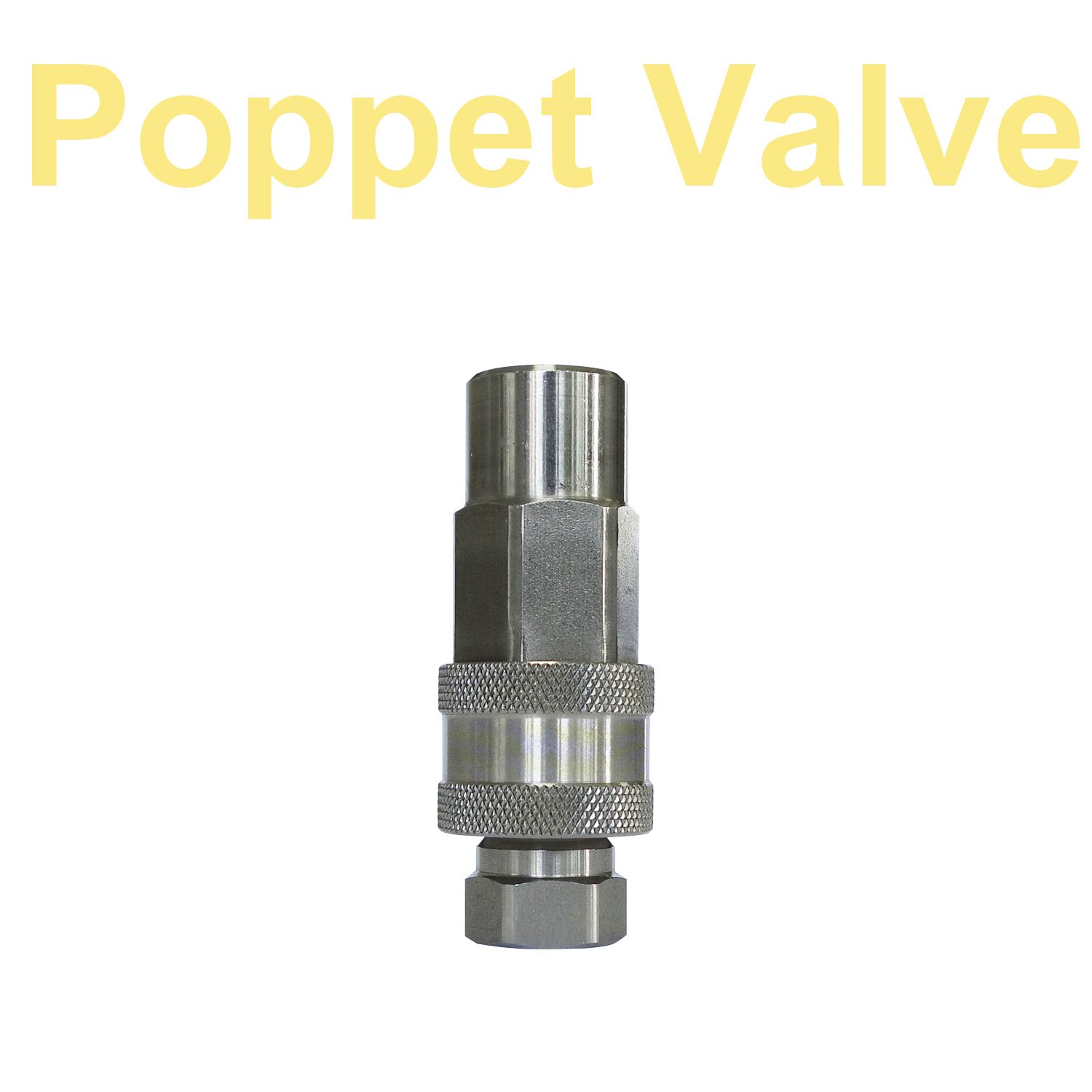

Photo Details
Hebei Naiwo Fluid Technology Co. Ltd is located in matou economic development zone of hebei province, China. We are specialized in production of NAIWO brand quick coupling(ISO16028, ISO7241-A, ISO7241-B) with stainless steel, carbon steel and brass material. The quick coupling can be widely used for metallurgy, oil, chemical, food, shipbuilding, agriculture machine, construction machine, special car/truck, paper making, drilling platform and other fields.
We take the "leading technology, excellent quality, perfect service" as the company culture and management concept, focus on strict production procedures and related testing equipment, which help our factory win the clients' praise and trust all over the world.
