| Specification |
| System Source | Main Processor | 64-bit ARM Cortex A53 2.0GHz |
| GPU | Penta-Core Mali-450 |
| Flash/DDR Memory | 8GB / 1GB |
| Speakers | Subwoofer:30W,Mid range:30W,Tweeter:20W |
| Material | Wooden+ Anode Steel |
| Main Features | · Stalker Middleware(TV ONLINE app) for access to IPTV/VOD servers |
| · Cloud based Mickyhop app market for application installation and updates |
| · Live Streaming ,VOD and Game content and apps are supported |
| · Virtual 5.1 Surround Sound supported |
| · Brand new DSP digital audio technology |
| · 4K output supported,H.265/H.264/MPEG-2/MPEG-4/AVC SD/HD decoding |
| · Seperate subwoofer,Mid Range and tweeter speaker |
| · High performance 2.4G wireless subwoofer |
| · Bluetooth 4.0 integrated |
| · High secured OS,Hardware Unique ID Supported. AES Challenge Protection Supported |
| · Software upgrade through OTA(Online Update from cloud server) or USB |
| · Manage up to 10,000 TV and Radio channels |
· Multi languages,English,Czech,Danish,Dutch,Spanish,French,German,Greek,
Italian,Japanese,Korean,Norwegian,Polish,Portuguese,Russian,Swedish,Turkish,Chinese,etc |
| · HDMI 2.0a/CVBS, Full HD 1080p, 3D movie file format supported |
| · Built-in 802.11 b/g/n Wi-Fi wireless connectivity |
| · EPG up to 7 days |
| · PVR via plug-in USB HDD |
| · Channel information save in memory after power off |
| · Teletext via OSD & VBI |
| · Low power consumption and green power standby mode |
| · Full multi-language DVB subtitling and audio track support |
| Video Decoding | Standard | ISO/IEC 13818-2 and ISO/IEC 14496-10 |
| Video Decoding | MPEG-2 MP@ ML for SD, MP@ HL for HD |
| H.265/H.264/AVC MP@ L3.0 for SD, HP@ L4.1 for HD |
| VC-1 AP@L1 for SD, AP@L3 for HD |
| Aspect Ratio | 4:3 and 16:9, HD to SD Conversion |
| Video ResolutionVideo Bit Rate | 480i/480p/576i/576p/720p/1080i/1080p |
| MPEG-2 MP@ML: 2~15 Mbps; |
| MPEG-2 MP@HL: <19 Mbps; |
| MPEG-4 AVC HP@L3:<10Mbps; |
| MPEG-4 AVC HP@L4: <20Mbps |
| Audio Decoding | Standard | ISO/IEC13818-3 and TR1011154 |
| Audio Decoding | MPEG-1 Layer I & Layer II Musicam |
| Dolby Digital (AC3) & Dolby Digital AC-3/E-AC3 |
| MPEG-2 AAC-LC & MPEG4 HE-AAC |
| AAC5.1, AAC+ Level 2 |
| Audio Mode | Single channel, Dual Channel, Stereo, Joint Stereo |
| Audio Sampling Rate | 22.1kHz, 32kHz, 44.1kHz and 48kHz |
| Menu Function | Channel Search | Automatic search based on LCN or NIT |
| Manual search based on Frequency and channel number |
| Channel -Management | Up to 10,000 channels edition,delete,move,lock,rename;8 favorite channel groups |
| EPG | 7 days |
| Language | English, other languages in option |
| Software Update | loader through USB and OTA |
| Security | Menu lock, Parental lock, PIN lock |
| PVR Option | Function | Play/Stop/Record/Pause/Forward/Back, Scheduled Recording using EPG |
| Profiles | 3.x, 4.0, 5.0, 6.0 Home Theater & HD profiles |
| File System | FAT 32 |
| Media Format | MPEG2, TS, AVI, MKV, ASF, Quick, DivX,FLV, VC-1 |
| DivX 3.X ~ 6.X,AVI,VOB,MOV,MKV,JPEG,BMP,PNG,Motion JPEG,Flash 3.1 Lite |
| Connector | USB 2.0 supporting external hard disk of 250-500GB |

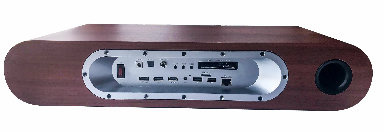

| Back Panel | Power Input | 1 x DC 19V/3.5A input port |
| Power Switch | 1 x Power Switch for power on/off |
| Reset | 1x Restore hole for system receovery |
| Micro SD Slot | 1x Micro SD Slot |
| USB | 2 x USB 2.0 for Hard Disk PVR function and software update |
| HDMI OUT | 1 x HDMI 2.0 (4K supported) |
| HDMI IN | 1 x HDMI IN for extra device input |
| ETHERNET | 1X RJ45 Port |
| Digital Audio | 1x SPDIF input for digital audio |
| 1x coaxial input for digital audio |
| AV | 3 x RCA female for Video, Audio Left and Audio Right |
| RF IN (optional) | 1 x Sat In for satellit signal input |
| 1 x Ant/Cable In for terrestrial or Cable signal input |
| Micro Phone | 2 x Mirco Phone port |
| Physicals | Power Supply | DC 19V/3.5A |
Power Consumption | 85W in operation |
| <10 W auto Standby Green Power Mode |
| Temperature | Operation 0~+45ºC; Storage -10~+60ºC |
| Humidity | 20~90%, non-condensed |
| Size&Packaging | Unit Dimension | 900*218*80 mm |
| Gift Box Dimension | 924*248*151mm |
| Carton Dimension | 980*333*312mm (2pcs) |
| Unit Weight | 7.70Kg with gift box |
| Carton Qty&Weight | 2 pcs/Carton, 16.8 kgs |
| Shipment Information | 560/ 1140 / 1340 units per 20'/40'/40' High Container |
| RCU&Accesorries | RCU | Bluetooth wireless remote control |
| HDMI Cable | 1 x 1.5 m HDMI Cable |
| AV Cable | 1 x 1.5 m AV Cable |
| Power Adaptor | 1 x 19V/3.5 A output power adaptor |
| Power Cable | 1 x 1.2 m 3 PIN Power Cable |
