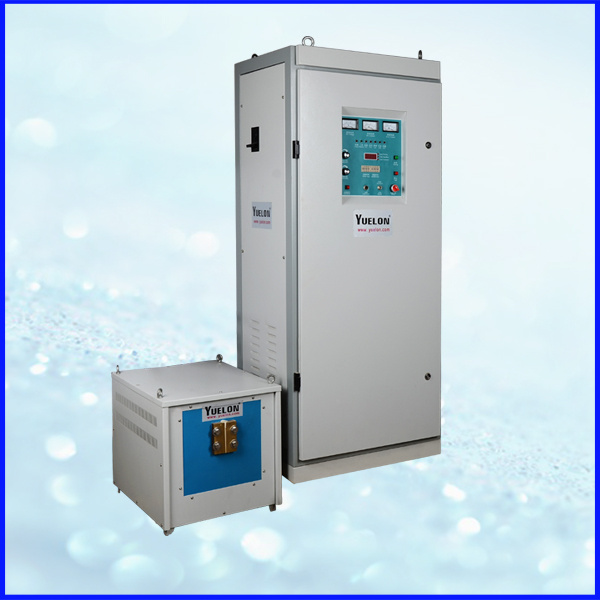

Induction Heating Machine 200kw for Heat Treatment (MF-200KW)

Main Specifications:

Model	MF-15	MF-25	MF-35	MF-45	MF-70	MF-90	MF-110	MF-160
Input power	15KVA	25KVA	35KVA	45KVA	70KVA	90KVA	110KVA	160KVA
Output current	3-22A	5-45A	10-70A	15-95A	20-130A	25-170A	30-200A	40-260A
output voltage	70-520V	70-520V	70-520V	70-520V	70-520V	70-520V	70-520V	70-520V
Input voltage	3phase 380V ±20% 50 or 60HZ
Frequency	1KHZ - 20KHZ according customer's workpiece require.
Duty cycle	100% 24hours continuous working
Net weight	24KG	24KG	34KG	36KG	51KG	57KG	89KG	116KG
Dimension  W x H x L	270x450x460mm		270x450x520	350x550x650mm		400x870x750mm
Timer	Heating time: 0.1-99.9seconds     retaining time: 0.1-99.9seconds
Front panel	LCD, display frequency, power, time etc.
Whole systems water flow	≥0.2Mpa  ≥6L/Min		≥0.3Mpa  ≥10L/Min		≥0.3Mpa  ≥20L/Min
Power supply water flow	≥0.2Mpa  ≥3L/Min		≥0.2Mpa  ≥4L/Min		≥0.2Mpa  ≥6L/Min
Input power	1 water inlet, 1 water outlet			1 water inlet, 3 water outlet
Max water temperature	≤45 c

Application of medium frequency induction machine:
A. Heating (hot forging, hot fitting and smelting):
1 Hot forging aims to fabricate the work pieces of certain temperature (different materials require different temperatures) into other shapes through forging press with the help of punch press, forging machine or other equipments, for instances, hot extrusion of watch case, watch flan, handle, mold accessory, kitchen and table ware, art ware, standard part, fastener, fabricated mechanical part, bronze lock, rivet, steel pin and pin.
2. Hot fitting refers to the connection of different metals or metals with nonmetals through the heating based on the principle of hot expansion or hot smelting, for instances, embedded welding of copper core of computer radiator with aluminum sheet and speaker web, compound of steel and plastic tube, sealing of aluminum foil (tooth paste peel), motor rotor and sealing of tubular electric heating element.
3. Smelting mainly aims to melt the metal into liquid by using the high temperature, which is mainly applicable to the smelting of iron, steel, copper, aluminum, zinc as well as various noble metals.

B. Heat Treatment (surface quench):
It is mainly aims to change the rigidity of the metal materials through the heat treatment to work pieces. Detail applications are stated as follows:
1. Quench for various hardware and tools, such as plier, wrench, hammer, ax, screwing tools and shear (orchard shear).
2. Quench for various automobile and motorcycle fittings, such as crankshaft, connecting rod, piston pin, chain wheel, aluminum wheel, valve, rock arm shaft, semi drive shaft, small shaft and fork.

3. Various electric tools, such as gear and axes.
4. Quench for machine tools, such as lathe deck and guide rail.
5. Quench for various hardware metal parts and machined parts, such as shaft, gear (chain wheel), cam, chuck and clamp etc.
6. Quench for hardware molds, such as small-size mold, mold accessory and inner hole of mold.

C. Welding (braze welding, silver soldering and brazing)
It mainly aims to melt the solder by heating it to a certain temperature for the purpose of connecting two types of metals of the same material or different materials.

1. Welding of various hardware cutting tools, such as diamond tool, abrasive tool, drilling tool, alloy saw blade, hard alloy cutter, milling cutter, reamer, planning tool and solid center bit.
2. Welding of various hardware mechanical gadget: Silver soldering and brazing of metals of the same variety or different varieties, such as hardware toilet and kitchen products, refrigerating copper fitting, lamp decoration fitting, precision mold fitting, hardware handle, eggbeater, alloy steel and steel, steel and copper as well as copper and copper.

3. Compound pot bottom welding is mainly applicable to the braze welding of circular, square as well as other irregular plain pot bottom. It is also applicable to plain braze welding of other metals.
4. Welding of heating disc of electric hot-water kettle mainly refers to the braze welding of stainless steel flat base, aluminum sheet and tubular electric heating elements of various forms.

D. Annealing (tempering and modulation):
1. Annealing of various stainless steel products, such as stainless steel basin, annealed and extruded can, annealed folded edge, annealed sink, stainless steel tube, tableware and cup.
2. Annealing of various other metal work pieces, such as golf ball head, cue, brass lock, hardware copper fitting, kitchen knife handle, blade, aluminum pan, aluminum pail, aluminum radiator and various aluminum products.


We offer complete service :
Before sales
Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.
Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.

After Sales
Machine have one year quality warranty ,0ne year free replacement spare parts ( 1 set of spare parts free for your stock, in case it need replacement).
Supply pictures or video help customer to install machine. Provide long-terms technical support.


How about the payment terms and delivery time?
Terms of payment:
small machine 100% T/T deposit in advance. big machine 50% deposit, 50% before shipment.
Time of Shipment:
small machine delivery time within 7 days. big machine delivery time within 30 days.
