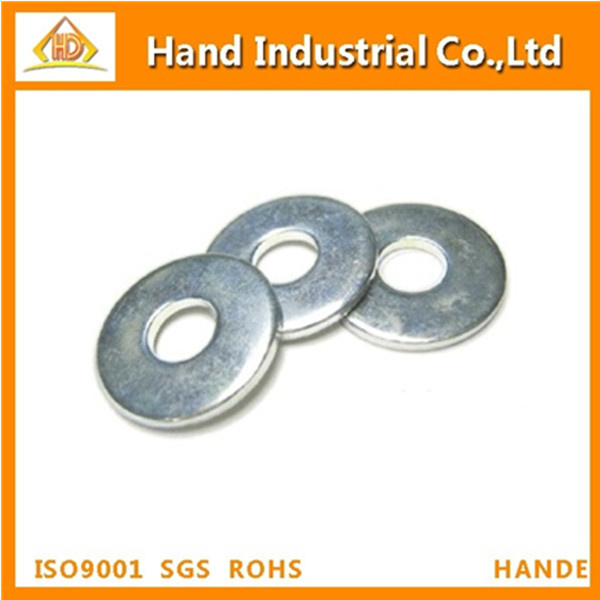

Inconel 601 2.4851 N06601 DIN125 Flat Washer
| Price: |
US $ 0.01/Piece |
| Min Order: |
50000/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Inconel 601 2.4851 N06601 DIN125 Flat Washer
Hastelloy Hastelloy is also called Nickel base corrosion resistant alloy, it comes from American Hastelloy International Company. There are two categories: Nickel-Chromium alloy and Nickel Chromium Molybdenum alloy. Hatelloy has high corrosion resistance, it always be used in chemical industry which contains oxidizing and reducing agents.Most common products include hex nuts, hex bolts, hex socket bolts, threaded rods and plain washers.About Us: Hand Industrial com.cn
Hand Industrial Ltd is established in 2010, and one professional manufacturer and supplier of stainless steel hardware. Our products contains stainless steel bolts and thread studs, stainless steel machine screws,stainless steel tapping screws and self drilling screws in different material from SS 304,SS 316,SS 316L,SS410,etc. We often make DIN. ANSI. BS. ISO. JIS standard and OEM service is available. Our products are very popular in European, Australia, North America, Mid-east, and South East Asia and some African countries.
Advantages:1.Many products: Any type of stainless steel hardware can be supplied.2.Good Service : We treat clients in great honest and sincere management is our top mission. 3.Good Quality:We have strict quality control system .Good reputation in the market.4.OEM Accepted : We can produce as per your drawings or samples.5.Shortest Delivery: We have large stock, 3 days for stock items, 7-15days for production. 6.Low MOQ: It can meet your business very well.About Product :| Main products | hex bolts, hex socket bolts, threaded studs, hex nuts and flat washers |
| Size Range | Diameter:M2---M64 Length:5mm---400mm(Customized is acceptable)
Diameter:6#---2inch, Length:1/2inch---30inch(Customized is acceptable) |
| Standard | ANSI,UNI,DIN,BS,JIS,AS,GB,ISO,EN |
| Material | Super Alloy Stainless Steel |
| Grade | Duplex steel: 2205\2507\2304;
Incoloy steel: 825\800\800H\901\925;
Inconel steel: 600\601\625\690\718\X750;
Monel steel: 400\K500;
Hastelloy steel: B2\3, C4\22\276\2000, G3\30, X;
Super Austenite steel: 904L,254smo, Alloy20\28\59\926, Al-6XN |
| Surface | self finish plain,minor polish, satin polish, black oxide,Electro Painting, |
| Others | Non-standard/standard/OEM/ODM/Customized service are provided. |
Chemical Components:| Hastelloy | C | Si | Mn | P | S | Ni | Cr | Mo | Fe | W | V | Co | Ti | Cu | Al |
| C4 | ≤0.009 | ≤0.05 | ≤1.0 | ≤0.02 | ≥0.01 | ≤58 | 14.5-17.5 | 14-17 | ≤3.0 | -- | -- | ≤2.0 | ≤0.7 | -- | -- |
| C22 | ≤0.015 | ≤0.08 | ≤0.5 | ≤0.02 | ≤0.02 | ≤50 | 20.0-22.5 | 12.5-14.5 | 2.0-6.0 | 2.5-3.5 | ≤0.35 | ≤2.5 | -- | -- | -- |
| C276 | ≤0.01 | ≤0.08 | ≤1.0 | ≤0.03 | ≤0.04 | ≤51 | 14.5-16.5 | 15-17 | 4.0-7.0 | 3.0-4.5 | ≤0.35 | ≤2.5 | -- | -- | -- |
| B2 | ≤0.01 | ≤0.08 | ≤1.0 | ≤0.02 | ≤0.01 | ≤64 | 0.4-0.7 | 26-30 | 1.6-2.0 | -- | -- | ≤1.0 | -- | ≤0.5 | -- |
| X | 0.05-0.15 | ≤1.0 | ≤1.0 | ≤0.015 | ≤0.01 | ≤40 | 20.5-23.5 | 8.0-10.0 | 17-20 | 0.2-1.0 | -- | 0.5-2.5 | -- | -- | ≤0.1 |
| Inconel | C | Si | Mn | P | S | Ni | Cr | B | Fe | Cu | Ti | Al | Mo | Co | Nb |
| 600 | ≤0.15 | ≤0.5 | ≤1.0 | ≤0.015 | ≤0.015 | ≥72 | 14-17 | ≤0.006 | 6.0-10.0 | ≤0.05 | ≤0.3 | ≤0.3 | -- | -- | -- |
| 601 | ≤0.1 | ≤0.5 | ≤1.5 | ≤0.02 | ≤0.015 | 58-63 | 21-25 | -- | ≤7.2 | ≤1.0 | -- | 1.0-1.7 | -- | -- | -- |
| 625 | ≤0.1 | ≤0.5 | ≤0.5 | ≤0.015 | ≤0.015 | ≥65 | 20-23 | -- | ≤5 | -- | ≤0.4 | ≤0.4 | -- | ≤1.0 | 3.15-4.15 |
| 690 | 0.023 | 0.07 | 0.23 | 0.006 | 0.002 | 59.89 | 30.39 | -- | 8.88 | 0.02 | 0.26 | 0.22 | -- | -- | -- |
| 718 | ≤0.08 | ≤0.35 | ≤0.35 | ≤0.01 | ≤0.01 | 50-55 | 17-21 | -- | ≤11.14 | ≤0.3 | ≤1.15 | ≤0.8 | -- | -- | 4.75-5.5 |
| X750 | ≤0.08 | ≤0.5 | ≤1 | ≤0.015 | ≤0.01 | ≥69 | 14-17 | -- | 5-9 | ≤0.5 | 2.25-2.75 | -- | 0.4-1 | ≤1 | 0.7-1.2 |
| Incoloy | C | Si | Mn | P | S | Ni | Cr | Mo | Fe | B | Co | Ti | Cu | Al |
| 800 | ≤0.1 | ≤1 | ≤1.5 | ≤0.03 | ≤0.015 | 30-35 | 19-23 | -- | ≥39 | -- | -- | -- | -- | -- |
| 825 | ≤0.025 | ≤0.5 | ≤1 | -- | -- | 38-46 | 19.5-23.5 | 2.5-3.5 | ≥19.5 | -- | ≤1 | 0.6-1.2 | 1.5-3.5 | ≤0.2 |
| 800H | 0.06-0.1 | ≤1 | ≤1.5 | ≤0.045 | ≤0.015 | 30-35 | 19-23 | -- | ≤39.5 | -- | -- | 0.15-0.6 | ≤0.75 | 0.15-0.6 |
| 800HT | ≤0.025 | ≤0.5 | ≤1 | ≤0.0.2 | ≤0.01 | 38-46 | 19.5-23.5 | 2.5-3.5 | ≥20.8 | -- | -- | 0.6-1.2 | 1.5-3 | ≤0.2 |
| 901 | 0.02-0.06 | ≤0.4 | ≤0.5 | ≤0.02 | ≤0.008 | 40-45 | 11-14 | 5-6.5 | ≥29.89 | 0.01-0.02 | -- | 2.8-3.1 | ≤0.2 | ≤0.3 |
| Monel | C | Si | Mn | S | Ni | Fe | Ti | Cu | Al |
| 400 | ≤0.3 | ≤0.5 | ≤2 | ≤0.024 | ≥63 | ≤2.5 | -- | 28-34 | -- |
| K500 | ≤0.25 | ≤0.5 | ≤1.5 | ≤0.01 | ≥63 | ≤2 | 0.35-0.85 | 27-33 | 2.3-3.15 |
| Duplex | C | Si | Mn | P | S | Ni | Cr | Mo | N | Cu |
| 2205 | ≤0.03 | ≤1 | ≤2 | ≤0.03 | ≤0.02 | 4.5-6.5 | 21-23 | 2.9-3.5 | 0.14-0.2 | -- |
| 2507 | ≤0.03 | ≤0.8 | ≤1.2 | ≤0.035 | ≤0.02 | 6-8 | 24-26 | 3-5 | 0.24-0.32 | ≤0.5 |
| 2304 | ≤0.03 | ≤1 | ≤2.5 | ≤0.04 | ≤0.03 | 3-5.5 | 21.5-24.5 | 0.05-0.6 | 0.05-0.2 | 0.05-0.6 |
| Super Austenite | C | Si | Mn | P | S | Ni | Cr | Mo | Fe | Cu |
| 904L | ≤0.02 | ≤1 | ≤2 | ≤0.045 | ≤0.035 | 23-28 | 19-23 | 4-5 | ≥38.9 | 1-2 |
| 254smo | ≤0.02 | ≤0.8 | ≤1 | ≤0.03 | ≤0.01 | 17.5-18.5 | 19.5-20.5 | 6-6.5 | -- | 0.5-1 |
| AL-6XN | | | | | | 24 | 21 | 6 | N:0.2 | |

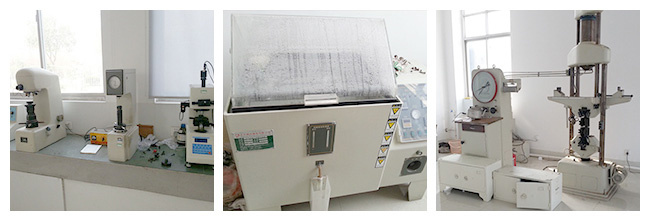

Sample Charge:1.Samples charge: According to your request Sampling time:5-7days2.Samples charge: Free for Existing Mold Sampling time:3days Inspection Euipments:

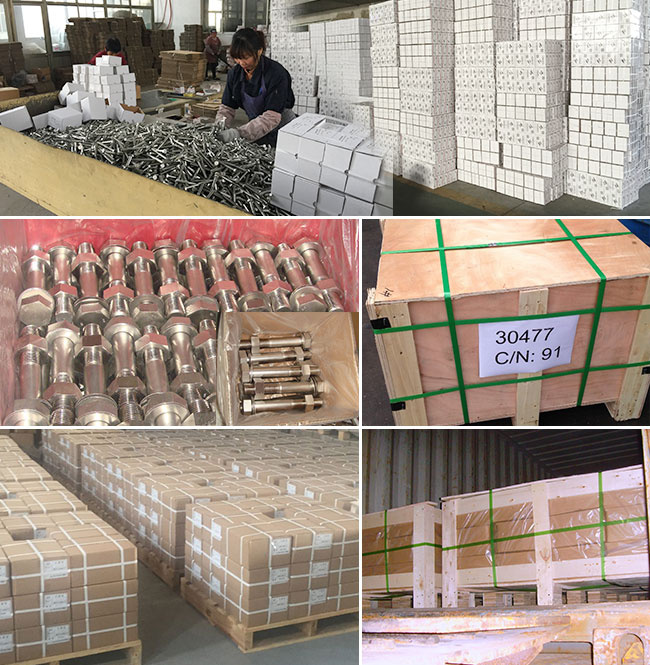

Packing Information:1.Carton Size: 25*16*25CM2.Wooden Pallet/Case Size: 110*90*80CM3.Color Printed Box&Cartons can be made per customers' desire.
Customer Photos:

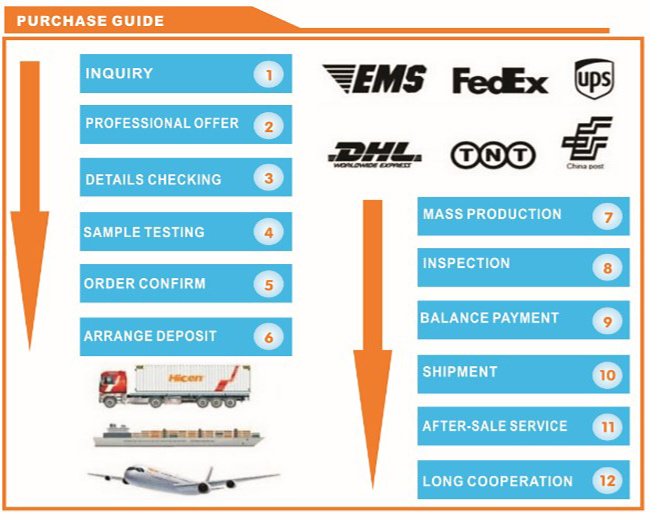

Purchase Guide:

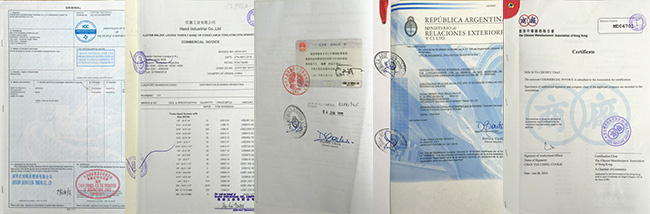

Certified Documents:
Contact Information:LU PENG SALES&MARKETING MANAGERWWW.HANDINDUSTRIAL.COM.CNHANDEGY.EN.MADE-IN-CHINA.COM We can supply different sizes of super alloy steel hex bolts\hex socket bolts\threaded studs\hex nuts\plain washersWe can supply different sizes of SS hex bolts\hex socket bolts\threaded nuts\hex nuts\plain washers
| Prod Model: |
HD-IN009 |
| Size: |
M24-M64 |
| Screw Name: |
Inconel 601 2.4851 N06601 DIN125 Flat Washer |
| Export Markets: |
Global |
| Available Material: |
High Strength Steel, Alloy Steel |
| Used: |
Machinery, Chemical Industry, Environmental |
| Screw Type: |
Hex Head |
| Thread Type: |
Full Thread/Half Thread |
| Type: |
Flat Gasket |
| Material: |
Inconel |
Hand Industrial Co., Ltd is established in 2010, and one professional manufacturer and supplier of stainless steel hardwares.
Our products contains stainless steel security screws, stainless steel bolts and thread studs, stainless steel machine screws, stainless steel tapping screws and self drilling screws, CNC parts super alloy bolts&nuts in different material.
Our raw material includes normal stainless steel, such as: SS201, SS304, SS304L, SS316, SS316L, SS317L, SS321\SS347\SS347H\SS310S\2520, and super alloy: 1.4529, 1.4539, 1.4460, 1.4462, 1.450, 1.4980(alloy 286), 2.4602, 2.4605, 2.4610, Incoloy(825\800\800H), Inconel(600\601\625\718), Monel400, and Duplex steel series 2205(F51\S31803\S32205), 2507(F53\S32750).
We often make DIN. ANSI. BS. ISO. JIS standard and OEM service is available. Our products are widely exporting to European, Australia, North America, South East Asia, etc.
We have below advantages:
15 days delivery for small order, guaranteed
SGS certificate and RoHS requirement of European Union6. Response within 12 hours
Our products applied in famous international brand:
HUAWEI, ALSTON
Free Samples
Welcome to visit our company and develop business with you on mutual benefits in future.
