Inclined Type Segment Diamond Grinding Wheel

Inclined Type Segment Diamond Grinding Wheel
Price: US $ 10-50/Piece
Min Order: 5/Piece
Pay Type: L/C,T/T,D/P
DIAMOND TOOLS
As increasing of the higher quality and performance requirement of diamond tools by customers, diamond tools become the most important polishing tools that widely ues in grinding and cutting of ceramic,stone,and artificial stone area. The product series including diamond roller, diamond cylindrical wheel, diamond squaring wheel, diamond chamfering wheel, diamond resin bond squaring wheel, diamond abrasive, cutting blade, segment, diamond chamfering wheel , diamond resin bond squaring wheel, diamond abrasive, cutting blade, segment, diamond gang saw etc, it has the characteristic of high sharpness, good effect, long working lifetime, high efficiency&environment protecting and low cost, we can also supply other size and formula upon different requirements, different processed material.

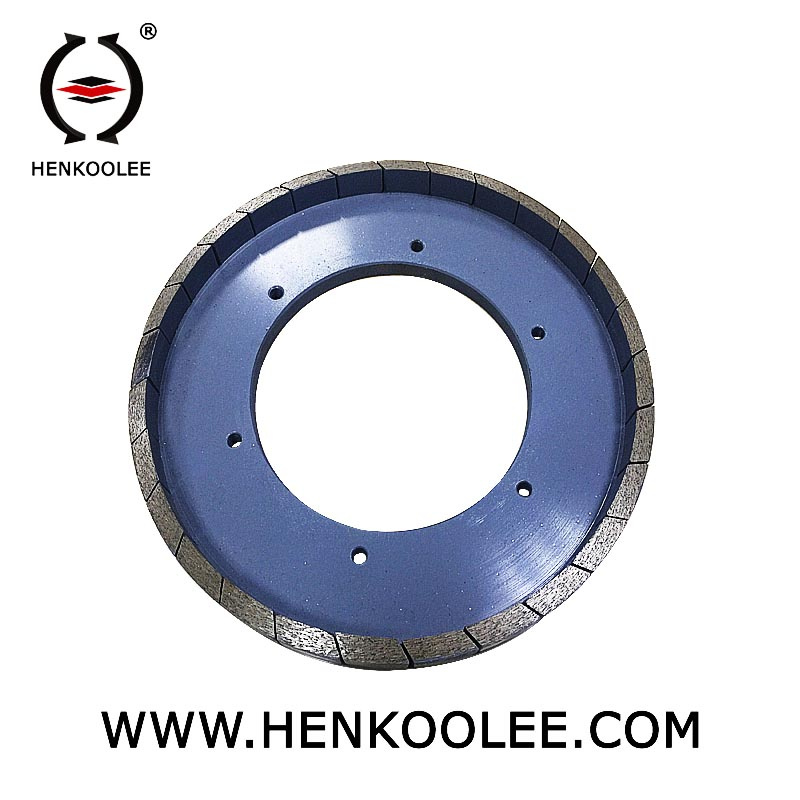

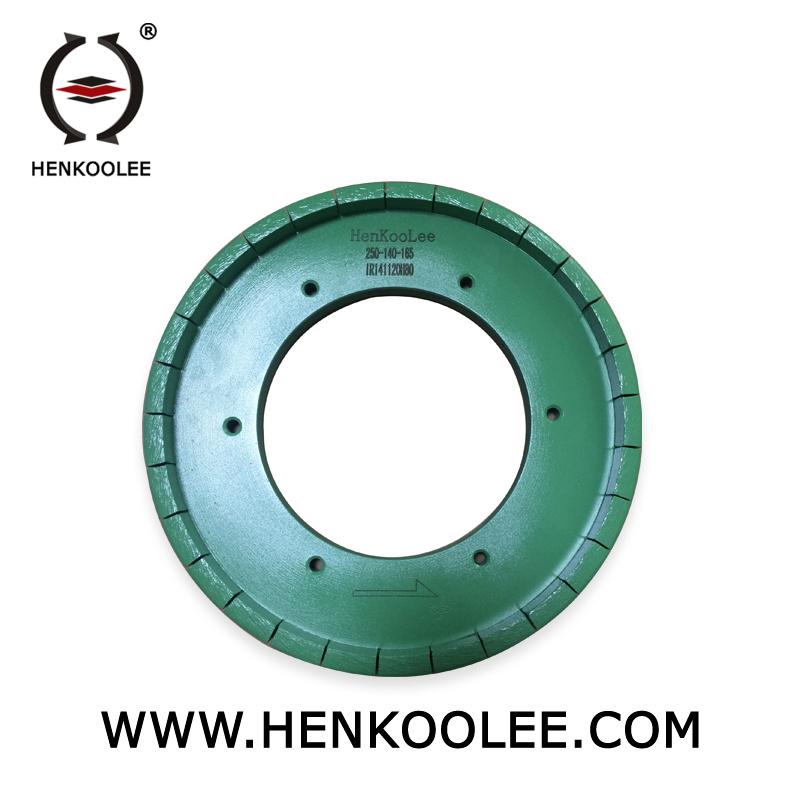

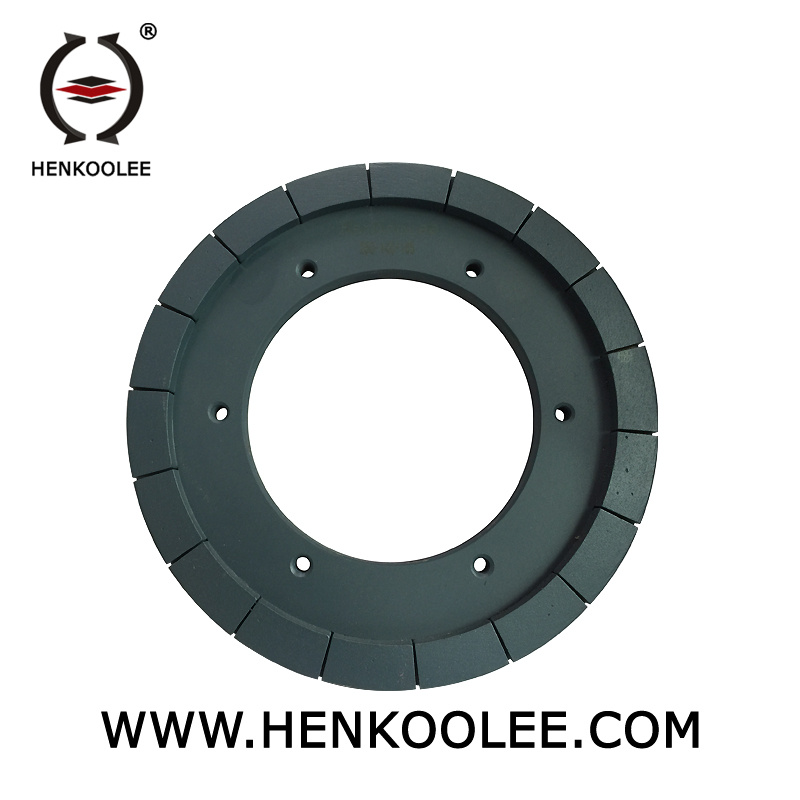

INCLINED TYPE SEGMENT DIAMOND SQUARING WHEEL
Diamond Squaring Wheels are used to make modifying the uprightness of ceramic tiles four edges in order to achieve scheduled size It is a necessary squaring tool for big size glaze ceramic tiles,porcelain tiles and polished porcelain tiles. The advantages of our diamond squaring wheels can be summarized as following:
  1. Good sharness, long working lifetime and low working noise.
  2. Good uprightness and precise size of processed tiles edges without breaking and chipping
  3. Strict production process control and stable quality
  4. Individual formulation and grit match are available for different ceramic tiles quality.
Diamond Squaring Wheel is classified into Diamond Squaring Peripheral Wheel and Diamond Squaring Disk Wheel according to different grinding and cutting modes,and it is classified into Metal-Bond Diamond Squaring Wheel and Resin-Bond Diamond Squaring wheel according to different bond used.
We can produce any required specs of diamond squaring wheels used on different ceramic squaring machines.

Why Choose Our HENKOOLEE?
1. A leading factory of diamond tools industry in China
2. Approved the best quality with very competitive price
3. Good sharpness, stable performance, high cutting efficiency and long lifespan
4. Strict quality control system, accept inspection by 3rd party, as ISO9001, ISO14001 and OHSAS18001 systems.
5. We have very experienced R&D engineers and we have strong ability to do ODM projects.
6. Custom design can be meet upon request, small trial order is available in any time, We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
7. Easy communication,HENKOOLEE professional sales team will always answer you in time, besides, friendly and helpful after sales service is always there for you.

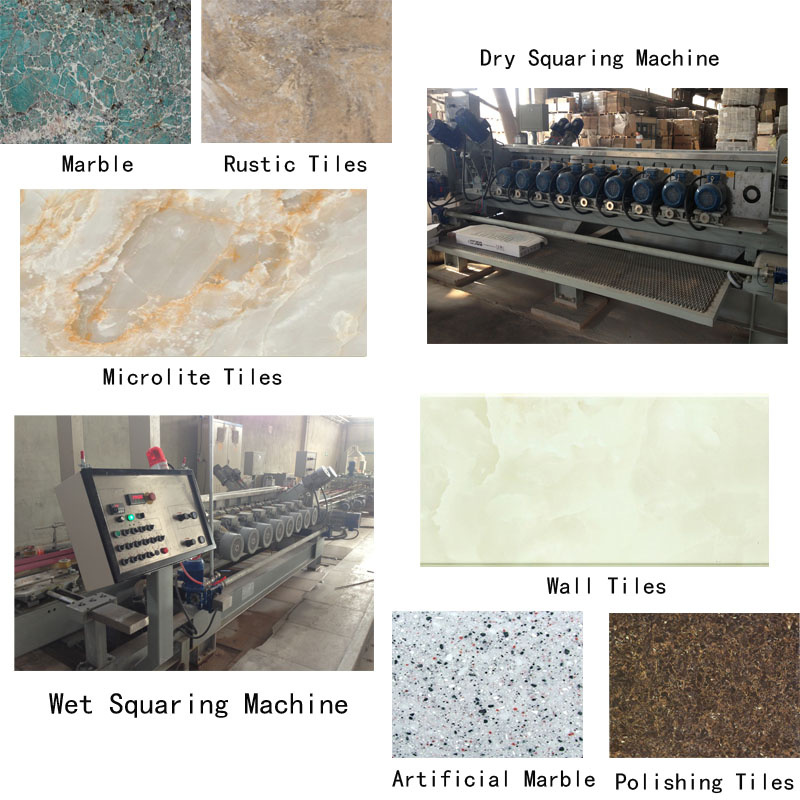

APPLICATION





MODEL,SPECIFICATIONS AND PARAMETER

METAL-BOND DIAMOND PERIPHERAL SQUARING WHEEL
OuterDiameter
(mm)
Inner Diameter Of Metal Body
(mm)
Assemble Hole Screw Size
(mm)
Assemble Hole Screw Distance
(mm)
Segement Size
(mm)
Φ310Φ1504M12/6Φ13Φ1809*10
Φ1506Φ13φΦ1759*10

METAL-BOND DIAMOND  SQUARING WHEEL
DescriptionOuter Diameter
(mm)
Segment Size
(mm)
Segmented Squaring WheelΦ150, Φ200, Φ250, Φ300, 8x12, ,9x14
10x14
Segment Continuous-Rim    Squaring WheelΦ150, Φ200, Φ250, Φ300, 11x12, 10x10,
8x12, 10x14
, 12x20
Continuous Rim Squaring   WheelΦ150, Φ200, Φ250,Φ300, 8x12, 10x14,
12x14, 12x20

RESIN-BOND DIAMOND SQUARING WHEEL
DescriptionSpec
(Outer Diameter-Working Width*Thickness)
GritUsed For
Resin-Bond Diamond Squaring Wheel
(Continuous Rim)
Φ200-25X15
Φ200-40X15
Φ250-25X15
Φ250-40X15
Φ300-40X15
80#,100#
120#,140#
170#,200#,
230#,270#
Fine Squaring
Resin-Bond Diamond Squaring Wheel
(Working Layer With Flume)
Φ200-40X15
Φ250-25X15
Φ200-40X15
100#,120#
140#,170#
Fine Squaring

REMARK:OTHER SPESC SPECS ARE AVAILABLE UPON REQUEST.

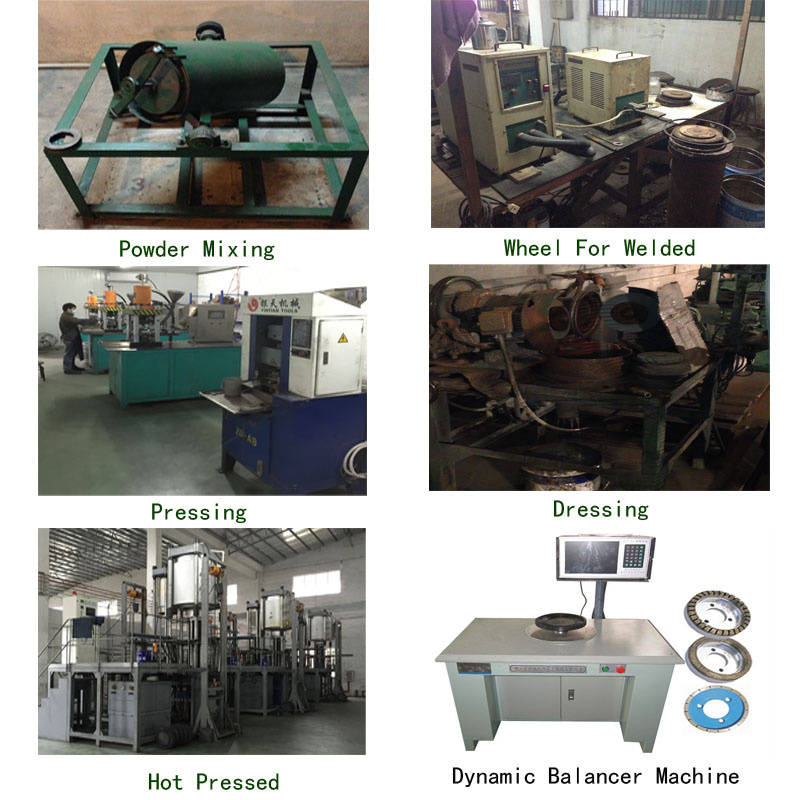

Procedure


Prod Model: HKL205
Suitable: Ceramic Tile and Stone
Characterstics 1: High Sharpe]Ness
Characterstics 2: Good Polishing
Characterstics 3: Low Noise
Characterstics 4: Stable Quality
Characterstics 5: Increase The Speed of The Line
Outer Diameter (mm): 150~300
Inner Diameter (mm): 60~200
Segment Size(mm): 8X12, 10X14, 12X14
HENKOOLEE TRADING LIMITED mainly engaged in exporting machinery & consumable products of ceramic tile produce process. We have an expert team, who can be consultant for new ceramic plant design, machinery technology modification of existed production line, all of them have more than 10 years experience in this ceramic field.

Since 2008 till today, we are doing business mostly with Indian ceramic factories, during this period, we keep choosing best suppliers of China for our Indian friends, however, every ceramic factory has the difference, we take the responsibility to look for the proper supplier for clients need. Fortunately, our clients satisfy the machinery manufacturers we suggested in these years, so mostly these manufacturers became fixed suppliers, and due to this reason, clients became our good friends gradually, the cooperation between our three parties goes very well.

Our company aim: Quality is the first, based on solving problems for clients as our friends, try our best to do top service and low down the produce cost. In the future, we will stick to our aim, adhere the principle of doing all work sincerely & seriously. Let's forge ahead, business scale is continually expanding!
