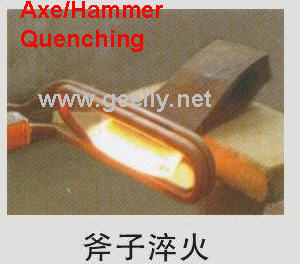

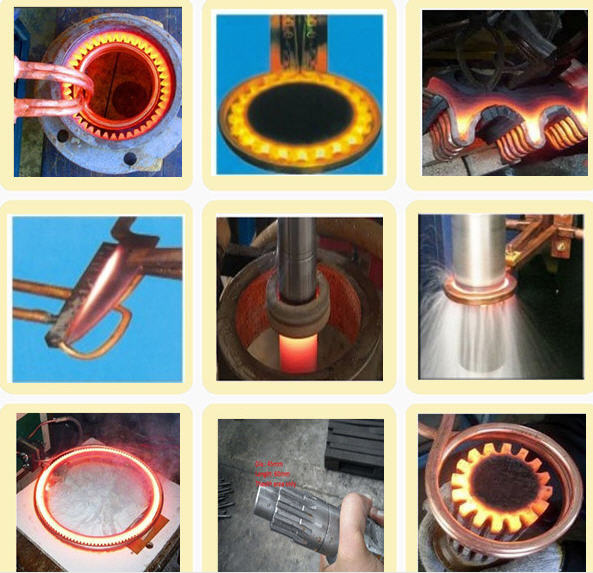

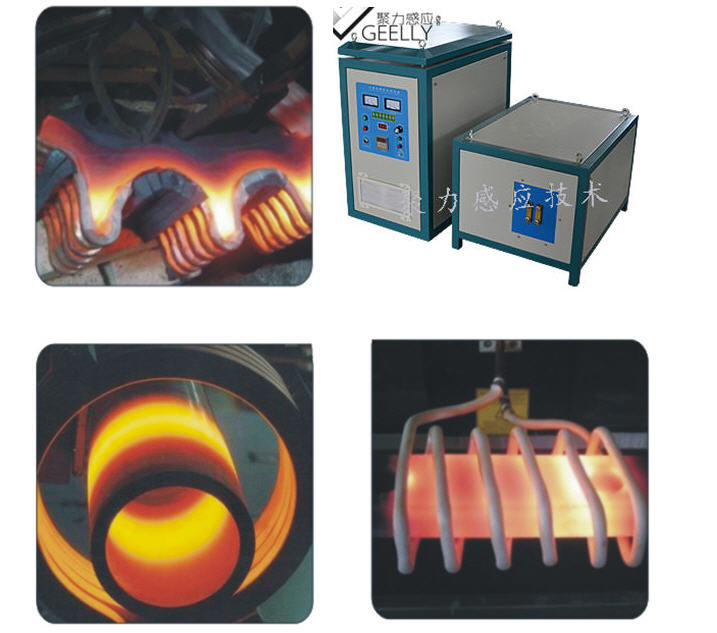

IGBT Induction Heating Hardening Machinery of Wrench/Hammer Axe QuenchingInduction Hardening Machine ApplicationsA.External circular quenching series, for all kinds of shaft, rods, tubes, circular parts,such as bearings, valve, whole or local quenching of outside round surface.
B.Plane quenching series, the end of the mechanical parts and plane parts of the whole or local quenching,such as machine slideway, linear slide rail.
C.Alien parts quenching series, heterogeneous parts surface integral or local quenching,such as car crankshafts, camshaft.
D.Large parts of quenching series, the quality of larger, heavier super-large parts whole or local quenching,such as Marine gear, dam locks rails and large oil pipelines, roll.
E.Internal quenching series,for all kinds of tubes, mechanical parts inside circles whole or local quenching,such as cylinder liner,bushings.Induction Hardening Machine Features1. Siemens IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2. 100% Duty cycle, continuous working is allowed at maximum power output.
3. Display of heating power and heating current and oscillating frequency;
4. Simple to install, Installation can be done by unprofessional person very easily;
5. Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability.
| Model | GSF-60 | GSF-80 | GSF-120 | GSF-160 | GSF-200 |
| Worker power | Three phase 380V/50Hz | Three phase 380V/50Hz | Three phase 380V/50Hz | Three phase 380V/50Hz | Three phase 380V/50Hz |
| Working voltage range (AC) | 342V~430V | 342V~430V | 342V~430V | 342V~430V | 342V~430V |
| Max input current | 90A | 130A | 165A | 220A | 350A |
| Max output power | 60KW | 80KW | 120KW | 160KW | 200KW |
| Oscillation frequency | 10-40KHz | 10-35KHz | 10-35KHz | 10-35KHz | 10-25KHz |
| Efficiency | 100% | 100% | 100% | 100% | 100% |
| Continuous load rate | 100% | 100% | 100% | 100% | 100% |
| Cooling water pressure | 0.1-0.3mpa | 0.1-0.3mpa | 0.1-0.3mpa | 0.1-0.3mpa | 0.5-0.7mpa |
| Host weight | 65kg±5% | 80kg±5% | 85kg±5% | 85kg±5% | 140kg±5% |
| Transformer weight | 50kg±5% | 77kg±5% | 90kg±5% | 90kg±5% | 150kg±5% |
| Host dimensions(L*W*H)mm | 590*450*780 | 650*520*1100 | 650*520*1100 | 650*520*1100 | 700*700*1650 |
| Transformer dimensions (L*W*H)mm | 420*355*450 | 500*800*580 | 500*800*580 | 500*800*580 | 700*700*1650 |
| Temperature protection | 50 ºC | 50 ºC | 50 ºC | 50 ºC | 50 ºC |
Packing detail:1.Standard wooden case, plywood case, and custormized case;
2. Inner packing: packing plastic film and foam to avoid any damage during shipping
3.Accessories: induction coilX 2, foot pedal X1, installing and operating instruction X1 and custormized;Our service 1. Pre-sale service:
- 1. recommend the most suitable machine for customers, according to their application details.
- 2. Inquiry and consulting support.
- 3. Sample testing support.
- 4. View our Factory.
2. In-sale service:
- 1. Strictly control all the prduction process
- 2. Take run test, according to relevant equipment test run regulations.
- 3. Strictly inspection the machine, before delivery
- 4. Delivery on time.
3. After-sale service:
- 1. 12 months warranty period
- 2. Within one year free warranty, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, we will provide replacement parts after detecting the faults.
- 3. If any big quality problems occurs during the guarantee period, we will send maintenance
- 4. technician to provide visiting service after checking with the customer and charge for a favorable price.
- 5. We provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
- 6. The above mentioned are only basic after-sale service requirements, we will make more promises related to quality assurance and operation guarantee mechanism.
FAQ
China Supplies Induction Heating Power Supply
Questions and Answers:
1. Which countries your products are exported to?
Our products are sold many countries and Areas
2.How about the warranty?
All our products have one year quality warranty, during the warranty time, the spare parts replacement is free. And we provide life long time technical support and other assistance.
3.How to install your machine?
We have paper installation instructions and videos, we will teach till you learn it.
4. Which export port you use?
Any China port is ok, usually, we will use Shenzhen ,Guangzhou ,Hongkong port, it can appoint as you like.
5.How about the payment terms and delivery time ?
Payment terms for small machines: 100% T/T, Western Union,Cash in advance.
The big machines and big amount: 30% deposit,70% before shipment (we will take relative pictures for total process for customer's confirmation)and the related papers. You can pay by T/T,L/C, Western Union or other ways.
6.If I have paid but can not receive the goods, how should I do?
Made-in-china website is a famous trade platform and has been mature those years ,every supplier on it has paid large integrity fund,and we have Chinese business licenses which can be checked on China official website or we can show it to you,so that situation will never happen,
7.What is your nature of your company:dealer or factory ?
We are manufacturer,warmly welcome to visit our factory and contact us.
For more infrmation about us and our machines, please contact us now as below;
Shenzhen Geelly Technology Co., Limited is specialized in manufacturing High and Medium Frequency Induction Heating heaters and related equipment.
We own gifted engineers for developing and improving of induction heating generators. We have research lab and production base, We manufacture wide range of product lines which include induction heaters in range of power from 3KW to 240KW and output frequency range from 2kHz to 1.1MHz. We also manufacture and design Gold melting furnace, Platinum melting furnace, and the coils of induction heaters. Industrial chiller. Quartz ceramic crucible and pure graphite crucible. We also offer spare parts of induction heater and some auxiliary parts.
Our induction heater have been used by more and more customers home and abroad due to the good quality and reasonable cost. Our products offer a perfect solution in the fields of metal heating soldering and brazing, forging, shaping, heat treatment and melting.
We offer technical consultation to inquires with instant feedback and recommend suitable machine models for varied applications.
