| Price: | NegotiableUnit |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1Unit |
| Pay Type: | L/C,T/T,D/P |
1. Color: Any color is available |
2. Logo : Customized Logo for Best-selling bending machine |
3. MOQ: Small MOQ,1 SET for Best-selling bending machine |
4. Delivery Time : (1) 21-30 days -If you want to customize your request. (2) 25 days - For our Standard. |
| 5. OEM Accepted : Yes |
| 6. Certification available : Yes(CE,CQC,ISO 9001...) |
7. CNC System : Delem,ESTON ... |
| 8. Packing Details : 20GP ,40GP ,20 OT Or LCL |
9. Production Capacity : 500/units Best-selling bending machine Per Month. |
10. Payment Term : L/C ,T/T,D/A,WEST UNION,MONEY GRAM. |
1.Detailed of Machine

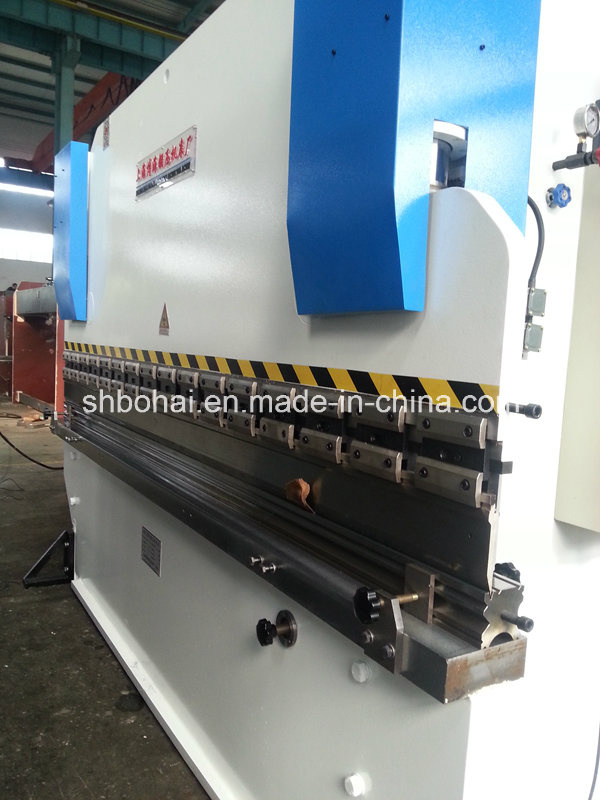

Tools Clamping---Simplified top blades clamping with micro-adjustment wedges,for easy operation and high precision.
Back guage---Extrusion beam and other ductile cast iron part ensure accurate opsitioning and durability.
2. Characterasitics
The position, speed and pressing force of the Ram are controlled in a closed circuit at every point in the work cycle. The position of the Ram is controlled by two digital high precision linear scales. These linear scales are mounted on a independent C-frame on both side of the machine to prevent deformation of the Press Frame for accurate bending depth or bending angle.
3. Main Components List
No. | Item | QTY | Remarks |
1 | CNC Controller | 1 set | ESA KV S530, Italy |
2 | Servo Motor and Drive | 1 set | Famous brand |
3 | Hydraulics | 1 set | Italy Atos or German Bosch |
4 | Ball Screw | 2 pcs | HIWIN, Taiwan |
5 | Linear Way | 2 pcs | HIWIN, Taiwan |
6 | Hydraulic Fittings | 1 set | EMB Fitting Type |
7 | Hydraulic Seals | 1 set | Japan NOK |
8 | Linear Scale | 2 pcs | GIVI, Italy |
9 | Electric Components | 1 set | European/Japan |
4. The S530 controller system
· Programming of the axes positions in tabular mode with automatic syntactical checks, automatic calculation of the bending and bending tonnage.
· All programs, tools description, parameters can be stored on the internal memory or on USB memory stick. These files can be exchanged with other CNC and PC troughUSB memory stick.
· Complete graphic off-line programming on a standard PC, trough a simulation program.
· Customizable alarm messages.

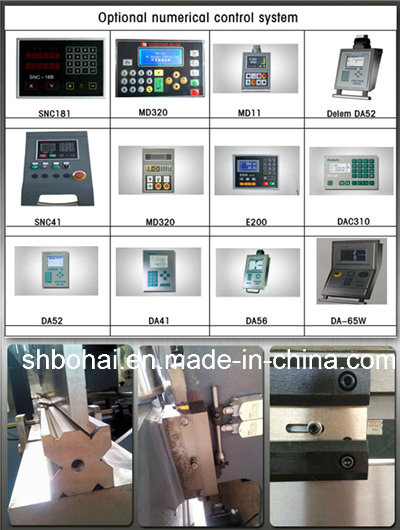

5. Optional control system
As the parent company of Shanghai Wanjiao Machine Tools Co.,Ltd and Maanshan Huayu Machine Tools Co., ltd,BOHAI owns one of the the most contemporary production plants in the industry in China.
The main pruducts of the company are guillotine shears,hydraulic swing beam guillotine shears,hydraulic plate bending machine and other complete set of forging equipment,various type of toolings and cutters,spare parts for machine tools etc.Three different ISO certified factories producing different product families employ 300 employees.
In order to offer customer solutions and further develop patents, the BOHAI R&D center opened in 2000. Now, there are fifteen engineers serve for the R & D center.
Designed and engineered with modern technology, Bohai products are equipped with high quality and proven readily available components.
Established in 1989, Bohai has vast experience in building and supplying high quality products. With over 60,000 machines delivered worldwide, Bohai has earned a reputation as a supplier of innovative "value oriented" solutions.
We promise solemnly:BoHai honor,is our each person's honor,only hard work,in order ro maintain the honor,enterprises can develop continuously,continue to grow together with customers,will be rooted in the integration of resources of the world back to the world,is the ultimate goal of BoHai enterprises.
Our company will grasp the opportunity,gather large number of talented people,increase competitive power in the science and technology of products,accelerate enterprise development and provide higher quality products and service for our new and old customers.
All products we can supply:
* WC67K CNC Press Brake/Bending Machine
* WC67Y Hydraulic Press Brake/Bending Machine
* QC12K CNC Shearing Machine
* QC12Y Hydraulic Shearing Machine
* QC11K CNC Guillotine shearing machine
* Q11A/Q11 Mechanical Plate Shears
* Q35Y Hydraulic Iron Workers
* W11 Mechanical 3-Roller Symmetrical Rolling Machine
* W11YNC Hydraulic 3-Roller Symmetrical Rolling Machine
* W11S Hydraulic Upper Roller Universal Plate Rolling Machine
* J23 Open-Type Tilting Power Press
* J21S Deep-Throat Power Press With Fixed Bed
* JH21 Two-Point Open Gantry Press
* JH21 Ordinary Open Fixed Plate Form Press
* Y32 Four-Column Hydraulic Press
* Y28 Four-Column Double Movement Hydraulic Press For Sheet Metal
* Q43 Series of Metal Cut Machine
* Hand Folding Machine
* Flange Forming Machine
* Foot Shearing Machine
Contact person:Cindy Lu
| Prod Model: | WD67K 80t/3200 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Norminal Force(Kn): | 800 |
| Worktable Length(Mm): | 3200 |
| Poles Distance(Mm): | 2560 |
| Throat Depth(Mm): | 320 |
| Slider Travel(Mm): | 140 |
| Max Open(Mm): | 390 |
| Power(Kw): | 7.5 |
| Dimension(Mm): | 3260*1500*2400 |
| Color: | Optional |
| Forging Forming Method: | Mold Forging |
| Certification: | CQC |
