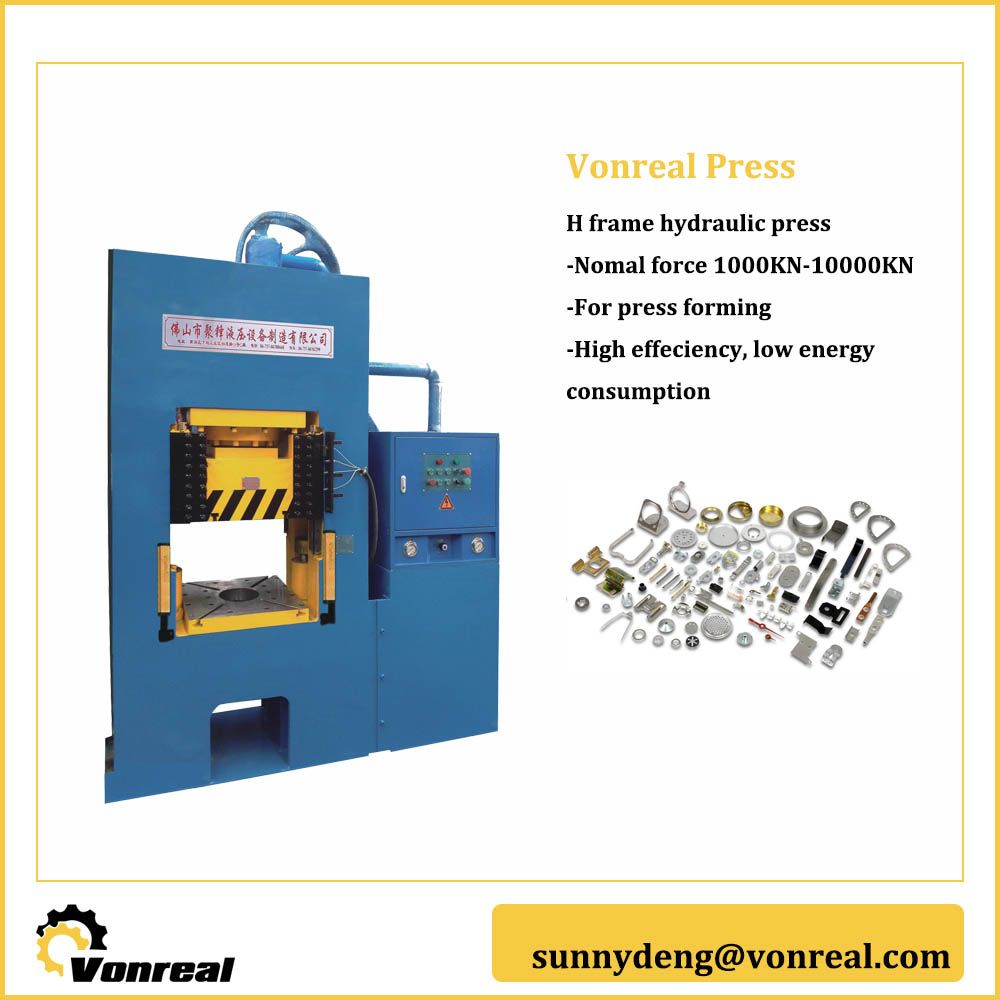

hydraulic power press with high precision (YDK-A)Product Applications
High precision and high speed Frame Hydraulic Press is suitable for stamping process of metal and nonmetal materials ( for example, watches, clocks, metal products, bicycles, motorcycles, tableware, kitchen utensils, automobiles, electrical appliances, rubber, grinding wheel, buttons, gold and silver jewelry, ceramics, powder metallurgy), and also be used for plastic material stamping molding work.
Characteristics·Fast speed profiling stamping
·Two kinds of machine, no-load and fast speed profiling and low speed stamping.
·High efficiency, low energy consumption, easy operation, stable work, safety and so on.
Function
·Auto. count
·The main seal is made of imported material
·Schneider button device
·PLC control
·Main circuit with no-voltage, overload and open-phase protections
·The main hydraulic components using Taiwan products
·Piston rods are IF heat treated with electroplated hard chromium coat
·Infrared photoelectric reflection sensor safe and reliable protection
Model
| No. | Item | Unit | Parameters |
| YDK-100A | YDK-200A | YDK-300A | YDK-500A | YDK-1000A |
| 1 | Rated Pressure | KN | 1000 | 2000 | 3000 | 5000 | 10000 |
| 2 | Maximum System Pressure | Mpa | 20 | 20 | 20 | 21 | 25 |
| 3 | Active Workbench Stroke | mm | 160 | 160 | 160 | 160 | 160 |
| 4 | Open Height | mm | 360 | 360 | 420 | 450 | 500 |
| 5 | Height from Settled Workbench to Ground | mm | 650 | 650 | 650 | 650 | 700 |
| 6 | Fast Down Running Speed of Active Workbench | mm/s | 260 | 260 | 250 | 250 | 240 |
| 7 | Opening Speed of Active Workbench | mm/s | 260 | 250 | 240 | 220 | 200 |
| 8 | Active Area of Workbench(left-rightXfront-back) | mm | 430x430 | 530x580 | 570x530 | 700x800 | 1100x1100 |
| 9 | Boundary Dimension(left-rightxfront-backxheight | mm | 1350x850x2050 | 1450x1150x2200 | 1590x1300x2250 | 1930x1350x2400 | 2200x1650x3200 |
| 10 | Motor Power | kw | 5.5/3 | 7.5/3 | 11/5.5 | 18.5/7.5 | 30/15 |
| 11 | Machine Weight (approximately) | t | 2.2 | 3.6 | 4.5 | 8.5 | 21 |
