Hydraulic Motor for Drilling Rig Borewell Drilling Machine

Hydraulic Motor for Drilling Rig Borewell Drilling Machine
Price: US $ 3700-4200SET
Min Order: 1SET
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Hydraulic Motor for Drilling Rig Borewell Drilling Machine

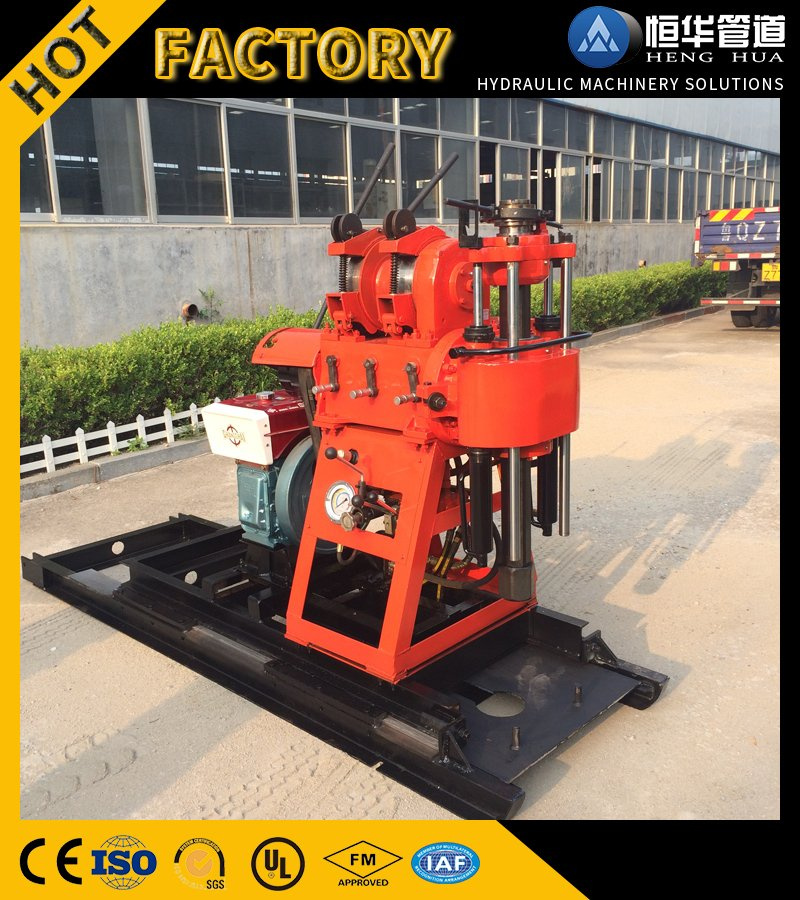

Our Drilling rig photo

What is our Drilling Rig features?

a. Keeping bracket is installed on the hosit to form a double wheel support structure, able to withstand strong blow
b. Vertical box are fixed by four groups of bearings to ensure that the rotary machine has sufficient rigidity to overcome gravel layer and other complex geological conditions.
c. the machine is equipped with national patent technology---taper clutch, with charactristics of strong transmission troque, easy operation and free maintenance.
d. 53 x 59 drilling rod adopted, high rigidity and strong delivery torque.

General investigation, geophysical survey, road and tall building base prospecting, drilling projects like water well, blast hole and so on. According to different geological conditions, you can choose drilling bit kinds: diamond, alloy and steel particles to drill.

What is our Drilling Rig technical paremeter?
 ModelHH-130HH-180HH-200
Tech ParameterDrilling Depth(m)130180200
Open hole dia.(mm)220220220
End hole dia.(mm)757575
Drill rod dia.42-6042-6042-60
Drilling angle(°)90-7590-7590-75
Matching power(kw)13.213.214.7
Weight without power620/750620/750880/970
Dimension2.4x0.8x1.32.4x0.8x1.32.7x0.9x1.5
SpindleSpeed(r/min)142/285/570130/300/480/
730/830/1045
64/128/287/557
Stroke(mm)450450450
WinchMax pull force(kg)210021002500
Pull speed(m/s)0.35-2.230.35-2.230.12-0.95
Rope dia.(mm)Φ9.3Φ9.3Φ12.5
Roll capacity(m)272735
Drill MastRated load(ton)181818
Height(m)6.56.56.5
Mud pumpFlow(L/min)9595145
Max. pressure(Mpa)1.21.22
times/min939393
 Inlet hose dia.(mm)515151
Outlet hose dia.(mm)323238

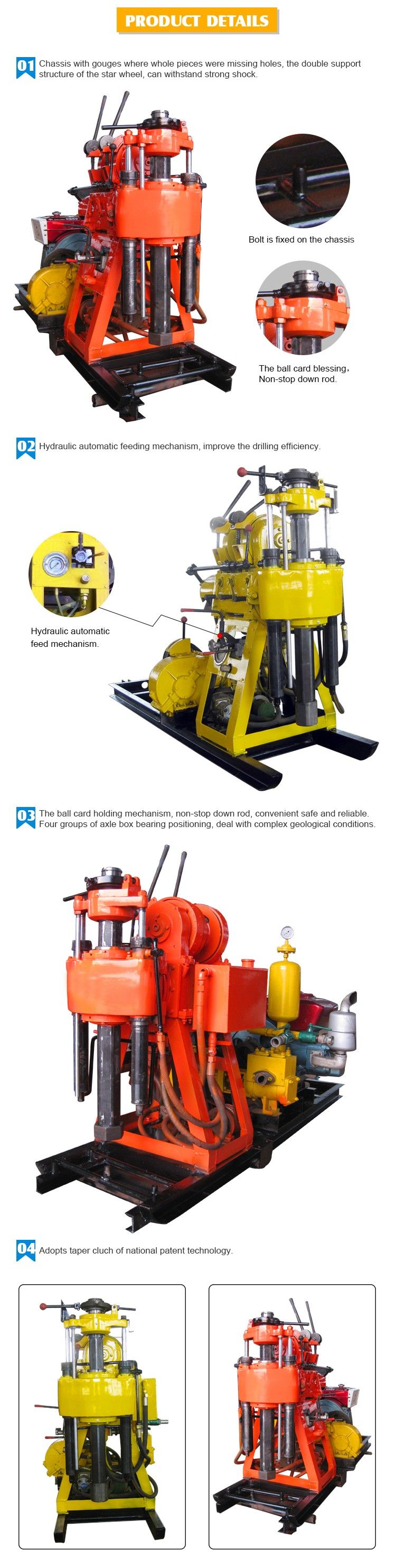

Product Details






FAQ

Q1: Are you a manufacturer?

A: Yes, we are a professional drilling rig and its parts manufacturer.

Q2: What does your company produce?

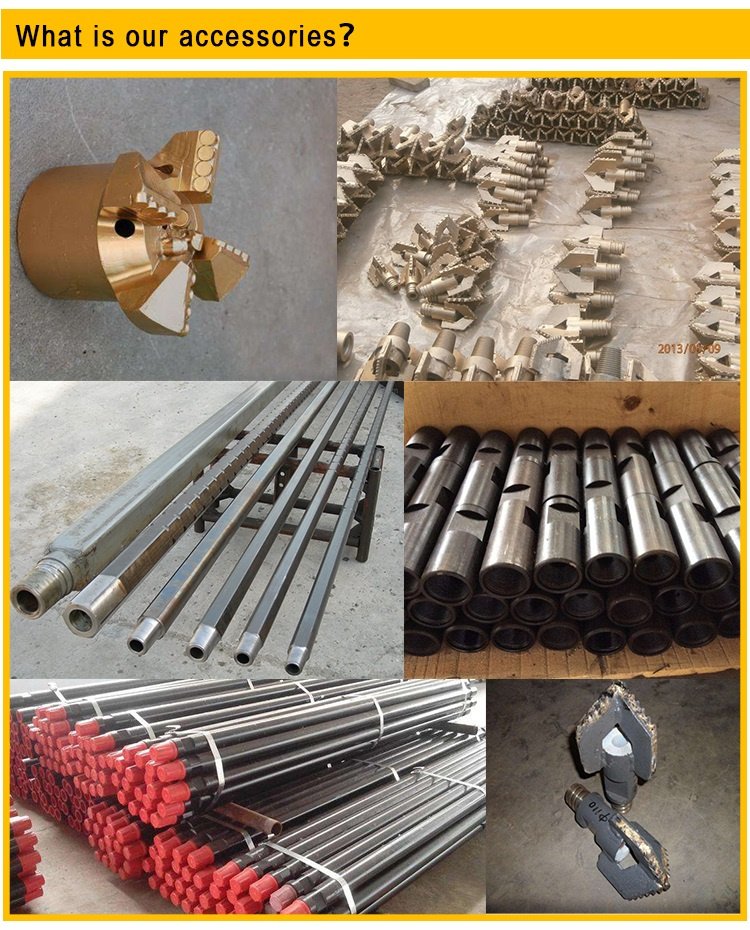

A: The main products of our company include rotary drilling rig, Kelly bar, drilling bucket, drilling auger, casing oscillator, desander and tricone bit, etc.

Q3: How about your delivery time?

A: Normally the delivery time is about 35 days. For some special case, we can make it within 2 weeks, it depends on different products.

Q4: What methods of payment do you accept?

A: We accept T/T, L/C, Western Union or as customer requested

Q5: What is the MOQ?

A: Small trial order is acceptable, like 1 set, 2 sets…

Q6: Do you offer any deals or discounts?

A: Yes, price depends on different quantity, different quantity will give you different price.




Prod Model: HH180
Packing: Follow Customer's Requested
MOQ: 1 Set
Loading Port: Tianjin Port
Drill Angle: 90-75
Weight Without Power: 620
Usage: Exploration of Railway,Road,Bridge
Our Main Market: MID East,Southeast,Asia,India,Europe
Price: Very Competitive Price
Inspection: Factory in House or Third Party Inspection
Delivery: Our Factory Has Stock
Tianjin Henghua Pipeline Technology Co., Ltd is the member of HeBei Bohai GROUP a professional manufacturer. As far, we have three branches for 3 main machines. We adhere to "quality oriented, credibility first" business philosophy, striving to provide users around the world perfect machines at the advantages of our strong brand, technology and services.

We have skillful production people and strong R&D technicians who have accumulated over 26 years experience in machinery, "Best quality, best service and most competitive price" is our principle.

Drilling rigs

Our brand is recognized worldwide for our high quality, reliability and our customer service. Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal air-conditioner and so on, capable and functional. Henghua has a professional team of engineers with rich experience in the design, production and inspection.

Hydraulic Machines

We produce high quality Hose crimping machine, hose cutting machine, hose assembly, hose skiving machine, flexible axle crimping machine, and nut crimping machine and so on. They are widely used in navigation, military industry, engineering machinery, and mine exploitation, steel, shipping manufacture, oil field, drilling rigs, flexible axle produce, agricultural equipment etc. Our products are well accepted all over the country and in Southeast, Asia, Africa etc.

Concrete grinding machine

We had been engaged in developing and manufacturing floor polishing machines, floor washing machines, vacuum cleaners, floor scarifier, diamond tools and various accessories. We have our own manufacture bases in Tianjin and some other well cooperation partners. Some of our products have passed the CE, ISO9001 quality control system certificates.

We strongly believe that the friendship and trust given by our customers are the great treasure we have and the constant improvement & innovation in quality, cost and service will continue our group's growing.
