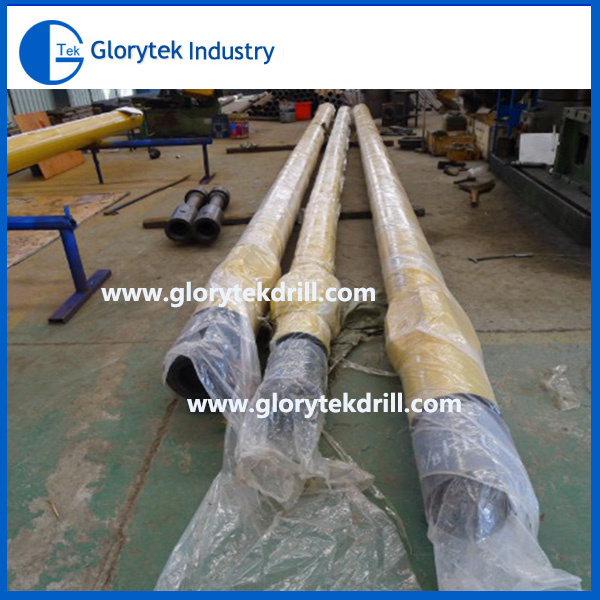

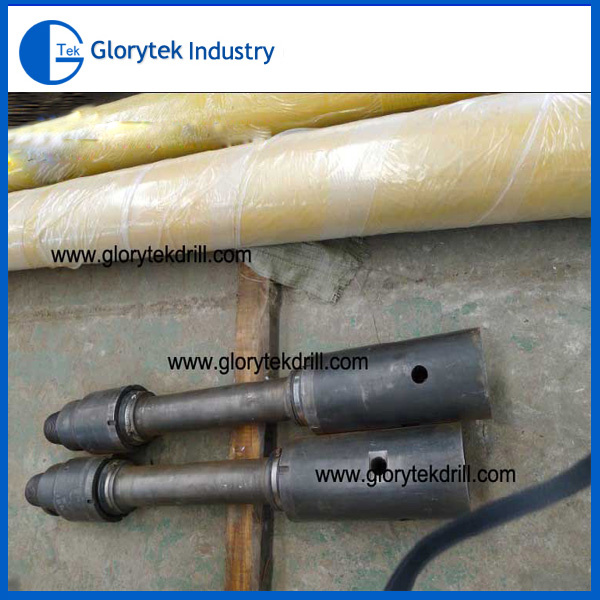

Hydraulic Drillng Machine Downhole Mud Motor
Description
It is one kind of positive displacement downhole motor, with working principle is to convert the high pressure fluid power of mud into mechanical energy for bit rotation. It is widely used in oil field and mine directional well and horizontal well, cluster Wells and vertical Wells, drilling, deflecting, adjusting azimuth, coring, reaming, side tracking and workover treatment, and also applied in some special operations as compound drilling and traversing, etc.
Application
A Variety of Types & the Capabilities In accordance with the actual drilling needs, we push out high, midiem and low speed downhole motors, of a variety of types with different functional configuration and application for all working conditions.
1. Standard type Standard motor, mud lubricating transmission shaft, straight, single and double bent.
2. Long type The torque is increased by 30%to 60%than standard ones, mud lubricating transmission shaft, straight, single and double bent.
3. High flow rate type The adoption of hollow rotor and different sizes of hard alloy jet nozzle to increase the incoming flow and bit power.
Techincal Parameter
| Spec. | Recommended Hole Size | Input Flow Rate | Pressure Loss | Bit Speed | Working Torque | Delay Dynamic Torque | Output Power | Drilling Weight | Max Drilling Weight | Joint Thread | Length |
| Unit | mm | In | L/S | Mpa | r/min | N.m | N.m | KW | KN | KN | In | In | mm |
| 5LZ57×7.0 | 83-121 | 31/4-43/4 | 1.5-3.5 | 3.2 | 185-430 | 200 | 350 | 4.3-10.1 | 5 | 10 | 11/2REG | 11/2REG | 2822 |
| 5LZ73×7.0 | 83-121 | 31/4-43/4 | 4-Feb | 3.2 | 80-160 | 615 | 1077 | 5.8-11.5 | 12 | 25 | 23/8REG | 23/8REG | 3423 |
| 9LZ89×7.0 | 105-143 | 41/8-55/8 | 8-Mar | 3.2 | 147-392 | 504 | 882 | 8.64-23 | 20 | 30 | 27/8REG | 27/8REG | 2911 |
| 5LZ95×7.0 | 114-150 | 41/8-57/8 | 12-May | 3.2 | 140-320 | 710 | 1240 | 10.5-25 | 21 | 40 | 27/8REG | 27/8REG | 3920 |
| 5LZ120×7.0 | 152-200 | 6-77/8 | 16-Aug | 3.2 | 80-180 | 1850 | 3200 | 23-47 | 64 | 106 | 31/2REG | 31/2REG | 5039 |
| 5LZ165×7.0V | 245-244 | 81/8-95/8 | 18-30 | 3.2 | 111-167 | 4440 | 7770 | 57.6-86.4 | 80 | 160 | 41/2REG | 41/2REG | 7408 |
| 5LZ165.5×7.0V | 215-244 | 81/8-95/8 | 18-30 | 4.0 | 120-180 | 5135 | 8987 | 72-108 | 90 | 180 | 41/2REG | 41/2REG | 7748 |
| 5LZ172×7.0V | 215-244 | 81/8-95/8 | 18-30 | 4.0 | 120-180 | 5135 | 8987 | 72-108 | 90 | 180 | 41/2REG | 41/2REG | 7391 |
| 5LZ172.5×7.0V | 215-244 | 81/8-95/8 | 20-35 | 4.0 | 115-180 | 6452 | 11299 | 86.4-151.2 | 100 | 200 | 41/2REG | 41/2REG | 8031 |
| 7LZ172.5×7.0V | 215-244 | 81/8-95/8 | 20-35 | 4.0 | 75-180 | 6527 | 11420 | 59.5-108.6 | 80 | 160 | 41/2REG | 41/2REG | 8631 |
| 5LZ185×7.0 | 215-244 | 81/8-95/8 | 20-35 | 4.0 | 184 | 5436 | 8154 | 80-140 | 120 | 240 | 41/2REG | 61/2REG | 8120 |
| 5LZ185.5×7.0 | 215-244 | 81/8-95/8 | 20-35 | 4.0 | 173 | 5939 | 8908 | 80-140 | 120 | 240 | 41/2REG | 61/2REG | 8120 |
| 5LZ197×7.0 | 244-311 | 91/8-125/8 | 20-40 | 3.2 | 61-122 | 14118 | 14118 | 57.6-115.2 | 120 | 240 | 51/2REG | 65/8REG | 7998 |
| 5LZ197.5×7.0 | 244-311 | 95/8-121/4 | 20-40 | 4.0 | 85-160 | 12640 | 12640 | 72-144 | 130 | 260 | 51/2REG | 65/8REG | 8598 |
| 7LZ203×7.0 | 244-311 | 95/8-121/4 | 20-40 | 3.2 | 70-155 | 12289 | 12289 | 57.6-126.7 | 150 | 240 | 51/2REG | 65/8REG | 7798 |
