Hydraulic Breaker Hammer Suitable for 6-9tons Excavator

Hydraulic Breaker Hammer Suitable for 6-9tons Excavator
Price: US $ 1000-3500/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union

Hydraulic breaker hammer suitable for 6-9tons excavator

Specifications:

ZY series breakers are compatible with various brand of excavators including: DOOSAN, KOMATSU, CAT, SNAY, HYUNDAI R, CAT PALLET, Volvo, KOBELCO, KATO, KUBOTA, JCB, CASE, GEHL etc.

Our hydraulic breaker (hydraulic hammer) are applicable to a wide rang of weight class of excavators which from1.2 to100 ton

Hydraulic rock breaker is powered by an excavator or loader pump provides pressure oil, it can dig a fundamental role in building a more efficient clean up floating rock crevice in the rocks and soil. Optional hydraulic hammer excavator model is based on the principle of the operating environment to choose the most suitable hydraulic rock breaker
Hydraulic breaker has become an important tool for the job, it was installed in the hydraulic breaker backhoe loaders (also known as two busy) or wheel loader for crushing operations. Excavator Hydraulic Breaker, also known as hydraulic breaker or hydraulic rock breaker (Excavator Hydraulic Breaker).

 Packaging Detail: Standard wooden case or as per special requirement



 Delivery Detail: Within ten days upon receipt confirmation for the order



 ZY750ZY1000ZY1350ZY1400ZY1550ZY1650ZY1750
Weight
(kg)
37586115001766283330653991
Length
(mm)
1719232626912826339333593709
Required oil Flow
(L/min)
50-9080~100100~150120~150200-260200-260210~290
Working pressure
(kgf/cm2)
110~140150-170150~170160~180160~180160~180160~180
impact rate400-800350~700350~700400~800350~500300~450250~400
Hose Diameter
(In)
0.50.751115/45/4
Chisel Diameter (mm)75100135140140165175
Chisel Length
(mm)
700100013001300130016001600
Applicate Exvacator
(Ton)
6-911-1616-2118~2630-4530-4540-55




Exhibition in South Amercian:




Brand nameSeries       Diameter       Length
 TP3053580
 TP4068690
 TP5075700
 TP7085800
 TP1001001000
 TP1501201100
 TP1601251100
Extension opened upTP200/FINE201351200
(TORPEDO)TP200/FINE22/231351200
 TP2501401200
 TP3501501300
 TP4001551400
 TP4501601400
 TP5001701600
 TP5501801600
Prod Model: zy750
Applicable Field: Mining,Road,Metallurgy,Construction
Tool Diameter: 75mm
Weight: 375kgs
Certification: ISO9001: 2000
Condition: New
Handan Zhongye Machinery Manufacture Co., Ltd. is located in the ancient capital of Yan and Zhao, We specialized in manufacturing all kinds of the Hydraulic Breaker Spare parts, Such as Hydraulic breaker chisels, Back &front head, Thrust & Outer bushings, shell and so on.

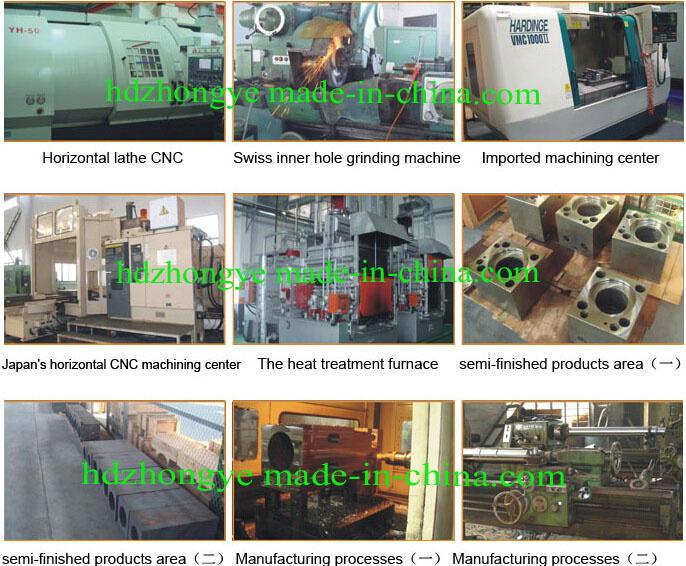

We have perfect production equipments and test devices, using advanced international standards and adopt international advanced technology for products.

Our company is committed to development, production, sales and related technical services for products, we have cooperated with many famous corporations in domestic and abroad for long time, our products are exported to the Middle East, Europe, America and other countries and regions.

We insist on "do stronger, do bigger, do better, do longer" as the goal, will always to provide good products and satisfactory service to our new and old customers with the spirit of "unite hearts, first-class, customer first " and policy of "good quality, efficiency management, customer first, keep compliancey".

Our company attended 2014 exhibition of China international construction machinery, building material machinery, engineering vehicle and equipment. From this exhibition, we will seize this opportunity to make communication and cooperation with domestic and foreign enterprises, to help exhibitors make further understanding of our business scope, technical strength and engineering achievements, to promote our regional popularity, to build good cooperative atmospheres, to create advantage of great leap forward development by virtue of resource integration and complementary advantages with companies in the same industry.
