Hot Selling DTH Hammer Bit, Drilling Hammer, Hammer Drill

Hot Selling DTH Hammer Bit, Drilling Hammer, Hammer Drill
Price: US $ 200-850/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union,Paypal

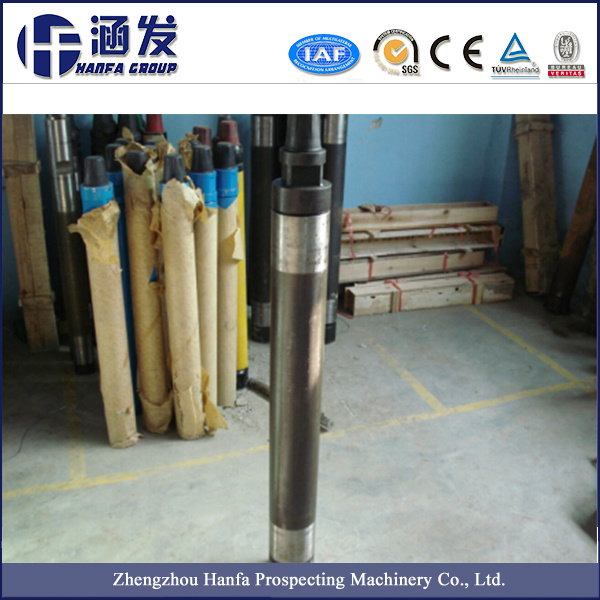

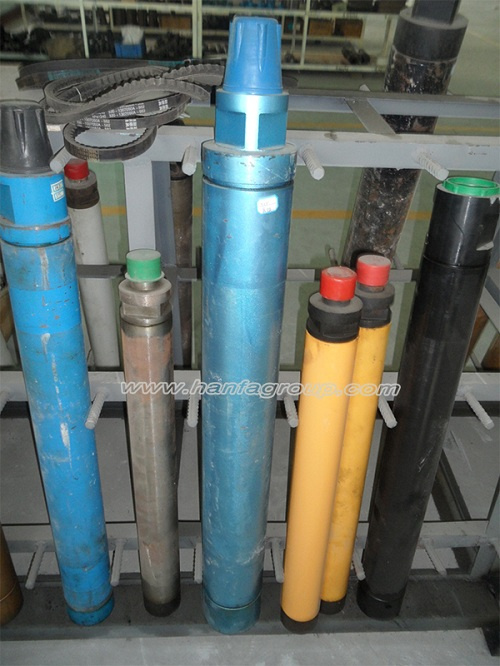

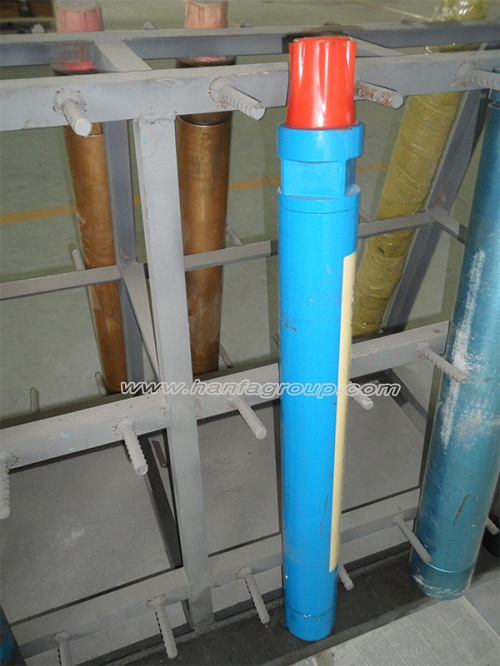

Hot Selling DTH hammer Bit,drilling hammer,hammer drill



The DTH is the abbreviation of Down The Hole and sometimes it is also called RAB in some markets, then the RAB is short for Rotary Air Blasting.

A rotation drill rig, air compressor and the DTH drill string are the essential unit for DTH drilling while the "DTH drill string" is always made up of DTH drill rods, DTH hammer and DTH bits. As one of key component, the DTH hammer acts as a role of converting the air pressure to the impact energy, simultaneously transferring impact energy and rotation force to DTH bits.

As specialist manufacturer and provider of DTH drilling tools, hereby we recommend our newest generation DTH hammer which is improved by absorbing art technology, selecting superior alloy steel and robust design. It is proved by more than thousands times of test that our newest DTH hammer has longer life ,  lower air consumption and 15% higher penetration speed compared the conventional DTH hammer in the market. In addition, it can work at the air pressure from 6 Bar to 35 Bar(0.6~ 3.5Mpa). At last, we developed various type of DTH hammer which can be compatible with DHD, COP, QL, MISSION and SD shank of DTH bits and performs very well. Therefore, the newest generation DTH Hammer is very popular among our customers and has a good market share as soon as it launched in the market.


GSE DHD Hammer

GSE DHD hammer sizeGSE DHD Hammer working pressureThe impact frequency when it is working on 18Bar
  GSE DHD3.5  6 bar ~ 35 Bar  32Hz
  GSE DHD340  6 bar ~ 35 Bar  31Hz
  GSE DHD350  6 bar ~ 35 Bar  30Hz
  GSE DHD360   6 bar ~ 35 Bar   28Hz
  GSE DHD380  6 bar ~ 35 Bar 23Hz

                                                                         GSE QL Hammer

GSE QL hammer size GSE QL hammer working  pressureThe impact frequency when it is working on 18Bar
  GSE QL40  6 bar ~ 35 Bar  31Hz
  GSE QL50  6 bar ~ 35 Bar  30Hz
  GSE QL60  6 bar ~ 35 Bar  28Hz
  GSE QL80  6 bar ~ 35 Bar  23Hz

                                                                                                GSE MISSION Hammer
GSE MISSION hammer sizeGSE MISSION hammer working  pressure  The impact frequency when it is working on 18Bar
  GSE MISSION 30   6 bar ~ 35 Bar  33Hz
  GSE MISSION 40   6 bar ~ 35 Bar  33Hz
  GSE MISSION 50   6 bar ~ 35 Bar  33Hz
  GSE MISSION 60   6 bar ~ 35 Bar  30Hz
  GSE MISSION 80   6 bar ~ 35 Bar  25Hz

                                                                                                   GSE SD Hammer
GSE SD hammer sizeGSE SD hammer working  pressureThe impact frequency when it is working on 18Bar
  GSE SD4  6 bar ~ 35 Bar  31Hz
  GSE SD5  6 bar ~ 35 Bar  30Hz
  GSE SD6  6 bar ~ 35 Bar  28Hz
  GSE SD8  6 bar ~ 35 Bar  23Hz
Prod Model: hammer drill
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number: 3/3.5,4,5,6,8,10,12 Inches
Use: Well Drilling,Ore Mining,Coal Mining
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research, manufacture and market.

Presently, it has three subsidiaries which are Zhengzhou Hanfa Prospecting Machinery Co., Ltd, Zhengzhou Hanfa Imp & Exp Trading Co., Ltd, HK Hanfa Imp & Exp Trading Co., Ltd. It has experienced engineers, professional R&D team, special after service team, world class sophisticated equipment and advanced technology guarantee the best quality drilling equipments and best service to its customers.

Hanfa Group perennially committed to the development, production and sales of drilling machine, mainly including water well drilling rig, core drill, DTH drill, rotary/piling rig, trenchless centering drill, hydraulic tunnel drilling rig, etc. Hanfa Group send all kinds of drill for the global market, the products are sold to all over the world, exports more than 60 countries and regions, is the leading brand of drilling rig in China. At present, Hanfa Group built Beijing, Tianjin, Shandong, Hubei R&D and manufacturing base.

Hanfa Group always adhere to the "two audit", one is must through the international authoritative certification bodies's audit; The second is needs to be approved by customers and the public. It is also true, Hanfa Group, all kinds of drilling rig, has passed the ISO9001: 2008 and ISO9001: 2000 quality management system, the national military standard GJB9001-2001 and ISO14001-2004 environmental management system and GB/T28001-2001 occupational health and safety management system certification, CE and other international well-known certification bodies audit and certification, obtained the international recognition of authority;

At the same time, the development of the new and old customers, numerous customers from all corners of the world's praise, confirming the quality of Hanfa products is already deeply rooted in the hearts of the people, pass the "audit" of masses of the people. High quality is the the faith and the most basic bottom line of Hanfa Group since it founded twenty years ago. For more than 20 years, the countless praised, care, support have been produced a large web of trust, like the Hanfa's reputation today, global coverage, influence the world.

Hanfa Group do not forget good service while in adhere to the quality. In Hanfa Group, the quality is the root, service is the source. Hanfa Group, after long-term development, formed a very perfect service system, the service system covering the pre-sale, sale, after-sale three important links, fully satisfy the customer service requirements at different times, leave no dead angle of service to the customer. Hanfa Group has a strong service team, including 30 senior engineers, more than 50 technical personnel, hundreds of after-sales service personnel. After many years of accumulation, the service team had rich experience, is the most perfect service industry, service quality of the best team. Hanfa Group, has send technicians abroad to after-sales service more than 20000 times, operation training for more than 10000 times, machine repair about 5000 times...Large and small data, not only explain Hanfa has send thousands of customer operation method, construction technology, drilling technique, machine maintenance knowledge, the fault of the machine function again...But also record with the brilliance of Hanfa's service team, the footprints on the road, confirm the powerful strength and service quality of Hanfa Group.
