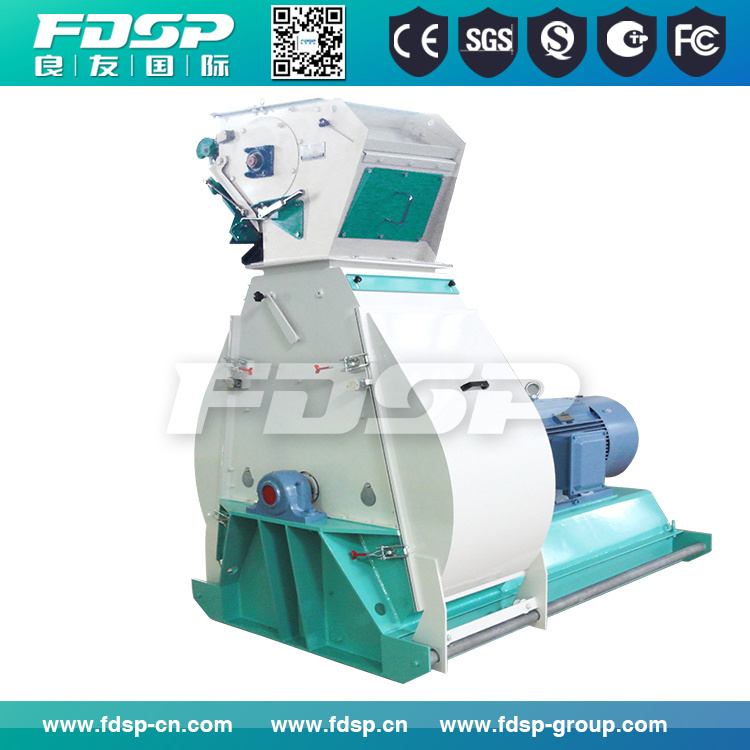

Hot Sales Cereal Crusher Hammers with Impeller Feeder

Hot Sales Cereal Crusher Hammers with Impeller Feeder
Price: US $ 5000-30000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
Specifications
1.imported NSK bearing from Japan
2. secondary grinding structure
3.thickening and enlarging base

We are manufacturing grain hammer mill,corn hammer mill,maize hammer mill,whest hammer mill for exportation.

Features:
1.It is equipped with Siemens motor and SKF bearing.
2.Hammers are vacuum-welded by special alloy steel,which make it more durable.
3.Rotor is undertaken accurate dynamic balancing test, resulting in low noise, smooth running.
4.New type S shape coupling directly connecting driving results in big offset travel and effectively avoid the heating of bearing;
5.Movable slide access door for easy operation and maintenance;
6.Specially design tear-circle grinding chamber and bottom U-shape second grinding
structure ensure high efficiency;
7.It is suitable for coarse-grinding and fine-grinding of various granular grain materials,
such as corn, sorghum, rice, wheat, soybean meal, cottonseed meal, rapeseed meal.
8.The fine grinding can realize 60mesh.



Technical parameters of feed grinding mill:

Parameters

998-1

998-2

998-3

998-4

Speed Of Rotor (rpm)

1480

1480

1480

1480

No. Of Beater (pc)

54

72

108

144

Power (kw)

55/75

90/110

110/132/160

180/200

Output (t/h)

10-15

12-20

25-35

38-50


Re: The above indices are those when meeting the following conditions: raw material: corn, moisture content not higher than 14%, density not lower than 0.72t/m3, screen: hole diameter3mm, hole-opening rate not less than 33%.

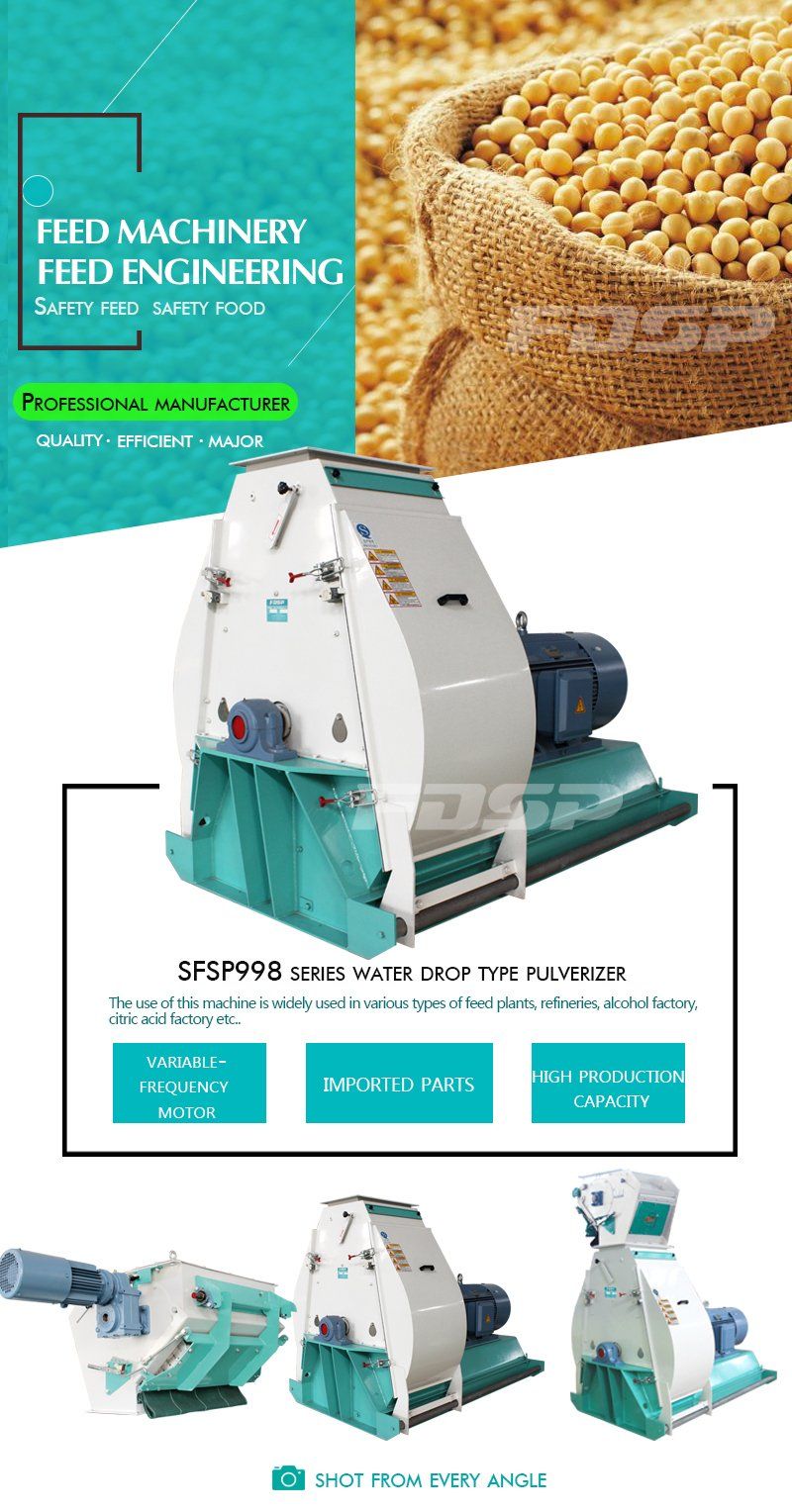

Prod Model: SFSP998
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Bearing: SKF/NSK
Voltage: 380V
Power: 55-200kw
Motor Brand: Siemens
Type: Hammer Crusher
Drive: Electric
Crushing Degree: Fine Grinding Machine
Crushing Style: Grinding and Impact
Cutter Material: Hard Alloy
Compressive Strength (',For Crushing): 100-250MPA
Object: Grain
Jiangsu Liangyou International Mechanical Engineering Co., Ltd is an export-oriented company specializing in overseas business, which belongs to Jiangsu Liangyou Agro Machinery Co., Ltd...In order to better explore and develop overseas business, now we put the overseas business in Jiangsu Liangyou Agro Machinery Co., Ltd., Jiangsu Liangyou Silo Engineering Co., Ltd., and Jiangsu Liangyou Renewable Energy Mechanical Engineering Co., Ltd. Together to Jiangsu Liangyou International Mechanical Engineering Co., Ltd.

The company is aiming at "keep brand ahead in domestic, and guarantee quality in overseas", concentrating on research, development, design and manufacture of Agro machinery, silo, and renewable energy machinery, forming industrial pattern covering machinery regarding feeding, animal husbandry, agro husbandry, cultivation, microbe, environmental protection, silo, renewable energy etc. We have passed ISO 9001: 2008 quality management system certification, and get CE, SGS certificates. Products are exported to many countries in Middle East, Europe, America, South East Asia and Africa etc.

In order to better exploit international market, Jiangsu Liangyou International Mechanical Engineering Co., Ltd locates Nanjing, China. Our company (FDSP) will taking "Sincerity makes trust, Quality wins market" as our business philosophy, by our advanced know how, superior quality and satisfactory services, so as to further develop the overseas market regarding feeding machinery, fertilizer machinery, biomass machinery, silo machinery, environmental protection machinery, electronic control equipment, packing machinery, agricultural machinery, drying machinery, food machinery, cultivating machinery, slaughtering machinery, chemical machinery, and petrochemical machinery.

By our scientific design, excellent technology, fine product, thoughtful and perfect service, we wish to join hands with our customers, advance together and cooperate sincerely, so as to create a brilliant future.
