| Price: | US $ 0.8-1.8/Piece |
|---|---|
| Min Order: | 80/Piece |
| Pay Type: | T/T,Western Union,Paypal,Money Gram |

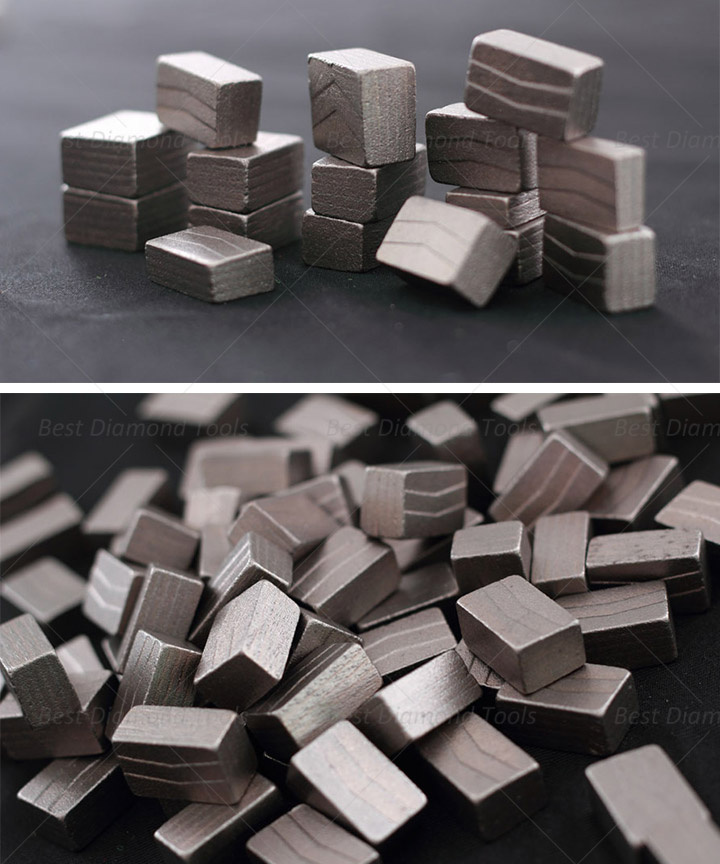

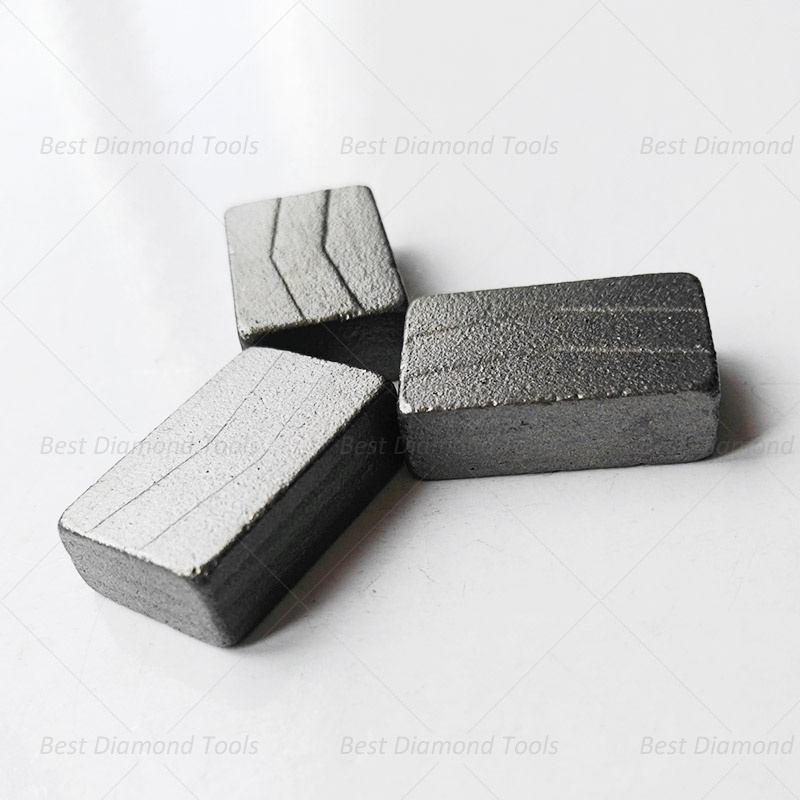

Best DIamond Tools use High-Grade diamond, Metal powder, Make different formula for cutting different stone. The Diamond Segments with various dimensions and shapes. The segment in this page is used for 2000mm diameter single/multi blades and cutting granite. We have different types of segments for cutting different hardness granite.
Specialized in making diamond segment, we can make different kinds of quality and size to meet your market and stone.
| Name | M taper shape diamond segment |
| Material | Diamond, Metal Powder etc. |
| Technology | Sintered by cold pressed and hot pressed |
| Application | Single/Mutil Blades Segments for cutting granite |
| Diameter | 2000mm blade (900-3500mm segments we can make) |
| Size | 24*8.0/7.4*15mm |
| Features | 1. Fast sharp cutting & long lifespan 2. Stable performance & high efficiency 3. Different formula for different hardness granite |
| Packing | Generally packed in carton box, we could customized the package upon your requests. |
| Supply Ability | 5000 sets/month (Mixed order is available) |
| Other | ISO 9001 & SGS & BV & Assessed Supplier & Manufacturer OEM is available |
| Diameter | Core Thickness | Segment Size | Segment Number | |
| mm | inch | mm | mm | pcs |
| φ900 | 36" | 5 | 24x6.6/6.0x10(12) (15)(20) | 64 |
| φ1000 | 40" | 5.5 | 24x7.0/6.4x10(12) (15)(20) | 70 |
| φ1200 | 48" | 6 | 24x8.0/7.4x10(12) (15)(20) | 80 |
| φ1300 | 50" | 6.5 | 24x8.4/7.8x10(12) (15)(20) | 88 |
| φ1600 | 64" | 7.2 | 24x9.0/8.4x10(12) (15)(20) | 108 |
| φ1800 | 72" | 8 | 24x9.8/9.2x10(12) (15)(20) | 120 |
| φ2000 | 80" | 8 | 24x10.5/9.5x10(12)(15)(20) | 128 |
| φ2200 | 88" | 9 | 24x11.5/10.5x(15)(20) | 132 |
| φ2500 | 110" | 9 | 24x12.5/11.5x(15)(20) | 140 |
| φ3000 | 120" | 10 | 24x13.5/12.5x(15)(20) | 160 |
| φ3500 | 140" | 10 | 24x14.5/13.5x15 (20) | 180 |
| Other Specifications Are Available Upon Request | ||||
| Prod Model: | DS-LRB |
|---|---|
| Certification: | ISO9001 & SGS & BV |
| Diameter: | 1200mm |
| Name: | Dimaond Segment for Cutting Granite |
| Feature: | Fast Sharp Cutting & Long Lifespan |
| Shape: | Taper Shape |
