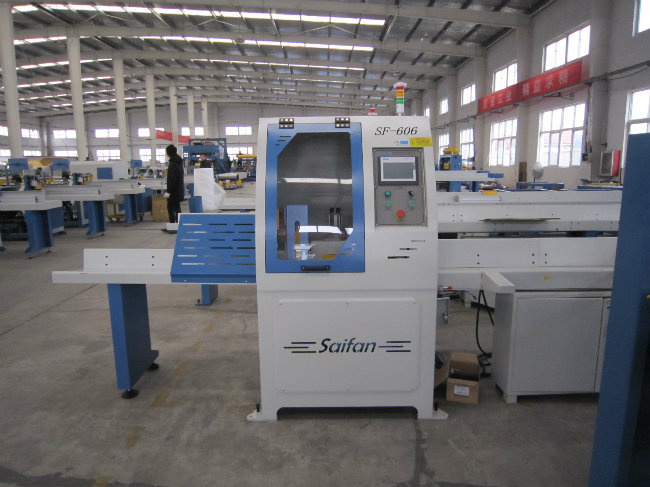

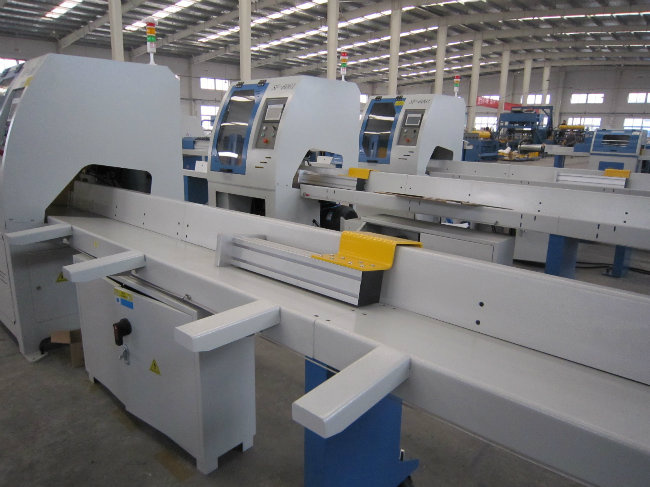

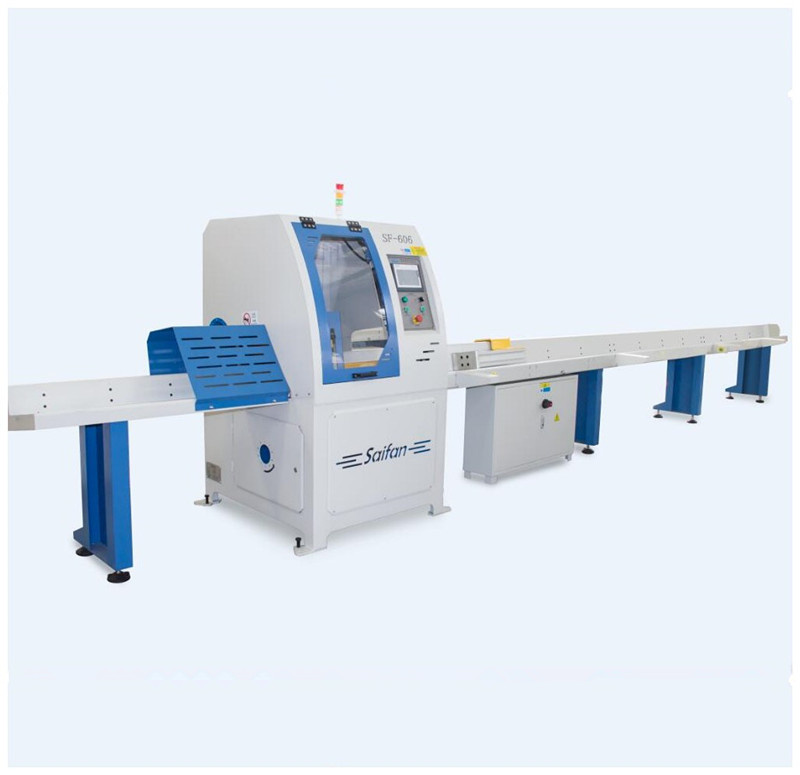

Horizontal Wood Cut off Saw

Horizontal Wood Cut off Saw
Price: US $ 15000-19000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal
Wood Cross Cutting Saws

An video link about this machine
https://www.youtube.com/watch?v=8253RLmw83U&list
Parameters
From the video you can see our machine is easy to operate, high efficiency, safty for worker.
ModelSF606SF6061
Cutting lengthMax. 2m/ 4m/ 6m
Cutting height10-120mm10-140mm
Cutting width30- 200mm30-300mm
Cutting sectionMax. 120*150mm/100*200mmMax.140*140mm/140*300mm
Feeding speed5-30m/min
Cutting speed40pcs/min45pcs/min
Blade diameter450mm*30mm600mm*30mm
Cutter spindle rotation speed3000rpm3150rpm
Servo drive motor power0.75kw1kw
Cutting motor power7,5kw/11HP11kw/15HP
Total power8.5kw12.5kw
Pressing methodCylinder, air pressure 0.5-0.7Mpa
Cutting toleranceIn +/-1mm
Machine working dimensionL*W*H, 5.4m*1.2m*1.6m/7.4m*1.2m*1.6m/9.4m*1.2m*1.6m
Dust collection portDia. 100mm*2pc
Electrical componentsSchneider
PLC Touching screenSiemens
Voltage380v, 3 phase, 50Hz
Can customize (extra cost $200)



Details


Package&Shipment

1.Packing details: Warrping film with plywood box or as your request.
2.Shipping: We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms.
3.Timely delivery and transportation


FAQ
1) How quick we can get the parts from you?
As long as the problem with parts, we will send you free accessories by express, and you can get the parts in 4~5 days usually.
2) How much support we can get for problems ?
We will do our best to help you solve the problem by phone or video, also we can do the overseas services.
3) Manuals and electrical for drawings can made in English?
Of course we can do that in English.
4) What's the cutting section of this saw?
This saw max cutting section is 140*280mm or 120*300mm (thickness*width).

5) How many workers needed for this machine?
Just need 1 worker, when wood material placed on working table, machine feeding the wood automatic, then just need worker take the finished wood.

After-sale service
1. We respect your feed back after receiving the goods.
2. Tracing the working condition by email per month.
3. 24 hours technical support by email, call, video.
4. English CD and manual for machine using and maintainance.
5. Whole machine one year warranty.
6. Whole life warranty.
7. Engineers available to serve and train overseas, but your side should pay all the expense.


Contact Infomation

Tel:+86 0532-80922156 , Mobile: +86 18562586817
Qingdao Saifan Packaging Machinery Co., Ltd
Qingdao High-Class Service Import & Export Co., Ltd

www.qdsaifan.com  www.saifanchina.com  www.hicasmachinery.com
No.8 Changbaishan Road, Shuangyuan road Airport Industrial Area, Qingdao, Shandong, China.

Prod Model: SF606
Brand: Saifan
Product Name: Hicas High Efficient Auto Wood Cutting off Saw Mac
Warranty: 1 Year
Usage: Wood Process
Application: Making Wood Pallet
Power: 8.5kw
Modle: Sf606
Voltage: 380V, 3 Phase, 50Hz
Layout: Horizontal
Controlling Mode: Hydraulic Semi-automatic
Automatic Grade: Automatic
Precision: High Precision
Certification: ISO
Type: Wood Cross Saw
