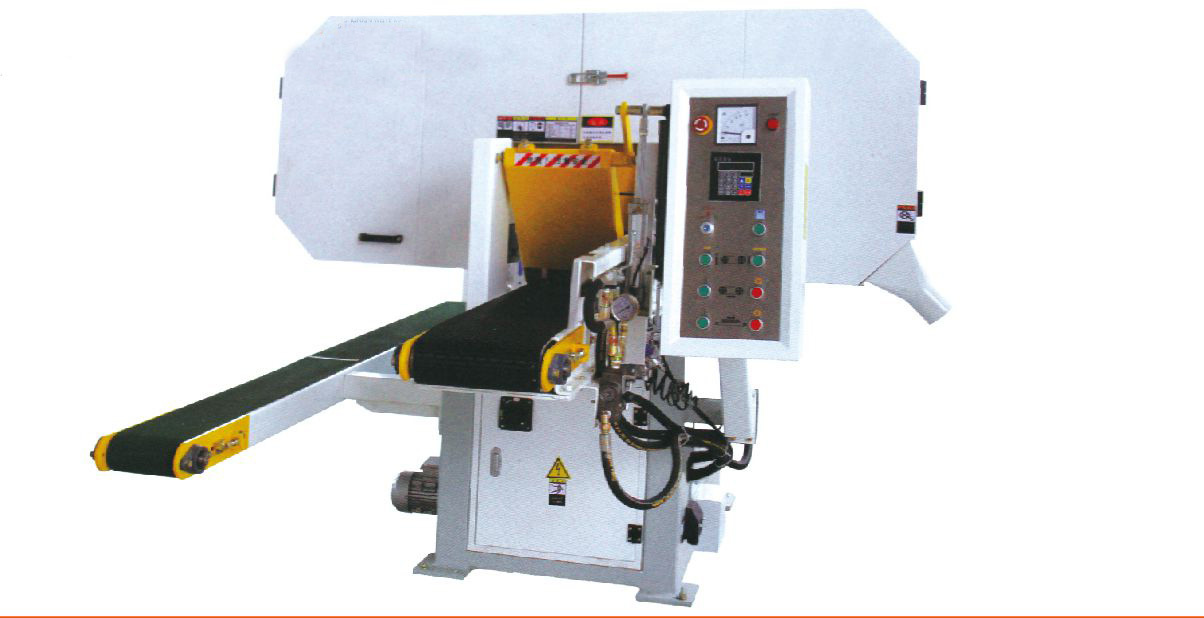

horizontal Resawer Wood Cutting Saw for Log Cutting Machine
1,Saw carriage is lifted by combining use of rotary high precision encoder and rigid screw rod in order to situated exactly.
Features: 1. Human oriented microcomputer operator interfaces, for easy and conveniente operating.
2. Sawing thickness is controlled by the high precise encoder and rigid ball screw, to provide higher accuracy.
3. The assisted re-feeding system can save labour power and time.
4. Siemens PLC integrated controlling system guarantees safety and reliability.
5. Hydraulic auto-compensation tension system ensures the saw blade is always staying at a best status and provides a longer service life.
6. Man-machine control system provides visual and convenient operation.
7. Special designed multi-group pinch roller device ensures the timer is pressed reliably, which provides safe operation.
8.Saw carriage is lifted by combining use of rotary high precision encoder and rigid screw rod in order to situated exactly.
9.The conveyer belt is driven by hydraulic motor, which provides constant and powerful feeding force.
10.Multiple roller devise ensures the timber is pressed reliably.
2,All the models| Models | XLH150 | XLH250 | XLH350 | XLH450 | XLH650 | XLH250Q | XLH250*2 |
| Max. working size | 150*160mm | 250*200mm | 350*200mm | 450*200mm | 650*200 | 250*200mm | 250*200mm |
| Thickness of timber | 2-160mm | 2-200mm | 2-200mm | 2-200mm | 2-200mm | 2-180mm | 2-180mm |
| Conveyer belt width | 5470*130mm | 5470*230mm | 5470*330mm | 5470*430mm | 5470*630mm | 5470*230mm | 7650*230mm |
| Diameter of saw roller | 711mm | 711mm | 711mm | 711mm | 711mm | 711mm | 711mm |
| Feeding speed | 0-13m/min | 0-28m/min | 0-28m/min | 0-28m/min | 0-28m/min | 0-13m/min | 0-13m/min |
| Dydraulic pressure | 35-45kg/cm | 50-60kg/cm | 50-60kg/cm | 50-60kg/cm | 60-70kg/cm | 35-45kg/cm | 35-45kg/cm |
| Saw size | 4572*27*1.3mm
4572*27*1.6mm | 4572*27*1.3mm | 4572*27*1.6mm | 4785*27*1.6mm | 5200*34*1.8mm | 4572*27*1.3mm
4572*27*1.6mm | 4572*27*1.6mm |
| Voltage | 380v | 380v | 380v | 380v | 380v | 380v | 380v |
| Power of sawing motor | 11kw | 11kw | 15kw | 15kw | 18.5kw | 11kw | 11kw*2 |
| Spindle angle | 0 | 0 | 0 | 0 | 0 | 0-45 | 0 |
| Weight | 1400kg | 1800kg | 2000kg | 2100kg | 2300kg | 2000kg | 3200kg |
| Overall dimension | 2800*1900*2000mm | 2800*2000*2250mm | 2800*2000*2250mm | 2800*2100*2250mm | 2800*2200*2000mm | 2800*2200*2000mm | 2800*2200*2250mm |

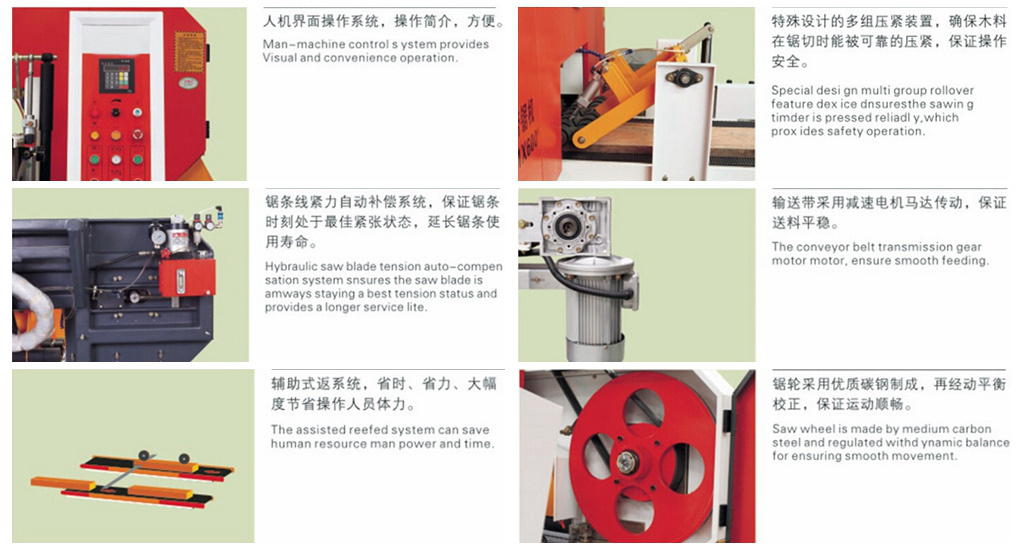

3,Some details of pictures for you:
4,Exhibition photos for you:

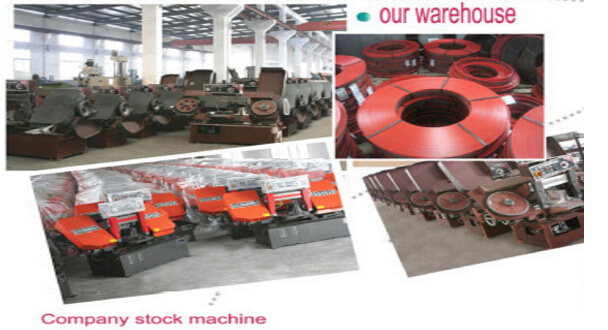

5,Our working shop for you:
6,Here we promise these :1:One stop service for all kinds of woodworking machines for you
2, high cost performance with reasonable price and our best quality
3:15-20 days delivery time
4:Excellent after-sale services
5:24 hours technical support through email or calls.
6:Not only business, hope to make good friend with you
For further information about machine or price or other service , plz contact with us by email or QQ or wechat
Your enquiry are always warmly welcomed
