Horizntal Core Drill, Drill Machinery

Horizntal Core Drill, Drill Machinery
Price: Negotiable/Set
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal

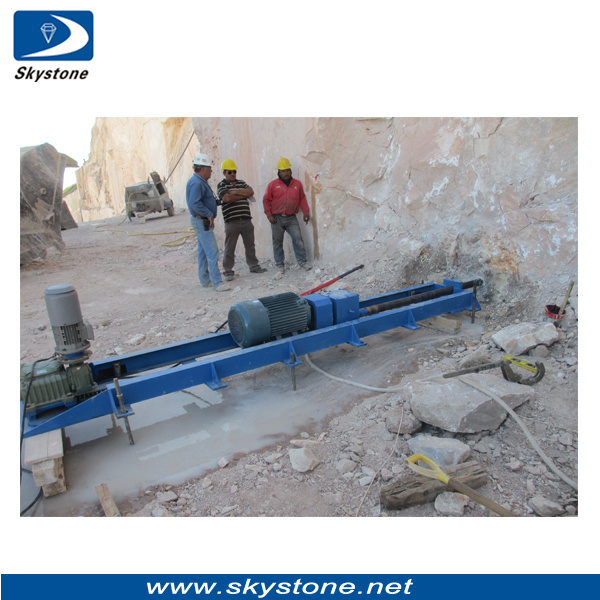

Mainly used in stone quarries to introduce the diamond wire, with features of high working efficiency, long drilling life, easy to converge the hotizontal and vertical wire holes, and low cost etc.

1.Mainly used for drilling horizontal hole
2. 15 kw of motor
3. Drilling speed 2-8 m\h

Technical Parameter
Diameter of the bitΦ76mm
The distance of drilling hole centre and horizontal surface124mm
Main motor power15KW
Specification of drill pipe(diameter*length)Φ73*1500mm
Single Feeding distance1.5mMinimum
pressure of cooling water supply0.1Mpa
Drill speed2-8m/h
Working condition-5~+45ºC

Prod Model: TSY-HDC80
Single Drilling Distance: 1.5m
Use: Stone Cutting, Engineering Material, Optical Glass
Skystone Diamond tool company was founded in 1992, Quanzhou city, Fujian province. In 2003 the company headquarter was moved to Fuzhou High-tech area. During more than 10 years development, we continuously strive to technology innovation and strict quality control, gaining much experience in diamond tools production. Meanwhile, we have trained many creative researchers and company managers with innovation spirit.

We began to research diamond wire technology in 2000. After years of hard working, we succeeded in making high quality diamond wires. What' S more, we have our own special advanced technique for diamond wire muanufacture. Until now, we have a complete series of diamond wires as quarry operation, blocks dressing and cutting, multi-wire cutting, special shaping cutting and concrete building cutting etc...
