Features:

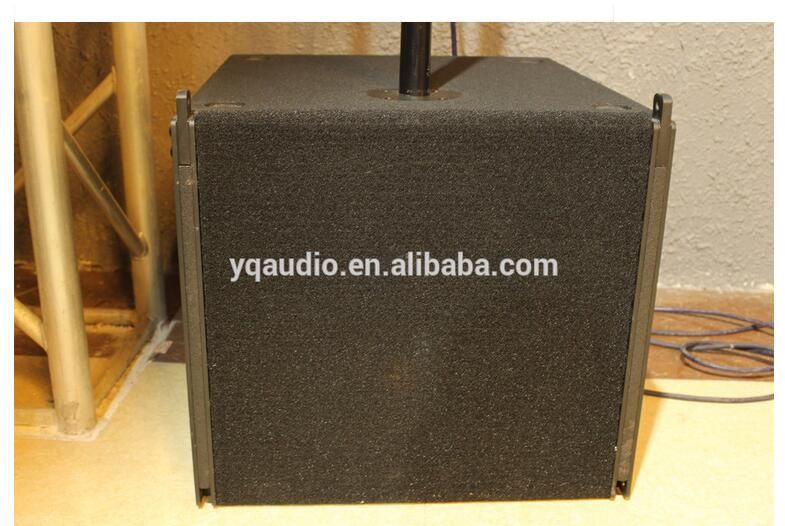

1.The speaker VERA-10 has a 10 inch LF driver.And the VERA-S15 is a 15 inch sub bass.
2.The horn speaker(VERA-10) has 2 pcs HF drivers with 1.73 inch and 44 neodymium magnets.
3.The bass is elastic,clear and strong.
4. All of the woofer and tweeter are made of wooden neodymium magnet and the enclosure construct of 18mm plywood with polyurea painting.
5.The voice coil diameter of LF driver of VERA-10 and VERA-S15 is 75mm with cloth edge cone and aluminum alloy frame.
The voice coil is made of extremely heat-resistant materials.
6.The frequency divider is made of high quality fever level inductor and capacitor.
7.It use high quality aluminum alloy suspension kits.
8.Suitable for multi-functional hall,church,school,stadium and medium-sized indoor and outdoor performances,etc.
Parameter :
| MODEL | VERA-10 | VERA-S15 |
| System | 2 Way full range | Sub bass |
| Frequency response | 65Hz-400KHz | 45Hz-400Hz |
| Box Case | 18mm plywood case |
| Driver | LF:10"×1.HF:2"*2 | LF:15"*1 |
| Nominal lmpedance | 8 Ohms |
| System sensitivity | 98dB | 102dB |
| Rated power | 600W | 500W |
| Peak power | 2400W | 2000W |
| Maximum SPL | 129dB | 134dB |
| Crossover mode | Internal | External |
| Cover Range | 120*15 | |
| Suspension | Suspension array frame | On the floor |
| Net weight | 18.5KG | 24KG |
| Product size mm | 500W×356D×280H | 500W*557D*447H |
| Package size mm | 400W×450D×630H | 552W*607D*530H
|
my name is kassia , my tel is +86 18770309038, you can call me anytime. if you have any questions, pls ask me free.
Guangzhou YunQiang Electronics Co., Ltd. is a professional audio manufacturer which has R& D, Production department, Marketing Dept., and Technical and service Dept.,
The main products include: Power Amplifier, Karaoke amplifier, Professional Speaker, Karaoke speaker, Sound Mixer, Audio processor and Conferencing systems.
Nowadays, in professional sound industry, more and more people are seeking for amplifiers with light weight, high power output, high sound quality and high stability.
To get good sound quality, we should have high quality components. And to ensure the stability, we must solve the problem of heat dissipation. Now, we have this amplifier FP14000, FP10000Q, FP-8000Q. Our FP14000, FP10000Q, FP-8000Q is Class TD switching amplifier fixed with NOVER (from UK) power capacitors, ON-Semi power transistors other high quality electronic spare parts. Professional circuit design and actual copper heat sink with better structure make fast heat dissipation possible. And fast heat dissipation contributes to high stability of the amplifier. Once you have our amplifiers at your hands, open the chassis, you will find artwork and detail difference. The swich power amplifier can be used to drive line array loudspeaker systems in touring, living show and other applications with high requirement on sound quality and stability.
Since the foundation of our enterprises, we have been concentrating on designing new products, doing research on new sound technology, training our staff, as well as improving our quality to products and management system. And now we have had a unique management experience, advanced production equipment, abundant design capability, and the large marketing network and after-sales service system.
Now we have passed newest CE, FCC, RoHS, SGS, CCC, ISO9001 on March, 2015.
2017 Prolight + Sound Guangzhou
Our booth is C22 2.1.
Address: Area A, China Import & Export Fair Complex. No. 380, Yuejiang Zhong Road, Guangzhou, China.
Time is 22th~25th February, 2017
