| Price: | US $ 359.9-379.9/Piece |
|---|---|
| Trade Terms: | FOB,EXW |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Paypal,Western Union |
POE NVR KIT SPECIFICATION | ||

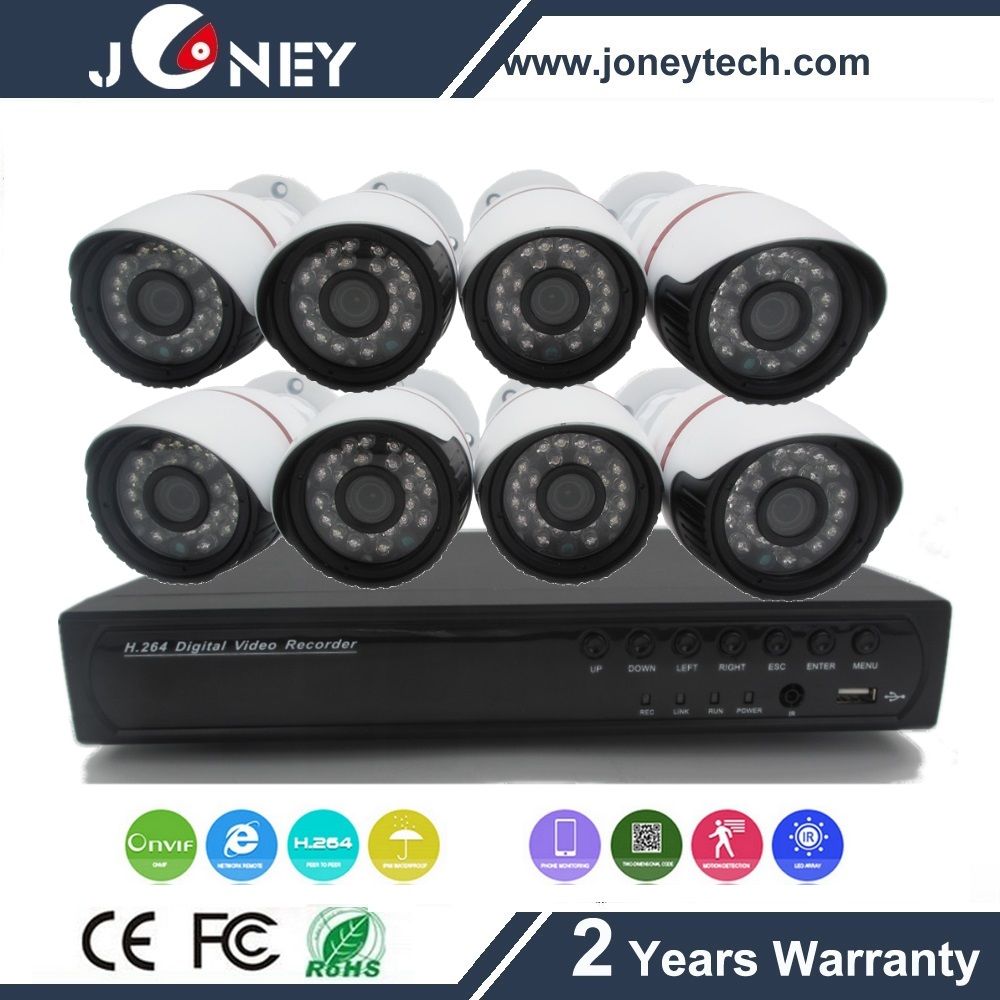

Key Features: 1. HD video output 2. Automatic connection with IP, save installation cost 3. Plug and play, P2P service 4. Mobile viewing, iphone&android app 5. Built-in POE to supply power over network cable 1.3 Mega pixels,1/3 " COMS sensor with IR Cut filter IP66 Waterproof Bullet Camera Lens:Board Lens 3.6mm IR LED: 24pcs IR LED IR Range:20m Power: DC12V. POE Support P2P | ||
Item specifics 8 pcs 1.3MP IP POE camera 1pcs 8ch POE NVR 8 pcs 18M network cable 1pcs 48V 3A power supply 1pcs IR Remote English User Manual CD(CMS,mobile app,manual), Mouse |
System | ||
Chipset | Hisilion 3520A | |
Operation System | Embedded LINUX | |
Bandwidth | 64Mbps | |
Pentaplex | Live play, recording, playback, backup & remote access | |
Control Mode | Front panel button, USB mouse, IR remote control, Network, Wireless mouse | |
Video | ||
IP Camera Input | 8CH 720P@30fps(4Mbps); 8CH 1080P@30fps(8Mbps) | |
Protocol | ONVIF2.0 compliant | |
Output | 1 CVBS, BNC (1.0Vp-p, 75 ohms) | |
1CH HDMI@1920×1080/1440×900/1280×1024/1024×768/800×600 | ||
1CH VGA@1280×1024/1024×768/800×600 | ||
Recording | ||
Video compression | H.264/MPEG 4 AVC, up to Main Profile 5.0 | |
Audio compression | G.711 | |
Image Encoding | Self-adaptive with local bandwidth, variable streaming & fixed streaming | |
Dual Stream | Support, main stream $ sub stream | |
Resolution(NVR) | 2MP/1.3MP/1P/VGA/D1 | |
Recording Mode | Manual, Auto, Motion detect, scheduled | |
Time bar | Support | |
Video detect & Alarm | ||
Trigger Events | Recording, PTZ, Tour, Email | |
Motion Detect | Support with variable sensitivity level | |
Snapshot | JPEG capture | |
Alarm Input | no | |
Alarm Output | no | |
Playback & backup | ||
Max Playback | 8CH | |
Backup Mode | USB, HDD, Network Backup, Mobile HDD | |
Networking | ||
Ethernet | 1 RJ-45 Port (10M/100M) | |
Protocol | TCP/IP, UDP, HTTP, RTP/RTSP, DHCP, PPPOE, DDNS, SMTP, SNTP, FTP, UPnP | |
Remote Operation | Live viewing, Recording, Playback, system setting, Motion detect, Alarm, Log information | |
Smart Phone | iPhone, Android, Symbian, Blackberry, Windows Mobile | |
HDD | ||
Capacity | Support 1x SATA HDD each 4TB max. | |
HDD Management | Auto Hibernation, HDD faulty alarm & RAID | |
Auxiliary Interface | ||
USB | 2x USB 2.0 | |
RS485 | Standard 485 for PTZ control | |
Environment | ||
Power Supply | DC 12V 4A | |
DC +48V 3A(POE Mode) | ||
Working Environment | -10°C~+55°C / 10%-90%RH | |
Dimension | 350Wx245Dx60H(mm) | |
Weight | 3Kg (without HDD) | |
Installation | Desk type | |
| Prod Model: | IPC-8Kit9712-POE-1.3Mp |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: | 8 Channel CCTV Camera System |
| NVR: | Poe 8CH NVR |
| Compression: | H.264(Main Profile) |
| Camera Type: | Poe IP Camera |
| Resolution: | 1.3 Megapixel |
| Lens: | 3.6mm |
| IR Distance: | 20m |
| HDD: | 1*HDD 4tb |
| Installation: | Automatic Connection with IP |
| Mobile APP: | Vss Mobile&Imseye |
