High Temperature Resistance Customized Silicone Gasket for Medical Machinery Equipment

High Temperature Resistance Customized Silicone Gasket for Medical Machinery Equipment
Price: US $ 0.1-0.5/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

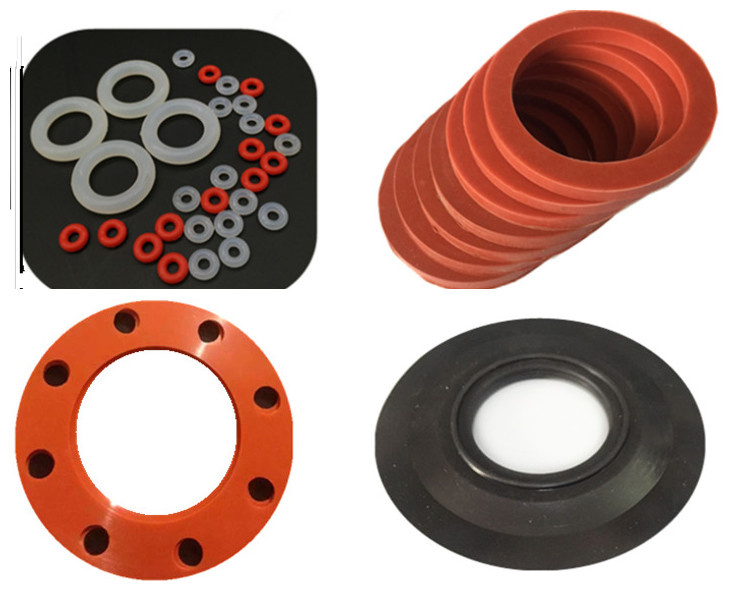

Rubber gasket is formed by vulcanization once with various of material, any color, all kinds of shape. such as black, white, yellow, red,etc. Rubber gasket with different material has different property, Such as EPDM rubber gasket, Silicone rubber gasket, FKM rubber gasket, etc
Are widely used for any area in our life.

Production Description
Item NameRubber gasket
MaterialSilicone NR, NBR,SBR,BR,IR,CR,EPDM,IIR,VITON(FKM)
HardnessSilicone about 20~80 Shore A; rubber about 30~90 Shore A
ColorWhite, black, yellow, blue, red,etc
FeatureOxidation , Chemical,oil, acid ,alkali , weather resistance
colorful ,Anti-aging,good flexibility, good elasticity
Temperature Resistance~40 to 300ºC
ApplicationAutomotive, industry, building, train,airplane,construction,etc
ProcessMolded or injection
OEMwelcome
CertificationSGS, FDA, REACH, ROHS, etc
Tolerance0.05mm



The property and advantage of our rubber gasket
1.smooth surface without any burr
2.super sealing performance, for blocking water, wind, dust, noise outside
3.Weather resistant(Ozone, UV, freezing cold, sunlight)
4.excellent flexibility and anti-deformation
5.Widely temperature range(~40~300ºC)
6.Chemical and water resistance


The property of various of material for Rubber gasket is as below,
1. the property of NR
 It has good wear resistance, high elasticity, breaking strength and elongation, But in the air, it is easy to get age, and it is get sticky when it get in touch with heat, which is easy to expand and dissolve in mineral oil or gasoline, but it is resistant to strong acid, but not to Alkali . working temperature is -50~70ºC.
2. the property of EPDM
Weather ability, aging resistance, ozone resistance, chemical stability are excellent, and CFCS and a variety of refrigerants. Working temperature is -50~150
3. the property of silicone
It has excellent heat resistance, cold resistance, ozone resistance and atmospheric aging resistant.Good electrical insulation performance,The tensile strength and wear resistance are generally poor and has non- oil resistant. The working temperature is -55~250ºC
4. The property of NBR
Good oil resistance, heat resistance, abrasion resistance, solvent resistance and high - pressure oil,But it is not suitable for polar solvents, such as ketones, ozone, nitro-hydrocarbons, and chloroform. The working temperature is -40~120 ºC
5. the property of CR
It has good elasticity, wear resistance and atmospheric aging resistance. It is not afraid of violent distortion and flammability.Chemical stability. The working temperature is -40~100 ºC
6. The property of FKM
Excellent high temperature resistance,And have excellent chemical resistance, most oil and solvent (other than ketones and esters).cold resistance is not good.
6. The property of PU
High strength, excellent wear resistance, good oil resistance and solvent resistance,,In particular, it has good anti-swelling properties for lubricating oil and fuel oil,Good ozone resistance. But it's not high temperature. The working temperature is -45~110 ºC.
 The advantage of our company

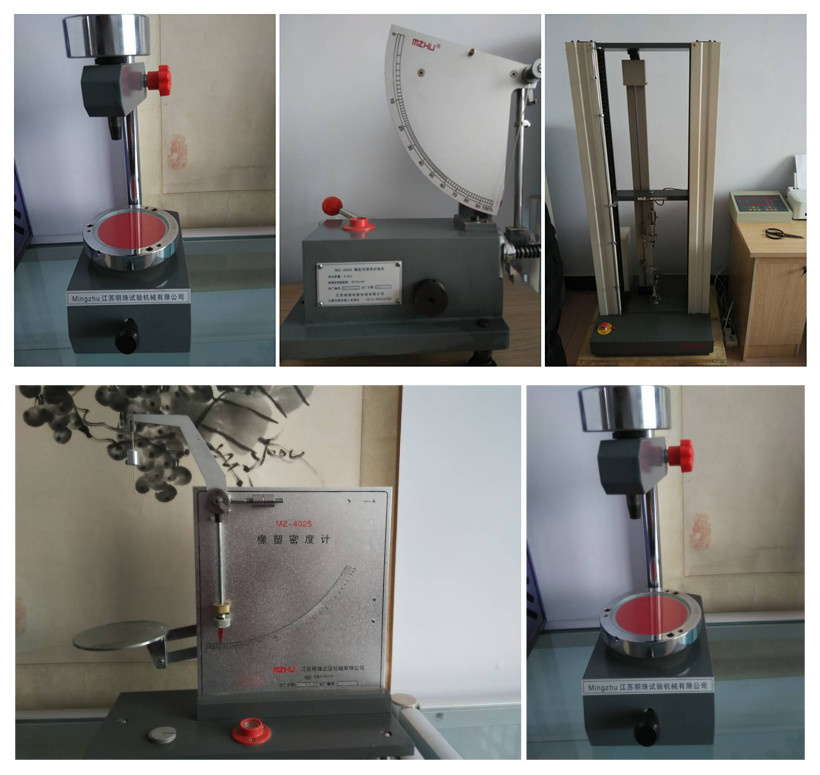

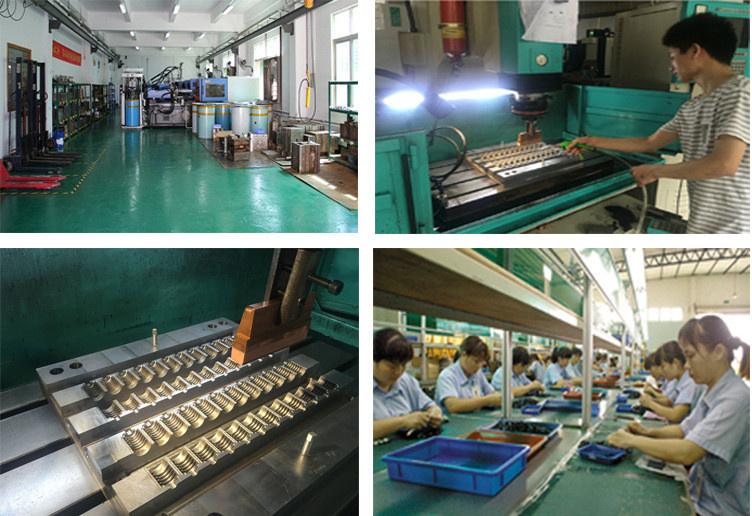

1.We have excellent complete production line with advanced production and test equipment
 Adding First-class technicians, so that we can  offer you the competitive price and high quality ,fast delivery time .
2.We have a special drawing design department to design the correct drawing data meeting your requirements. Then, we will use CAD or other format drawing to carry on tracking the production of tooling, sample ,mass goods. To avoid something wrong to each process. To make sure all of dimension are correct.
3.We also has special production supervision department. The engineer staff will Supervise  each process from the manufacture of tooling to the production of mass goods.
Reduce something wrong happened, finally offer you parts meeting your technology requirement.
4. All of Raw material are past quality certification,In the meantime, we will first delivery test report of rubber part when all of mass goods are finished. And make sure the quality meet your requirement, then make shipment


Prod Model: zm-gakset
Process Technology: Die Cutting, Vaculation, Injection
Type Of Enterprise: Manufacturer
Certification: SGS, FDA, Reach, RoHS, etc
Application: Household Appliance
Cross-Section Shape: Any Shape
Material: EPDM, Nr, Silicone, FKM, NBR, etc
We supply different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
