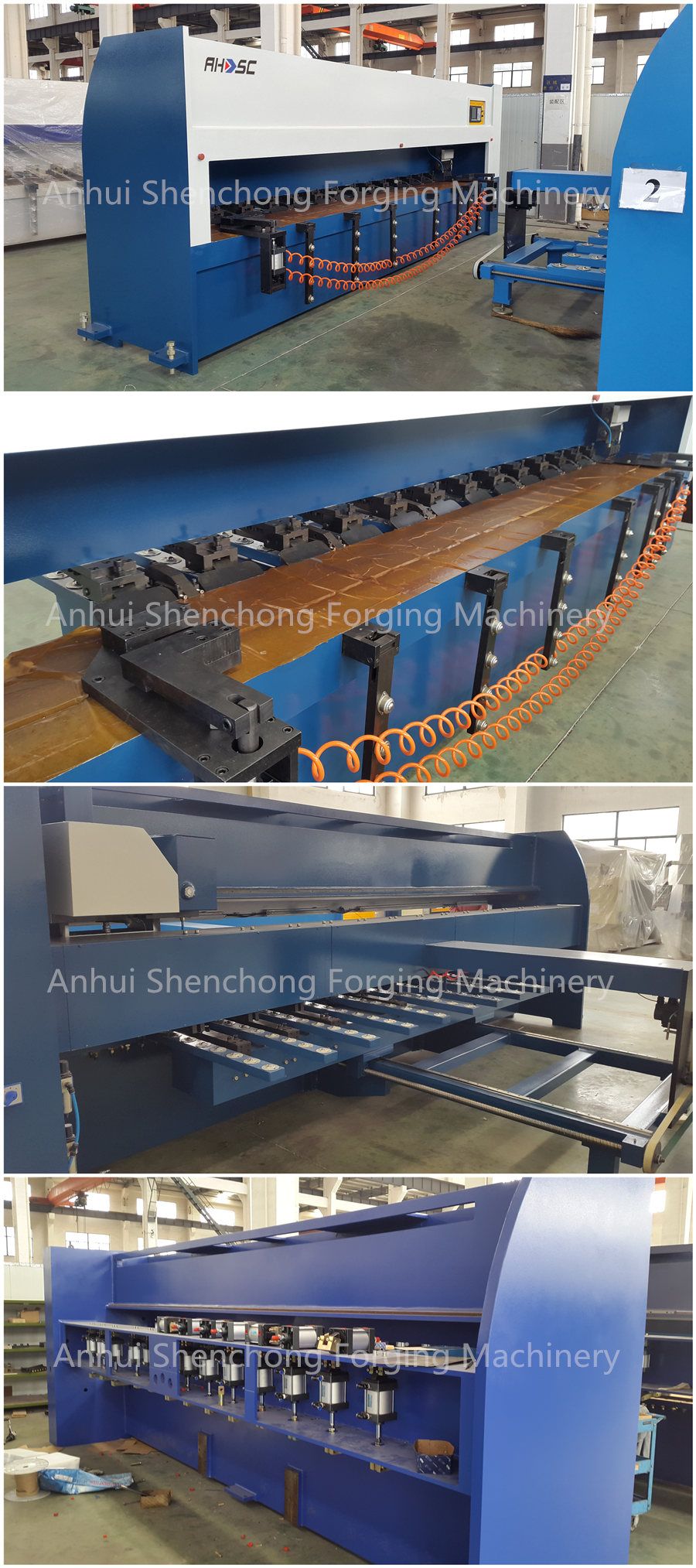

| The structure of the CNC Metal V Groover Machine |

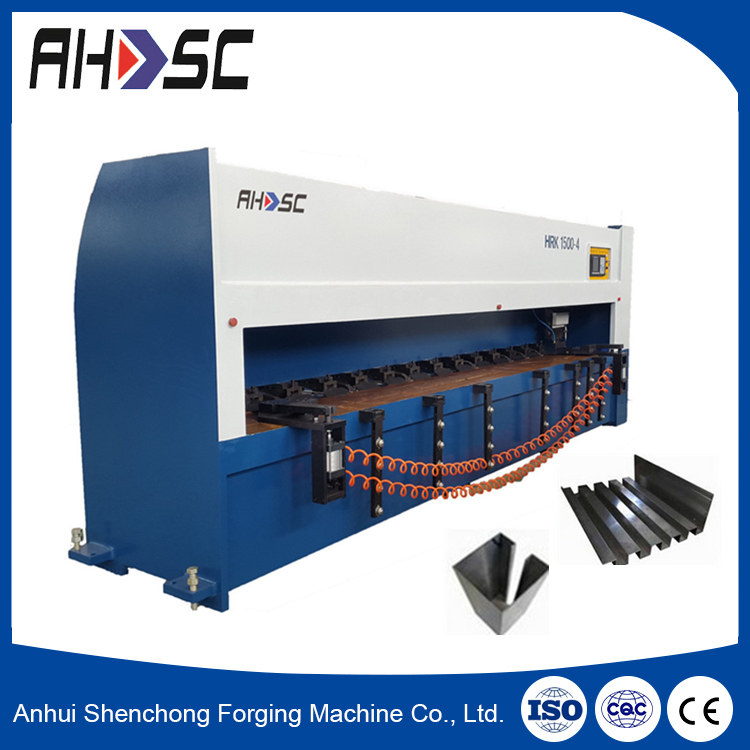

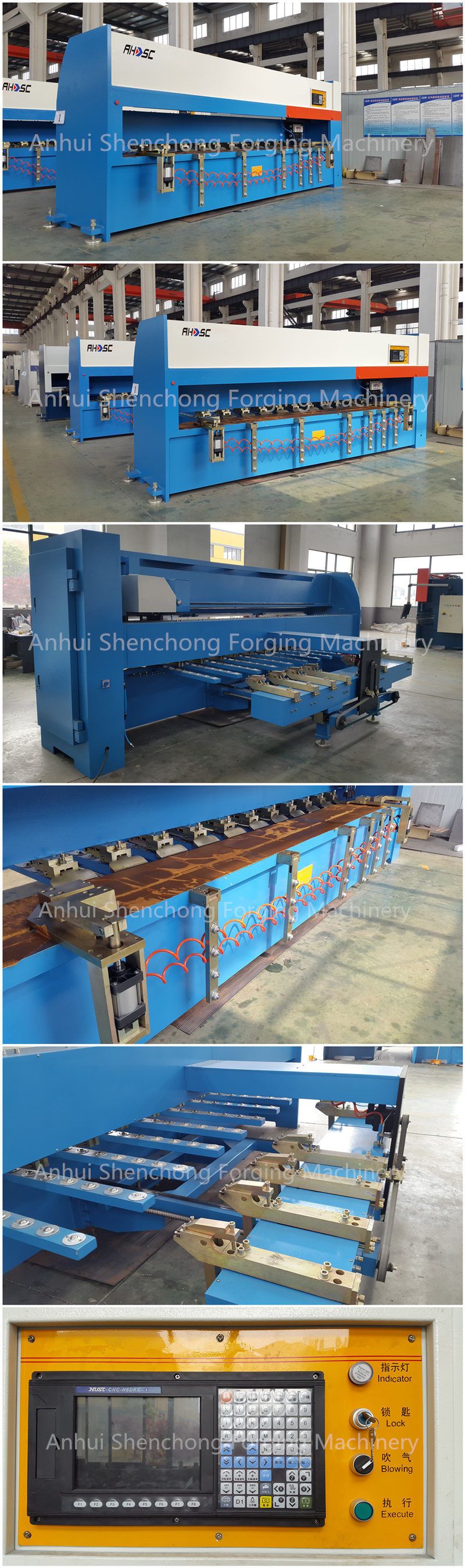

This equipment is fully CNC V Groover Machine for metal sheet. It adopts advanced CNC system and innovative design with the advantages of high processing precision, simple operation, no noise, no vibration and so on. It is widely used in the sheet metal V-groove, U-groove and other irregular groove processing(including stainless steel, aluminum, aluminum plate, copper, iron, plastic, wood, acrylic panels and other special plates.). Particularly, it is applicable to the V-groove processing of sheet metal before bending . |
| The clutch gives continuous strokes for mass production. 1.The Press adopts the low inertia combined dry pneumatic friction clutch and brake from OMPI, Italy, Smoother pres s performance, easier maintenance, to ensure reliable safety and flexible action,Iow noise, long service life. 2.Driving gear is installed into the frame and gear is immersed in oil reservoir. Customer could choose Electromagnetic governor. which is stepless speed regulation within a certain range and enlarge the area of craf. 3.Use adopts dual valve from TACO, Japan, which can guarantee the safety and reliability of clutch. 4.Pneumatic dual balance cylinder, which balances the slide block and punch weight to reduce noise and impact; 5.The press adopts cam controller which be combined with proximity switch (Schneider) which will realize the synchronous detection and monitoring reliably. |
| Application Areas |
| 1.precision:within 0.04mm 2.PLC system,easy to operate 3.widely use,v grooving all the metal steel 4.customize to your need 5.cnc with servo motor 6.Pneumatic drive environmental friendly 7.We stand at the top design. 8.Whole welding structure 9.Long using life and high rigidity. |
| Technical parameters | 3200mm | 4000mm | 5000mm | 6000mm | |
| 1 | Thickness (mm) | 0.4-6 | 0.4-6 | 0.4-6 | 0.4-6 |
| 2 | Length(mm) | 3200 | 4000 | 5000 | 6000 |
| 3 | Width of sheets (mm) | 100-1500 Optional | 100-1500 Optional | 100-1500 Optional | 100-1500 Optional |
| 4 | Grooving speed(m/min) | 15-60 | 15-60 | 15-60 | 15-60 |
| 5 | Plate speed (m/min) | 0.5-5 | 0.5-5 | 0.5-5 | 0.5-5 |
| 6 | Y axis Minimum unit | 0.01 | 0.01 | 0.01 | 0.01 |
| 7 | Y axis Minimum positioning accuracy | 0.05 | 0.05 | 0.05 | 0.05 |
| 7 | Z axis Minimum unit | 0.01 | 0.01 | 0.01 | 0.01 |
| 9 | Z axis Minimum positioning accuracy | ±0.01 | ±0.01 | ±0.01 | ±0.01 |
| 10 | X axis Motor power(kw) | W=3 | W=3 | W=3 | W=3 |
| 11 | Y axis Motor power(kw) | W=2 | W=2 | W=2 | W=2 |
| 12 | Z axis Motor power(kw) | W=0.4 | W=0.4 | W=0.4 | W=0.4 |
| 13 | Air pressure (Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| 14 | Dimension (L*W*H) | 5200*2100*2300 | 6000*2100*2300 | 7000*2200*2300 | 8000*2200*2300 |
| 15 | Weight | 9 ton | 11ton | 14ton | 16ton |
| 16 | Shipping | 20GP | 40GP | 40GP | 40GP |
| Prod Model: | SCV SERIES |
|---|---|
| Voltage: | 220V/380V/400V |
| Main Motor: | Siemens Electrical |
| Machine Body: | Steel Plate Welded Structure |
| Work Table, Flywheel, Slider: | Cast Ht200,Anneal Treatment |
| Ball Screw: | Forged Steelwork 45, Nitrogen Treatment |
| Main Power: | Siemens Electrical |
| Cam Controller: | Has 8 Proximity Switches, Reliable Performance |
| AC Contactor,Switches, Buttons, Lights: | Schneider Electric SA |
| Hydraulic Components: | Acb Oil Seal |
| Pneumatic Component: | Dual Valve |
| Process Usage: | Metal-Forming CNC Machine Tools |
| Movement Method: | Linear Control |
| Control Method: | Semi-Closed Loop Control |
| Numerical Control: | CNC/MNC |
| Performance Classification: | High-End CNC Machine Tools |
| Certification: | Nr12 |
