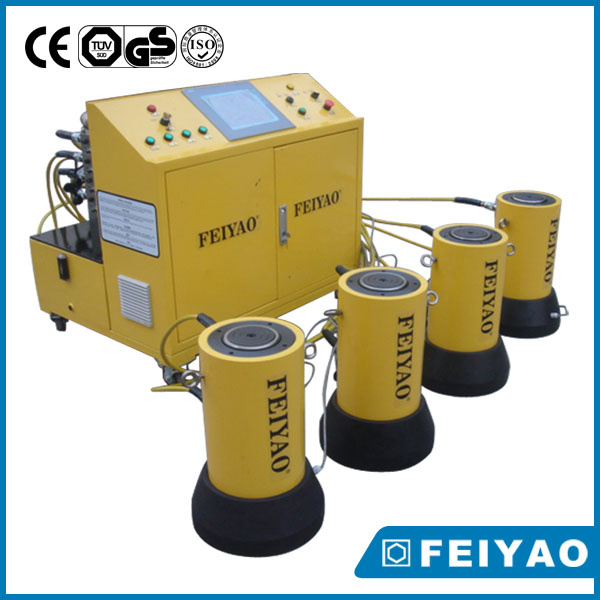

PLC Multiple Lift Point Hydraulic Synchronous Lifting System
Description| Model No. | Lift points | Integrated
pump | Accuracy
(mm) | Touch screen
control | Leveling | Weighing | CG | Expandable |
| SOV-SLCG | 4, 8 | no | 1 | yes | no | yes* | no | no |
| SOV-ESS | 4, 8,12,24,32,64 | yes | 1 | yes | yes | yes | yes | Yes |
Modular lifting system to control 4, 8, 12, 16,24, 32,64 lifting pointes.
Accuracy Over Full Stroke: ± 0.5 mm.
The lifting point could support up to 2,000 tons with 64 points system, the total max lifting capacity up to 128,000 tons. Customized cylinder capacity could be offered.
Maximum Operating Pressure: 700 bar.
Connect to single- or double-acting cylinders with the same or different lifting capacities.
Data storage and recording capabilities.
Variable frequency drive motor and PLC for precise synchronization and oil flow control., the deviation is less than ± 0.5 mm.
Load and stroke alarms for optimal safety.
Intuitive user interface with touch screen providing easy set up, control and navigation.
VVVF closed-loop control system, PWM closed-loop control system with PWM open-loop control system could meet different requirements.
BenefitPrecise control of multiple lift points
Safe and efficient movement of loads
Ease of operation and user friendly
A single operator controls the entire operation
Monitoring and Data Recording
Displays data of the operation
Data recording at user-defined intervals
Data storage and read-out for reporting
Network capability and Ethernet IP protocol
Applicable Industry
House translation.
Bridge construction Supporting.
Off-shore oil plant drilling platform supporting and equipment testing.
Used for weighing and transferring massive and heavy objects.
ProjectsShanghai - Beijing High Speed Railway Yangtze River Bridge Project.
Shanghai Baosteel testing and installing project.
Hydropower plant installing of Chinese government's three gorge dam project.
Etc.
Alternative Accessories
Please refer to our hydraulic cylinder catalog to choose your specified cylinders capacity, stroke, and collapsed height:
Single acting hydraulic cylinder
Capacity: 5-1000 ton
Stroke: 5 to 500 mm
Collapsed height: max up to 1000mm
Double acting hydraulic cylinder
Capacity: 30-1000 ton
Spring return for low tonnage models, outside power forced return
Stroke: 5 to 500 mm
Collapsed height: max up to 1000mm

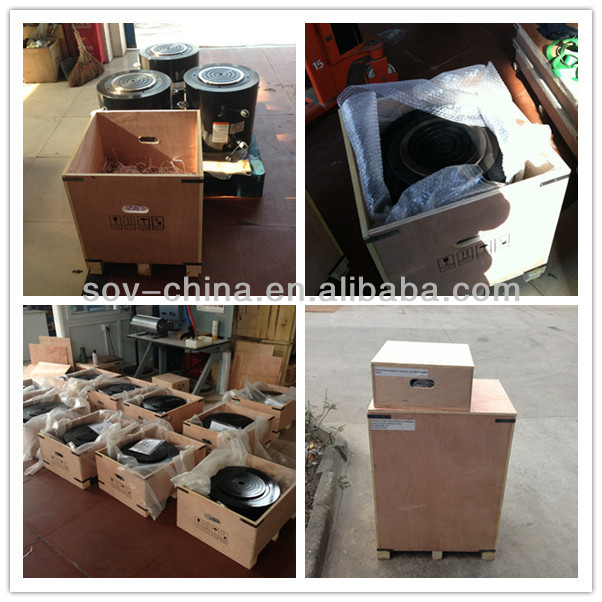

Packaging & Shipping1. Wooden case
2. Shipping is designated by customer.
Our Services1. One Year Warranty
2. Endless free maintenance service
3. Quick response
4. OEM service available

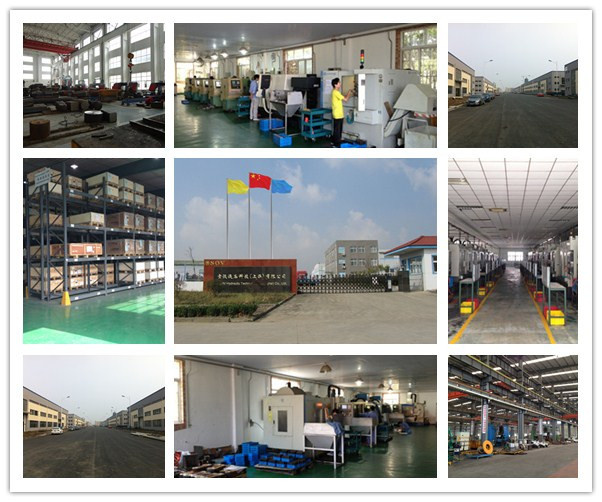

Company InformationShanghai SOV Hydraulic Technology Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components. CertificateSince the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.

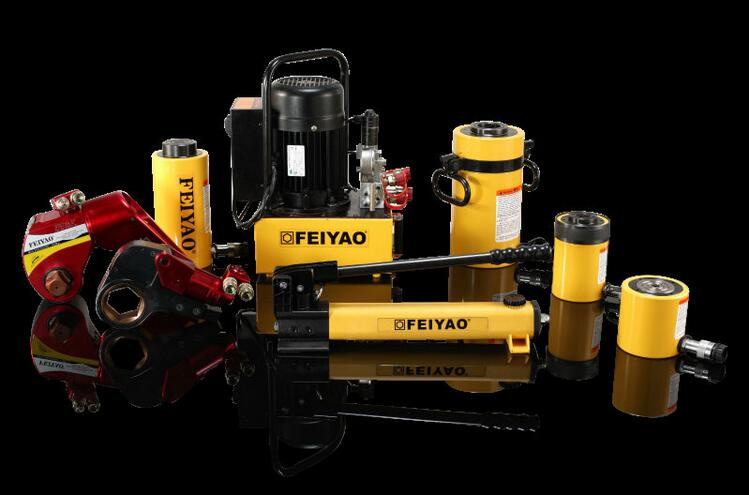

ClientsOur customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.Main ProductsWe are a manufacturer in tools, such as:•Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger; low height, ultra pressure, lock nut•Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-160000Nm);•Hydraulic bolt tensioner (M24-M600); Hydraulic pullers;•Hydraulic pumps, manual and electric type (max up to 4000bar);•Integrated hydraulic lifting system solutions ( 4-99 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)•Hydraulic nut and couplings. (M50-Tr1000), hydraulic hoseOur products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
WHY DO YOU NEED SOV?
Q1: What's the brand name of your products?
A: Own brand "SOV", WE ARE GERMANY OWNED FACTORY. OEM is also available as required.
Q2: Hydraulic cylinder internal leakage?
A: There are 3 main reasons causing internal leakage: Overload, polishing is not well controlled, bad seal kits. As is known to all, vehicles in China are often overload, our products all designed to bear the overload power. We have numerical control machine to assure the polish processing .And we use the imported seals to meet customers' demands.
Q3: Does your piston rod get ruptured easily?
A: Hard chrome plating quenched and tempered 45# steel for piston rod to assure sufficient hardness and toughness.
Q4: Is your design reasonable? What about your product safe coefficient?
A: We have R&D team with abundant design experience. We also established production, education, and research cooperation with universities. Rest assured.
Q5: How about the delivery time?
A: Over 1000 sets advanced equipments to meet customer's large demand in short delivery time. Generally, it's 7-20 days.
Q6: What's the after-service?
A: If the quality can't meet your requirement, we will pay all your lost and offer technical support to solve your problem.
