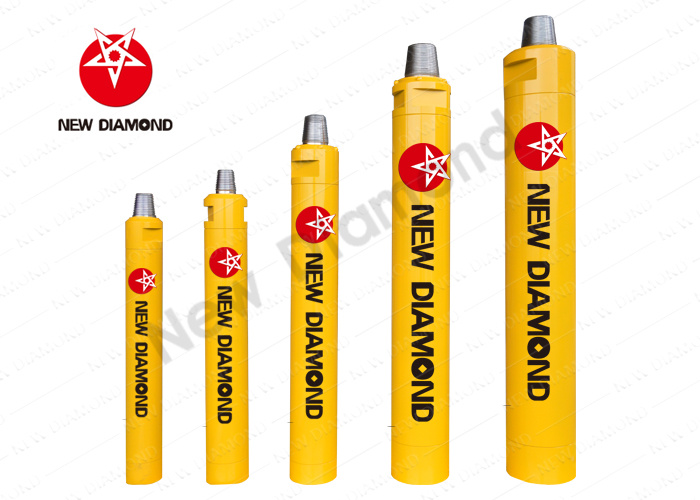

Low Air Pressre DTH Hammer
1. Low energy consumption
2. Long effective acting time
3. Drill hole under water
4. Material: Carbide
Low Air Pressure DTH Hammer:
1.10 years manufacturing experience;
2. Certificate: ISO9001: 2008
3. Material: Carbide
NR Series DTH hammer, a kind of valve-equipped Low-Air-Pressure hammer with a single piston, a plate valve and a central exhaust structure. The compressed air is adopted as the driving force. To prevent dust pollution and get a better performance, some high-pressure water may be added into the air for wet rock drilling.
Advantages:
1. The strong energy of single impact and the low energy consumption in rock crushing;
2. The weight ratio of piston and bit almost reaches 1: 1 to provide long effective acting time, which leads to the improved efficiency in rock crushing and to extended service life of the drilling tool;
3. A good performance in central air exhaust and cuttings discharge, which reduces the repeated crushing of rock;
4. A check valve device is available to drill holes under water.
The NR Series dth hammer, an ideal drilling tool, is widely used in such industries relating to energy, transportation, metallurgy, building etc.
We are mainly manufacturing:
1-12 inch middle-low/high air pressure DTH hammer & bit
Big hole high air pressure DTH hammer using in water well, oil, gas and construction drilling
Eccentric overburden drilling Equipment
Hole opener bit
Rock thread bit
Shank adapter, coupling sleeves and all kinds of adapters
About Our factory:
---- New Diamond utilizes advanced equipment for rock drilling machine and pneumatic tools production. And using the best quality raw material, adopting advanced production technology and strict testing procedure, we have developed the most advanced high air pressure DTH hammer, all kinds of drill bit such as down the hole bit, overburden drill bit, thread bit, etc.
----With rich experience in R & D and production, excellent management team, strong innovation creativity and production scale, our company has achieved great success continuously by the excellent quality products, which have been well accepted by end users and the brand has received extensive positive feedback from international markets and products have been exported to the United States, Australia, Brazil, South Africa, South Korea and other countries.
Our advantages:
We have advanced production equipments & talented researchers & technicians & rich experiences in R & D and production.
We use the best quality raw materials.
We adopt advanced production technology & strict testing procedure.
We passed ISO9001 quality management system certification.
We accept OEM manufacturing and produce on your design.
| Length (Without Bit) | Weight (Without Bit) | External diameter | Bit Shank | Hole Range | Connection Thread |
| 800mm | 19.00kg | Φ80mm | CIR90 | Φ80-Φ110 | T48*10*2 |
| Working Pressure | Impact rate at 0.5Mpa | Recommended rotation speed | Air consumption |
| 0.5Mpa | 0.7Mpa |
| 0.5-0.7Mpa | 14HZ | 25-40r/min | 6.5m³/min | 8 m³/min |
| Item Description | Weight (kg) | Part Number |
1. Top Sub
2. valve Seal
3. Check Valve
4. Spring
5. Compression Buffer
6. "O"Ring
7. Valve cover
8. Guide Tube
9. Valve
10. Air Distributor
11. Internal Cylinder
12. Piston
13. External Cylinder
14. Guided Sleeve
15. Stop Ring
16. Drive Chuck
17. Drill Bit | 2.8
0.01
0.02
0.01
0.01
0.01
0.60
0.01
0.01
0.60
2.00
4.00
5.80
1.20
0.01
1.60
3.50 | NR9001
NR9002
NR9003
NR9004
NR9005
NR9006
NR9007
NR9008
NR9009
NR9010
NR9011
NR9012
NR9013
NR9014
NR9015
NR9016
NR9017 |
