| Price: | US $ 20-60/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Item | Data | Description |
| Electronic part data | Working Voltage | DC4.0V~6.5V 4x1.5V AA alkaline battery (5#) |
| Extra Power | 9V dry accumulator,outside of lock | |
| Low battery notice | ≤DC4.5V±0.2V will alarm for low voltage, still can lock 100 times | |
| Static consumption | ≤80μA | |
| Sync consumption | ≤120mA | |
| Peak current | ≤250mA | |
| FP compare way: | 1:N | |
| FRR | ≤1.2S(included fingerprint collect, compare, single output) | |
| False Accept Rate(FRR) | <0.0001% | |
| False Reject Rate(FAR) | ≤0.1% | |
| Password length | 6-8 numbers | |
| Storage capacity | 150 pcs fingerprint save (can expand more than 150 pcs according to customer's require. | |
| Master ID: 0001-0005 | ||
| User's ID: 0006-0140 | ||
| Visitor ID: 0141-0150 | ||
| Save time | 10 years | |
| Electromagnetic interference | 500MHz~1000MHz (field intensity:10V/m, MOD Freq: 1KHz, MOD degree: 80%) | |
| Working temperature | -18ºC~55ºC | |
| Saving temperature | -25ºC~75ºC | |
| Working humidity | 20%~95% | |
| Antistatic Ability | ≤│±15KV│ | |
| Sensor data | Collector Size | 15x12mm |
| Resolution | 363dpi | |
| Collect angle | ±60° | |
| Fingerprint sensor | Capacitive fingerprint collector | |
| Working temperature | Generally applicable temperature :-20°~+85° | |
| Save temperature: -40°~+85° | ||
| Working humidity | 95% | |
| Sensor sweep data | Identify mode | Capacitance scanning |
| Correction mode | Automatically | |
| Sweep spacing | 8ms | |
| Card data | Working frequency | 13.56MHz |
| Standard | ISO/IEC 14443A/MIFARE | |
| Additional function | Open door memory | Save recently 25000 open door records |
| Data download | Open door record, open doo | |
| Tamper alarm function | Alarm automatically when front plate transfer serious | |
| Password protection | Input 3 times wrong password within 1 minutes, system will reject input till 3 minutes. | |
| Delete all information | Delete all information just press this button | |
| Reset | When system can't work right way | |
| Door keep unlock status |
| Prod Model: | lock |
|---|---|
| Color Option: | Silver, Gold |
| Surface Treatment: | Brushed Stainless Steel |
| Card: | MIFARE Card, Temic Card |
| Material: | Zinc Alloy |
| Type: | Combination Lock |
| Style: | Modern |

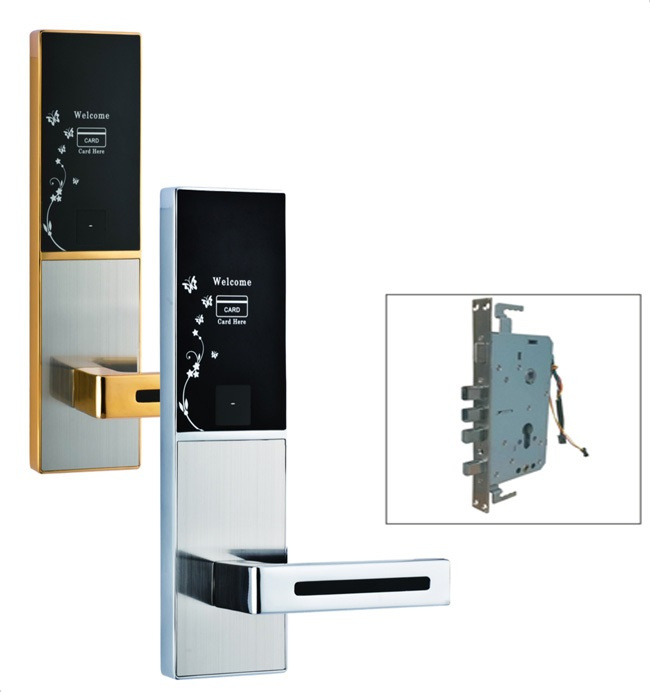

| Shape: | Mortise Door Lock |
| Anti-theft Standard: | A |
| Part: | Lock |
| Backset: | 70mm |
| Door Thickness Fits: | 35-50mm |
| Lock Cylinder Length: | 90mm |
| Usage: | Office Building |
