High Quality 1/2"-4" Electric Power Pipe Threader/Pipe Threading Machine (SQ100F)

Specifications

high efficient 1500W pipe threader machine
1.use for up 4" pipe threading
2.1500W high efficiency
3.low noise level
4.CE

Features:

1.Ideal for staionary threading in workshop,on building sites,for production,repair and service.

2.Three shifts of speed ,enables the machine always working within optimised load.

3.induction motor together with gearbox+belt,efficiently control the noise level.

4.Use for  up to 4" pipe threading.

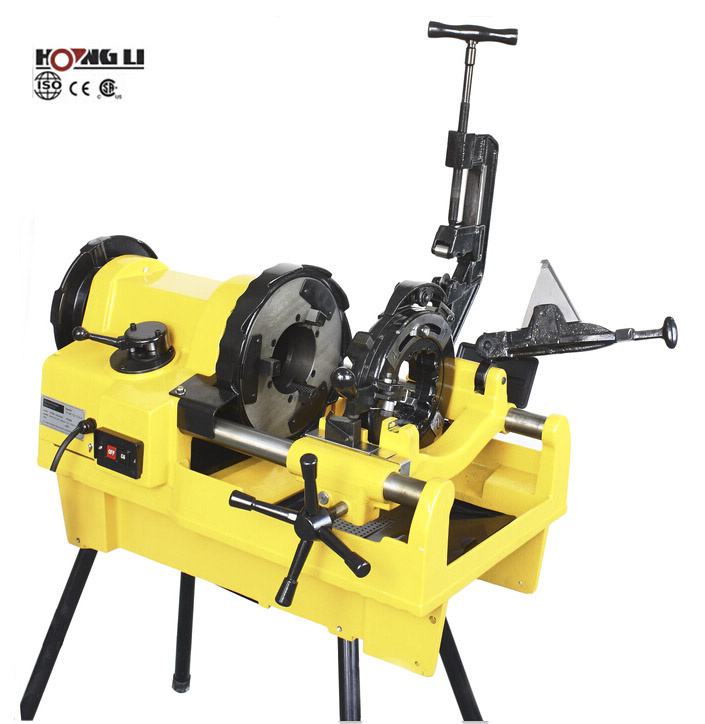

SQ100F pipe threader

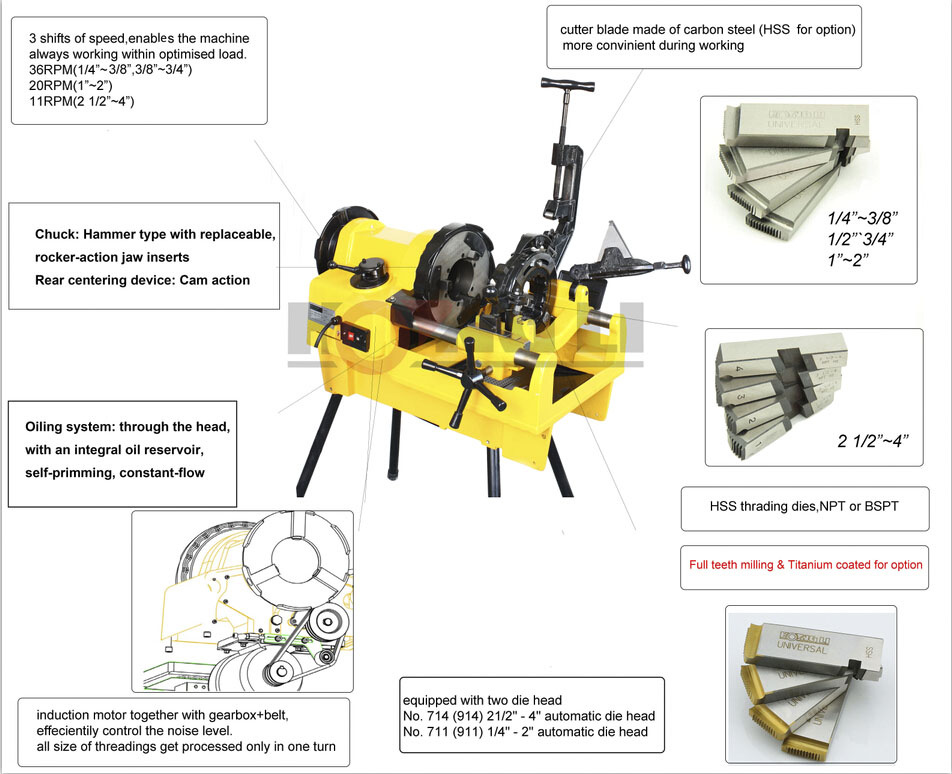

Details for the pipe threading machine:

• 3 shifts of speed, enables optimised load
• noise level efficiently controlled by the combination of gear box+belt and induction motor

 Motor: 1500W induction type, 115V or 220V, 50-60Hz

• Speed: 36 RPM  (1/4"-3/8" )(1/2"-3/4"), 20RPM (1"-2"), 11RPM (2 1/2"-4")
• Casting: Alluminum
• Capacity: 1/2"-4"  (1/4"-4"  for option)

    *ISO threads (Metric) M12-M52  (need additional die head)

• equipping 2 automatic die head, trigger off automatically while threads length meets
• longer threading is possible with both die heads (BSPT & BSPP, NPT & NPSM)
• adjustable oiling flow; through the head, with an integral oil reservoir

We are developing all kinds of threading machine .In order to  make our machines meet the requirements from different  counties

Some spare parts of our machine can interchange with that of     RIDGID, ROTHENBERGER, REX, ASADA , REMS, EGAMASTER tools.

Company information

Hangzhou Guanba Machinery Import&Export Co.,Ltd is professional at manufacturing threading machine, roll groover, pipe cutting machine, core drill, pipe bender, drain cleaner and washing machine etc. Ideal for high quality processing,maintaining and on-site application such as water pipe, gas line pipe, oil pipeline installation.

Guanba was founded on 1986, manufactory possessed 23180 square meters area, fixed assets reach up to 31,800,000RMB,it has advanced production and detection equipment, and we have successfuly gained 12 patent design for our products. In the past 26 years, Guanba has developed two subsidiaries of Hangzhou Hongli Machinery Co.,Ltd and Hangzhou Huaxing Machinery Co.,Ltd. They all enjoy good reputation in European,Mid east.North American market and domestic market.

Q1. What is the payment?

A1. T/T(telegraphic transfer) or L/C at sight

Q2. What is the shipping term?

A2. Sample order: we suggest air express such as DHL/UPS/TNT/FEDEX etc.

Bulk order: air/sea transportation

Q3. What is the delivery term?

A3. FOB shanghai or Ningbo, 15-25days.

If we have the stock, it only takes 2-3days.

Q4. Do we provide free sample?

A4. We charge the sample fee, it costs the same as it's original price.

But we offer advantage discount for long term business partner.

Q5. How to get sample?

A5. After we received the sample fee and transportation fee, we will deliver the sample by air

express(suggested) immediately, and we can provide invoice.

Q6. How is our quality control?

A6. We have experienced QC and strict quality control procedure, every order will be strictly

inspected and tested before shipping out.

Q7. After service

A7. 1) If you have any question, you are welcomed to contact us any time by phone or by mobile.

If you contact us by mail, reply will be sent back within 24 hours. (Holiday excluded)

2).Technical support will be available by any time.

3).Free products or accessories replacement will be offered if operate inconvenience caused

by our quality problem.
