DESCRIPTION
Roots Vacuum Pump cannot be used individually. It can be used with the vacuum system which composes of the backing pump such as Rotary Piston Vacuum Pump, Screw Dry Vacuum Pump, Rotary Vane Vacuum Pump and Water Ring Vacuum Pump in order to reach a better vacuum, higher exhausting efficiency, lower power consumption. Roots Vacuum Pump is not sensitive to dust and steam, so is suitable for pumping with a small amount of dust and the gas containing more steam. As the chamber of Roots Vacuum Pump is lubrication-free, the vacuum system will be polluted by oil; it is combined with Screw Vacuum Pump to compose oil-free vacuum system, which can be widely used in electronics, medicine, chemical industry, food, coating , metallurgy ect.
ADVANTAGES
1. High efficiency, low power consumption, small size, light weight, little vibration and low noise
2. Appropriate structure, functioning efficiency, easy maintenance and high reliability and durability
3. ZJP Roots Vacuum Pump with the overload protection and the wider working range
PARAMETERS
| Model | Displacement (L/s) | Ultimate Partial Pressure (Pa) | Ultimate Total Pressure (Pa) | Max.Permissible Diff.Pressure (Pa) | Max.Compression Rate with Zero Throughput | Motor Power (kW) | Suction (mm) | Discharge (mm) | |
| 50Hz | 60Hz | ||||||||
| ZJ-75 | 75 | 90 | 0.03 With Double stages totary piston vacuum pump | 0.5 With Double stages totary piston vacuum pump | 10000 | 35 | 2.2 | 100 | 100 |
| ZJ-110 | 110 | 132 | 10000 | 35 | 2.2 | 100 | 100 | ||
| ZJ-150 | 150 | 180 | 8000 | 40 | 3 | 100 | 100 | ||
| ZJ-220 | 220 | 264 | 8000 | 40 | 3,4 | 100 | 100 | ||
| ZJ-300 | 300 | 360 | 8000 | 40 | 4 | 200 | 100 | ||
| ZJ-600 | 600 | 720 | 5000 | 45 | 5.5,7.5 | 220 | 150 | ||
| ZJ-1200 | 1200 | 1440 | 5000 | 50 | 11,15 | 250 | 200 | ||
| ZJ-1800 | 1800 | 2160 | 3000 | 50 | 15 | 250 | 200 | ||
| ZJ-2500 | 2500 | 3000 | 3000 | 50 | 18.5,22 | 300 | 250 | ||
| ZJ-5000 | 5000 | 6000 | 3000 | 55 | 37 | 400 | 300 | ||
| ZJP-150 | 150 | 180 | 0.05 With single stage rotary piston Vacuum pump | 0.8 With single stage rotary piston Vacuum pump | 8000 | 40 | 3 | 100 | 100 |
| ZJP-220 | 220 | 264 | 8000 | 40 | 3,4 | 100 | 100 | ||
| ZJP-300 | 300 | 360 | 8000 | 40 | 4 | 150 | 100 | ||
| ZJP-600 | 600 | 720 | 5000 | 45 | 5.5,7.5 | 200 | 150 | ||
| ZJP-1200 | 1200 | 1440 | 5000 | 50 | 11,15 | 250 | 200 | ||
| ZJP-1800 | 1800 | 2160 | 3000 | 50 | 15 | 250 | 200 | ||
| ZJP-2500 | 2500 | 3000 | 3000 | 50 | 18.5,22 | 300 | 250 | ||
| ZJP-5000 | 5000 | 6000 | 3000 | 55 | 37 | 400 | 300 | ||
Note: The displacement ratios selection, so called"matching", between the Roots Vacuum Pump and the backing pumps which are based on the working vacuum value of the vacuum system with these pumps, which not only ensure that the max pressure difference should not exceed "Max.Allowed Pressure Difference"under long term running, but also must guarantee the Roots Vacuum Pump being in a larger working range, as well as the backing vacuum pumps working properly.
APPLICATION
Widely used in production and development of new materials,new technologies new process for vacuum coating,vacuum metallurgy, vacuum heat treatment,vacuum impregnation,vacuum drying, vacuum distillation,vacuum kneading,aerospace simulation experiments.
DVE SERVICE
Sea Port: Ningbo/Shanghai, China
Standard: CE Mark, Spare Parts Of High Level
Delivery: Normally according to our factory production schedule, but we can follow your first order time
Warranty: If pump appear quality problems, free replacements of spare parts will be offered within one year
WE CAN PROVIDE YOU
1. On-time Delivery, with More Choice
2. Perfect Technical Support
3. Customized Vacuum Solutions and Service
4. Samples Available
5. Long Quality Guarantee
6. Fast Response to Customers' Feedback in 12 hours
DEVELOPMENT VACUUM EQUIPMENT CO., LTD
ADD:DONGGANG INDZONE, TAIZHOU, ZHEJIANG, CHINA PC: 317106
TEL:+86-576-83598308 FAX:+86-576-83598309

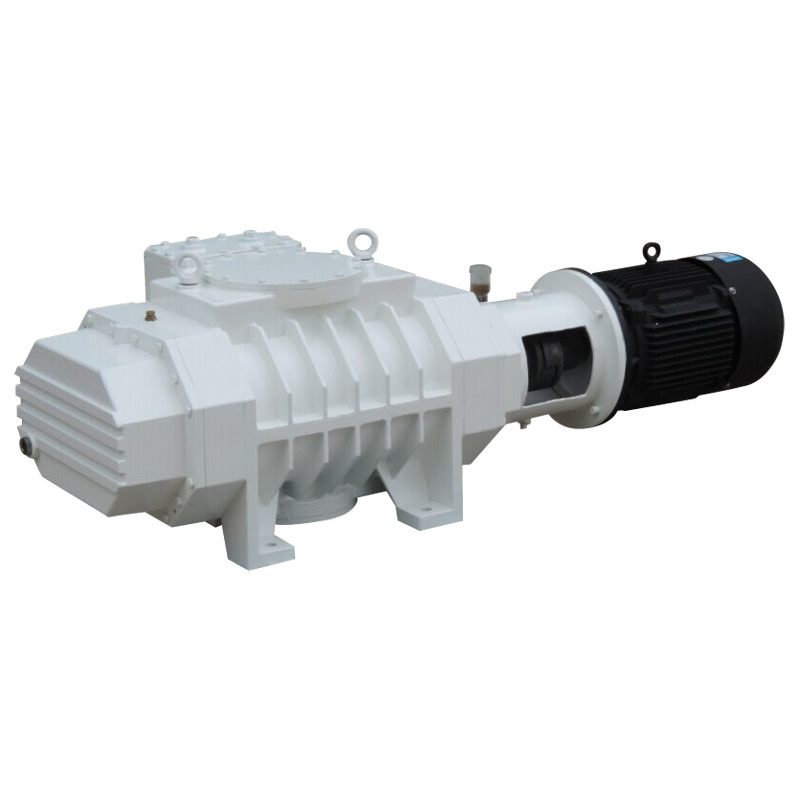

| Prod Model: | ZJP-1200DV |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Displacement: | 600L/S 50Hz 720L/S 60Hz |
| Ultimate Partial Pressure: | 0.05PA |
| Ultimate Total Pressure: | 0.8PA |
| Max.Permissible Diff.Pressure: | 5000PA |
| Max.Compression Rate With Zero Throughpu: | 45 |
| Motor Power: | 5.5kw,7.5kw |
| Suction: | 200mm |
| Discharge: | 150mm |
| Certificate: | CE,ISO9001 |
| Sea Port: | FOB Ningbo/Shanghai |
| Exhauster Method: | Kinetic Vacuum Pump |
| Structure: | Roots Vacuum Pump |
| Working Conditions: | Normal |
