High Precision Edge Saw for Woodworking

High Precision Edge Saw for Woodworking
Price: US $ 7000-10000Sets
Min Order: 1Sets
Pay Type: L/C,T/T,Western Union

STRENGTH WOODWORKING MACHINERY company have 40 years manufacturing experiences of solid wood equipment.
Production Description:
Wood straight cutting line rip saw and Edge trimming
Model: MJ163B(Manual up& down);        MJ163D(Automatic up&& down)
             MJ164B(Manual up& down);        MJ164D(Automatic up&& down)
Main technical dataMJ163BMJ163DMJ164BMJ163D
Working thickness10-70mm10-70mm10-115mm10-115mm
Throat capacity460mm460mm660mm660mm
Saw blade diameter250-355mm250-355mm355-455mm355-455mm
Min. working length120mm120mm120mm120mm
Spindle speed2930r/min2930r/min2930r/min2930/min
Spindle motor7.5kw7.5kw7.5kw7.5kw
Lifting motor 0.18kw 0.18kw
Feeding motor1.5kw1.5kw2.2kw2.2kw
Feeding speed0-26m/min0-26m/min0-26m/min0-26m/min
Saw blade bore diameter¢50.8¢50.8¢50.8¢50.8
Machine dimension1880*1400*1360mm1880*1400*1360mm2150*1600*1360mm2150*1600*1360mm
Machine weight 1350kg1400kg1800kg1850kg
Wood rip saw cutting machine:
1.It's widely used to cut  thin wood chips in high precision.

2.Whole cast iron machine frame keeps the working steadness.

3.Top control panel with digital indicator, render  the operation easy & ensure the working accuarcy.

4.With sliding rip fence,  so the users could manage and adjust the working width as the processing requirement.

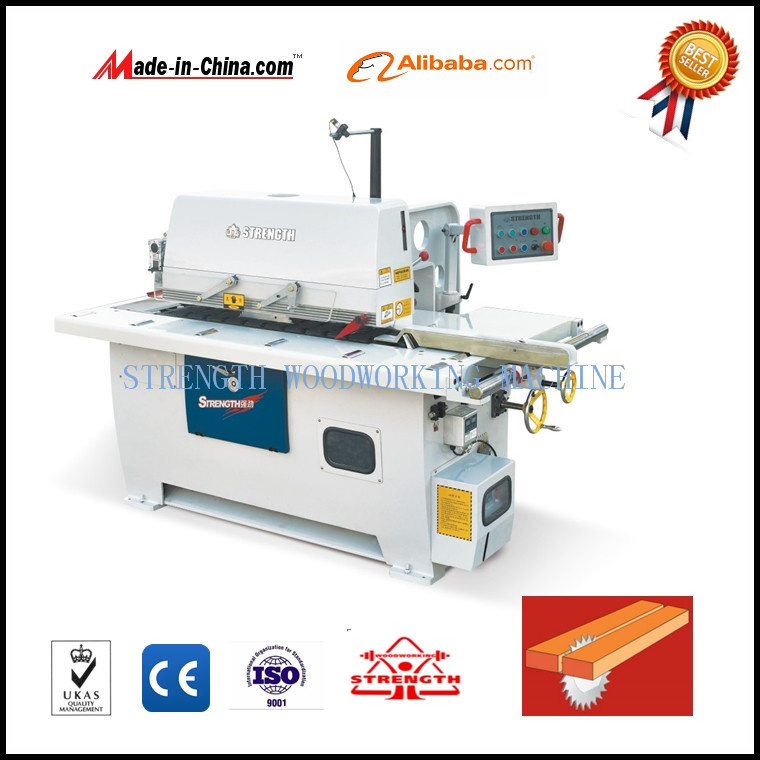

Products pictures:
We take the photoes 100% for the real machines






The machine with CE Certificate

Company information:
Our manufacturer is specializing in the production of woodworking machinery in China. Products cover eight series and above forty types , like Planer Series as Press Planer, Surface Planer, Thickness planer , Double Side Planer; Four side planer; Saw Series as Rip Saw , single and Multiple Saw, Cutting saw, sliding table saw, etc.
More than 40 years development, we have professional team, technical advantage, quality guarantee, reasonable price and top-rate service.

FAQ:
Q:what is your leading time?
A:Within 7 days for motor 3 phase, 380V, 50Hz,  10-20 days if the motor is different.
Q:Where is your loading port?
A:Shanghai or Ningbo.etc, China port
 Q:what are your payment term?
A:30% deposit and balance T/T before delivery or Alibaba Escrow
 Q: What's your warranty time?
A: 12 months for machining parts and 6 months for electronic parts.

Prod Model: MJ163D
Cutter: Taiwan Brand
Material For: Wood
Function: Wood Straight Line Cutting
Motor: 3 Phase
Votage: 380V/Customize
Brand: Stregnth or OEM or ODM
Weight: 1400kg
Working Height: 10-115mm
Type: Rip Saw
Layout: Vertical
Controlling Mode: Hydraulic Semi-automatic
Automatic Grade: Automatic
Precision: High Precision
Certification: ISO
Color: White and Blue
Jinghua Powerful(STRENGTH) Woodworking Machinery Co., Ltd., is an advanced enterprise of ministry & technology advanced enterprise of Zhejiang province. It lies in Yangbu town by the south of Qu River, the upper reach of Qianjiang River, which is the central section of Zhejiang province. Preponderance in location, convenient in traffic, with 03 provincial road & Hangjingqu autobahn pass through the town. The company occupies 78 thousand sq. M., with 31 thousand sq. M. Architectural area. The company, which is specialized in manufacturing "STRENGTH" brand woodworker machine series, has excellent technicians, complete machine equipments, advanced inspection & account method, and has passed ISO9001-2000 and CE System of Quality Certification. After thirty years development, the company enlarges gradually and has owned eight series, more than forty kinds of products from the original single product. It also accepts the order of special specs. The products are well sole all over the country and the Southeast Asia, among which the produce and sale quantity of single side planer is No. 1 China. The products are favorable to the consumers. With the improverment of the market demand, we will continue to develop new products to meet different consumers`requirementS.

"manufacture high quality products, create value for consumers" is our target.

"quality first, consumer foremost" is our tenet

We always embrace the market principle of "satisfy the consumer"

We believe "Qiangjin will boost its own development with powerful motility & bring powerful development to the consumers at the same time. "

We are looking forward to cooperating with you!

We are the manufacturer for woodworking machinery 40 years with good quality and best price.

Main machines has: 1, Wood Jointer; 2, Wood Single Planer; 3, Wood Double Sided Planer; 4, Wood Four Side Moulder; 5, Wood Rip Saw; 6, Wood Ede Trimming Saw; 7, Wood Multiple Rip Saw; 8, Wood Horizontal Band Saw.
