High Precision CNC Plasma Cutting Machine Plasma Cutter

High Precision CNC Plasma Cutting Machine Plasma Cutter
Price: US $ 7000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T

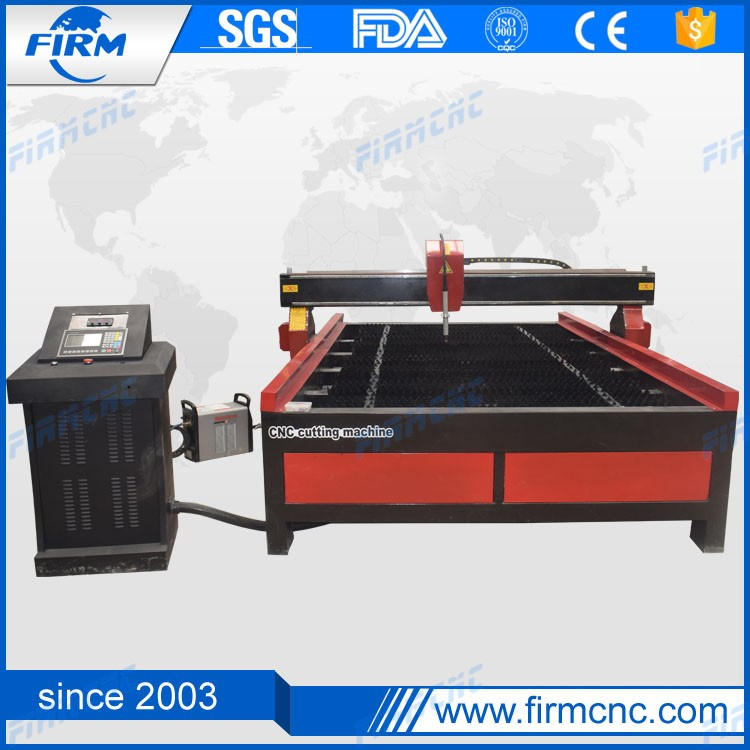

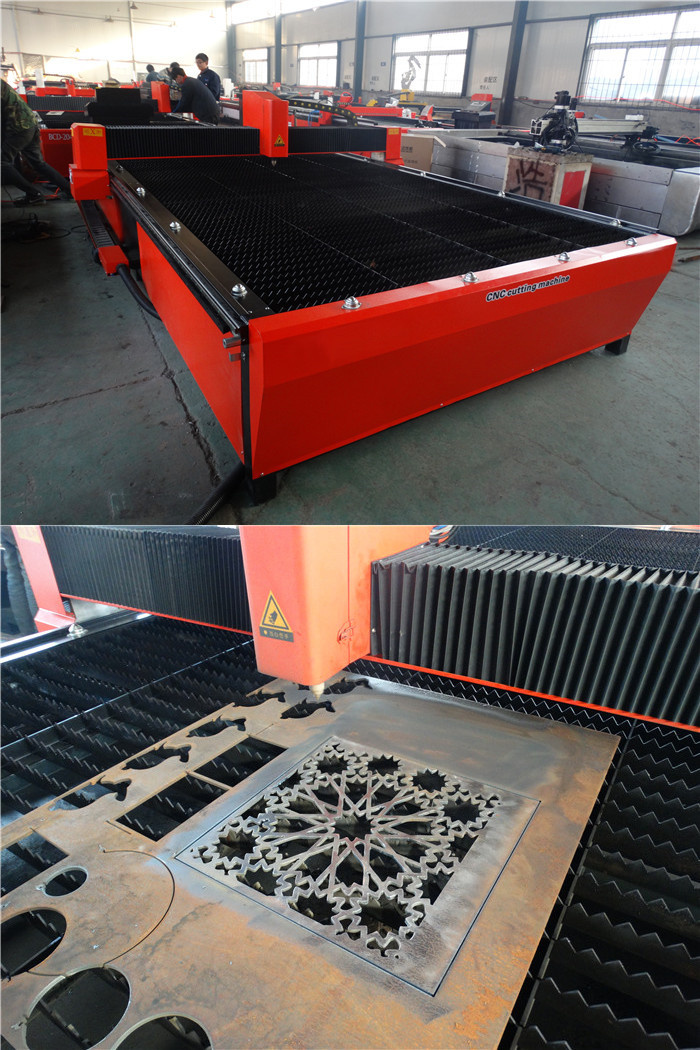

High Precision CNC Plasma Cutting Machine (Plasma Cutter)

About the control system,

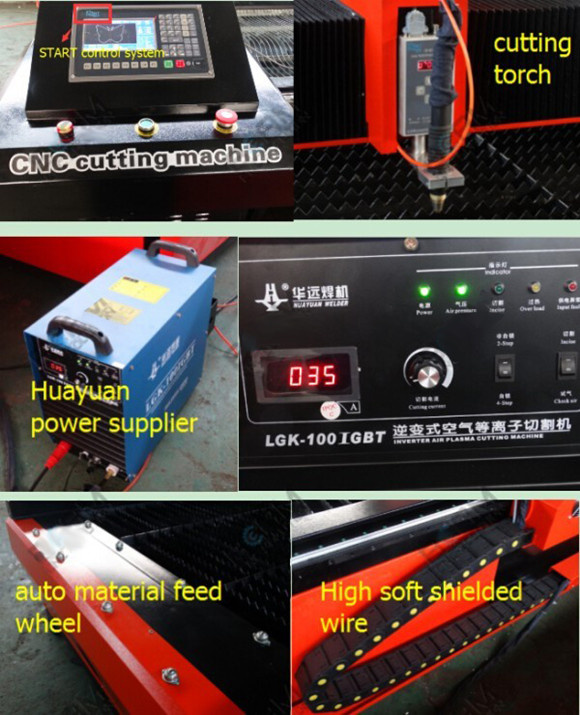

The plasma cutting machine adopt Beijing Start control system with Arc voltage height controller.
Beijing Start control system: Large-scale gate array hardware interpolator.
1.Control stepper motors.
2.Line of plasma cutting features: automatic arc,
3.Delay, warm, perforation, flame radius compensation, back row, breakpoint recovery.
4.Continuous processing, the program does not pause between segments.
5.English version, character prompt, intuitive to learn.
6.Dynamic graphic display, graphic radial cut, zoom, rotate.
7.With popular CAD / CAM and nesting software have a good variety of interfaces.
8.Electronic gear regulator, can adapt to a variety of different machinery and equipment.
9.Using the most advanced devices to increase the arc voltage, has high sensitivity, able to automatically select the best cut to adjust the distance to ensure the accuracy of cutting the workpiece, causing uneven cutting sheet metal parts to avoid damage.
This system is developed by the Beijing START for CNC plasma cutting machine custom continuous path motion controller, which uses as industrial embedded computer hardware platform, stable, reliable, high precision control, process control functions in the cutting into a lot of valuable field experience, full-featured and easy to operate.
Arc voltage height controller is a Non-contact cutting system.
1.Initial positioning function, After the cutting torch and the material contacted, In the millimeter range to enhance accurate cutting torch arc height and torch height position,
2.Arc voltage height controller auto tracking function, the torch height keep constant in the cutting process by the arc voltage height controller, the materials can still be cut even when the materials rugged, the torch height constant to ensure a high precision of cutting quality.
3.You can set tracking height reference value by keyboard, the setting of arc voltage can be adjusted, so it can regulate the tracking height of the cutting process to ensure a high precision when it working.
4.You should put your profiles into the machine, then the arc voltage height controller could automatically adjust the height of cutting torch and material.


About the Positioning Accuracy
I confirmed about the positioning accuracy to our engineer, to be honest, the most plasma cutting machine positioning accuracy is about ±0.3mm, and the repositioning accuracy is ±0.2mm,and it is almost impossible to achieve ±0.1mm in the plasma cutting
About the transmission system.

The machine adopt gear transmission, because the plasma cutting machine mainly used in cutting metal materials, such as carbon steel, copper, and other materials, the gear transmission can ensure high precision and long life.
If the machine adopt ball screw transmission, it is easy to be bent beyond the heavy materials.
So the machine adopt gear transmission.

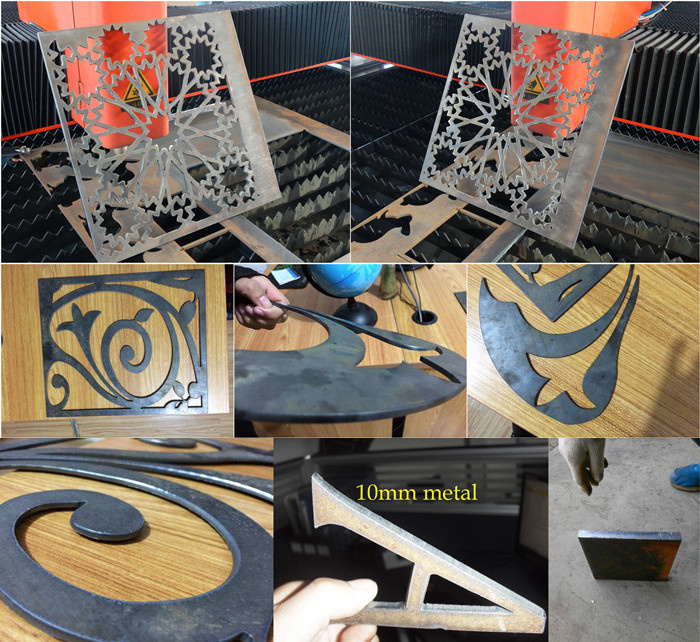

1)Applicable Industries: Processing shells of machinery and electronic products,

advertising signs,  electrical accessories, board cutting.

2)Applicable materials: steel,galvanized sheet,copper and so on.

 Technical Data:





X,Y,Z Working Area



plasma power supply



Cutting thickness



X,Y axis

gear transmission, HIWIN square guide rail


X,Y Traveling Positioning Accuracy



Cutting Speed



Plasma Generator




Welded Structure


X, Y Structure

Rack and Pinion Drive, Hiwin Rail Linear Bearings


Working Form

Untouched Arc Striking


Working Voltage

3-Phase 380V


Control system

Start control system(optional: DSP)





Document Transmission Form

USB Interface


Drive Motors

Stepper System (optional:servo motor)



(1).USA hyepertherm plasma power

(2).Can select working size ,such as 1500*3000mm, 2000*3000mm,2000*4000mm,2000*6000mm

(3).Driver system:can select Leadshine hybrid servo motors and drivers,or Delta servo drivers,or YASKAWA servo motors and drivers


Our Company:

Jinan Firm CNC Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router,laserengraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate.The aim of Jinan Firm CNC Router is to continuously upgrade the technique, to help our customers produce the best quality and high precision products.

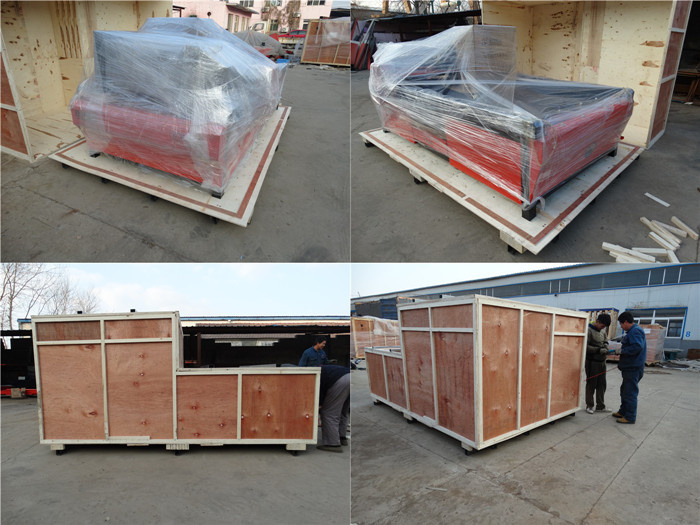

Packing & shipment :

Save space as much as possible for container loading.

Our service:

Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here;
After sale:
We would provide English Version working manual.
If you have any questions during using and maintaining,our engineers who could speak very good english would answer you online or by calls.
Machine warranty is one year.So if your machine has any unintentional damages,we would provide parts for free.
If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
our professional after sale service team which are selected by very strict examinations,would pay their 100% time and energy to solve your problems!


1.How long about the machine's guarantee?

2 years

2.How about your after-sales service ?

Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.

3.How can we install the machine?

English version manual and operation video CD disk.

4.How about the payment terms?

30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal

5.Do you Arrange Shipment For The Machines?

Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.

For EXW price, clients need to arrange shipment by themselves or their agents.

Prod Model: FM2040P
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Material: Iron, Steel, Aluminum Sheets, Galvanized Sheets, T
Power: 5kw
Input Voltage: 380V 50Hz
Software: Fastcam
Plasma Generator: Huayuan/Hypertherm/Cutmaster Plasma
Repeatability: 0.05mm
Plasma Current: 65A, 100A, 120A, 160A, 200A
Motor: Stepper Motor
Working Area: 1300X2500mm
Control System: Start
Jinan Firm CNC Equipment Co., Ltd is located in Jinan city, Shandong province. We are one of the most professional and good reputation manufacturers of CNC router (router CNC, CNC wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China

Our main products are CNC router and laser machine, 5 axis machineing center, 4 axis machining center, 3 axis ATCcnc router, General 3 axis CNC router, CNC laser engraving and cutting machine, CNC plasma cutting machine. The application covers woodworking, advertising, Marble, Metal, Non-metal, MDF, plastic, etc. Our machines are widely sold in many countryes, European, American, Africa, Canada, England, and so on.

The aim of Jinan Firm CNC Equipment is to continuously upgrade the technique, to help our customers produce the best quality and high precision products, and offer the best after sale service.

Please feel free to contact us if you need the good quality machine, best price and the reassuring after sale service.
