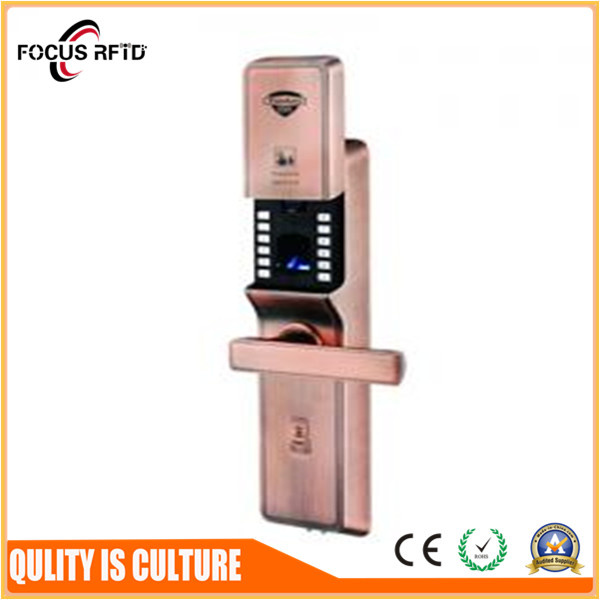

Home Toolbuy Products High Performance Biometric Smart Door Lock for Hotel and Security Building

High Performance Biometric Smart Door Lock for Hotel and Security Building

High Performance Biometric Smart Door Lock for Hotel and Security Building
Price: US $ 20-60/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Why Choose Focus RFID?
1.  Factory direct- Fast delivery 3-10 days.-Service and support 7*24 hour
2.  Quality is our Culture & Time is gold. Our task is save your time and money.
3.  Reliable and honest, we are your partner for the long term.
High Quality Fingerprint Hotel Lock TEMIC & MIFARE


Technical Specification
Electronic part dataWorking VoltageDC4.0V~6.5V 4x1.5V AA alkaline battery (5#)
Extra Power9V dry accumulator,outside of lock
Low battery notice≤DC4.5V±0.2V will alarm for low voltage, still can lock 100 times
Static consumption≤80μA
Sync consumption≤120mA
Peak current≤250mA
FP compare way:1:N
FRR≤1.2S(included fingerprint collect, compare, single output)
False Accept Rate(FRR)<0.0001%
False Reject Rate(FAR)≤0.1%
Password  length6-8 numbers
Storage capacity150 pcs fingerprint save (can expand more than 150 pcs
according to customer's require.
Master ID: 0001-0005
User's ID: 0006-0140
Visitor ID: 0141-0150
Save time10 years
Electromagnetic interference500MHz~1000MHz (field intensity:10V/m,
MOD Freq: 1KHz, MOD degree: 80%
Working temperature-18ºC~55ºC
Saving temperature-25ºC~75ºC
Working humidity20%~95%
Antistatic Ability≤│±15KV│
Sensor dataCollector Size15x12mm
Collect angle±60°
Fingerprint sensorCapacitive fingerprint collector
Working temperatureGenerally applicable temperature :-20°~+85°
Save temperature: -40°~+85°
Working humidity95%
Sensor sweep dataIdentify modeCapacitance scanning
Correction modeAutomatically
Sweep spacing8ms
Card dataWorking frequency13.56MHz
StandardISO/IEC 14443A/MIFARE
Additional functionOpen door memorySave recently 25000 open door records
Data downloadOpen door record, open doo
Tamper alarm functionAlarm automatically when front plate transfer serious
Password protectionInput 3 times wrong password within 1 minutes, system
will reject input till 3 minutes.
Delete all informationDelete all information  just press this button
ResetWhen system can't work right way
Door keep unlock status


How to assure the quality?
  1. Quality is our culture
  2. Each Reader will be tested before delivery
  3. We take cost to replace defect reader within 12 months caused by our reason
What is the delivery time?
In Stock or 7 days
How to send Payment?
We accept LC/TT/Paypal/Western Union
What is the shipment way?
According to the weight of shipment, we will suggest you the proper way DHL/TNN/UPS/FEDEX/By Air /By Ocean (sea), which help you to save time and money.
Value added Service in custom clearance
We can support you to get CO, Form A/E, SASO, CI, PL or any other required document from your custom. Kindly inform us before delivery if need.
Prod Model: lock
Color Option: Silver, Gold
Surface Treatment: Brushed Stainless Steel
Card: MIFARE Card, Temic Card
Material: Zinc Alloy
Type: Combination Lock
Style: Modern

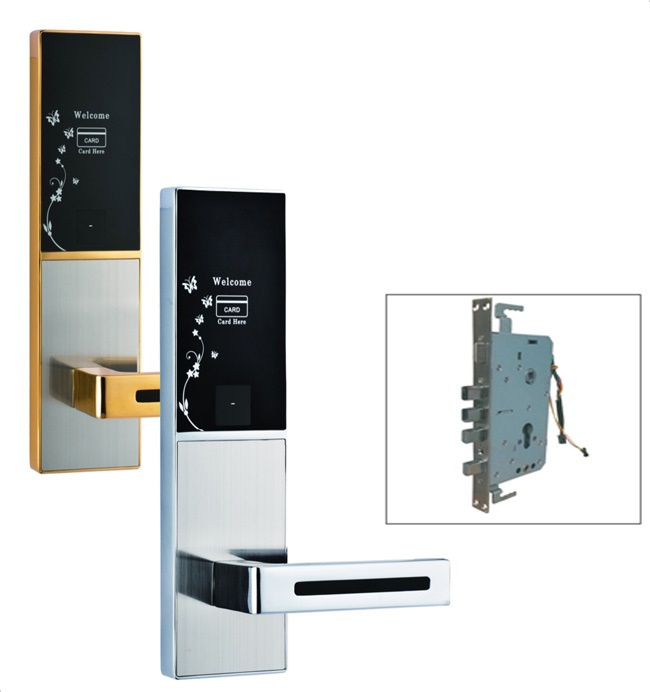

Shape: Mortise Door Lock
Anti-theft Standard: A
Part: Lock
Backset: 70mm
Door Thickness Fits: 35-50mm
Lock Cylinder Length: 90mm
Usage: Office Building
The Focus RFID Co., Ltd is expert on the RFID and access control products, and we focus on the RFID and Access Control products development and production since 2010. Now we are working with more than 1, 000 customers in US, EU, Asia, South America, Africa, and the number is in rapid growing. Our main customers come from America, Canada, Brazil, Chile, Italy, Danmark, Germany, Austria, Spain, South Africa, Tunisia, Malaysia, Sri Lanka, South Korean, UAE, Saudi Arabia, Russia, Australia etc.

The brand of 'FOCUS RFID'is well noted in the market. Our RFID product range covers smart card, RFID tag, NFC tag, keyfob, wristband, Label and RFID readers and antenna. The access control product range includes proximity card reader, hotel lock, controllers, turnstiles and vehicle parking system...

Our marketing office is located in Hong Kong and Jinan China. The factory is located in Shenzhen. Quality is our culture. All of our production is under the ISO9001 Quality Control System, and certificated with CE, FCC, and RoHS.

Now more and more new RFID items are under development in FOCUS RFID industry, welcome to contact us for any of inquiry.
