High Effective Fresh Meat Strip Cutting Machine Cutter

High Effective Fresh Meat Strip Cutting Machine Cutter
Price: US $ 8500/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
High effective Fresh Meat Strip Cutting Machine Cutter

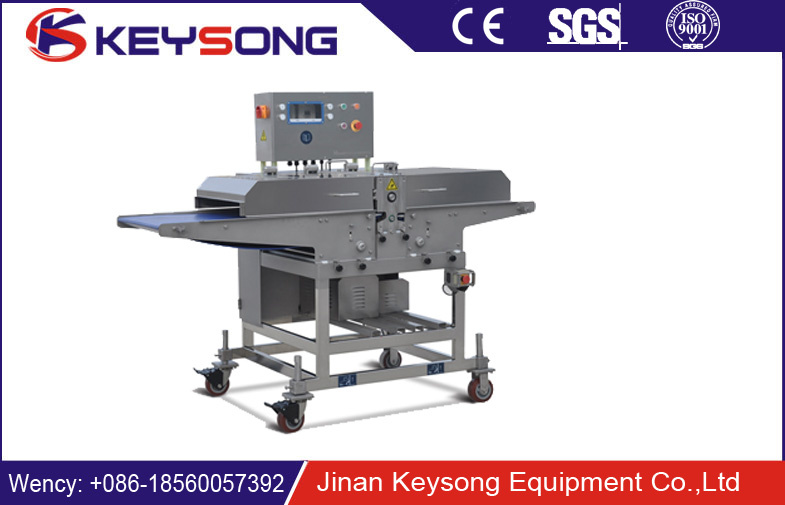

Fresh Meat Strip Cutting Machine Cutter QTJ500-II

Meat stripping and dicing with circular blade.
Suitable for fresh meat processing,including pork, beef and poultry.

Application:
1.High cutting precision with minimum width 5mm,high efficiency guaranteed by multi blade cutting. Also capable of different thickness cutting combined in single cutting.
2.Cutting width is adjusted by changing blade carrier or blade sleeve.
3.Floating unloading system to prevent meat from sticking on blade.
4.Conveying speed can reach to 18m/min, high production capacity guaranteed.
5.Detachable blade carrier, input belt and output belt, easy to clean.
6.Mist spraying design smoothing the cut.
7.Adopt imported module belt with long life.
8.Adopt SIEMENS part with safety service, CE approved.
9.Adopt SS and engineering plastic, easy to clean and meet HACCP.
10.Easy operation and lower maintenance.

Features:
1.Precise cutting width.
2.Minimize labor cost, high efficiency.
3.Can work with strip cutting machine to produce same size strip product.
4.Can work with intelligent cutter to produce same weight product.

Technical Parameters


Model

QTJ500-II

Belt width

500mm

Belt speed

3~18m/min

Max.product width

400mm

Min .cutting thickness

5mm

Max.cutting thickness

45mm ,can made to 70mm

Production capacity

200 - 800 kg/h

Input/Output height

1050±50mm

Power

1.9kw

Overall dimension

2010x903x1615mm


Breading Machine (Crumbing Machine)SXJ200- II
Breading machine SXJ200-can evenly coat the meat like chicken,beef pork, meat and seafood by outpouring the crumb from the hopper when the products is carried by the belt pass under it. For the bottom coating, there is a layer of crumb on the lower belt. Also there is a roller pressing system to press tightly the crumb onto the surface of the food and the thickness of crumb can be regulated by this unit too.
1.Both fine and coarse crumb suitable
2.Easy operation and cleaning
3.Powerful blower and vibrator can easily remove the excess flour.

Preduster(Flouring Machine)SFJ200- II
The conveyor belt carries the products on to a floor bed, above where a hopper above can offer a layer of flour, this makes the products thinly and evenly coated to make preparation of the next processing step. And it can be joined to the battering machine and breading machine to make different production lines to finish the processing of predusting-battering-predusting,battering-predusting and battering-predusting-breading. etc different procedures. It can predust all around the products, completely even.
Powerful blower and vibrator can easily remove the excess flour.
The pressing roller design can help to coat the products and can regulate the thickness of the coating.

Our Service:
1) Free samples engraving and cutting.
2) Two years warranty.
3) Free technical training.
4) Installation and commission support.
5) 24 hours on-line service.
6) Telephone service.
7) Prompt delivery.
8) English version user manual and operation video.

FAQ:
1.Are you a factory or trading company?
We are the manufacturer and we have morethan10 years factory experience.As only the machine made by ourself,quality can be trusted,and most important thing is we can do better service after sales.we know how to fix the problem in each parts easliy.so welcome to visit to our factory
2. How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
3. How should I pay for my order? what is the procession of this purchase?
 You can do 30% prepayment at first, then we will start to make production.
 when the machine is ready , we will take pictures to you, and then you can do the balance.
 after we got your payment. We will send the machine to you.
4. How about your service after sales? Can your engineer speak fluent english?
We offer the service from you got the machine,including how to install the machine,
how to use machine. how to let machine work.and so on. usually we will teach you how to do by emailor by skype.our engineer has many years of experience for cnc machine service.he can speak very goodenglish,so he can slove the problem in short time.
5. How about the documents after shipment?
After shipment,well send all original documents to you by DHL, including Packing List,
Commercial Invoice, B/L, and other certificates as required by client.

Packing and shipping:
      Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our laser machine can protect well during long trip by sea or by train.We can transport machine by boat or by training, according to your requirement.
Prod Model: QTJ500-II
Parts: Siemens
Weight: 150kg
Input/Output Height: Input Height:720mm Output Height:780+-50mm
Type: Meat Slicers
Voltage: 220V
Customized: Customized
Jinan KEYSONG Food Machinery Co., Ltd is professional in producing food machines for more than 6 years. We concentrate many professional team, excellent engineers and talents in extrusion food industry.

Now our extrusion equipment has been applied in snack foods, professional cereal products, leisure foods, pet dog cat foods, instant noodles etc.

Aim for the sake of customers, for the customer value-added" is the tenet of our company. Now our customers are all over the world, such as South Eastern Asia, Asia, Europe, America, and Africa. We sincerely hope that we may have a chance to cooperate with each other in the near future.

Located in jinan city of Shandong provinces, one beautiful spring city. Since its inception, it is Specializing in food machine, engraving machine and packing machine, the company mainly deal with the manufacture, research, development and sale of those machinery. According to the client' S different requirements, we can offer the whole complete equipments, all kinds of snacks/core flakes/pet food production line and so on.

The company has a group of professional and technical personnel, has a strong product development capabilities, advanced technology digestion and absorption ability, On the basis of leading technology, high credibility, high standard, high precision of product quality. With technology innovation as its Mission, and constantly explore new technology, new technology, developed with advanced extrusion machine, On double screw extrusion machine has the international advanced level, has the domestic leading position.

Depending on our rich experience and professional experts on the Food and oven and packing machine industry, we will offer the most suitable and complete program, which assures that your investment will get biggest profit.

Wish our products and technical support to lay a foundation for your career success. Hope we become permanent friends.
