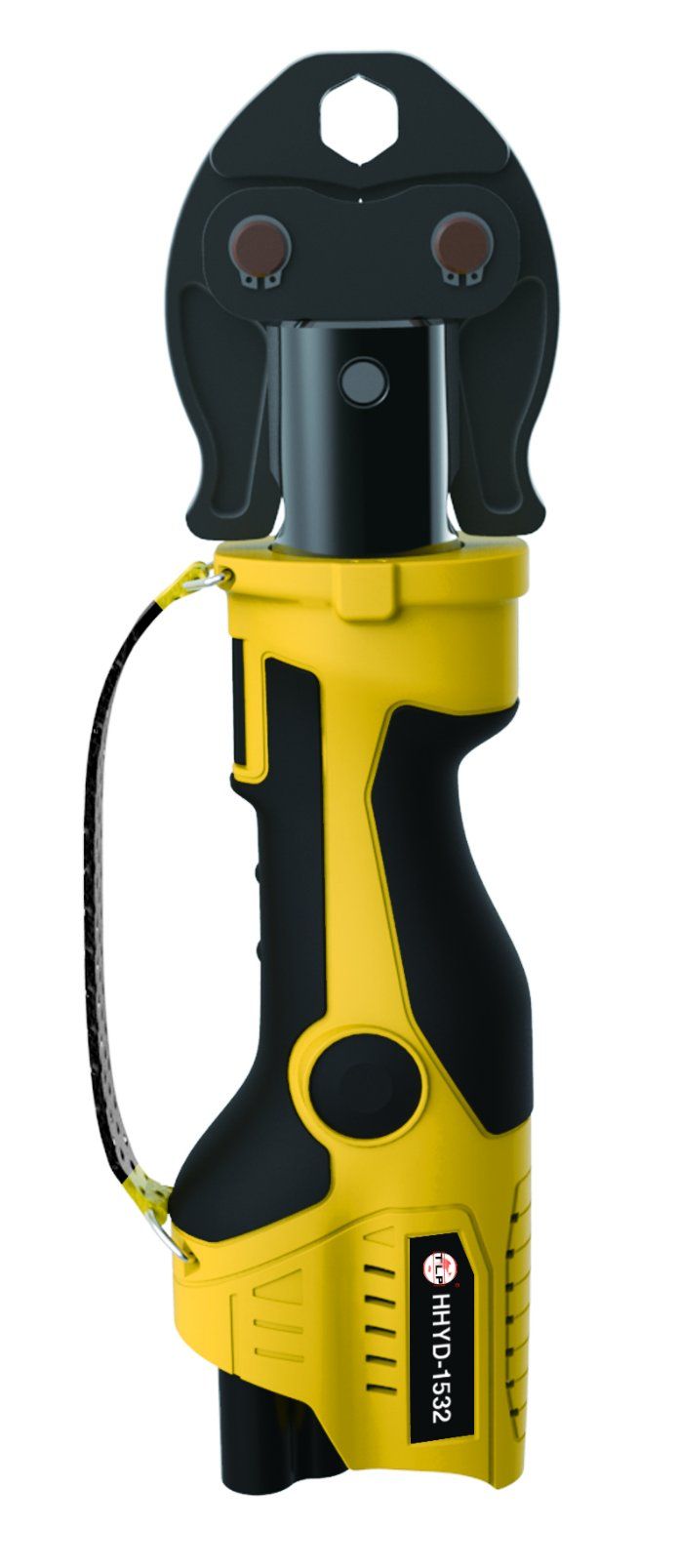

Hhyd-1532  Copper Pipe Fitting Crimping Tool Pipe Multi Tool

Hhyd-1532  Copper Pipe Fitting Crimping Tool Pipe Multi Tool
Price: US $ 450-600/Piece
Min Order: 2/Piece
Pay Type: L/C,T/T

Apllication

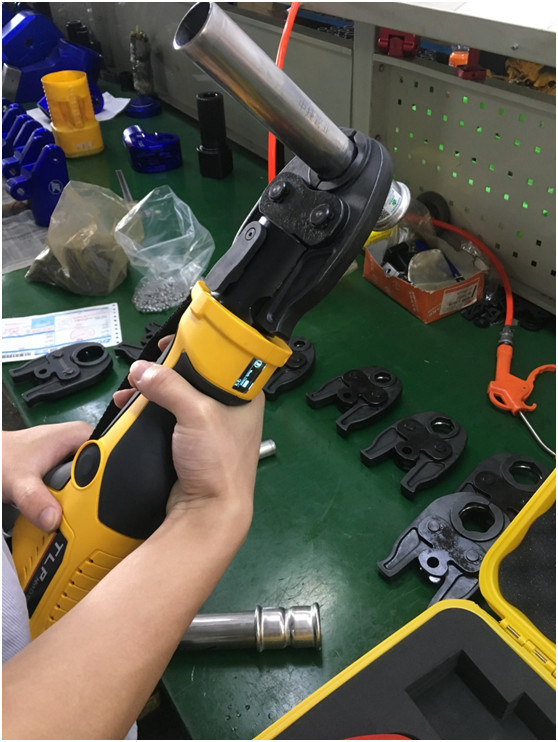

Battery powered pressing tools are the most efficient solution for pressing applications. Simply press a button to apply the required force.
Two-sate hydraulic system automatically switches to power stroke after a fast speed. When the pressing is complete, the ram retracts automatically.





Specification

ModelHHYD-1532
Hydraulic Ram Output1.9 Ton
Ram Stroke30 mm
Battery capacity120 pressing cycles
Pressing jawsV type Jaw : 15, 18, 22, 28, 35 (other type available on request)
Crimping times5s-8s(Depend on the size of pipe)

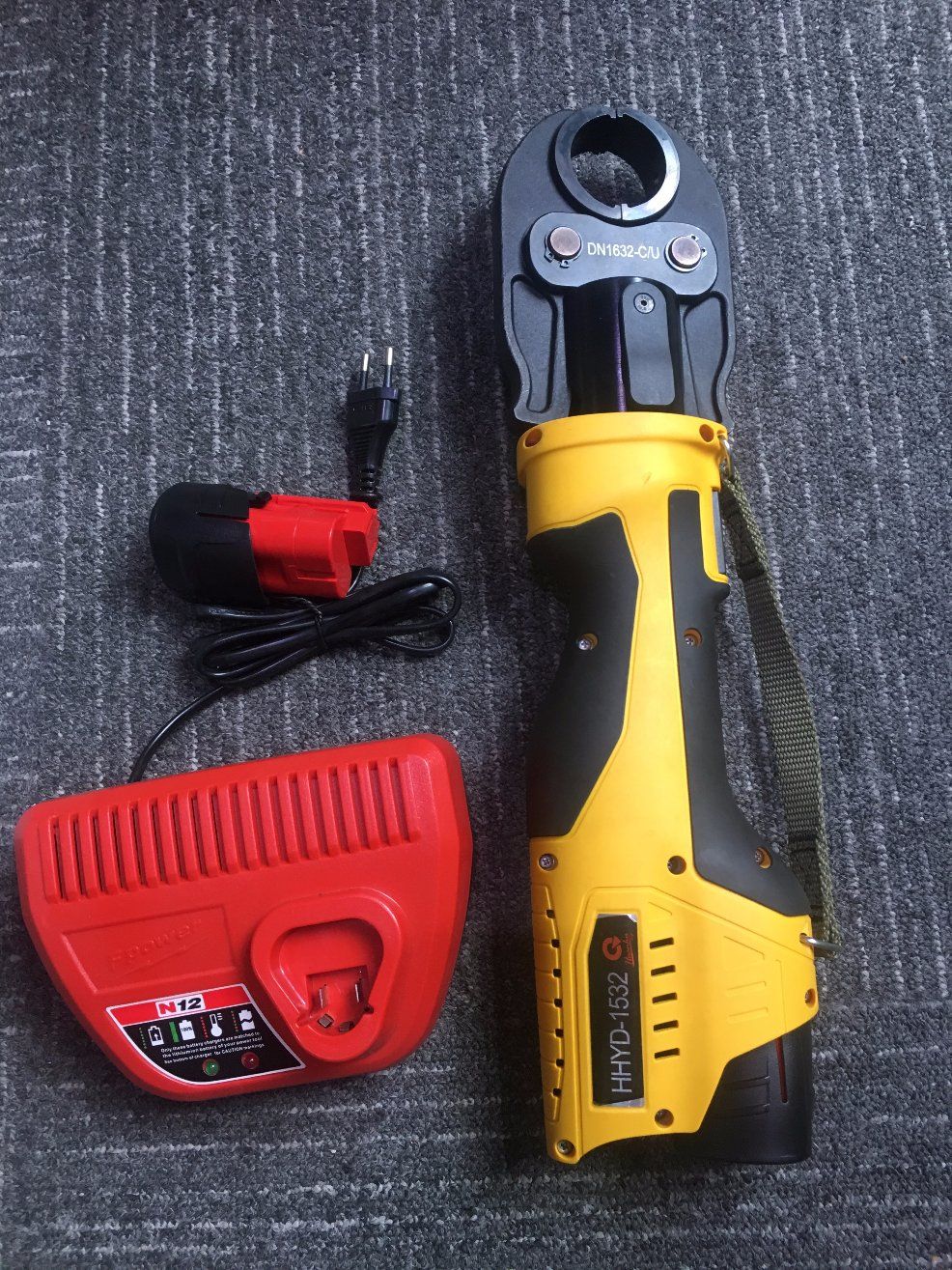

Battery18V/1.5Ah Li-ion
Qty of battery 2 pcs
Charger 1 pcs
Spare seals  1 set
Seals for the safety valve 1 set

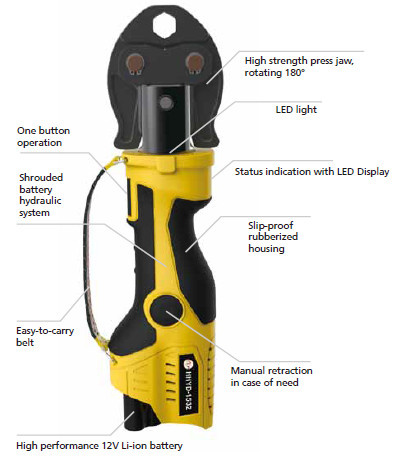

Characteristics
Easy and simple operation, high efficiency and safety.
Pressing jaws confirm to standard GB/T 19228.
Pressing stainless steel fittings up to 35 mm.
Two-stage hydraulic system features fast feed and power stroke upon reaching counter pressure, saving time.
10000+ cycle service life.
Ram retracts to original position automatically when operation is complete.
Manual retraction in case of need.
LED Display indicates operation temperature and times.
Quick motor stop for higher user safety.
Powerful 12V Li-ion battery with low battery warning.
Ergonomic design, extremely light and easy to hold.

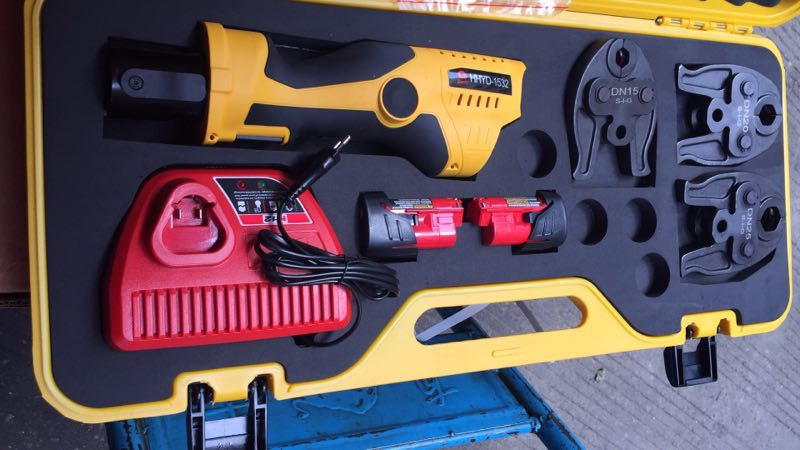

Package



Prod Model: HHYD-1532
Type: Battery Pressing Tool
Output: 1.9 Ton
Pressing Jaws: V Type15, 18, 22, 28, 35 (Th Type, U Type, C Type)
RAM Stroke: 30 mm
Pressing Times: 5s-8s
Battery: 12V/1.5ah Li-ion
