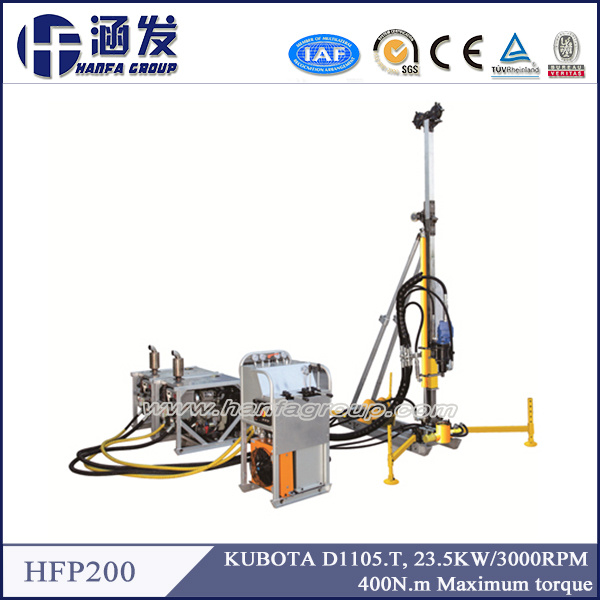

Hfp200 Core Drilling Rig/Mining Core Drilling Machine

Hfp200 Core Drilling Rig/Mining Core Drilling Machine
Price: US $ 45000-55000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
 HFP200 Core Drilling Rig/mining core drilling machine

Fields of Application

HFP200 is widely used in mineral exploration, infrastructure construction (i.e.railway, road and bridge, etc.), hydraulic and hydropower project, tunnelexploration and geographical investigation. It works particularly well in areaswith complex geographic characteristics such as mountainous regions, forestsand plateaus. It is the ideal drilling rig when operating in hard-to-accessareas within a depth of 200 meters, executing small projects, conductinginitial investigations and working on tight schedules.

Key Characteristics

1.Light weight -Modulized design with the heaviest pieceweighing only 120kg
2.Aviationaluminum materials used for more than 90% of the framework
3.Fast - Easy to relocate with thecapability of being assembled/disassembled within only 20 minutes
4.Thin wall rods, low resistance,and speed penetration
5.Excellent - Long stroke cylinder, easier to control than the chain
6.Global leading brands ensuring stability andreliability
7.Cost-efficient - No road construction; No infrastructure construction; Time saving
Hydraulic coring and drilling; No drilling tower; Energy saving
Environmentally friendly;Worry-free
Low consumption;Cost saving

HFP200 High lights

The key issue regardingthe traditional portable and vertical drilling machines, when executingprojects with a depth of 200 meters, is the balance of light weight and efficiency. With its light weight, easy assembling/dissembling capability andhigh efficiency, HFP200 is your best new choice.

Technical Data

Drilling depth capacityHQ/NTW/BTW  30/100/200m
Hole DiameterRod Length 1.0m96/75.7/60mm
Core Diameter 63.5/56/42mm
Power engineKUBOTA D1105.T, 23.5KW/3000RPM
Hydraulic systemAmerican Parker valve,water cooler
Maximum pressure 20Mpa/max,Maxium flow 54L/min
Top drive rotation headMaximum torque400N.m
Maximum rotation speed1300rpm
Feed travel 1.27m
Pull/Thrust33KN/24KN(Single cylinder)
WinchAverage speed150m/min
Lift600kg
Were Diameter5mm
Were accommodation240m
MastHeight of the mast on 90 degree3.8m
Drilling angle45º-90º(standard )
0º-90º(option )
Size and weightPlatform area/Module quantity3m×3m/6 piece
Gross/Maximum module605kg/120kg


Production ability

We have more than 50 sets of processing equipment to ensure the quality of our product, which has proved worthy by our client's recognition. And these equipments ensure large production capacity and adequate stock.
We have all the small models in stock all year long and the bigger ones ready within 15-30 days.

Customers visit our factory

With all the effort put in, we have successfully marketed our products to almost every corner of the world. Here are the pictures of our clients' visits and our clients' on-the-site operation.

About the product Packing

To protect drilling rigs during sea transportation, we give them proper packing.
HF130, HF80, HF150E, HF150, HF200, HF30: Wooden case
HF-3, HF-4, HFDX-6. HF-8, HFT200, HFT350B: Plastic woven bag
Spare parts: Wooden case or plastic woven bag
HFT-200, HFT-3: Nude, main machine in plastic woven bag.


Quality guarantee

Our products has been authorized and certified by TUV and ISO9001: 2008. We guarantee the quality of the machines for one year after the trial run (excluding the wearing parts), but not exceeding 15 months from the date on which machines leave the factory


Our Services

Sales manager:Vincent Guo
Office tel:+0086-371-55019599
After sales: +0086-371-67990387
Accessories:+0086-371-55019184

Hanfa Website:www.hanfagroup.com
Prod Model: HFP200
Drilling Depth Capacity: 30/100/200m
Power Engine: Kubota D1105.T, 23.5kw/3000rpm
Maximum Torque: 400n.M
Maximum Rotation Speed: 1300rpm
Average Speed: 150m/Min
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research, manufacture and market.

Presently, it has three subsidiaries which are Zhengzhou Hanfa Prospecting Machinery Co., Ltd, Zhengzhou Hanfa Imp & Exp Trading Co., Ltd, HK Hanfa Imp & Exp Trading Co., Ltd. It has experienced engineers, professional R&D team, special after service team, world class sophisticated equipment and advanced technology guarantee the best quality drilling equipments and best service to its customers.

Hanfa Group perennially committed to the development, production and sales of drilling machine, mainly including water well drilling rig, core drill, DTH drill, rotary/piling rig, trenchless centering drill, hydraulic tunnel drilling rig, etc. Hanfa Group send all kinds of drill for the global market, the products are sold to all over the world, exports more than 60 countries and regions, is the leading brand of drilling rig in China. At present, Hanfa Group built Beijing, Tianjin, Shandong, Hubei R&D and manufacturing base.

Hanfa Group always adhere to the "two audit", one is must through the international authoritative certification bodies's audit; The second is needs to be approved by customers and the public. It is also true, Hanfa Group, all kinds of drilling rig, has passed the ISO9001: 2008 and ISO9001: 2000 quality management system, the national military standard GJB9001-2001 and ISO14001-2004 environmental management system and GB/T28001-2001 occupational health and safety management system certification, CE and other international well-known certification bodies audit and certification, obtained the international recognition of authority;

At the same time, the development of the new and old customers, numerous customers from all corners of the world's praise, confirming the quality of Hanfa products is already deeply rooted in the hearts of the people, pass the "audit" of masses of the people. High quality is the the faith and the most basic bottom line of Hanfa Group since it founded twenty years ago. For more than 20 years, the countless praised, care, support have been produced a large web of trust, like the Hanfa's reputation today, global coverage, influence the world.

Hanfa Group do not forget good service while in adhere to the quality. In Hanfa Group, the quality is the root, service is the source. Hanfa Group, after long-term development, formed a very perfect service system, the service system covering the pre-sale, sale, after-sale three important links, fully satisfy the customer service requirements at different times, leave no dead angle of service to the customer. Hanfa Group has a strong service team, including 30 senior engineers, more than 50 technical personnel, hundreds of after-sales service personnel. After many years of accumulation, the service team had rich experience, is the most perfect service industry, service quality of the best team. Hanfa Group, has send technicians abroad to after-sales service more than 20000 times, operation training for more than 10000 times, machine repair about 5000 times...Large and small data, not only explain Hanfa has send thousands of customer operation method, construction technology, drilling technique, machine maintenance knowledge, the fault of the machine function again...But also record with the brilliance of Hanfa's service team, the footprints on the road, confirm the powerful strength and service quality of Hanfa Group.
