| Prod Model: |
AR-hexgonal |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Length: |
30m,30.5m,15m,50m,100m |
| Material: |
PVC Coated Steel Wire |
| Application: |
Window Curtain |
| Surface Treatment: |
PVC Coated |
| Weave Method: |
Twist |
| Weave Technique: |
Twill Weave |
Product Description
Why Choose US?

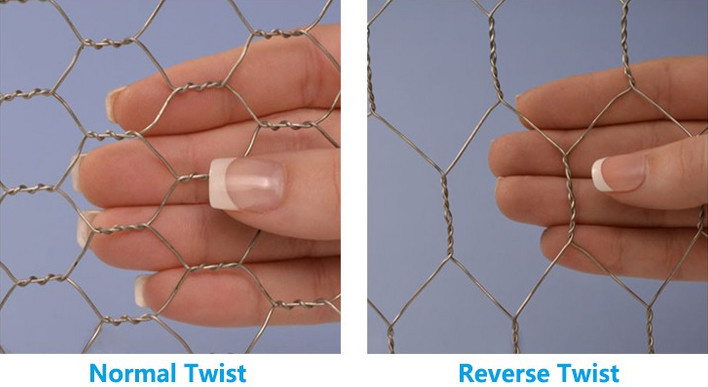

Product DescriptionMaterial: Galvanized, PVC Coated or black wireApplication : Make net cast ,stone cage ,insulated net wall ,boiler cover ,poultry fence etc. Woven type : Continuous Twist and Reverse TwistOpening : 3/8",1/2", 5/8",3/4",1", 1-1/4", 1-1/2",2",etcDiameter : 0.38mm to 4.0mmAdvantage: 1. Economical.
2. Construction is simple without special skills.
3. It can strongly withstand damage from nature and also large-scale deformation, which does not collapse.
4. Has good permeability to prevent static fluid.
5. Can be folded up and Save transportation costs. Specifications
Different Woven Type:
Assortments Available:

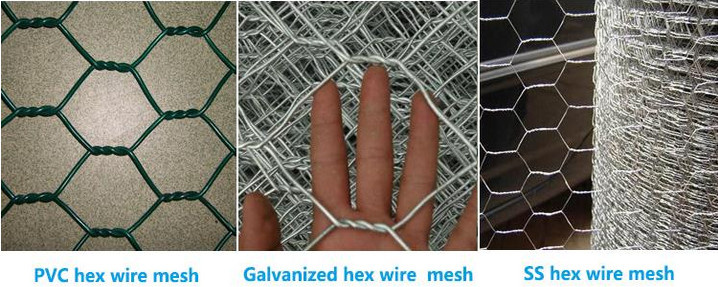

Electro Galvanized before Weaving
Electro Galvanized After Weaving
Hot Dipped Galvanized before Weaving
Hot Dipped Galvanized after Weaving
PVC Coated Before or After Weaving
Stainless Steel Wire
Galvanized Drawn Iron Wire
Galvanized hexagonal mesh size
| Min. Gal.v. G/SQ.M | Width | Wire Gauge (Diameter)
BWG
| Inch | mm | Tolerance(mm) |
| 3/8" | 10mm | ±1.0 | 0.7mm - 145 | 2' - 1M | BWG23-27 |
| 1/2" | 13mm | ±1.5 | 0.7mm - 95 | 2' - 2M | BWG22-25 |
| 5/8" | 16mm | ±2.0 | 0.7mm - 70 | 2' - 2M | BWG22-27 |
| 3/4" | 20mm | ±3.0 | 0.7mm - 55 | 2' - 2M | BWG19-25 |
| 1" | 25mm | ±3.0 | 0.9mm - 55 | 1' - 2M | BWG18-25 |
| 1-1/4" | 31mm | ±4.0 | 0.9mm - 40 | 1' - 2M | BWG18-23 |
| 1-1/2" | 40mm | ±5.0 | 1.0mm - 45 | 1' - 2M | BWG18-23 |
| 2" | 50mm | ±6.0 | 1.2mm - 40 | 1' - 2M | BWG18-23 |
| 2-1/2" | 65mm | ±7.0 | 1.0mm - 30 | 1' - 2M | BWG18-21 |
| 3" | | ±8.0 | 1.4mm - 30 | 1' -2M | BWG17-20 |
| 4" | 100mm | ±8.0 | 1.6mm - 30 | 1' - 2M | BWG16-19 |
| PVC Coated Hexagonal Wire Netting |
| Mesh | Wire Gauge (MM) | Width |
| Inch | MM | - | - |
| 1/2" | 13mm | 0.6mm - 1.0mm | 2' - 2M |
| 3/4" | 19mm | 0.6mm - 1.0mm | 2' - 2M |
| 1" | 25mm | 0.7mm - 1.3mm | 1' - 2M |
| 1-1/4" | 30mm | 0.85mm - 1.3mm | 1' - 2M |
| 1-1/2" | 40mm | 0.85mm - 1.4mm | 1' - 2M |
| 2" | 50mm | 1.0mm - 1.4mm | 1' - 2M |

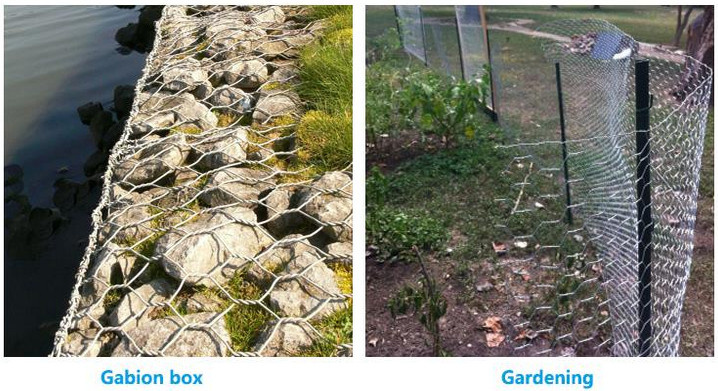

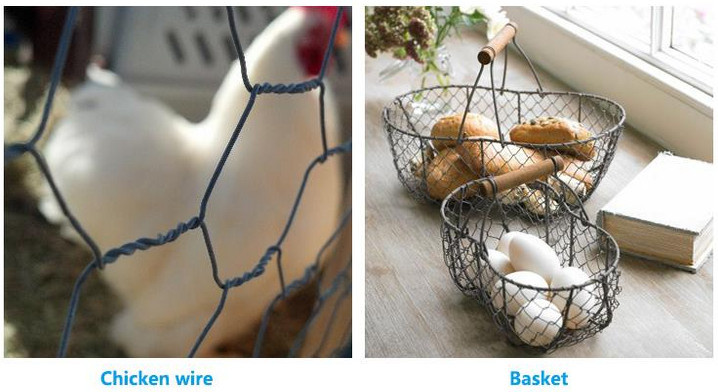

ApplicationGalvanized Hexagonal Wire Netting is used as fences, chicken wire, stucco netting, or made into gabions or baskets for protection.

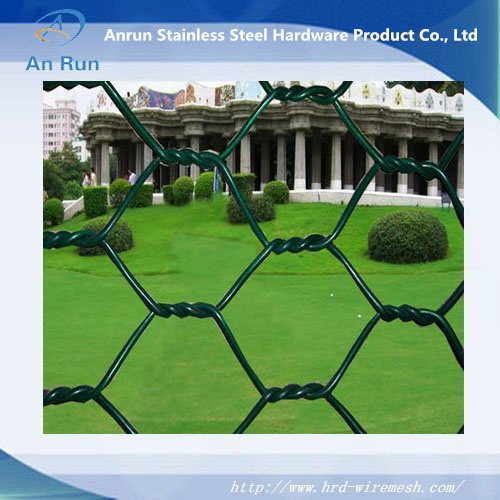

PVC coated hexagonal
wire netting is mainly used as poultry netting, chicken wire , expressway fences, protection and heat preservation material in construction, petroleum, chemical industry, breeding and garden fencing.
Let us begin to communicate immediately , Contact us !!Our Services1. ProfesstionalOver 15 year's experience in wire mesh industry and export more than 70 countries, Anrun Metal Mesh is the real professional manufacture.
2.Product QualityThe quality of products is the key of enterprise survival. Anrun Meatl Mesh is ISO9001:2008 certificated manufacturer.
Each roll of our mesh will be inspected based on ASTM E2016-06 standard and have the Inspection Certificate.
3. Reasonable PriceWe'll exact control each producing process to reduce cost for our customers. After clients receive the quotation, we'll show you the rationality of the price and the difference between our products and other supplier's products.
4. Delivery TimeThe customer's needs is delivering on time, rather than an excuse. We'll make a production plan before producing, and the sales will regularly inform the production schedule and process to the customer.
5. CommunicationEnglish is the basic and other languages can be understand. All customer's e-mail will be replied within 2 hours at working hours and must be replied within 12 hours at non-working hours.
6. CustomizedPersonalized, professional service: we can provide different programs according to customers' requirement, thus make customers choose the best and most approprite one.

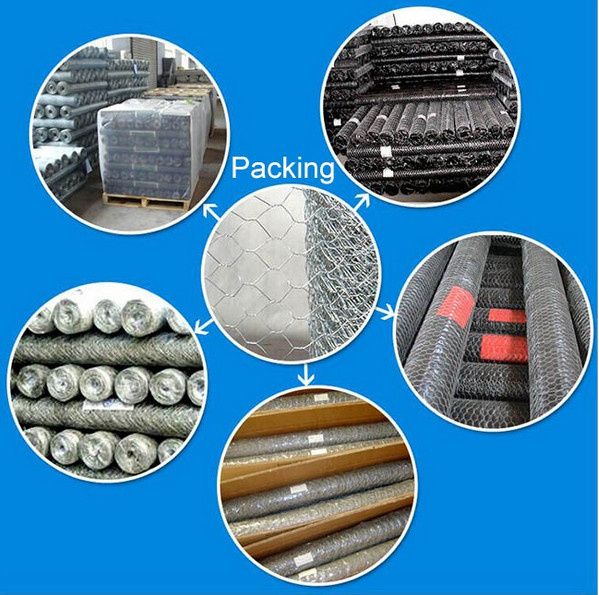

Packaging & Shipping
FAQ1. How to make a inquiry of wire mesh ?You need to provide material,mesh number, wire diameter,size and the quantity to ask an offer, you can also indicate if you have any special requirement. We'll providea formal quotatiom list after your inquiry received.
2. Could you provide free sample ?Yes, we can provide free sample in half A4 size together with our catalogue. But the courier charge will on your side.
We'll send back the courier charge if you make an order.
3. How is your Payment Term ?Generally, our payment term is T/T 30% in advance and the balance 70% against the copy of B/L. Other payment term we can also discuss.
4. How is your delivery time ?We always prepare enough stock material for your urgent requirement, the delivery time is 7 days for all the stock material. We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.
Anping Country AnRun Stainless Steel Hardware Product Co., Ltd is a specialized enterprise, with more than thirty sets of equipments for professionally producing wire mesh. With emphasizing on new-high technology, the company has become the comprehensive enterprise for manufacturing both wire mesh and further processing products.
Our main products include stainless steel wire mesh, crimped wire mesh, wire mesh processed products, perforated metal, decorative wire mesh, sound barrier and other products. They are widely used in many industries including chemical, mining, petroleum, farming, food, decorative material and construction. The most outstanding products are perforated metal, or called punched metal, sound barrier used on highway and decorative mesh with different types.
Through several years' development, we have accumulated rich experience, possessesed great professional skill and created capability of new products development. Skilled workers and advanced management assure the quality of the products.
Anrun, as a ISO9001: 2000 certified manufacturer, has established stable relationships with customers in the USA, France, the U. K., South Korea and other countries. We are running with you.
