Hexagon Cassette Hydraulic Torque Wrench
| Price: |
US $ 960-3300/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |

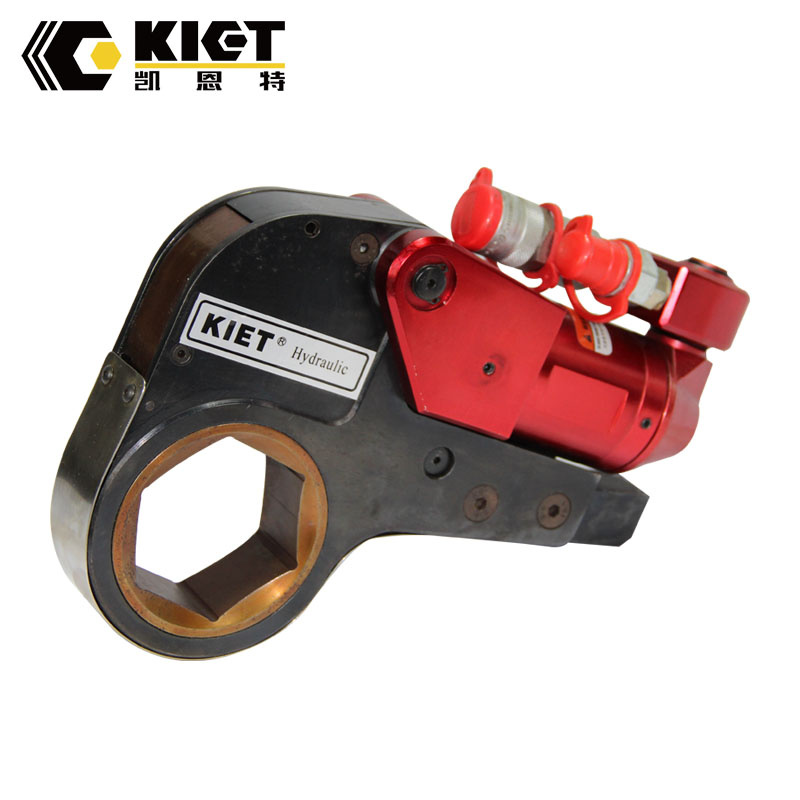

Hexagon Cassette Hydraulic Torque Wrench
Features:1. The innovative wrench structure without pin joint matches with rapid unloading hydraulic piston and automatic crank.
2. The 360º × 180º Rotating hose coupling has no limitation in used space, convenient to operate.
3. The hydraulic piston and power head have small shape, with light weight, compact structure and small operating radius.
4. The nut rotation angle in single operation is large and the hydraulic piston has a quick return stroke. The work efficiency is high.
5. The reactive force is on one straight line, which can decrease the inner torque abrasion
6. The constant torque output provides the high precision for wrench in the whole working process.
7. The maintenance is simple and does not need the special tools.
8. The torque wrench surface has a good corrosion resistant performance after the nickel plating treatment.
9. All the hollow hydraulic wrenches have copper lining to ensure that the ratchet wheel does not contact with the wall, which can extend the working life.
10. You can select the various kinds of reduction sleeves to extend the application range.Parameter:| Model | Torque Range(Nm) | Torque Range(mm) | Nut Size(mm) | Bolt Size(mm) | Working Pressure(bar) |
| KET-2XLCT | 232-2328 | 16-36 | 24-55 | 16-36 | 700 |
| KET-4XLCT | 585-5858 | 24-42 | 36-65 | 24-42 |
| KET-8XLCT | 1094-10941 | 30-64 | 46-95 | 30-64 |
| KET-14XLCT | 1852-18521 | 33-76 | 50-110 | 33-76 |
| KET-30XLCT | 4188-41882 | 76-115 | 110-165 | 76-115 |
|
|
|
|
Cooperation Terms:1) Our warranty:
We guarantee our product for 1 year and we will also provide 1% free parts.
2) Delivery time: 15-30 days after deposit received.
3) Payment Terms: 30% T/T, Balance before shipment.
4) MOQ: 1 set.Company Introduction:

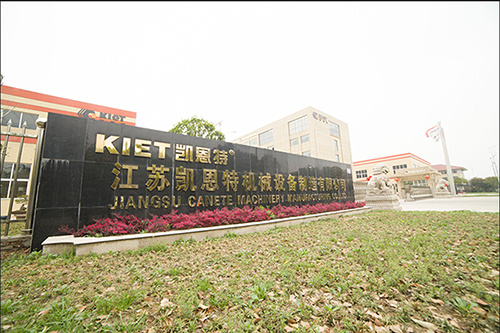

Jiangsu Canete Machinery Manufacturing Co., Ltd. Is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001: 2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.We are a manufacturer in tools, such as:Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions (4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)

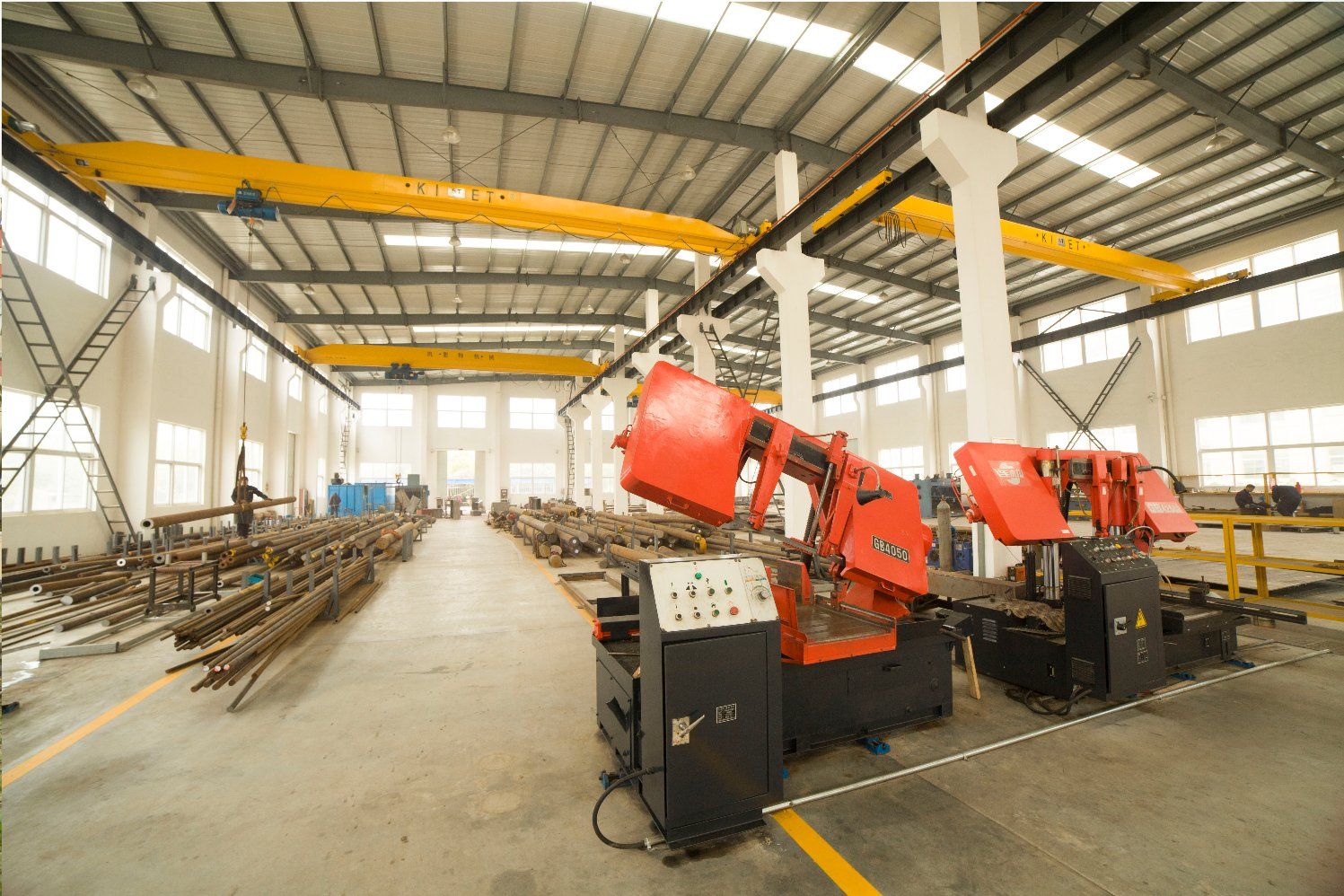

Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.Workshop
Contact UsMiss Lily Huang (Sales Director)
Tel: +86-18036786987
Web: http://www.chinakiet.com/EN/
| Prod Model: |
KET-XLCT Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Hexagon Cassette Hydraulic Torque Wrench |
| Maximum Pressure: |
700 Bar |
| Min. Torque Range: |
232-4188nm |
| Max. Torque: |
2328-41882nm |
| Bolt Size: |
16-36 to 76-115 |
| Nut Size: |
24-55 to 110-165 |
| Certificate: |
Ce ISO9001:2008 |
| Delivery Time: |
5-15 Days After Receive Payment |
| Place Of Origin: |
Jiangsu(Mainland), China |
| OEM: |
Available |
| Type: |
Torque Wrench |
| Material: |
Alloy Steel |
| Standard: |
European Type |
| Surface Treatment: |
Titanizing |
| Feature: |
Anti-Explosion |
| Brand: |
Kiet |
| Handle Color: |
Customized |
Glad to know you are on market for hydraulic tools, and considering more about the quality goods, Like ENERPAC. Being named hydraulic tools manufacturing leader in China, and 20 years military factory experience in hydraulic area, KIET guarantee good quality and price for every hydraulic tools and equipments,
We have developed a strong market position with sales, service and repair of high force hydraulic equipment, along with the supply of spare parts to the hydraulic industry, while consistently providing a high standard of customer service.
We are a manufacturer in hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
