Home Toolbuy Products Height Controlling Triple Bracket for CNC Cutting Machine

Height Controlling Triple Bracket for CNC Cutting Machine

Height Controlling Triple Bracket for CNC Cutting Machine
Price: US $ 10-75/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Contact Supplier
Wuxi Longteng Welding and Cutting Equipment Co., Ltd.
Showroom Product Company Profile

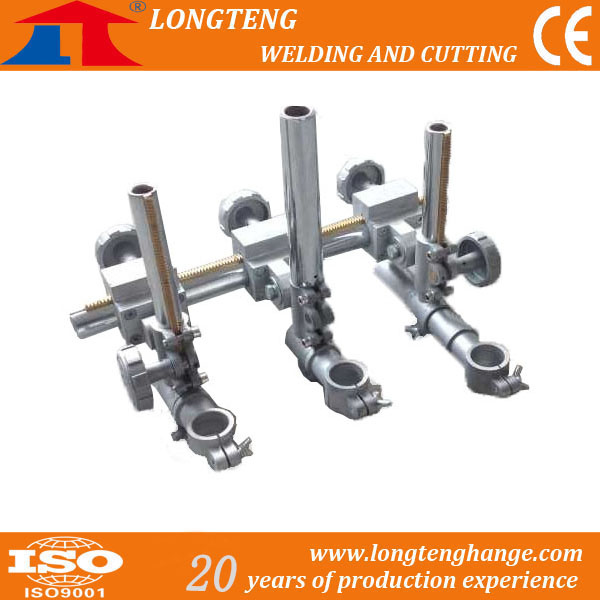

Triple Bracket for CNC Cutting Machine


1)Quick Detail:
1. Machine triple cutting torch holder
2. Connecting the cutting torch with the portable CNC cutting machine
3. Material: Aluminum

2)Description:
1. Applicable to WLX machine-use cutting torch
2. Using hand wheel to adjust rise and fall
3. Using hand wheel to adjust horizontally moving distance.
4. Angle scale can show angle of the machine-use cutting torch.

1>Structural Features
1. It equips with wheel device and has the mechanical height controlling function.
2. Use for cutting straight line V/Y/X/K type beveled edges.
3. Angle adjustment range: ± 45°
4. Cutting thickness range: 16-50mm
5. Angle error: ± 5°
6. The minimum blunt edge for K type beveled edges: 3 mm


3)Applications:

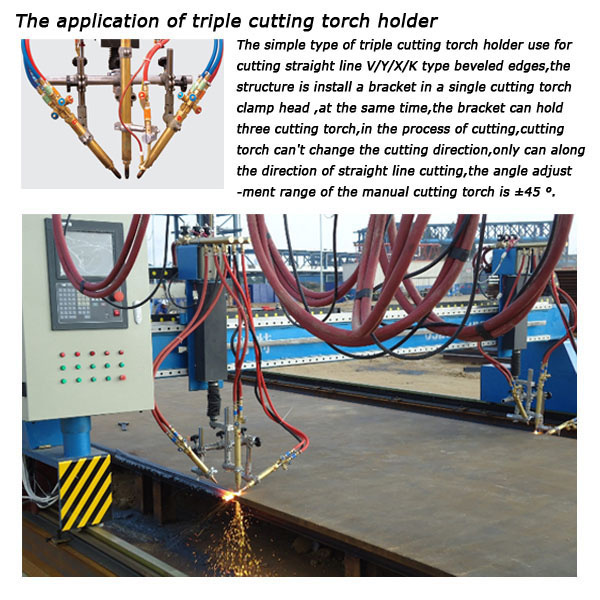

It is an accessory which connecting the cutting torch with the portable CNC cutting machine.



4)Competitive Advantage:
1. Professional manufacturer for CNC Cutting Machine Accessories
2. More than 16 years experience
3. Factory direct price and on time delivery
4. Secure Ordering and worldwide delivery
5. Sample available
6. Small quantity acceptable
7. OEM workable

Model Number
LT-JCQ-Triple

Brand Name
Longteng, OEM

Place of Origin
Wuxi, China (Mainland)

Certification
CE,ISO

Loading Port
FOB Shanghai

Payment Terms
T/T, L/C, Western Union

Adjustable Range
±45°

Cutting Thickness
16~50mm

Angle Error
±5°

Mini blunt edge for K type beveled edges
3mm

Applicable to
CNC

Function
Height Controlling






Prod Model: LT-JCQ
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name: Triple Cutting Torch Holder
Type: Mechanical Height Controlling Type
Applicable To: CNC Machine
Angle Adjustment Range: -45~+45 Degree
Cutting Thickness: 16~50mm
Material: Stainless Steel
Structure: Triangle Bracket
Usage: CNC Machine
Founded in 1996, LONGTENG (Wuxi Longteng Welding and Cutting Equipment Co., Ltd. & Xuyi Longteng Welding and Cutting Technology Co., Ltd. ) is the professional group which specializes in producing centralized gas supply systems, flame cutting equipments, cutting instruments as well as welding auxiliary equipments.

The company owns the professional team for technology research and development, the superior manufacturing equipments and the excellent sales force. Under the guarantee of the Quality Management System (ISO9001), the Environmental Management System (ISO14001) and the Special Equipment Manufacturing License (Pressure Pipe) of the People's Republic of China, the enterprise ensures the overall control of the product's quality, using safety andother aspects, which makes the products sell well at home and abroad, obtain numerous of clients' approvals and faith, dominate the market and let the market share increased year by year. With the exquisite products and the refined service, longteng company takes "improvement, completion, perfection"as the philosophy to provide the most efficient, safesty and the most sincere service to the clients.

The most devoted make the most professional, we are professional as we are exclusive.
