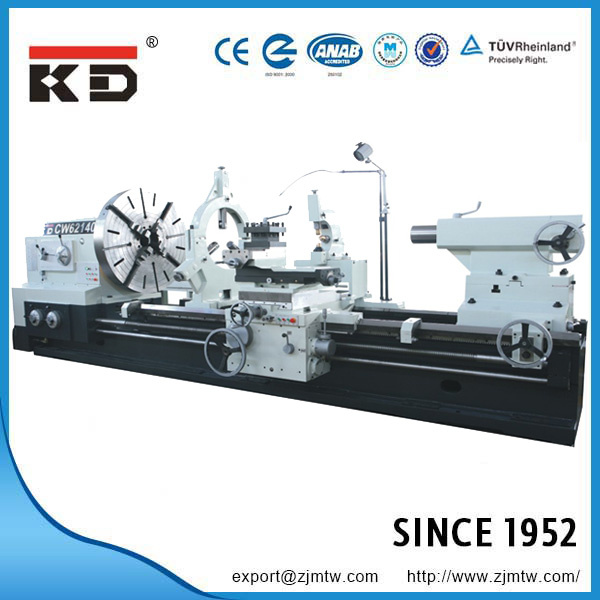

Heavy Duty Conventional Lathe Model Cw62140/3000

Heavy Duty Conventional Lathe Model Cw62140/3000
Price: US $ 20000-200000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1SET
Pay Type: L/C,T/T

SPECIFICATIONS:

ITEMS

CW61140 /CW62140

CW61160/ CW62160

Max. swing over bed

Ø1400 mm

Ø1600 mm

Max. swing over carriage

Ø1060 mm

Ø1260 mm

*Over gap

Ø1930 mm

Ø2110 mm

Width of bed

970 mm

*Effective length of gap

590 mm

Max. length of work piece(two centers)

1.5m/2m/3m/4m/5m/6m/8m/10m/12m

Max. turning length

1.3/1.8/2.8/3.8/4.8/5.8/7.8/9.8/11.8m

Max. Weight of work piece(between centers)

6000Kg

Spindle nose

A2-15

Spindle bore

Ø130

Cone hole diameter and taper of spindle hole

Metric Ø140 1:20

Number of speeds

24(normal),12(reverse)

Spindle speed scope

2.5~250rpm

Pitch of longitudinal ball screw/diameter

12 mm/ Ø70mm

Number of cross feeds

97

Feed range of tool post for per rev. of spindle(Longitudinal)

0.1~12 mm/r

Feed range of tool post for per rev. of spindle(Cross)

0.05~6 mm/r

Feed range of tool post for per rev. of spindle(middle tool post)

0.025~3 mm/r

Rapid feed for Axis Z

3740 mm/min

Rapid feed for Axis X

1870 mm/min

Rapid feed for Axis middle tool post

935 mm/min

Thread cutting for Metric pitch threads(range/no.)

1~120 mm/45

Thread cutting for Whit-worth pitch threads(range/no.)

30~1/4 TPI/42

Thread cutting for Module threads(range/no.)

0.5~60 mm/64

Thread cutting for D.P. threads(range/no.)

1/2~60DP/48

Vertical distance from spindle center to installing basis

51 mm

Size of tool shank

50×50 mm

Max. travel of cross slide

840mm

900mm

Swing angle of tool post

±90°

Max. travel of middle tool post

400 mm

Max. travel of top slide

200 mm

Tailstock taper of bore

Metric 80

Tailstock sleeve travel

300 mm

Tailstock sleeve dia.

Ø160 mm

Power of main motor

22 KW

Rapid feed motor power

1.5 KW

Power of cooling pump

0.25 KW

3m Overall dimensions(L×W×H)

6100×2080×2130mm

6100×2130×2300mm

Net weight(3m)

14100Kg

15100Kg

Note : The items with "*" are only for 62 series.
For each additional machine length of 1m, there will be additional net weight of 1300kg

PRODUCT FEATURES:
The surface of the bedways is supersonic frequency handened.
The spindle system is high in rigitidy and accuracy.
Rapid feed structure is available on Apron.
Clutch in headstock makes the lathe start smoothly and brake quickly.
Standard accessories:
Ø 1250 4jaw chuck
M.T.No 6
Wrenches
Morse reduction Metric 80/M.T.NO.6
Morse reduction Metric 140/M.T.NO.6
Operation manual
Extra accessories
Ø 1400 4jaw chuck
Follow rest
Steady rest

Prod Model: CW62140/3000
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Bed Width: 970mm
Spindle Bore: 130mm
Max Swing Over Bed: 1400mm
Turning Length: 3000mm
Color: Any Color
Max. Weight Of Work Piece: 6000kg
Type: Horizontal Lathe
Processing Accessory: Chuck CNC Lathe
Tool Holder: Single-tool Holder CNC Lathe
Power Source: Electric
Controlling Mode: Artificial
Automatic Grade: Manual
Setting Mode: Floor-type
Precision: Normal Precision
Zhejiang Kaida Machine Tool Co., Ltd

Zhejiang Kaida Machine Tool Co., Ltd is located in Zhuji City, China.And only 45 minutes away from Hangzhou Airport.

Our company was founded in 1952 and has a history of more than 60 years in manufacturing lathes, also with a total area of 32 hectares and 1000 staff.Through reformation in 1997, we have been changed from a state-owned enterprise to a joint-stock private enterprise.We got ISO9001 certificate in 1997, CE certificate in1999 and ISO14001 certificate in 2005.

We have a wide variety of products, which can meet different customers' needs:Horizontal machining center, vertical machining center, CNC slant bed lathe, CNC flat bed lathe, manual lathe.

We have a full set of equipment including forging, machining, heat-treating, sheet metal processing, assembling and painting.Specialized technicists in every field enable us to assist our customer in use, learning and programming.Efficient service earn us trust and loyalty from customer.

As an established company, professional competence and perfect service make us to exploit and develop a huge international marketing net.Our export experience started from European and America.We have exported to more than 100 countries.Our main markets are Europe, America, South America, India, Southeast Asia, South Africa.

We are fully confident to meet any challenges or opportunities that present to us.
