H430 Crawler DTH Drill Rig / Blast hole Drilling Rig /Pneumatic Crawler Drilling Machine
Crawler type hydraulic drilling rig is a hydraulic DTH drilling equipment with a self propelled feature, in addition to DTH hammer using air power, the rest of the power provided by the hydraulic station.
Mainly used for mining, quarrying, railway, transportation, water, building materials, military and other outdoor projects blast hole drilling in deep,high efficiency drilling operations. Also widely used in bolting, channel excavation, sewer engineering drilling operations.
Feature:
1.Thruster propulsion fuel tank, with a high lifting force;
2.Use two large flow air filter, effectively protect the life of the diesel engine;
3.Adopt international advanced hydraulic components, hydraulic system more reliable and efficient;,
4.Guide the use of the slider sliding, making rail more resistant;
5.Dual motor reducer rotating mechanism, ensuring high reliability and greater torque.
Specification of H430 Crawler DTH Drill Rig / Blast hole Drilling Rig /Pneumatic Crawler Drilling Machine
| Whole machine model | H430 |
| Whole machine | To adapt to the rock hardness | 6~20 |
| Diameter of bore(mm) | 90~165 |
| Economic drill deepth(m) | 30 |
| Stand-alone gradeability(.) | 30 |
| Propulsion mode | Oil cylinder |
| Feeding stroke(m) | 3120 |
| Maximum lift capacity(kN) | 35 |
| Rotary torque(N.m) | 4500 |
| Rotary speed(r/min) | 0~120 |
| Work pressure(KPa) | 1~2.4 |
| Air consumption(m3/min) | 14~35 |
| Main Power(kw) | 66 |
| Drill arm horizontal pendulum Angle(.) | left45./right45. |
| Walking speed(km/h) | 2.5 |
| Ground clearance(mm) | 400 |
| Dimensions(mm) | 6100*2250*2500 |
| Weight(kg) | 6000 |

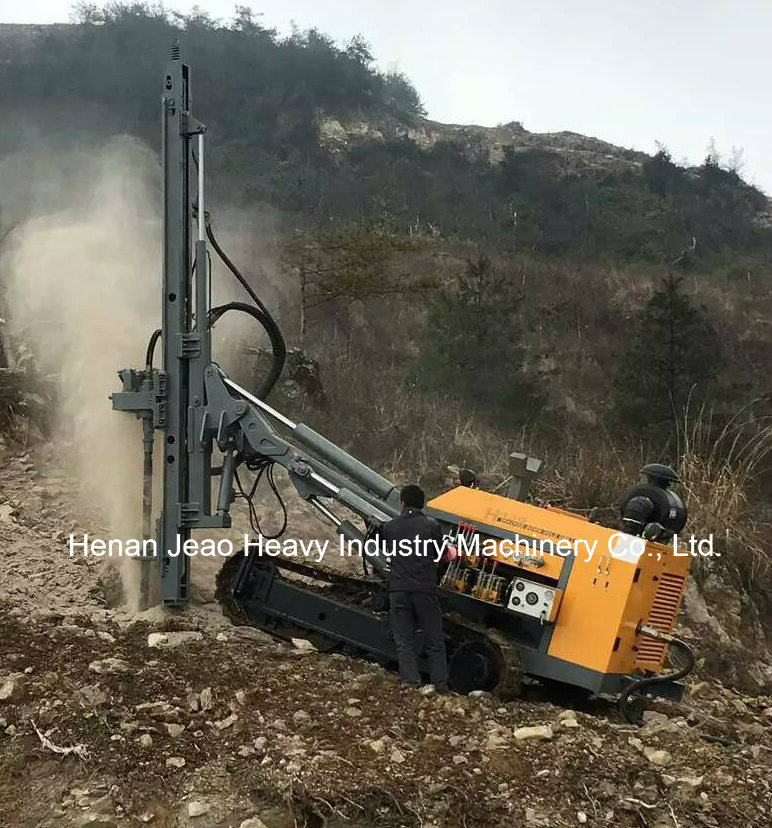

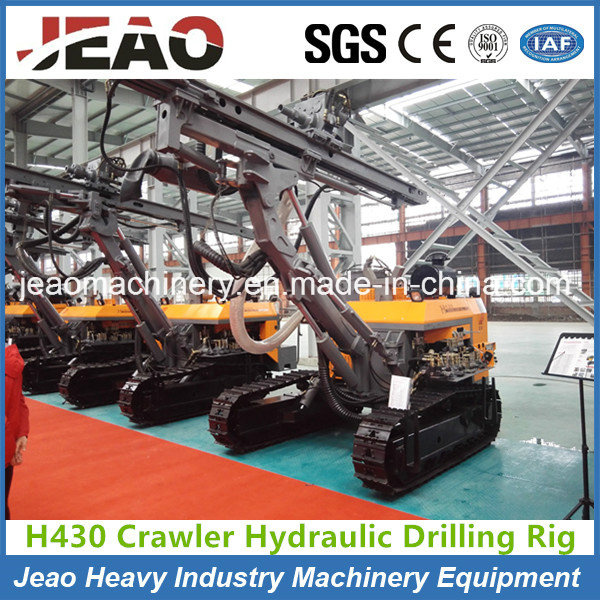

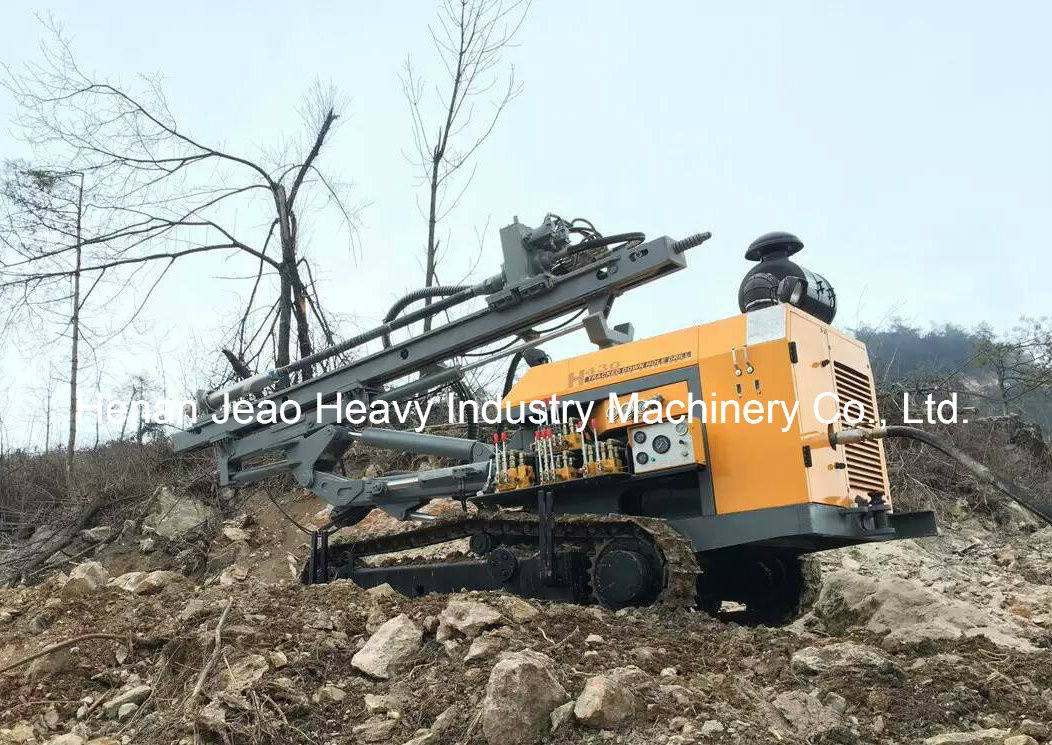

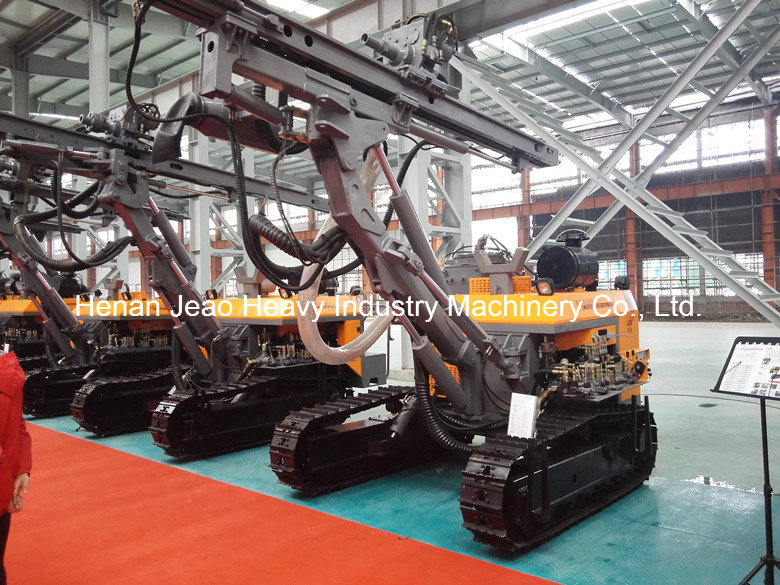

Picture:
