H Type Coupling Equivalent to Flender N-Eupex B Type

Name: H Type Coupling Equivalent to Flender N-Eupex B Type
Brand: tool-buy.com
SKU: 814257185
Availability: InStock
Rating: 4.7 (116 reviews)

Price:	US $ 600-660/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Cangzhou Tanso Coupling Co., Ltd.

Showroom Product Company Profile

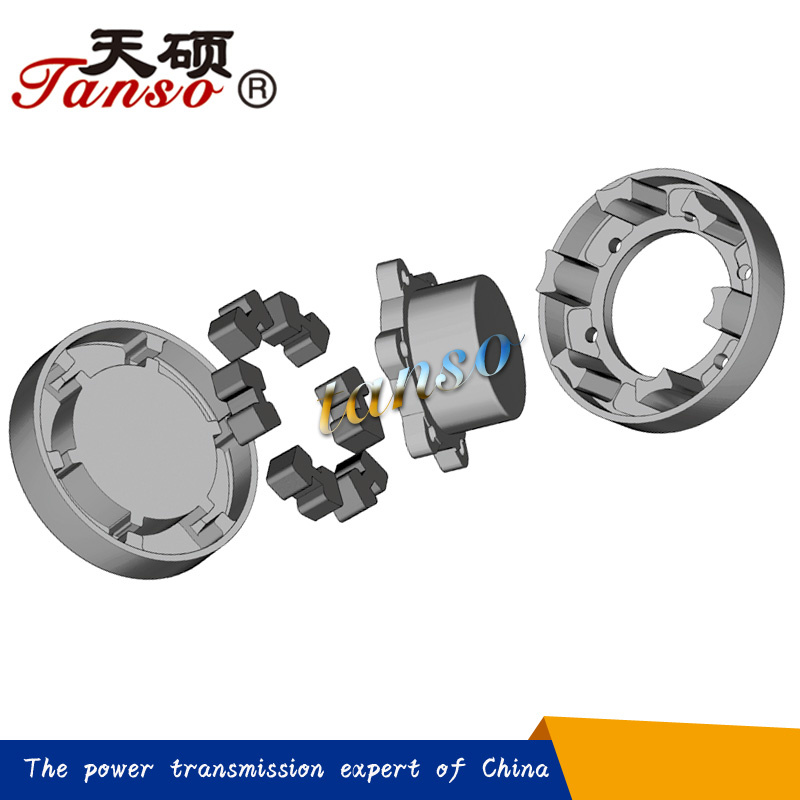

The metal parts of the H type coupling are made of high quality cast iron GG-25, and its elastomer is made of synthetic rubber, which has a stable transmission of torque and a small embrittlement effect. The H type coupling is widely used in mechanical equipment, such as pump drive system and drive system.

Features of H type jaw coupling:

1.Simple structure, compact dimensions,east to manufacture, low cost, convenient mounting and dismounting

2.Rubber elastomer, high elasticity,long service life

3.Absorb parallel,axial and angular misalignments

Type	Nominal torque	Max speed		Bore diameter	Bore length		B	D	D1	D2	S	P	Mass
	Tn/	[n]/r·min-1		d1,d2	Y	J1							m/kg
	N·m	Iron	Steel		L	L1
HTLB1	160	5000	5000	28	62	44	49	110	80	62	2	33	6
				30,32,35,38	82	60
				40,42,45*	112	84
HTLB2	250	4500		32,35,38	82	60	56	125	92	75		38	9.2
				40,42,45,48*,50	112	84
HTLB3	355	4000	5000	38	82	60	62	140	100	80		43	11.2
				40,42,45,48 50,55,56	112	84
HTLB4	560	3500	4700	42,45,48 50,55,56			69	160	110	95		47	17.8
				60,63,65	142	107
HTLB5	900	3100	4200	50,55,56	112	84	74	180	125	108		50	25.4
				60,63,65,70,71,75	142	107
HTLB6	1400	2800	3800	60,63,65 70,71,75			81	200	140	122		53	31.3
				80,85	172	132
HTLB7	2000	2500	3300	65,70,71,75	142	107	92	225	150	138		61	43.4
				80,85,90*	172	132
HTLB8	2800	2200	3000	71,75	142	107	105	250	165	155	3	69	58.5
				80,85,90,95	172	132
				100*	212	167
HTLB9	4000	2000	2700	80,85,90,95	172	132	110	280	180	172		73	81
				100,110*	212	167
HTLB10	5600	1800	2400	90,95	172	132	120	315	200	200		78	98.9
				100,110,120,125	212	167
HTLB11	7100	1600	2100	100,110,120,125			128	350	230	230		83	152
				130,140	252	202
HTLB12	10000	1400	1900	110,120,125	212	167	137	400	250	250		88	182.8
				130,140,150	252	202
HTLB13	12500	1300	1700	120,125	212	167	155	440	265	265	5	99	204
				130,140,150	252	202
				160	302	242
HTLB14	16000	1200	1500	130,140,150	252	202	160	480	300	300		104	277.6
				160,170	302	242
HTLB15	20000	1100	1400	140,150	252	202	175	520	315	315		115	348.3
				160,170,180	302	242
HTLB16	28000	1000	1300	160,170,180			201	560	320	320	6	125	496.9
				190,200	352	282
HTLB17	35500	900	1200	170,180	302	242	215	610	352	352		135	582
				190,200,220	352	282
HTLB18	45000	860	1100	180	302	242	234	660	384	384		145	706.2
				190,200,220	352	280
				240	410	330
HTLB19	63000	800	1000	200,220	352	280	246	710	416	416		155	917.2
				240,250	410	330

Prod Model:	HTLB12
Surface Treatment:	Blankening
Certification:	ISO9001:2008

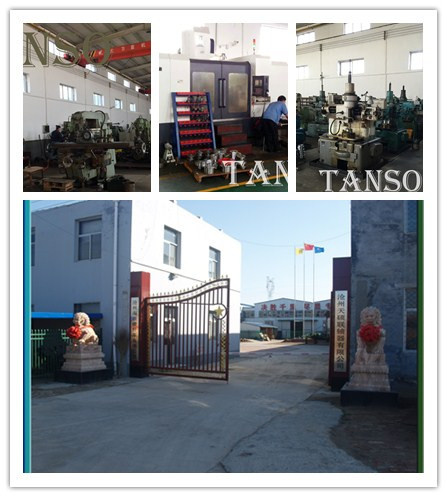

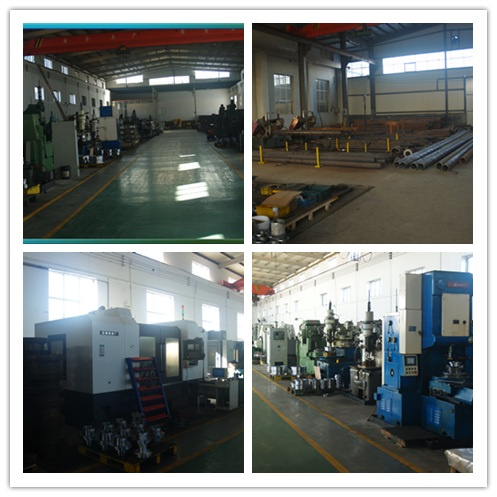

Cangzhou Tanso Couplings Co., Ltd. (the former Botou Tianshuo Couplings Factory) specializes in the research and production of expansion coupling sleeve, mechanical drives and mechanical seals. Thanks to our years of experience in research and development of couplings, and favorable conditions and dominant advantages in research and development of high-precision products and mass production, the company can meet customers' demands. The company has passed the certification of ISO9001-2000 Quality Management System, and realized CAD computer aided design and information management, integrating research, development and manufacturing. The company boasts its rich manufacturing experience, strong technical force, complete testing meanings, complete range of specifications and stable and reliable quality. Since its establishment, the company has sold its products throughout China, winning wide appreciation from customers. Based on credit principle, the company has established long-term cooperative relationships with a number of customers. At present, the company, by further strengthening staff training, improving technology level and injecting high-tech contents into products, strives to offer products of top quality and preferential prices.

Our main products include rubber tire couplings, roller chain couplings, safety couplings, diaphragm couplings, drum gear couplings, star-shaped flexible coupling, rubber-cushioned sleeve pin coupling, oldham coupling, plum-shaped flexible coupling, roller chain couplings, flexible pin coupling, flexible pin gear coupling, and so on. In order to meet customers' demands, we, with rich experience, also undertake the plotting and manufacturing of other types of couplings. Under the tenet of "Develop by Technology, Survive by Quality, Benefit by Customers", the company makes all efforts to provide customers with quality products and satisfactory service through advanced production management and strict quality requirements".
