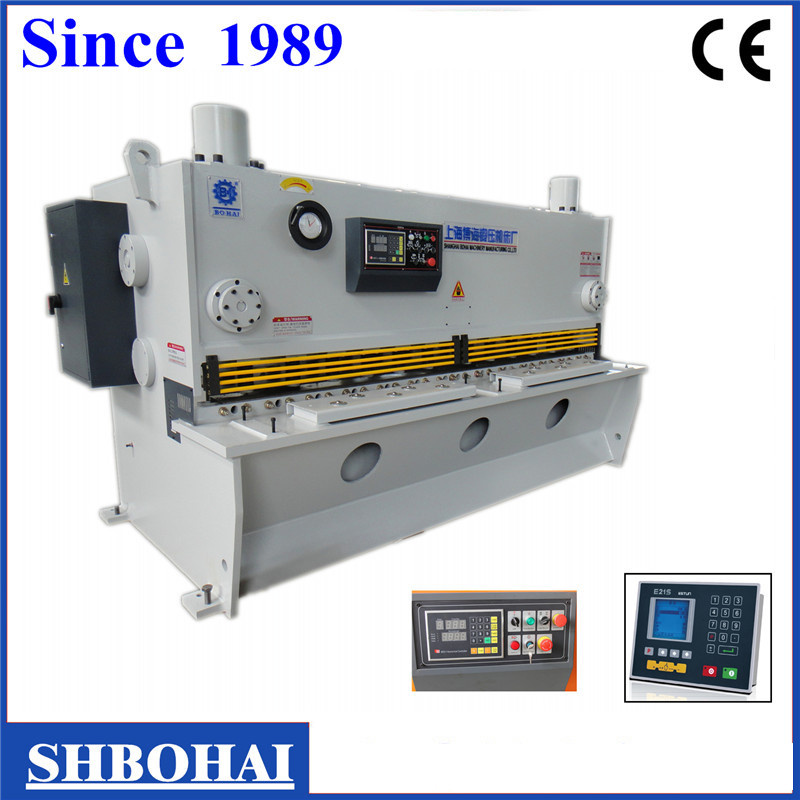

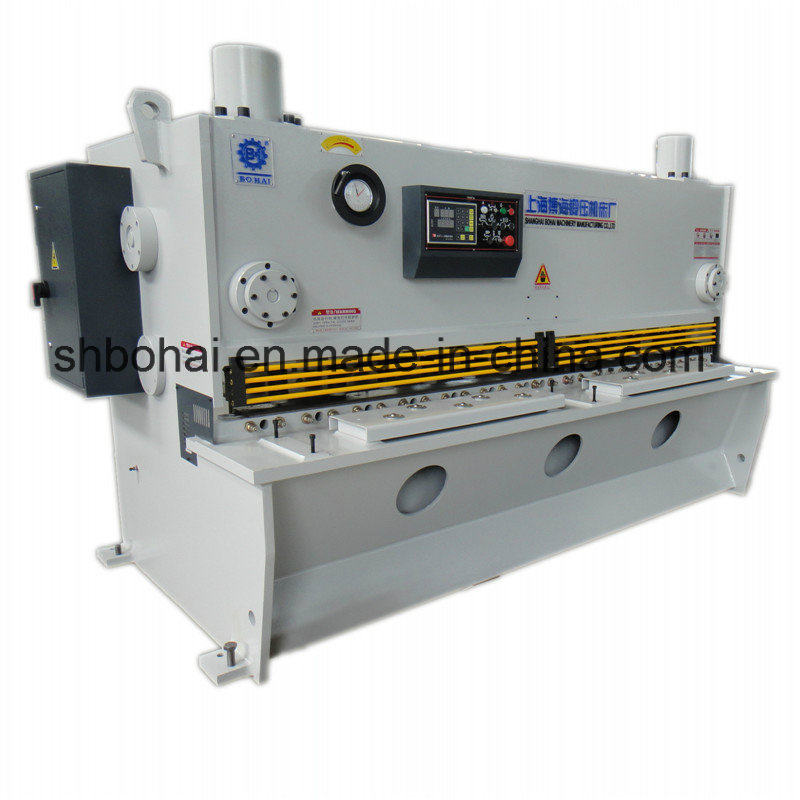

Hydraulic Guillotine Shear
Characteristics:
1. Totally European design, streamlined looking, Frame: consists of right and left wall boards, working table, oil tank, slot steel and etc.
2. The stress of the welded parts can be eliminated by vibration.
3. The machine enjoys high accuracy and high strength and can be transported easily.
4. As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed.
5. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.
6. The machine by the European Union CE certification and ISO quality system certification
7. Adopt integrated hydraulic control system, more reliable and easy for maintenance.

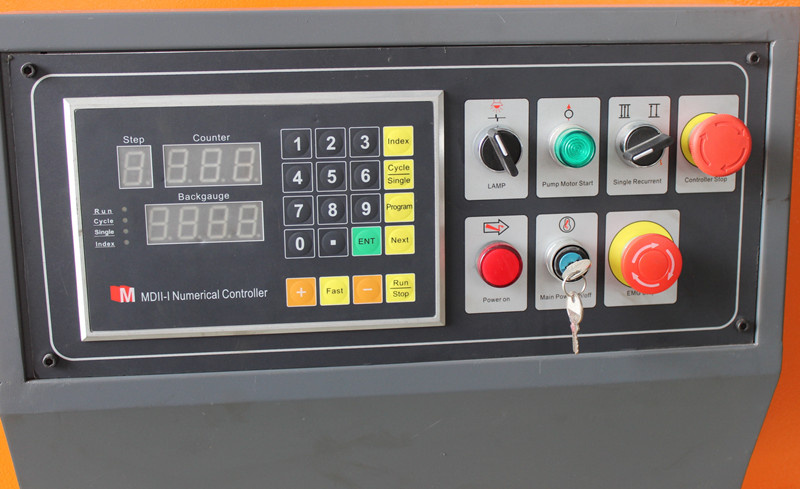

8. The cutting times of this machining tool is displayed and counted by MD11-1 NC
9. Adopt handwheel to rapidly and accurately adjust the blade clearance, Shearing in sections, shadow-line cutting.
10. Shearing angle is variable, which can reduce the shearing deformation of sheet metal and can shear much thicker sheet metal.
Components:
All components also can supply according to client's requirement.
X-Axis Backague Control MD11-1 or E10(Standard):
l Programmable 10 jobs.
l Stroke counter function.
l Retract function.
l Power off Memorization
l X-axis Software Limitation
l Inch/MM.

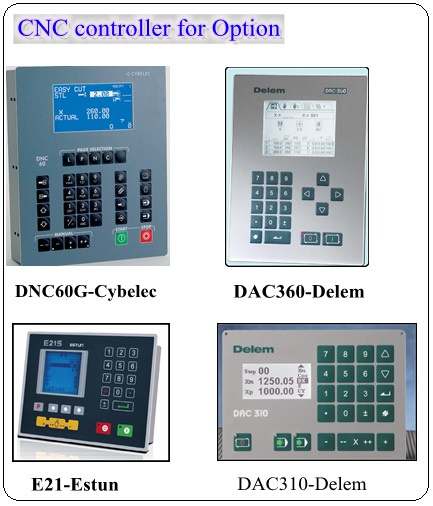

DAC360 CNC Controller - DELEM, NETHERLANDS(Option)
- X Axis Backgauge Accuracy ±0.1mm
Servo Motor Drive
Complete with:
- HIWIN Ball Screw
- HIWIN Linear Way
The DAC-360 control provides a complete solution for shearing machines. It includes the control of backgauge, cutting angle, stroke length and gap, based on state of the art electronics.
DAC-360 Featuring:
1) Bright LCD screen
2) Backgauge control
3) Retract function
4) Cutting angle control
5) Cutting gap control
6) Stroke length limitation
7) Force control
8) Manual movement of axes
Technical Data:
| QC11Y Guillotine Shear Technical Data | |||||||
| Model | cutting thickness (450N/mm2) | Cutting Length | Cutting angle | No. of stroke per Minute | Motor power | Backgauge stroke | Dimension (L×W×H) |
| QC11Y | mm | mm | ° | Min-1 | (kw) | mm | mm |
| 6 X 2500 | 6 | 2500 | 0.5~1.5 | 20~45 | 7.5 | 750 | 3000 x 2075 x 1920 |
| 6 X 3200 | 6 | 3200 | 0.5~1.6 | 16~45 | 7.5 | 750 | 3630 x 2075 x 1970 |
| 6 x 4000 | 6 | 4000 | 0.5~1.7 | 14~45 | 7.5 | 750 | 4430 x 2075 x 2000 |
| 6 x 5000 | 6 | 5000 | 0.5~1.8 | 11~40 | 7.5 | 750 | 5430 x 2075 x 2520 |
| 6 x 6000 | 6 | 6000 | 0.5~1.9 | 9~36 | 7.5 | 750 | 6530 x 2075 x 2210 |
| 8 x 2500 | 8 | 2500 | 0.5~1.10 | 20~45 | 7.5 | 750 | 3040 x 2075 x 2600 |
| 8 x 3200 | 8 | 3200 | 0.5~1.11 | 16~45 | 7.5 | 750 | 3740 x 20756 x 1920 |
| 12 x 2500 | 12 | 2500 | 0.5-2 | 12-35 | 15 | 1000 | 3110 x 2575 x 2210 |
| 12 x 3200 | 12 | 3200 | 0.5-2 | 7-35 | 15 | 1000 | 3810 x 2575 x 2420 |
| 12 x 4000 | 12 | 4000 | 0.5-2 | 8-35 | 15 | 1000 | 4610 x 2575 x 2530 |
| 16 x 2500 | 16 | 2500 | 0.5-2.5 | 16-40 | 22 | 1000 | 3130 x 2655 x 2200 |
| 16 x 4000 | 16 | 4000 | 0.5-2.5 | 12-40 | 30 | 1000 | 4630 x 2655 x 2570 |
| 20 x 2500 | 20 | 2500 | 0.5-2.5 | 16-40 | 30 | 1000 | 3160 x 2855 x 2300 |
| 20 x 4000 | 20 | 4000 | 0.5-2.5 | 12-40 | 30 | 1000 | 4660 x 2855 x 2720 |
| 25 x 3200 | 25 | 3200 | 0.5-3.5 | 8~20 | 37 | 1000 | 3810 x 2900 x 3300 |
| Note: all above mentioned data are subject to change without notification | |||||||
| Prod Model: | QC11Y 6x2500 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: | Customized |
| Cutting Angle: | Variable 0.5-1.5 Degree |
| Application: | Machinery & Hardware |
| Type For Cutting Machine: | Hydraulic Cutting Machine |
| Type For Fold-bending Machine: | Hydraulic Fold-bend Machine |
| Type: | Shearing Machine |
