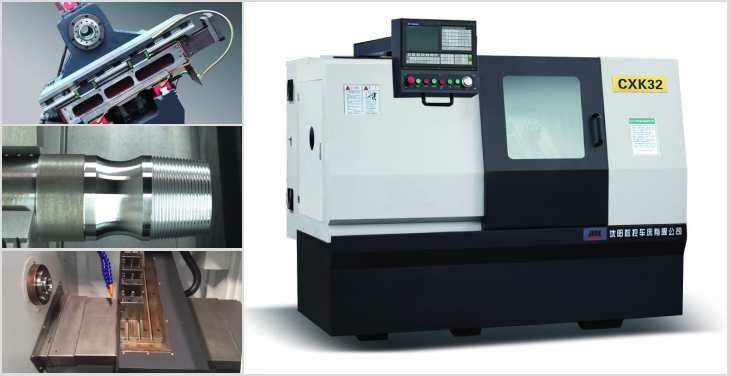

CXK32 HTC32 JDSK CNC Lathe Slant bed CNC Turning Center
Please see the machine video in Youtube address,
https://youtu.be/Z5pYK1ZaaGQ
http://v.youku.com/v_show/id_XMTI3NDY4ODYwNA==.html
Main Features:
1. HTC series slant bed CNC lathe adopt GSK, Fanuc system to achieve machine two axis' control. It is a type of small precision CNC lathe with high accuracy level, high rigidity and cost-performance.
2. This machine use 30 degree one-piece casting structure, with easy chip removal and operation. High precision through hole type spindle structure, P4 level spindle specified bearing, stable running and stepless speed change, high performance converter, frequency motor can realize constant line speed cutting. Machine full protection design can effectively prevent oil and water leakage.
3. It can finish internal and external cylinder, cone surface, metric and inch threading and meet different processing needs, suitable for processing dishes and short shaft parts with high precision.

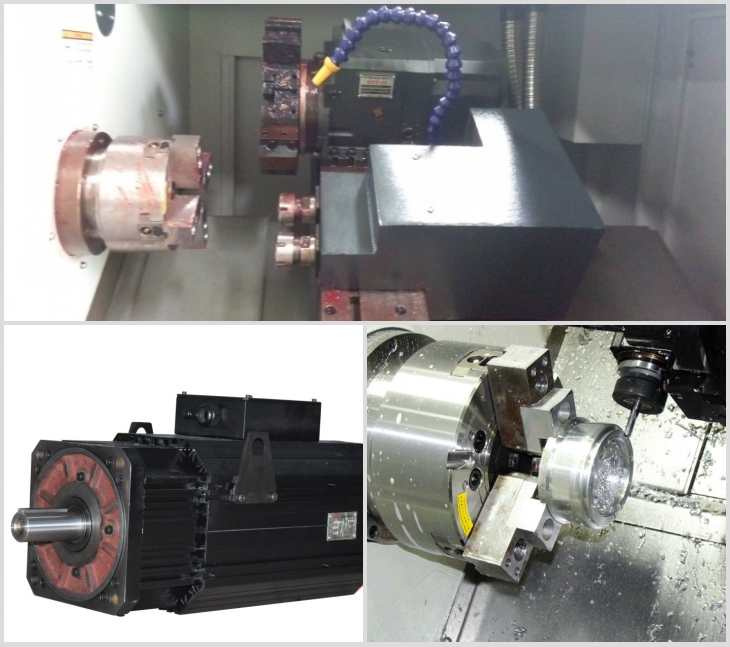

Standard Configuration:
1. Frequency converter: INOVANCE
2. Type of guideway: Taiwan HIWIN Linear guideway
3. Ball screw:Taiwan HIWIN Optional
4. Turret: 8 Station Electric Turret Optional
5. Spindle type: Sleeve Spindle,
6. Spindle motor: 5.5KW MK Servo motor
7. Chuck:Taiwan 6 inch Hollow hydraulic chuck,
8. Tailstock: Hydraulic Tailstock
9. Control system:GSK, KND, Simens, Fanuc
10. Electric parts:Schneider Electric
Optional Configuration:
1.NSK or C&U bearing
2.Hiwin Ballscrew
3.8 station electric turret
4. Servo spindle
5.Auto feeder, chip conveyor
6. Hydraulic power chuck
7. Live tools
Main Specifications:
| Item | Unit | HTC32/CXK32 |
| Max. swing dia. over bed | mm | Φ400mm |
| Max. swing dia. over carriage | mm | Φ180mm |
| Max. machining diameter | mm | Φ320mm |
| Type of Spindle nose | A2-5 | |
| Spindle speed | r/min | 50-3000r/min |
| Spindle bore dia. | mm | Φ47 |
| Distance between spindle center to ground | mm | 1020mm |
| Main motor power | kw | 5.5kw |

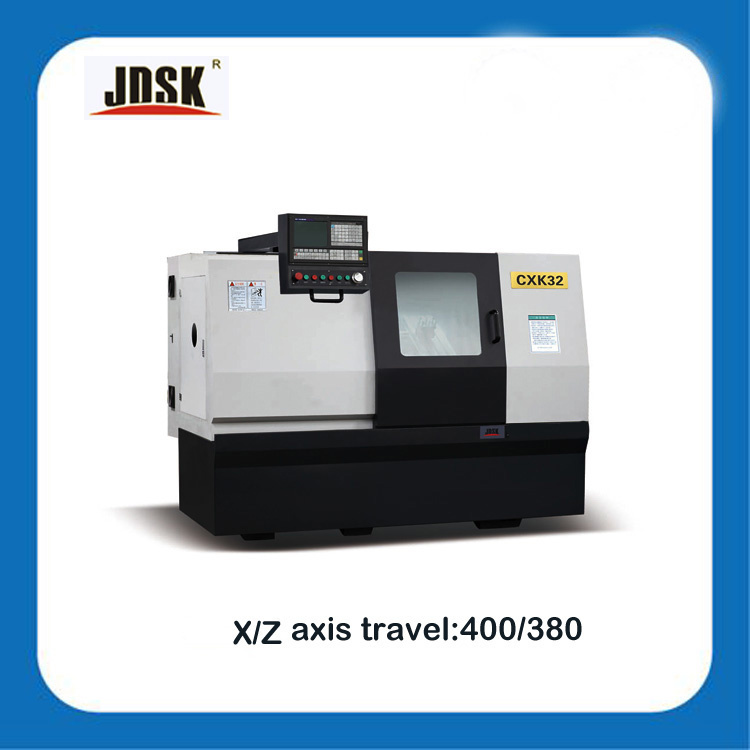

| Max. travel | mm | X axis: 400mm |
| Z axis: 380mm | ||
| Max. rapid movement speed | mm/min | X: 12000 |
| mm/min | Z: 20000 | |
| Guideway type | Linear guideway | |
| Turret type | Gang type tool post | |
| Net Weight | 1900kg |

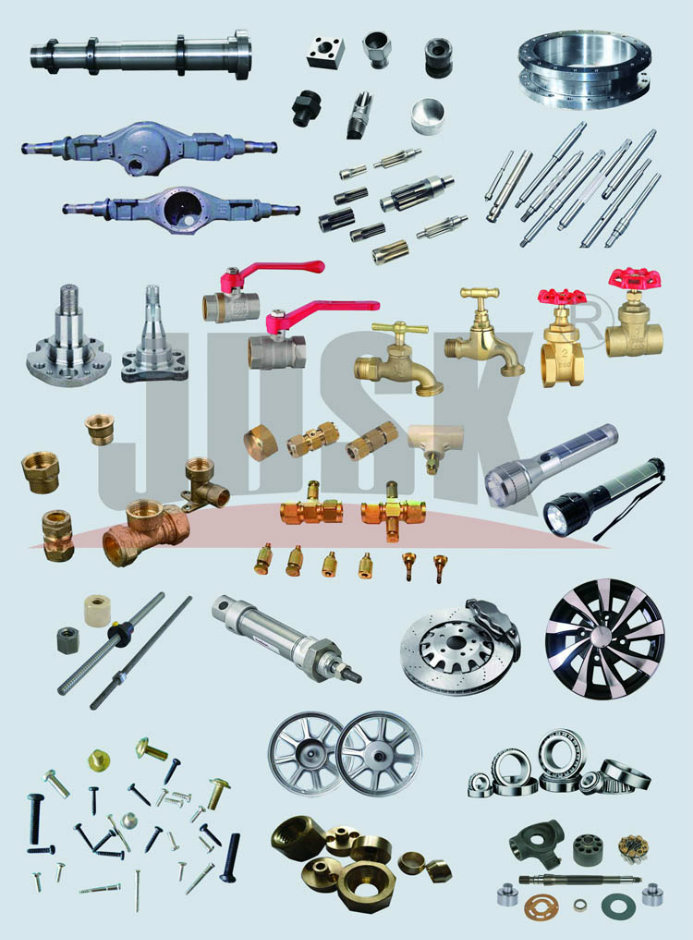

Applicable Machining Samples
ABOUT JDSK
Zhejiang Jingdan Numerical Control Equipment Co., Ltd, short for JDSK, is specialized in producing CNC lathe, CNC Vertical lathe, Slant Bed, high speed and precision CNC lathe, CNC Turning Center, as well as specialized cnc lathe machine, VMC etc. With factory area of more than 98000 square meters and more than 260 employees, including 35 high educated technicians and 8 senior engineers. JDSK has an excellent production team. 30% of products are exported to oversea market. We are one of the largest machine tools manufactures in Zhejiang, China.
Our Sales Service:
1.24 hours on Internet and Telephone, free instruction and problem solving.
2. Free training how to use.
3. User-friendly English manual or operating video for machine using and maintaining.
4. on-the-spot training and installation can be met if required.
5. We always deliver machinery on time so that our customers does not need to waste extra time to wait. We also respond our customer at the first time in order to satisfy customers' requirement.
Contact
Erik Lin:
Tel: +86 13758658538
| Prod Model: | CXK32/HTC32 |
|---|---|
| Machine Type: | Slant Bed CNC Lathe |
| Max Swing Diameter: | 400mm |
| Guideway: | Hiwin Linear Guideway |
| Spindle Bore Diameter: | 47mm, A2-6 |
| Main Motor: | 5.5kw Servo Spindle Motor |
| Turret: | 8 Station Electric Turret Optional |
| Chuck: | 6 Inch Hydraulic Chuck |
| Spindle Speed: | 3000rpm |
| Net Weight: | 1900kg |
| System: | Fanuc, GSK, Knd, Simens |
| Type: | Horizontal Lathe |
| Processing Accessory: | Chuck CNC Lathe |
| Tool Holder: | Single-tool Holder CNC Lathe |
| Power Source: | Mechanical Drive |
| Controlling Mode: | CNC |
| Automatic Grade: | Automatic |
| Setting Mode: | Floor-type |
| Precision: | High Precision |
| Certification: | TUV BV |
