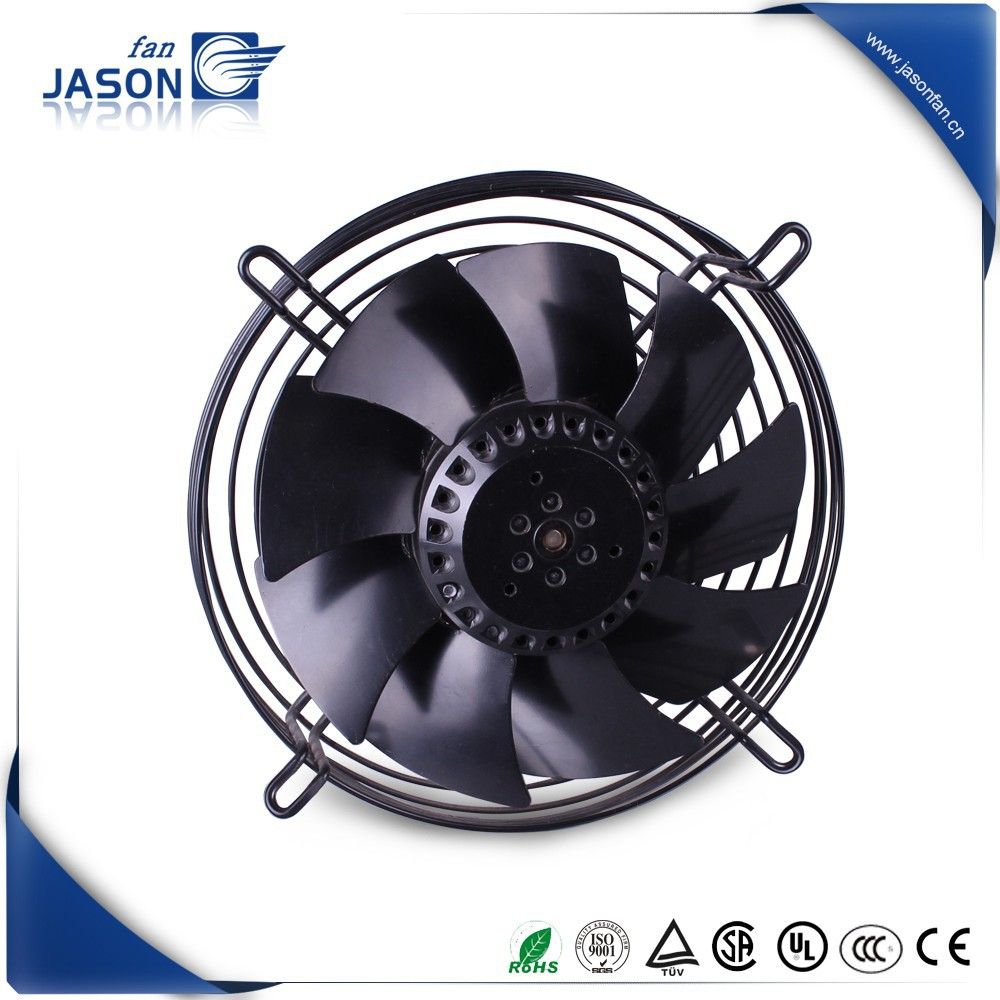

Gree Air Conditioner Welding Machine Cooling Fan Diameter 200mm

Gree Air Conditioner Welding Machine Cooling Fan Diameter 200mm
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T

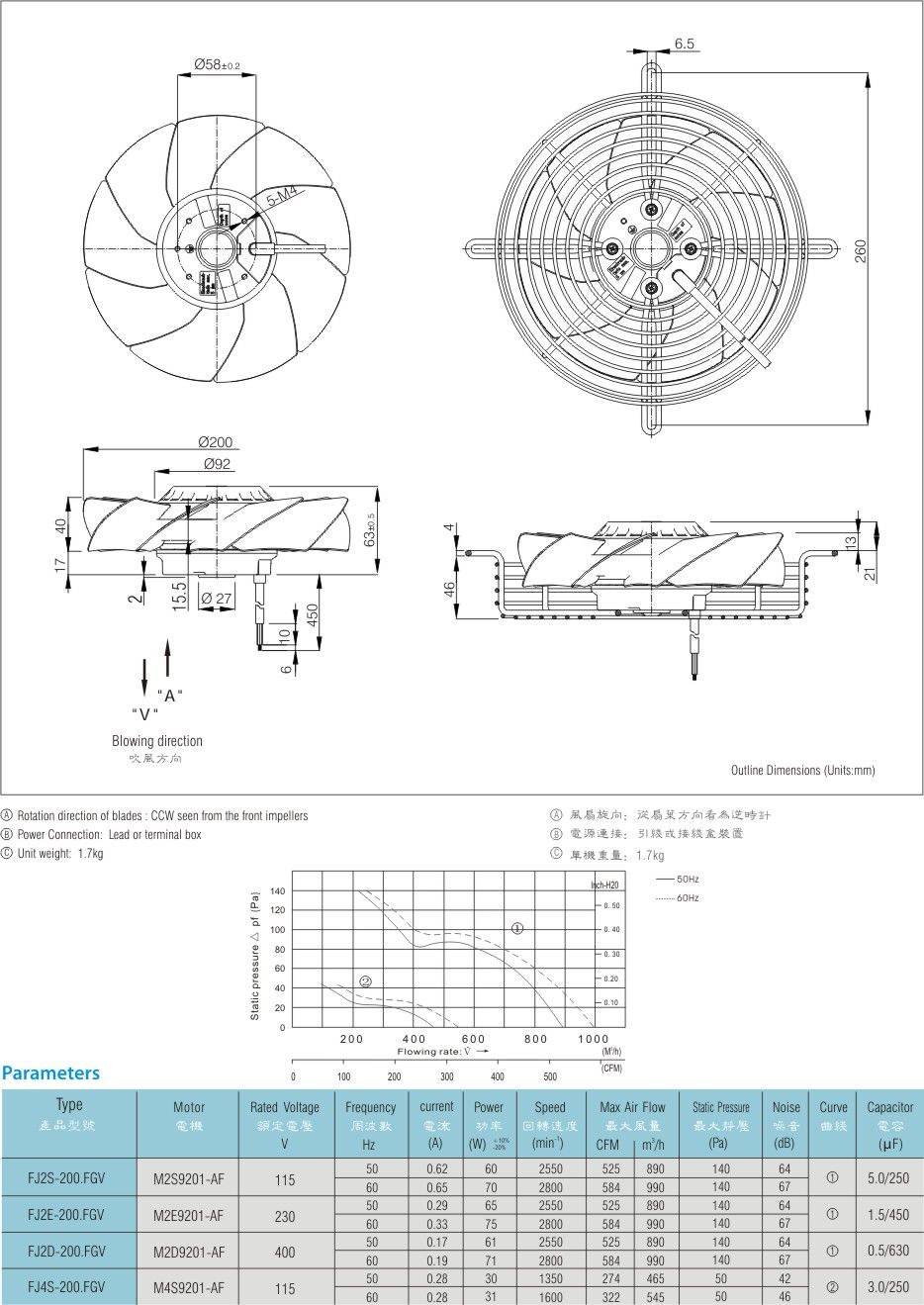

gree air conditioner welding machine cooling fan Diameter 200mm (C2E-200. FGV)
Motor
Cage type capacitor start external rotor motor
Impeller
Pressed from metal armor plate, impellers are welded to
motor rotor and its surface is black and anti-corrosion
Fixed Guard
Steel wire is finished with black paint and anti-corrosion treatment
Allowable environment temperature and
humidity range:(under unconcretionary condition)
-40ºC ~ +80ºC (temperature) 0% ~ 95% (humidity)
Protection
Automatic recovery thermal protection
Withstand Voltage
AC 1,800V , 1 min at 0.5mA, 50/60 Hz
Insulation Grade
Design according to IEC61858 Grade F,
Protection Grade
IP54

Quick Details:

TypeSickle Impeller Fan
Fix guradSteel
ImpellerMetal armor plate
Motor StructureCage tyoe capacitor start external rotor motor
ProtectionAutomatic recovery thermal protector
Temperature & Humidity-40ºC ~ +80ºC, 0% ~ 95%
Withstand VoltageAC 1800V at 0.5mA 50/60Hz
Power connectionLead or Terminal connection
Protection GradeIP55
Insulation SystermF
Model NumberC2E-200.FGV
Voltage230VAC
Power:50/60Hz
Air Volume525-584CFM
Speed2550-2800RPM,Singel speed
CertificationCE, ROHS , CSA
Unit weight1.7KG
ColorBlack and anti-corrosion


Packaging & Delivery:
Packaging Details: 1 PCS/CTN
Weight: 2.3KGS/CTN

Size: 25*25*20 cm
Delivery Detail (sample): Shipped in 3-8 days after payment


FAQ
 Q: Are you a factory or trading company?
A: We are a factory.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Yueqing City,Zhejiang Province, China, about 30 mins from Wenzhou Airport .Warmly welcome to visit us!
Q: What products do you make?
A: We have been producing AC cooling axial fans , Centrifugal fans, Filter fans etc since established in 2006.
Q: What information do you need in order to get a quotation?
A:  Generally, we need the information like quantity, size, voltage , air flow to select a right or a similar fan for you and quote you.
Q: Can I have samples for testing before placing orders?
A:  Yes. We suggest that our customers have some samples of their required fans for quality testing first.
Q: Can I have a discount for the quoted price?
A:  Yes. The price is quoted based on the quantity.
Q: How is your quality control systerm?
A : Each fan needs to go though strict inspection by QC before delivery, or inspected by 3rd party who customer appoints.
Q: Does the product have CE,UL etc approval?
A : Yes. All of our products have CE,RoHS approval, some have UL approval.
Q: Can you make the fan with our company's logo?
A : Yes.
Q: What is your payment term?
A : TT,LC.
Jason Fan was established in year 2006.  Being a professional AC fan enterprise of design and production, Jason Fan has developed three main series of fans,which covering AC axial fans, air filter fans and centrifugal fans. In 2013, we completed the development of a DC type fan which applied for welding industry. Meanwhile, we are
proceeding the development of EC axial fan.  Until now ,We have gotten approvals of CE, CCC, CSA, RoHS etc.. We can also apply for any relevant certificate if required by customers.

Luxury originates in details.We wish and devote urselves to accomplishing the luxurious dream for Jason Fan. From the beginning to end, we care about the thread of every screw and the best choice of every raw material. The continuous renew and adjustments of technology make us a perfect combination of machines and staff.
Skill achieves excellence. We set up a Professional laboratorysystem, including test equipments for air flow, noise and high-low temperature alternating cabinet (salt spray chamber included), etc. Our technician team members achieve their ideas of air movement solution through circuit analysis, test of reliablility and environment in this laboratory system. As response to the new rule of EU ERP regulations, we have accomplished the efficiency test of every model we have .
The rotation of every blade is the smile of Jason Fan,  the drive of every motor is the heartbeat of Jason Fan. Jason Fan, a young, enthusiastic and booming enterprise, obedience to design idea of Ecomagination, will always keep going on and on to contribute ourselves to the better future of human.  We hereby sincerely recruit for excellent distributors in Brazil, Russia, USA, Europe, Australia, etc. to exploit a new environmental protection world for cooling, ventilation and refrigeration field.







Prod Model: FJ2E-200. FG. V
Size: 200mm
Bearing: Ball Bearing
Warantee: One Year Guarantee Time
Product Type: Stable Performance Air Conditioner Radiating Fans
Usage: for Refrigerate, for Air Conditioner, for Manufa
Type: Air Cooling Fan
Power Supply: Electric
Power: 100W-300W
Application: Industrial
Timer: Without Timer
We are specialized in developing and producing axial fan, centrifugal fan and air filter in different sizes with high quality in the cooling and ventilation field. All of our products are reliable and they can work in harsh circumstance efficiently. They are featured in High airflow, Low noise and Endure life.

Jason Fan takes charge in offering the newest techniques information and high-qualified design of products to all corporations. We took the spirit of this city and named our company Jason Fan.

Since our company came into existence, it develops a worldwide market with an unbelievable speed. Now clients from Australia, South Africa, Spain, Italy and other countries all designate to use our products. At the same time, we have set up a selling web-system which covered almost all main cities in China such as Beijing, Shanghai, Chengdu and so on.

Jason Fan has already passed the ISO9001: 2000 national authentication. And its products have received CSA, RoHS, CE, CCC certificates in and out of China. As our company develops quickly and steadily, up to March 2006, we have owned three factories, covered almost 4, 000 square meters. At present, our monthly capability is more than 200, 000 units fans, 89% of which are produced by ourselves, including mold design, mold pouring, SMT disposal and all other assembling.

Devoting to the development of fan and insisting in high quality is the spirit and principle of our company. We will try our best to satisfy the most rigorous requires of the customers and to make Jason Fan a worldwide welcomed brand.
