Gq60 50mm Square Steel Bar Rebar Cutting Machine Rebar Cutter Forging Factory

Gq60 50mm Square Steel Bar Rebar Cutting Machine Rebar Cutter Forging Factory
Price: US $ 2600-3000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Money Gram

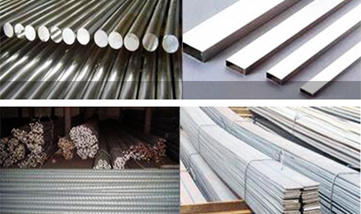

GQ60 Rebar Cutting Machine, is manufactured according to JG/T5085-1996 standard, is applicable to ordinary carbon steel, Hot-rolled steel and corrugated rebar in reinforced concrete. It can also cut flat steel, angle steel and square steel provided with special blades. GQ40/50/60 has the following features:

1. Compact structure, solid and reliable
2.  Good lubricating properties. Adopt closed structure, use Gear Splash lubrication, fill in 8-12kgs oil, the machine could work continuously for more than 3 month (oil level not lower than the  oil calibration, so that make sure the machine is in well lubrication condition)
3.  Low power consumption. The gear uses rolling bearing, low resistance, could save 1/3 power comparing with other rebar cutting machines

ItemGQ60 rebar cutting machine
cutting capacity

Steel Rod≤Φ60mm
II Rebar≤Φ50mm
Cutting frequency28times/min
Motor power5.5KW-3phase
Voltage380V
Weight880kg
Dimension(L×W×H)(mm)1810×560×1000
Motor optional

220V/415V/440V
50HZ/60HZ

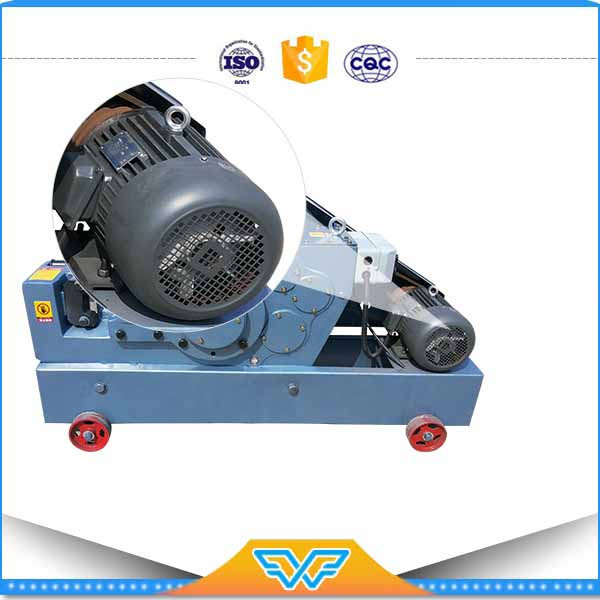

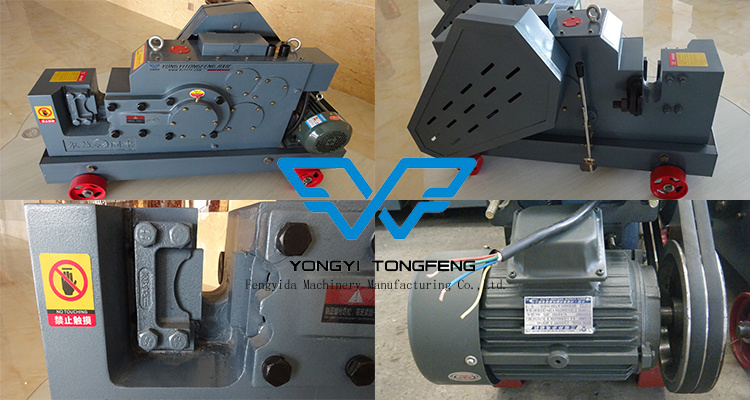

Machine Show

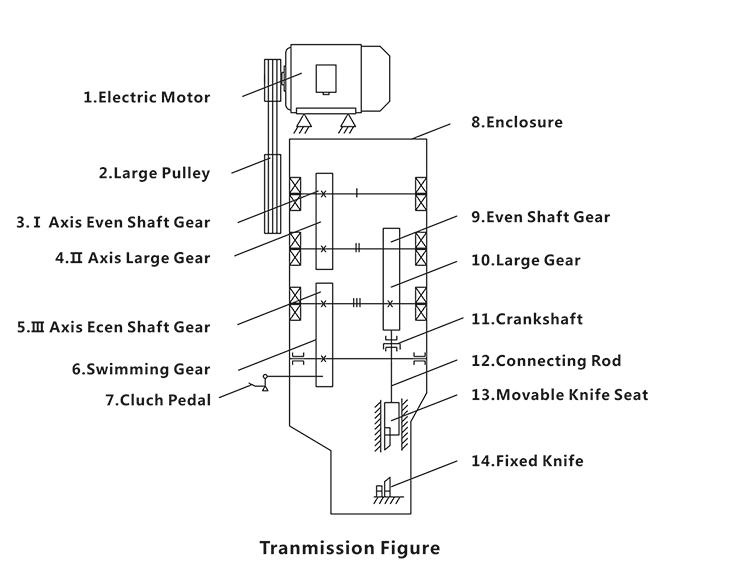

As the transmission figure shows: Motor 1 via V-belt drive the large pulley 2 to make it turn, the even shaft gear 3 mesh the gear 4, II axis even shaft gear 9 mesh the III axis gear 10, III axis even shaft gear 5 mesh the swimming gear 6, the torque transmitted to crankshaft drive the connecting rod 12 to push movable knife seat 13 to cut.

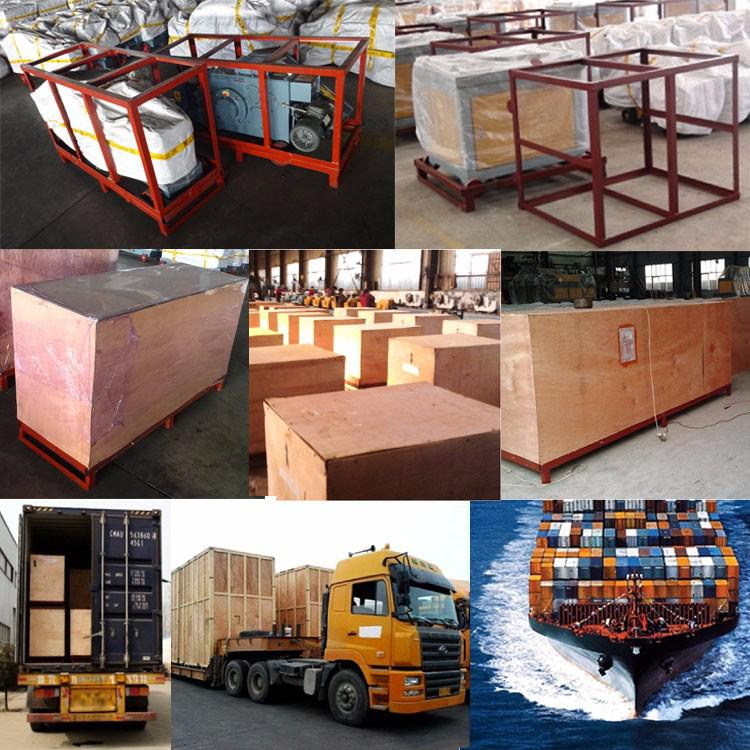

Product packaging and export
We adopt wooden and iron box to pack steel rod cutter machine, better guarantee the safety and quality of products, we adopt multiple port, multiple exit point.Such as Shanghai, Qingdao, guangdong and other regions.Product transportation will be faster and more convenient.

covered with plastic bag -- protect machine from water.
 plastic bag covered with strong waterproof bag -- double protect machine from
water and surface damage.
fix the machine into Iron shelf -- prevent from damage.
 carton cover onto the iron shelf -- protect the privacy of clients' goods.


Prod Model: GQ60
Name: Gq60 Rebar Cutting Machine
Color: Accept Customization
Rod Bar Capacity: 6-60mm
Rebar Capacity: 6-50mm
Cutting Machine Voltage: 380V
After-Service: 12 Months
Cutting Speed: 28times/Min
Motor Power: 3kw-3phase
Optional Motor: 50Hz/60Hz
Weight: 880kg
HENAN YONGYITONGFENG INTELLIGENT TECHNOLOGY Co., Ltd., founded in 2000, is a professional manufacturer in manufacturing small-sized construction machinery, which cover construction machinery, road machinery and and concrete equipment.

Our products mainly are:

Steel Bar Cutting Machine

Steel Bar Bending Machine

Steel Bar Straightening & Cutting Machine

Concrete Cutting Machine

Polishing Machine

Impact Rammer

Road Roller

Being located in Change City, Henan Province, China, We are enjoying convenient transportation. Our factory is neighboring to the railway, expressway and aviation airport. Besides, Changge is very famous as the largest production base for construction machines in North China. About 80% of construction machines in China are made here every year. Xuchang FengYiDa is one of the leading producers in this business line, owning professional technology and rich experience for over 10 years.

With nearly 130 agents' hard-working during the past 11 years, We won great reputation in domestic market. In last year, we established good relationship with customers in Australia, South Africa, Tanzania, and Southeast Asia., etc.

Welcome your inquiry!
