Gq40-4 Steel Bar Cutter for Construction Machinery

Gq40-4 Steel Bar Cutter for Construction Machinery
Price: US $ 666.7/Piece
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union,Paypal

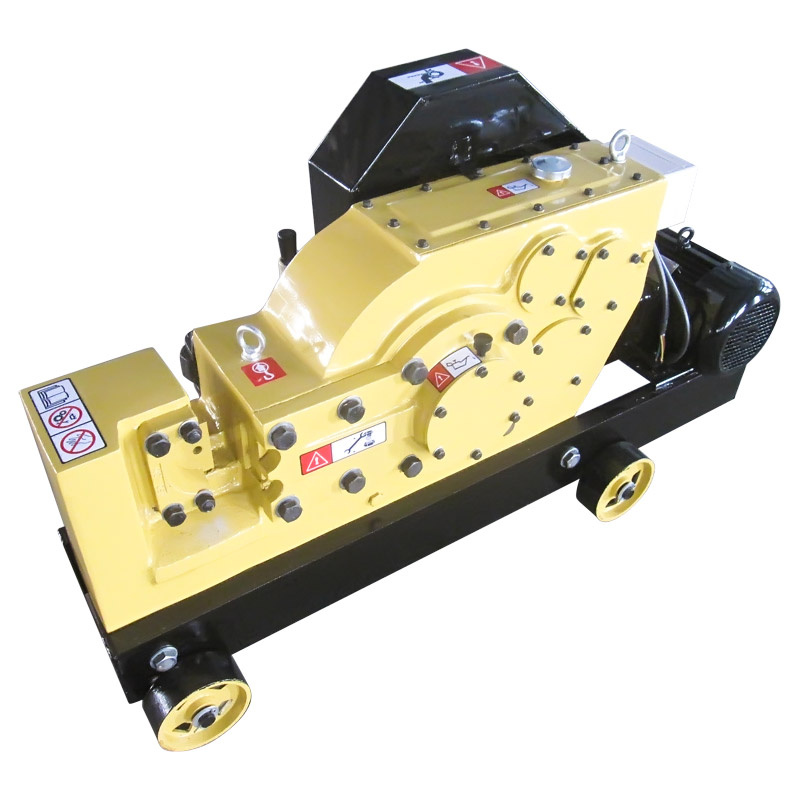

GQ40-4 Steel Bar Cutter For Construction Machinery

Product Use:

This machine is efficient for cutting off steel bar products on building construction ,such as ordinary carbon steel , cold and hot round steel , screw thread  steel ,flat steel,angle steel and square steel . ( need to make knife) it's made of  high steel knife seat  and connecting shaft ,high speed international standard motor  and firm reinforcing covering. This machine is small, solid, lubricant  better,little power loss,operation easy,high efficiency,convenient for moving .


COMPONENTS:
MOTOR TYPE (GQ50): Y112M-2 4kw
MOTOR TYPE (GQ40): Y100L-2 3kw
GEAR: Cast Steel
CRANKSHAFT: C45 steel
CONNECTION ROD:  C45 steel
*The machine parts listed above have half year warranty.
BLADE:  65Mn Steel
*All the main components undergone the required heat treatment (quenching, tempering or high frequency).

PRODUCT DESCRIPTION:
The thread type and ADJUSTABLE STOP GAUGE ensure the ACCURACY and STABILITY of cutting operations.
The separation of the connecting rod from the gear enable the machine to UNDERTAKE HEAVY-DUTY WORKS.
Adopted THIGH and RESISTENT BLADES in order to ensure high efficency with all standards of steel bars without need to change them.
The adoption of the LARGE GEAR improve the driving speed as well as the working life.
The high cutting speed with the SIMPLIFIED SYSTEM increased performances of 50% more than normal cutters.
Worry-saving: The main components last for 10 years, and the wear parts can last for 3 years, so it wil cost you almost nothing for maintenance.
Time-Saving: The international advanced structure ensures the fastest cutting speed.
Labor-saving: One machine to cut different sizes of steel bar without changing the blade

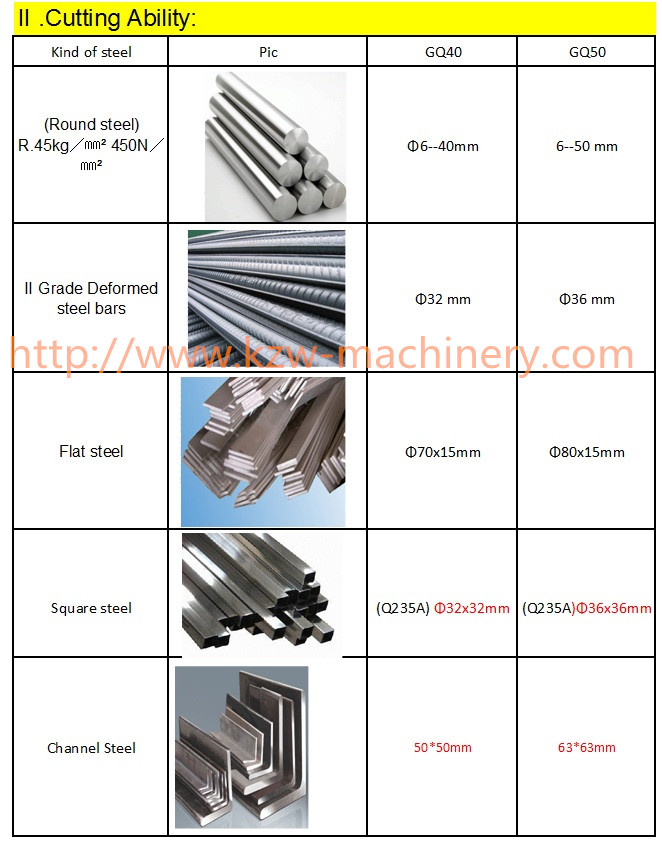

Technical Date:
Steel bar cutter / steel cutting machine
ModelGQ40 (with clutch)GQ50 (with clutch)GQ60  (with clutch)
Cutting rebar Dia (Plain Carbon Steel)6-40mm6-50mm6-60mm
IIgrade screw  thread  rebar Dia:6-32mm6-42mm6-50mm
Flat steel max. diameter:70×15mm80×18mm90x28mm
Cutting square steel max. spec(Q235A)32×32mm40×40mm50×50mm
Angle steel max. spec :50×50mm63x63mm73×73mm
Cutting quantity:32t/min28t/min28t/min
Motor spec: model:Y100L-2   3KWY112M-2  4KWY112M-2   5.5KW
Voltage / speed380V   2800rpm380V  2800rpm380V  2800rpm
Dimension:1190×450×680(mm)1280×480×720mm1380×580×820mm
Net weight:360kgs510kgs890kgs
Gross weight:415kgs535kgs920kgs
Packing size:1270×490×820mm1470×560×1010mm1570x700x1110mm


I. Recommendation for piece number of simultaneously cutting off steel bars with diameters smaller than φ22mm
Diameter of steel bar (mm)4~810~1314~1819~22More than 22
Cutting off piece number each time
GQ40
65321
Cutting off piece number each time GQ5085432




Prod Model: GQ40-4
Item: Steel Bar Cutter
Power (Kw): 3
Voltage (V): 380
Motor Speed (R/Min): 2880
Max Cut Of Flat Steel: 80*18mm
Max Cut Of Square Steel: 40*40mm
Max Cut Of Angle Steel: 63*63mm
Cutting Speed (T/Min): 32
Net Weight (Kg): 377
Packing Size (Cm): 125*50*86
In Kezhuwang Company history, there are ten major moments that are worth remembering. They have become turning points, or rather, milestones in the development course of the company.

1. On November 11th 1995, the predecessor of Kezhuwang Machinery Company, Zhenxing Construction Machinery Factory was founded in Ningbo City.

2. On December 1st of the same year, 500, 000 RMB was invested to build the new factory that put out concrete vibrators of various models which became one of national best-selling products.

3. In October 1997, the factory began to create and subsequently introduced the high frequency vibration motor and profile cutting machine for use with the concrete vibrator.

4. In March 2002, another 10 million RMB was invested to build an 8000m2 expansion of the existing factory, in order to accommodate increased production.

5. In November 2004, the factory extension construction was completed.

6. In March 2005, Kezhuwang Machinery Company was formally inaugurated. The newly established company provides a fundamental guarantee for long-term, stable development on the way to further company restructuring.

7. In October 2005, the company rolled out the plate compactor, power trowel, and other products totaling around a dozen varieties.

8. In March 2006, our products began to be sold to Russia, Ukraine, Kazakhstan, Poland, Sweden, England, America, Australia, Chile, Brazil, South Africa, Singapore, and Vietnam.

9. In 2008, the company earned import and export rights via registration. From then on, it began to export products.

10. In April 2013, it obtained two exhibition stands in the 13th Import and Export Fair.

11. In April2017, Expand a new import and export company “ Ningbo ACE Machinery Co., Ltd”
