Gk600 VFD AC Drives for Paper Cutting Machine

Gk600 VFD AC Drives for Paper Cutting Machine
Price: US $ 90-98/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal

Universal Low and Medium Voltage GK600 VFD

Brand: GTAKE
Certificate: CE, RoHS
VFDs ModelPower RatingInput VoltageOutput FREQType
GK600 series0.4kW-630kW208V~690V,±10%0.00-600.00HzDC/AC to AC inverters
­­­
Advantages of GK600 VFD drives
Thanks to sophisticated engineers, scientific producing workmanship, rigorous quality control systems and management team, GTAKE frequency inverters are equipped with advanced features, some of which are listed as below:

01 Starting torque: 180%,0.25Hz (sensor-less vector control 2), 150%,0.5Hz (sensor-less vector control 1);
02 Speed adjustable range: 0-50Hz: 1:200 (sensor-less vector control 2), 1:100 (V/Hz control, sensor-less
     vector control 1);
03 Speed accuracy: +/-0.2% (sensor-less vector control 1&2), +/-0.5% (V/Hz control);
04 Speed fluctuation: +/-0.3% (sensor-less vector control 1&2);
05 Torque response: less than 10ms (sensor-less vector control 1&2);
06 Over load capability: 150% 1minute, 180% 10 seconds, 200% 0.5 second, once every 10 minutes;
07 Output frequency: 0.00-600.00Hz, or customized like 1MHz;
08 Abundant frequency setting sources;
09 DC brake start frequency: any frequency in the range of 0Hz to 600.00Hz;
10 Diverse input and output terminals;
11 Ambient temperature: -10°C~50°C;
12 High precise torque limit, process PID control, simple PLC, wobble frequency control, mechanical
     brake control, field weakening control, all-side protection, etc.
13 Online and offline auto-tuning both available;
14 Extreme short-time acceleration can be operated without trip, such as 0.1s from 0Hz to 50Hz.


Features of GK600 VFD
Mains Supply (R/L1,S/L2,T/L3)
Supply voltage 208-240V ±10%
Supply voltage 380-480V ±10%
Supply voltage 525-690V ±10%
Power source frequency47-63 Hz
Displacement power factor (cos φ)(> 0.98)


Output Data (U, V, W)
Output voltage 0-100% of supply voltage
Output fequency 0.00-600.00 Hz or customized
Ramp time0.01-60000 S
Note: 150% current can be provided for 1 minute, 180% for 10 seconds.
           Higher overload rating is achieved by oversizing the drive.
Digital Input
Programmable digital inputs6 (7)
LogicNPN or PNP
Voltage level10 - 30V
Pulse input1 (X6/DI)

Analog Input
Analog inputs2 (3)
ModesVoltage or current
Voltage level0 to +10V, -10V to +10V
Current level0/4 to 20 mA (scaleable)
Automatic correctionYES

Digital Output
Programmable digital outputs2
Voltage level at digital output0 - 24 V
Programmable pulse outputs1
Pulse output max. output frequency50.0 kHz

Analog Output
Programmable analog outputs1 (2)
Voltage range / current range0 - 10 V / 0 - 20 mA

Relay Output
Programmable relay outputs1 (2)
RA - RB / TA - TBNormally close
RA - RC / TA - TCNormally open
Contact capacitance250 V AC / 3A, 30 V DC / 3 A

Terminal 485 Interface
485+Rate: 4800/9600/19200/38400/57600/115200 bps Max. distance: 500 m
485-
GNDIsolated from COM

Ambient
Vibration Less than 5.9 m/s² (0.6g)
Humidity Relative humidity 5% - 95 %. No condensation
Corrosive environment3C3
Ambient temperature0 - 45/50 ºC
Altitude0 - 2,000 m
Rated output current  derated 1% every 100 m above 1,000 m
Storage temperature-40 - +70 ºC
EfficiencyAt rated amps:
7.5kW and below: ≥93%
11 - 45 Kw: ≥95 %
55kW and above: ≥98 %
IP gradeIP20
Cooling methodForced air cooling

Fieldbus Communication
Modbus RTU, Modebus ASCIIBuilt-in
Profibus DP, CAN, CANopen, etc.Optional

Applications of GK600 VFD

GK600 VFD offers V/f control (including voltage and frequency separated control), sensor-less vector control 1 (robust vector control mode, static autotuning acceptable), and sensor-less vector control 2 (precise vector control mode, rotary autotuning required), adaptable to various industrial applications if no speed senor feedback is required, including conveyor, centrifugal, air compressor, central air-conditioning, lift & elevator, machine tools, printing machines, packaging machines, textile industry, oil industry, pharmaceuticals industry, pumps & fans, etc.


Why choose GTAKE VFD?

In the trend of advocating smart and simple industrial automation, environmentally friendly products, value-added solutions, Gtake, as one of the world's leading drive manufacturers aggressively investing in R&D, production, and continuous quality improvement, is well positioned to provide its customers with technology-driven, performance-outstanding products such as VFDs, wind power converters, servo drives, HEV/EV drives, helping its customers save energy and increase industrial productivity with sustainability on the one hand, and enhancing their entire value-chain quality, delivery, and services on the other hand.



- GTAKE VFD VS Other brands
PerformanceCommon brandsGTAKE
Applicable motorsasynchronous motorsasynchronous motors
synchronous motors
Starting torque2.0Hz, 150% (sensor-less vector control)0.5Hz, 180% (sensor-less vector control)
0Hz, 180% (closed-loop vector control)0Hz, 200% (closed-loop vector control)
Speed adjustable range1:100 (SVC), 1:1000 (VC)1:200 (SVC), 1:1000 (VC)
Ambient temperature (no derating required)-10-40ºC-10-50ºC (for most of the models)
Rated input voltage208VAC-400VAC208VAC-480VAC
CommunicationModbus RTU//ASCIIModbus RTU//ASCII
Profibus-DP, CANope, etc.
Position control (fixed length, or angular positioning)X
Field weakening controlX
Autotuneonlineonline
Xoffline
Short-time ramp-uptripno trip
Customized features (software and/or hardware)unprocurable or no experienceprocurable with rich experience

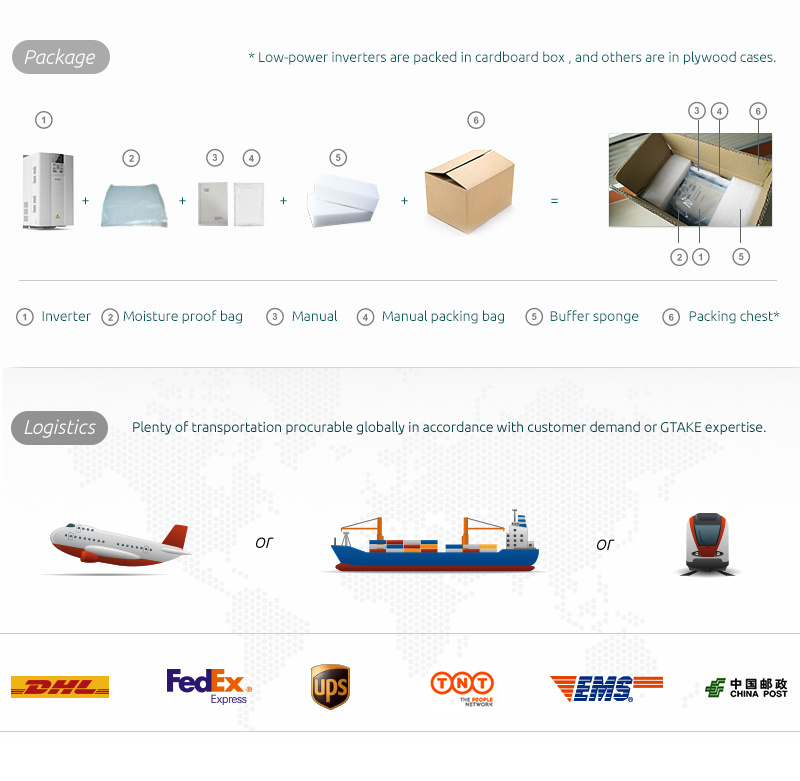

- Packaging and logistics
All drives are well packed before shipment, fit for air shipment, sea transportation, and express delivery. Customers are able to call its own nominated forwarder or consult GTAKE logistics department for worldwide shipment services.
Please leave us an inquiry for more details of our frequency inverters, like information of the model numbers, technical data, applicable application, pricing, distributor policy, lead time and/or customized functionality.

Prod Model: GK600 Series frequency inverter
Certificates: ISO 9001-2008/Ts16949: 2009, Ce, RoHS
IGBT And DSP: Infineon and Taxas Instrument's Latest IGBT & DSP
Starting Torque: 0.5Hz: 180% (V/F Control, SVC1); 0.25Hz: 180% (SVC
Control Technique: V/F, SVC1, SVC2
Input Terminals: Di-7(HDI-1), Ai-3 0~10V, or 0-20mA
Output Terminals: Do-2(Hdo-1), RO-2, Ao-2
Frequency Command Source: Keypad, Terminals, Communication
Speed Regulation Range: 1:100 (V/F Control, SVC1); 1:200 (SVC2)
OEM Service: Available
Distributorship: Still Available in Some Countries
Application: High-performance Transducer
Output Type: Triple
Principle Of Work: V/F Control Transducer
Switch Mode: PWM Control
Main Circuit Type: Voltage
Brand: Gtake
Jiangsu Gtake Electric Co., Ltd. Was established in 2009. Innovation and keeping on innovating is the core value of Gtake. On the basis of our proprietary intellectual property rights, bearing power electronics technology and motor control technology, Gtake is committed to building the best world-class product and technology platform of China with the purpose of serving middle and high-end customers at home and abroad, using industry-leading product and system solutions.

Gtake focuses on the development of such renewable energy products as industrial frequency inverter, servo drive, PV inverter, hybrid vehicle drive, and wind power generation converter, etc.

Gtake will continue to spare no efforts to reinforce the position as a product, technology and market leader and optimize the efficient management, high profitability and other clear competitive advantages as a leading brand to become a standard bearer for national industry. Gtake always contributes efforts to help our customers improve production efficiency, save energy consumption and fulfill social responsibilities.
